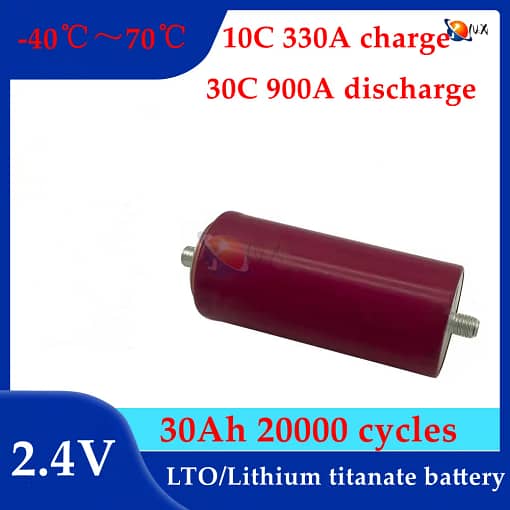

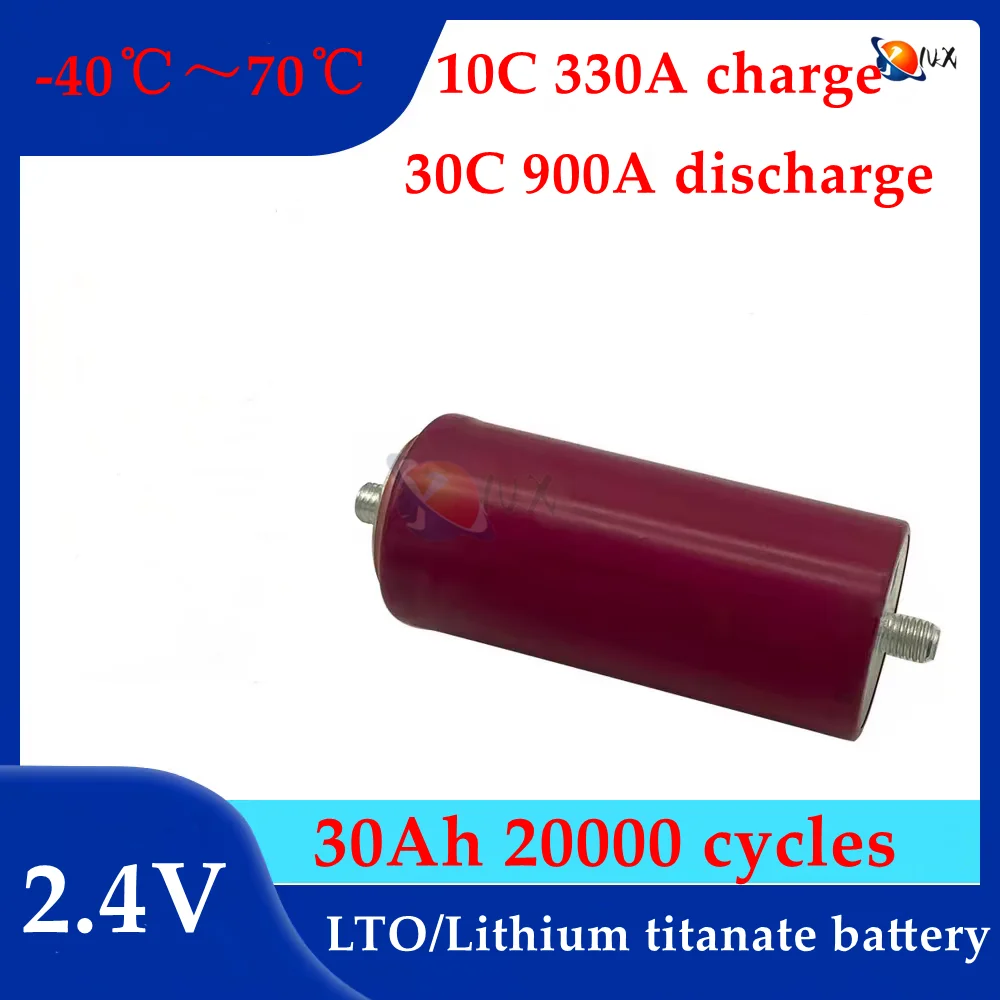

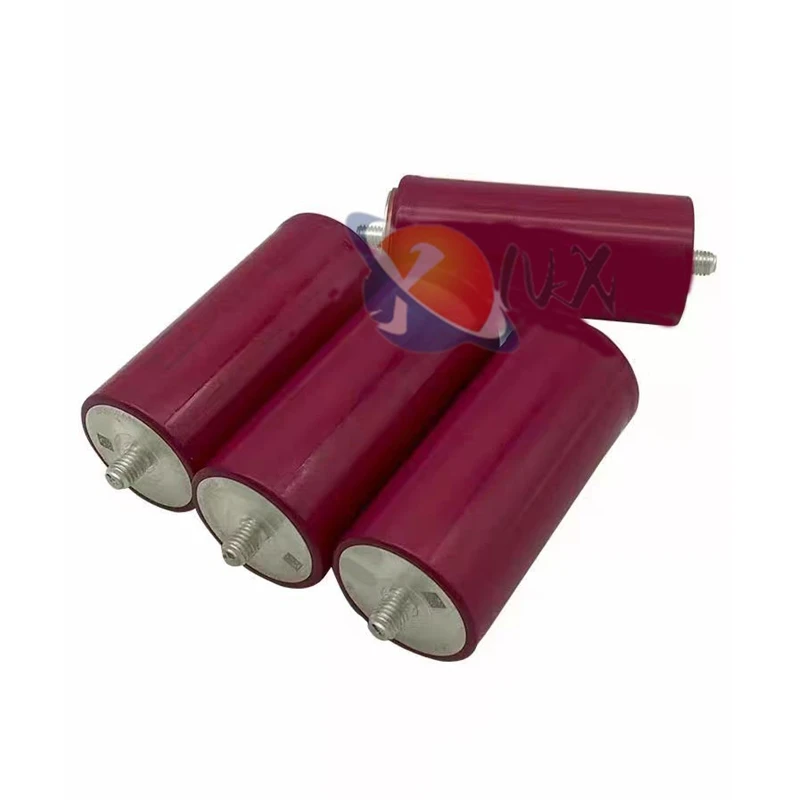

YNX 2.3V 30Ah 60138 lithium titanate lto battery cell 20000 cycles deep cycle Replacement yinlong 66160 35AH 40Ah 45Ah 100Ah

New stock battery, long life 20,000 times, full of low internal resistance,super value

Descriptions :

• Voltage: 2.3V
• Real capacity:30AH
• Recommended charging voltage: 2.80V
• Recommended discharge protection voltage: 1.60V
• Bolt :M12 screws
• Support max fast charging : 6C 180A big current
• Continuous discharge current: 300A (10C)
• Peak discharge current :600A 15C
• Lifetime: 20000 cycles
• Weight: about 850G
• Internal resistance: 1 milliohms Below
• Size (mm): 60 (diameter) x138 (length pole include)

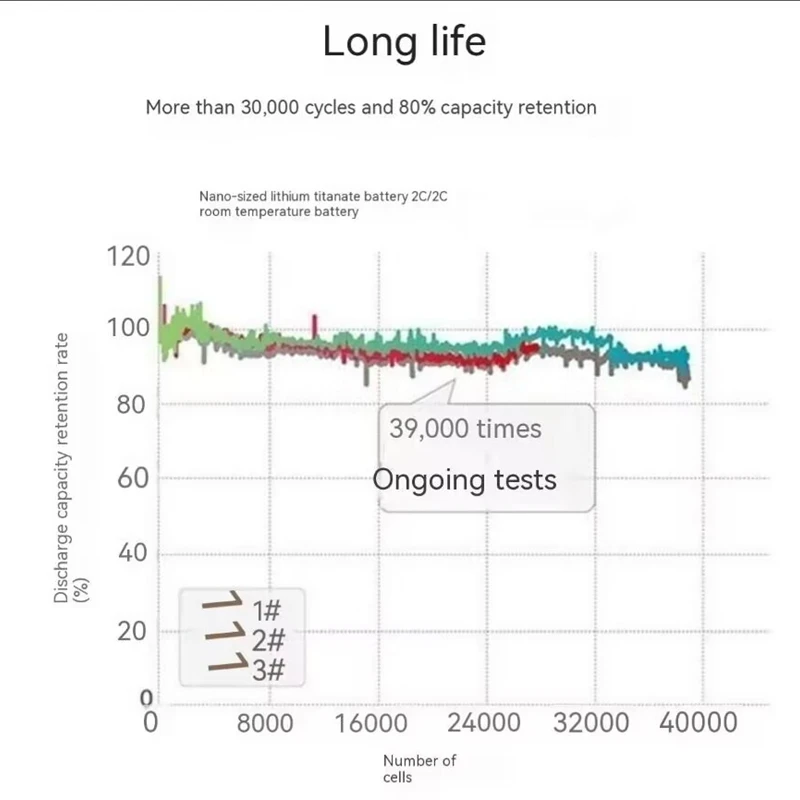

• Cycle life: up to 20,000times(DOD 80%)

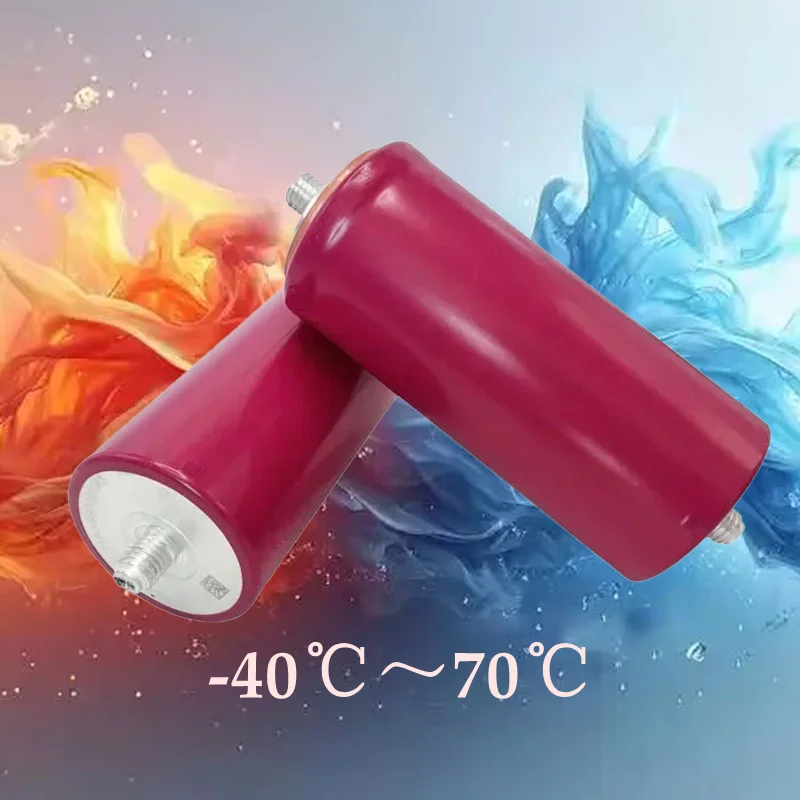

• Working temperature: -50— 60℃

Characteristics of lithium titanate batteries:

• High power charge and discharge capability: fast charge only takes 6 minutes.
• Very long cycle life: 10 times as many as traditional lithium ion batteries.
• Low temperature charging and discharging performance is excellent: low temperature, -30 temperature, good condition.

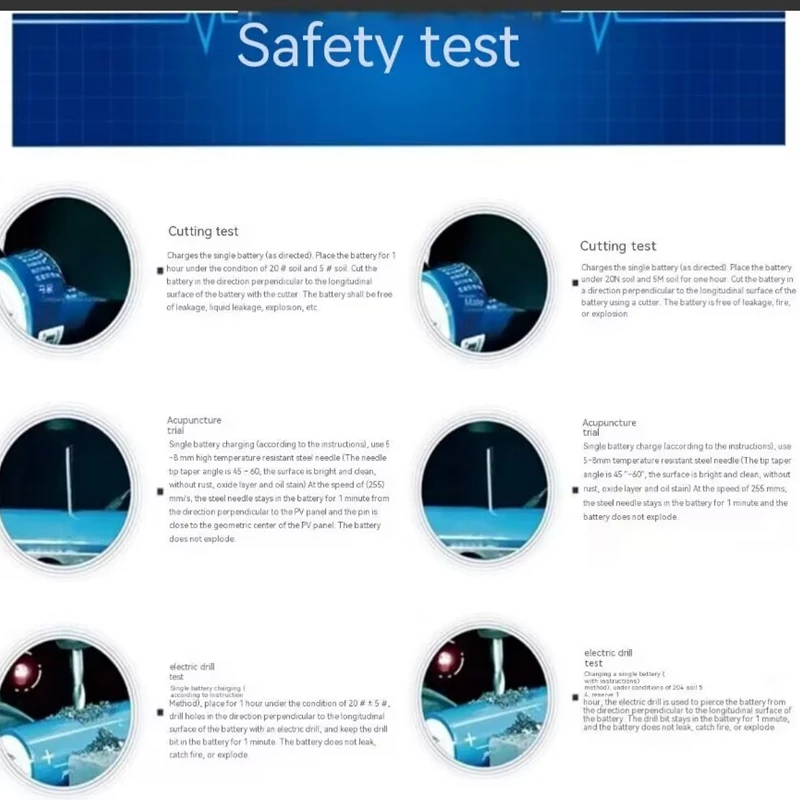

• Good safety performance. The lithium titanate negative electrode has almost no SEI film, thus avoiding overheating of the battery and causing a fire.

Composed:

• Positive pole: lithium iron phosphate, lithium manganate or three yuan material, nickel lithium manganate.
• Negative pole: lithium titanate material.
• Diaphragm: a lithium battery separator that uses carbon as a negative electrode.
• Electrolyte: a lithium battery electrolyte with carbon as negative electrode.
• Battery shell: a lithium battery shell with carbon as negative electrode.

Advantages of lithium titanate battery:

Using electric vehicles to replace the fuel vehicle is the best choice to solve the environmental pollution in the city, including lithium ion batteries have attracted widespread attention of researchers. In order to meet the requirements of on-board lithium-ion power battery for electric vehicle development, high safety, good rate capability and long service life of anode materials is the hot spot and the difficulty.
