YAGI Gamma Antenna 5 / 3 Elements UHF 70cm 430-450Mhz Amateur Tunable SO239 Mobile Radio Repeater Base Station Foldable Antennas – 509

Product Description

Electrical specifications:

•  Frequency range: 350-500Mhz (Tuning
• module before shipping on the 430-450Mhz)
• Impedance: 50Ω
• VSWR: <1.5
• Gain: 11dBi / 9dBi
• Polarization: vertical
• Horizontal 3dB beam width: 45°
• Vertical 3dB beam width:  40°
• Front to back ratio: >9dB
• Lighting protection: direct ground
• Connector: N-female / SL259.female SO239
• Maximum power input: 150W

Mechanical specifications:

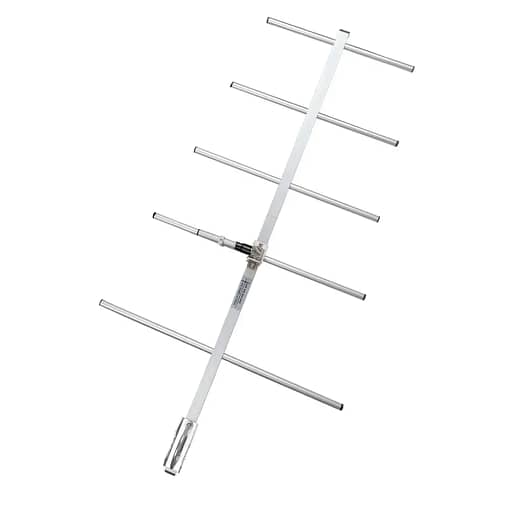

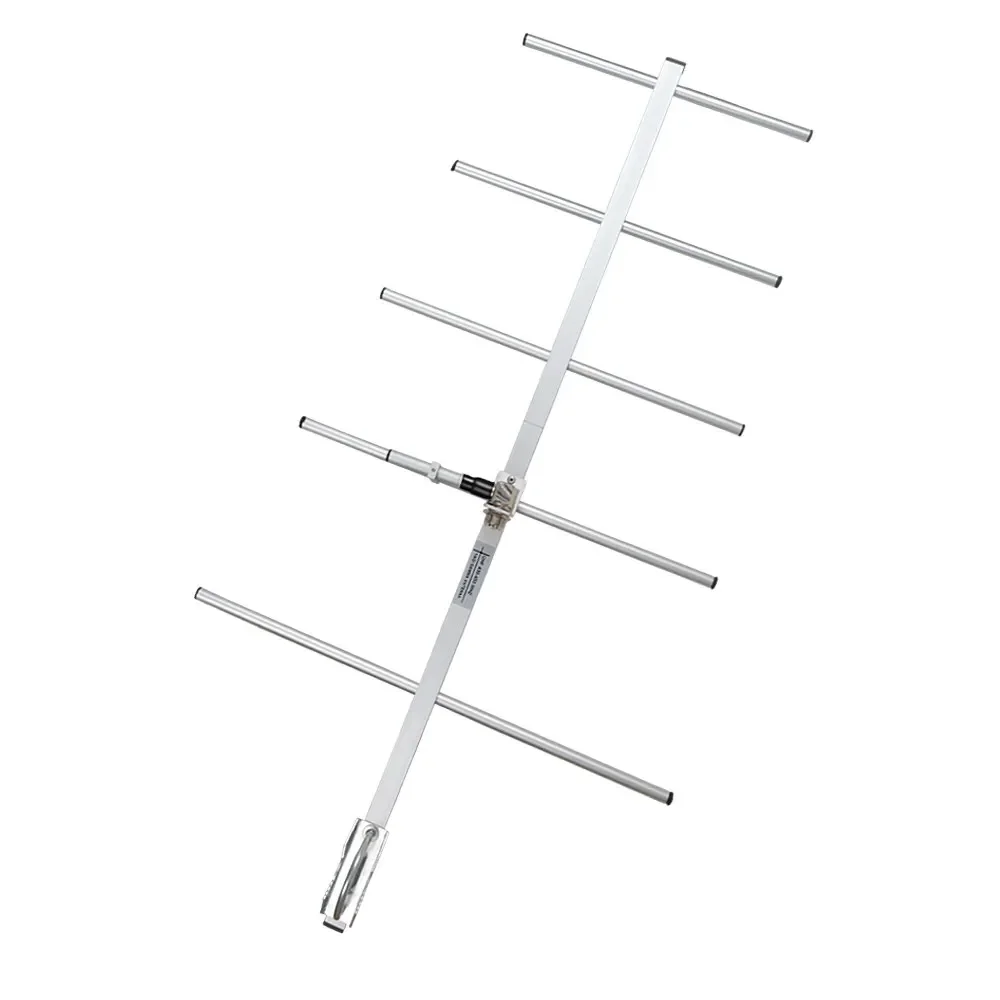

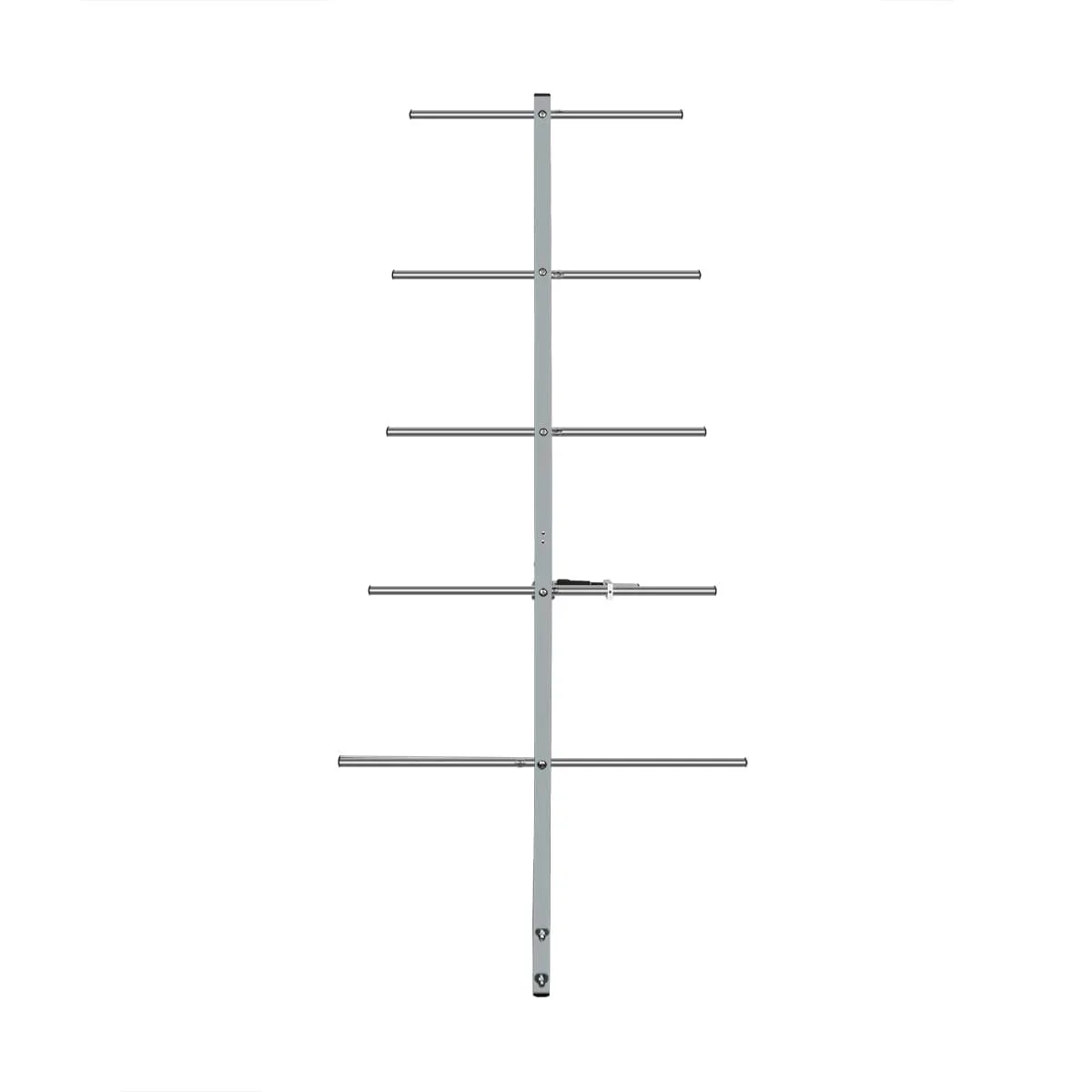

• Number of Elements=5
• Forward Gain (dBd) =11
• S.W.R=1.2:1
• Typical Bandwidth (MHz) =2.1
• Boom Length=395mm+300mm
• Antenna Dimension: Length of Main Pole: 70cm, Length of Max. Elements: 38cm
• Net Weight: 0.315kg

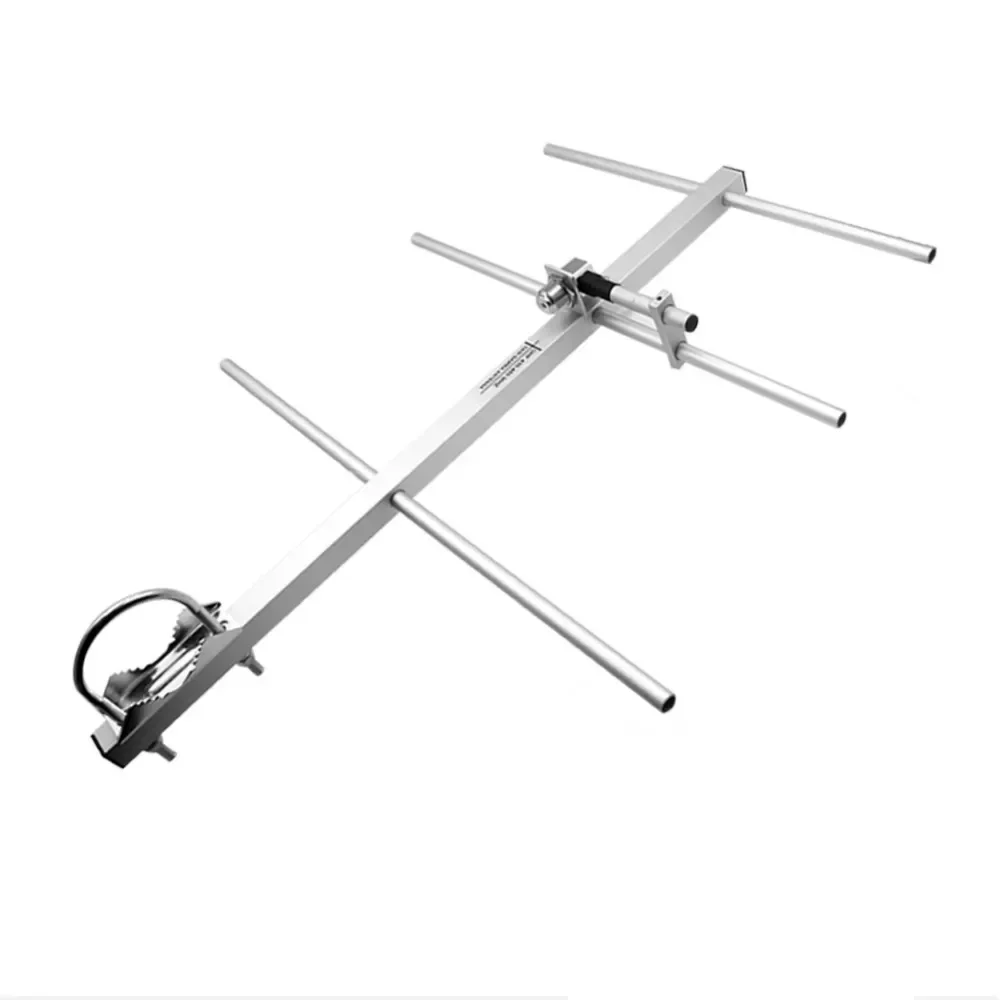

• Number of Elements=3
• Forward Gain (dBd) =9
• S.W.R=1.2:1
• Typical Bandwidth (MHz) =2.1
• Boom Length=395mm
• Antenna Dimension: Length of Main Pole: 70cm, Length of Max. Elements: 38cm
• Net Weight: 0.275kg
