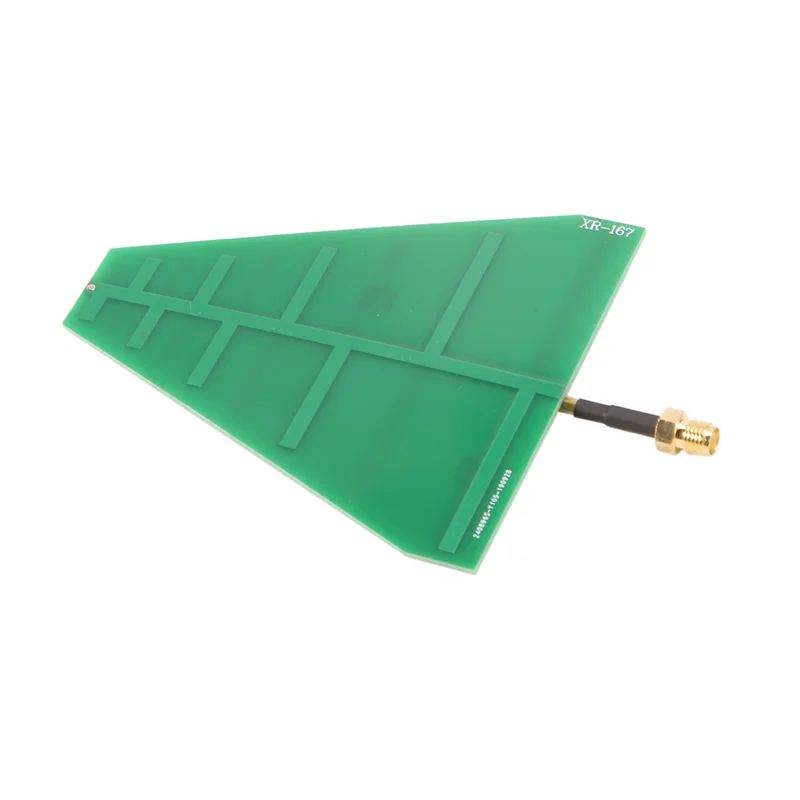

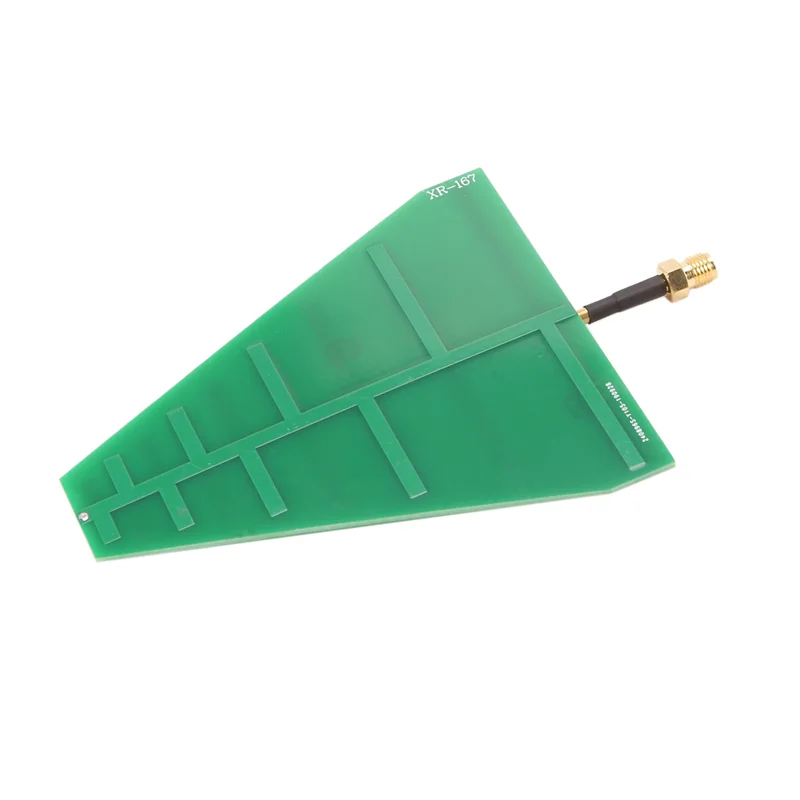

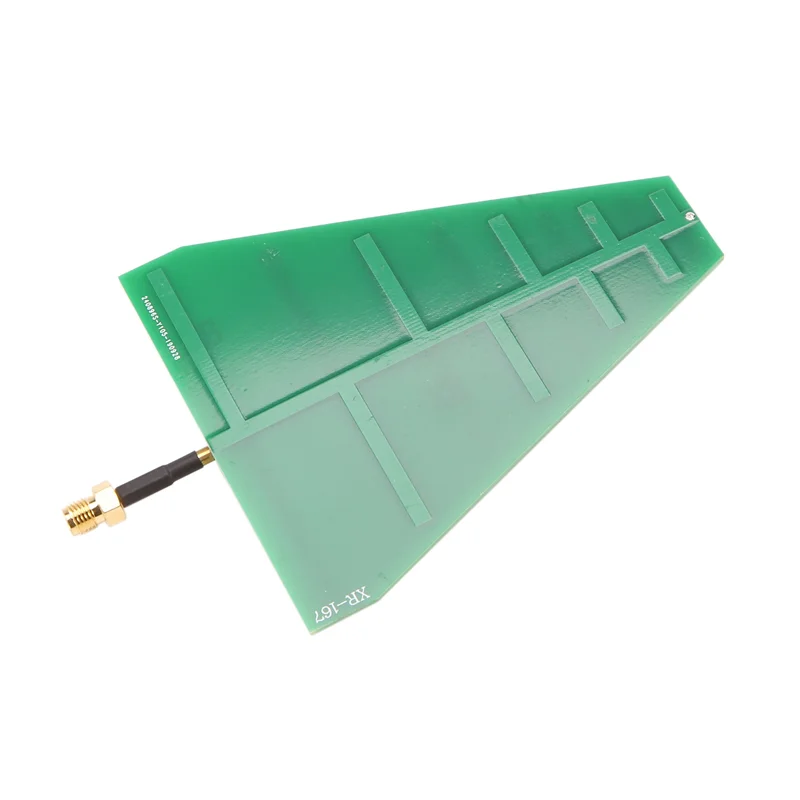

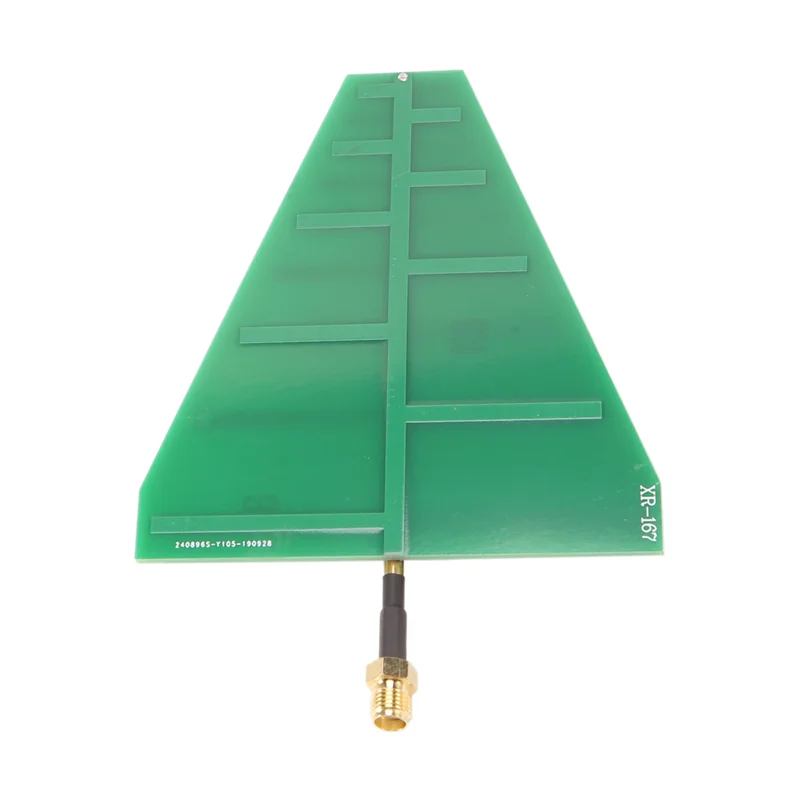

UWB Ultra Wideband Log Periodic Antenna 1.35GHz-9.5GHz – 509

1. Antenna frequency: 1.35–9.5GHz

2. Antenna standing wave: less than 2.5 (typical value)

3. Antenna polarization: directional linear polarization

4. Antenna gain: 5–6dB

5. Power capacity: 15W

PCB size: 100*80MM does not include binding posts (including connector length 125MM)

Interface type: SMA inner hole male screw

Material: ABS

colour: As shown

Package Contents:

1 x Antenna

Only the above package content, other products are not included.

Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
