Ulefone Armor Mini 20T Pro 5G Rugged Phone LED Light 4.7″ 8GB 256GB 6200mAh 33W Fast Charge Smartphone Android 14 Cell phone

Ulefone Armor Mini 20T Pro Specifications

Physical Characteristics

Color

Black

Material

PC

USB

Type-C, USB 2.0

Headphone Jack

3.5mm Headphone Jack

Expansion Connector

N/A

Card Slots

2, 1x Nano-SIM + 1x Nano-SIM/microSD

Keys

Right: Power button(Fingerprint)+Volume button, Left: Custom Key

Size & Weight

Product Size

133.5 x 63.3 x 24.9 mm

Product Weight

301g/10.6 ounces

Package Size

99 x 198 x 77.5 mm

Product size and weight may vary by configuration, manufacturing process and measurements.All specifications are subject to the actual product.

Ruggedness

Certification

IP68/IP69K/MIL-STD-810H

Splash, Water, and Dust Resistant

Maximum depth of 20m up to 30 minutes

Drop resistance

Up to 10m tall

Working Temperature

-20℃ – 55 ℃(-22℉ – 131℉)

Display

Screen Size

4.7-inch

Screen Resolution

720 x 1600 HD+

Aspect Ratio

20:9

PPI

373

Color Depth

8bit, 16.7M

Refresh Rate

90Hz

Screen-to-Body Ratio

79%

Multi-touch

5

Processor

CPU Model

MediaTek Dimensity 6300

Main frequency

2.4GHz

CPU Core

8, 2 x Arm Cortex-A76, 6 x Arm Cortex-A55

GPU

Arm Mali-G57 MC2 1.0GHz

RAM & Storage

RAM

16GB=8GB LPDDR4X + 8GB virtual RAM (The virtual RAM can be activated in Settings at your will. )

ROM

256GB UFS2.2

Max. Expansion Supported

2TB

Rear Camera

Rear Camera Numbers

1

Main Rear Camera

Pixel: 50MP

Details: Samsung GN1 CMOS sensor, 1.2μm, 7 piece lens, FOV 85°, ƒ/1.95 large aperture

Flash

2

Video Recording Resolution

2K@30fps, FHD@30fps, HD@30fps, VGA@30fps

Special Features

Normal mode, Film mode, 50MP mode, Night mode, Document correction, GroupPhoto, AI Emoji, Gif, Portrait, Sports, Pro mode, Panorama, Slow motion, Time lapse, Intelligent acanning

Front Camera

Pixel

32MP

Details

Details: Samsung GD1 CMOS sensor, 0.8μm, 5 piece lens, FOV 80.4°, ƒ/2.45 large aperture

Video Recording Resolution

2K(30fps), FHD(30fps), HD(30fps), VGA(30fps)

Special Features

Normal mode, Film mode, GroupPhoto, AI Emoji, Gif, Portrait

Battery & Charging

Capacity

6200mAh

Watt Hours Per Battery

23.994 Wh

Battery Type

Li-ion Sub-zero Solid-State Battery

Charging Details

33W, 11V3A

Wireless Charge

Support, 15W, Ulefone private protocol

Reverse Charge

Wireless Reverse Charging, 5W

Standby Time

336 Hours

Talk Time

34 Hours

Network & Connectivity

Card Type

Nano+Nano/microSD

Cellular

5G/4G/3G/2G

*Not compatible with AT&T, Cricket, Sprint,Verizon, Boost Mobile, Koodo, Telus Wireless, Fido*Some network carriers have not been displayed because their 5G networks are not yet in mass commercial use. If you have participated in this carrier’s testing program, please check with the carrier about the 5G frequencies they use, so that you can check whether Armor Mini 20 Pro bably 5G supports their network.

Band Details

5G: 5G NR Sub6: N1/2/3/5/7/8/20/25/28/38/40/41/66/71/77/78/79

4G: FDD-LTE: B1/2/3/4/5/7/8/12/13/17/18/19/20/25/

26/28A/28B/66/71

TDD-LTE: B32/B34/38/39/40/41

3G: WCDMA: B1/2/4/5/6/8/19

2G: GSM: B2/3/5/8 CDMA: BC0/BC1/BC10

Standby Mode

Dual sim dual standby

VoNR

Support

VoLTE

Support

WiFi

2.4G/5G, 802.11 a/ac/b/g/n

Bluetooth Version

BT5.2

Navigation

GPS/GLONASS/Beidou/Galileo/QZSS

Audio

Speaker Numbers

1

Speaker Model

1326 BOX

Speaker Power

Max 1.5W

Smart PA

AW88394

Versatile LED Light

LED Beads

130 Pieces (102 white light beads,14 blue light beads, 14 red light beads)

Brightness

Max 500 lumens

Light Power

Max 5W

Shortcut Key

Support, Custom Key

APP

Camping Light

Modes

Lighting, adjustable brightness settings; duration settings of 5-30mins.

Sharp Light, duration settings of 5-30mins.

SOS

Safety Protection

Support

Warning Light

APP

RedBluePoliceLight

Simulated Light Effect

Red Light, Blue Light, Red-Blue Light

Simulated Warning Sound

Fire, Ambulance, Police Car, and other first responding warning sound

Lighting Modes

2, Constant or Blink

Security

Fingerprint ID

Support

Face Unlock

Support

System & Features

Android Version

Android 14

Language

Indonesian, Malay, Catalan, Czech, Danish, German, Estonian, English, Spanish, Filipino, French, Croatian, Italian, Latvian, Lithuanian, Hungarian, Dutch, Norwegian, Polish, Portuguese, Romanian, Slovak, Finnish, Swedish, Vietnamese, Greek, Turkish, Bulgarian, Russian, Serb, Ukrainian, Armenian, Hebrew, Urdu, Arabic, Persian, Hindi, Bengali,  Thai, Korean, Burmese, Japanese, Simplified Chinese, Traditional Chinese

Blinking Notification Light

Support, red/green/blue light

Battery Status Light

Support

Audio Format Supported

MID/FLAC/MKA/MP3/M4A/AAC/AMR/OGG/MP2

Video Format Supported

MOV/MKV/3GP/MP4

Image Format Supported

GIF/JPEG/PNG/BMP

Text Format Supported

TXT/HTML

FM Radio

Support,headset-free FM radio

Cell Broadcast

Support

Sensor

Proximity Sensor, Gravity sensor, Light Sensor, Acceleration Sensor, Geomagnetic sensor, Gyro sensor, Coulomb counter, Pedometer, Air pressure sensor, Thermal Sensor, Infrared sensor

Special Features

Underwater Camera

Support

Gloves Mode

Support

Digital Toolbox

Height Meter, Compass, Gradienter, Flashlight, Hanging Painting, Magnifier,         Alarm bell, Plumb bob, Protractor, Noise Test, Pedometer, Barometer, Funny Sound

OTG Function

Support Reverse Charging

NFC

Support

IR Blaster

Support

Others

Packing List

1 x Phone

1 x AC Power Charger, 33W

1 x Type-C to Type-C Data Cable (100cm)

1 x Protective Film (Pre-installed)

1 x SIM Needle

1 x Lanyard

1 x Multi-language User Manual

1 x Multi Function Instruction Card

1 x Warranty Card

1 x Charging Instruction Card

1 x Safety Prompt Card

1 x Accessories Ecosystem Brochure

1 x Service Center APP Instructions

1 x Thermal Imaging User Manual

Product Certification

CE, IP68, IP69K, MIL-STD-810H, WEEE, ROHS.TAC, UN38.3,MSDS, IEC62133

2: If you have any questions about the plug of the charger, please contact customer services in advance. Please note that the plug of the charger is not within the scope of After-Sales services.

1 Please choose EU plug or US plug when placing an order. ( * No other plug specification are available)

About Power charger

Mighty SoC with a large 16GB of RAM makes it handle multi-application with ease. Coupled with up to 256GB of ROM, with supports for 2TB expandable storage, without struggling with congested space.

No Struggling with Space Clearance

16GB RAM = 8GB +8GB Virtual RAM

Up to 16GB RAM + 256GB ROM

The powerhouse 6nm chipset, MediaTek Dimensity 6300, combines an 8-core CPU to deliver high-speed performance for multitasking. With 5G connectivity, you are access to seamless streaming, calling, and web browsing, all while maintaining power efficiency.

Hyper Engine, Hyper Speed

MediaTek Dimensity 6300 5G SoC

*Not compatible with AT&T, Cricket, Sprint,Verizon, Boost Mobile, Koodo, Telus Wireless, Fido*Some network carriers have not been displayed because their 5G networks are not yet in mass commercial use. If you have participated in this carrier’s testing program, please check with the carrier about the 5G frequencies they use, so that you can check whether Armor Mini 20 Pro bably 5G supports their network.

Get expanded 5G band coverage and reliable lightning-fast for downloading and streaming videos, no congestion and more power efficiency. And Armor Mini 20T Pro can serve you 5G mobile hotspot for other devices, portable WiFi is right where you want it.

Access 5G Mobile WiFi

High-speed 5G Network

Boost your photography and videography with the powerful LED array built in Armor Mini 20T Pro.

Every Shot Is Brilliantly Lit

LED Fill Light LED

Tipped with a Samsung’s ISOCELL GN1 sensor, the 50MP rear camera captures stunning clear pictures with a 1.2μm pixel size, and a ƒ/1.95 aperture. Details burst off the images even enlarge it. Enhanced with the advanced photography modes, each shot is a masterpiece.

Enlargement Is Still Clear

50MP Main Camera

Featuring simulated red light, blue light, and red-blue warning light, the LED light can warn for fire, first-aid, law enforcement services, and other first-responding needs, along with the warning sound. It allows for always-on and flicker two light modes.

Portable Safety Tool

Emergency Warning Light

The polygon LED light surrounding the camera modules adds ornaments and practical lighting solutions. With 130 LEDs and a 500 lumens max brightness, it offers different modes with infinite brightness adjustment; and a physical button for one-key lighting; ideal for fill light or any situation where a reliable and portable light source is required.

Infinitely Variable Control

Versatile LED Light

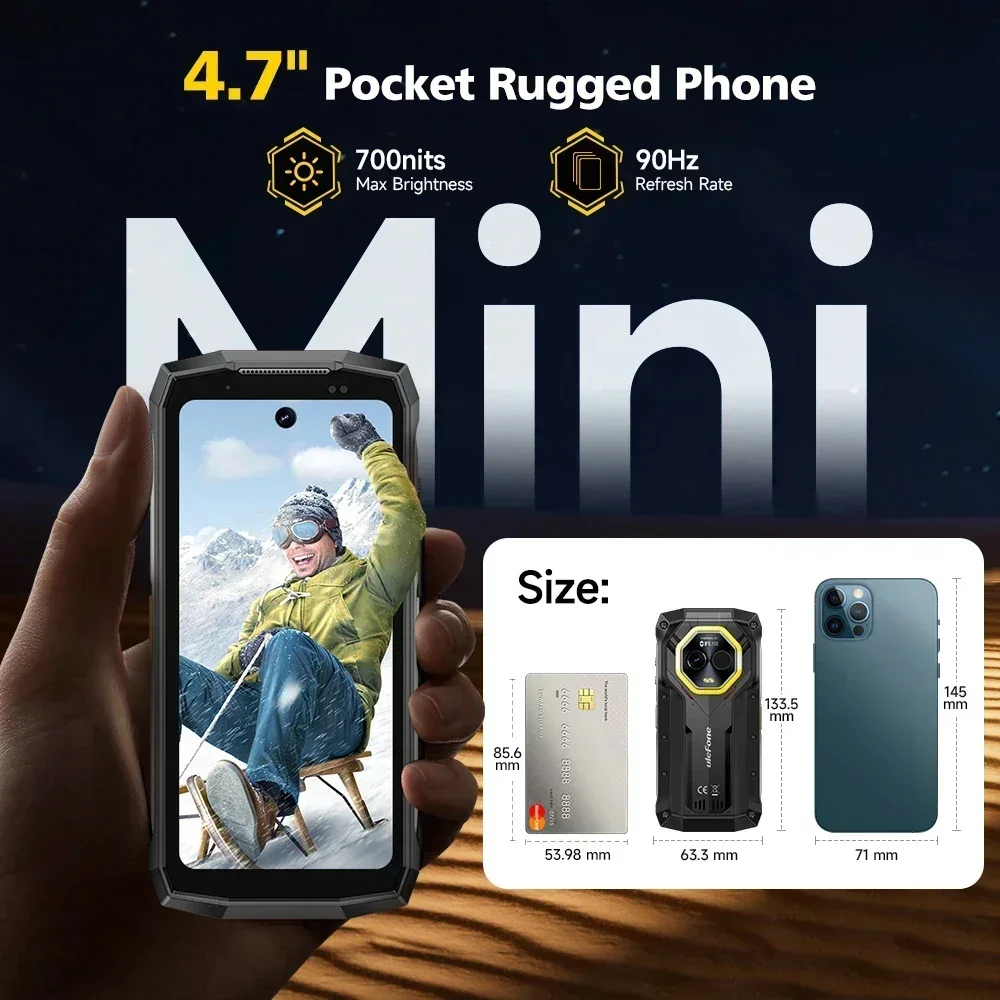

Armor Mini 20T Pro boasts a compact 4.7-inch display with a 720 x 1600 resolution and a pixel density of 373 PPI, delivering sharp and vibrant visuals. It also features a 700 nits max brightness for excellent visibility in outdoor sunlight and a 90Hz refresh rate for smoother visuals.

Vibrant Clarity, Fluid Motion

All in 4.7″ Display

As wide as a credit card and light in weight, the mini body snugly fits in the hand. Effortlessly take it with you in your pockets, or bags.

Almost Equal to A Credit Card

Handy and portable with a palm size, ready to accompany you on the go, offering convenient one-handed operation at your fingertips. The all-new mecha profile states a fusion of strength and technology, stepping into the realm of tomorrow.

Compact Mecha Conqueror

Single-handed Operation

Versatile LED Light Emergency warning Light

Emergency warning Light (Blue light,Red light,Constant,Blink)

MediaTek Dimensity 6300 ,2.4GHz ,8, 2 x Arm Cortex-A76, 6 x Arm Cortex-A55

Up to 16GBRAM(8+8GB virtual) ,256GB ROM

Android 14,NFC,IR Blaster,Underwater Camera, Gloves Mode

50MP Camara ,1/1.31″ Ultra-large Sensor

Details: Samsung GN1 CMOS sensor, 1.2μm, 7 piece lens, FOV 85°, ƒ/1.95 large aperture

6200mAh Large Battery,33W Fast Charging, 15W Wireless Charging

Dual 5G standby

5G/4G/3G/2G

*Not compatible with AT&T, Cricket, Sprint,Verizon, Boost Mobile, Koodo, Telus Wireless, Fido

*Some network carriers have not been displayed because their 5G networks are not yet in mass commercial use. If you have participated in this carrier’s testing program, please check with the carrier about the 5G frequencies they use, so that you can check whether Armor Mini 20T Probably 5G supports their network.

     5G: 5G NR Sub6: N1/2/3/5/7/8/20/25/28/38/40/41/66/71/77/78/79

     4G: FDD-LTE: B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28A/28B/66/71

TDD-LTE: B32/B34/38/39/40/41

     3G: WCDMA: B1/2/4/5/6/8/19

     2G: GSM: B2/3/5/8 CDMA: BC0/BC1/BC10
