Ulefone Armor 24 Rugged Phone 22000mAh Up to 24GB+ 256GB 6.78″120Hz Smartphone 64MP+64MP NFC Phone LED Light Global Version – 509

Armor 24 Specifications

647g (phone)

Built-in LED Light

22000mAh Mega Battery

6.78″ FHD+ 120Hz 1080 x 2460 FHD+

MediaTek Helio G96

24GB RAM =12GB +12GB virtual RAM

(The virtual RAM can be activated in Settings at your will. )

256GB ROM

64MP Main Rear Camera

64MP Night Vision Camera

Details: SONY IMX686 CMOS sensor, 0.8μm, 6 piece lens, FOV 79.8°, ƒ/1.89 large aperture

Details: OV64B CMOS sensor, FOV 79.8°, ƒ/1.79 large aperture

Running Updated Android 13

NFC + Google Pay, IR Blaster Support

4G/3G/2G（Not compatible with AT&T, Cricket, Sprint,Verizon, Boost Mobile）

Packing List

4G: FDD-LTE: B1/2/3/4/5/7/8/12/17/19/20/28A/28B/66

TDD-LTE: B34/38/39/40/41

3G: WCDMA: B1/2/4/5/8

2G: GSM: B2/3/5/8

1x Phone

1x AC Power Charger( EU Plug)

1x Data Cable (100cm)

1x Protective Film (Pre-installed)

1x SIM Needle

1x Lanyard

1x Multi-language User Manual

1x Multi Function Instruction Card

1x Warranty Card

1x Charging Instruction Card

1x Safety Prompt Card

1x Acessories Ecosystem Brochure

Built-in LED Light on the Back

Back You through the Dark

Armor 24 is inset with a LED light with unrivaled intensity and brightness of max 1000 lumens on the rear side, which is powered by an ultra 22000mAh battery for extended battery life. With up to 510 pieces lighting beads and up to 6 watts power, the LED light can project a beam over a significant distance, and energy-efficient to use. In wet or harsh environments, the light is highly resistant to water and rugged to withstand rough handling.

22000mAh Ultra Capacity

7 Days Nonstop Powerhouse

With unprecedented capacity of 22000mAh, Armor 24 redefines what it means to stay connected, explore, and conquer the great outdoors. Stay powered up for 7 days without bother of constantly searching for charging points or running out of battery during outdoor adventures. Even in challenging environments, it offers you peace of mind.

66W Fast Charging

One Week Standby for 10 mins Charge

66W rapid charge technology takes only 130 minutes to reach a full charging.

Power Bank Functionality

Max 10W Reverse Charging, 2 Times Faster

It turns into a power bank to charge other devices such as iPhone, tablets, smartwatches, or Bluetooth headphones on the go, which is extremely useful in situations where you need to charge multiple devices simultaneously or help others who are running low on battery. Besides, the large battery capacity can serve as an emergency power backup during critical situations or emergencies.

*Armor 24 is splash, water, and dust resistant and was tested under controlled laboratory conditions with a rating of IP68 under IEC standard 60529 (maximum depth of 1.5 meters up to 30 minutes). Charger and accessories are not water-resistant. Splash, water and dust resistance are not permanent and might decrease as a result of normal wear. Do not attempt to charge a wet Armor 24. Liquid damage not covered under warranty.

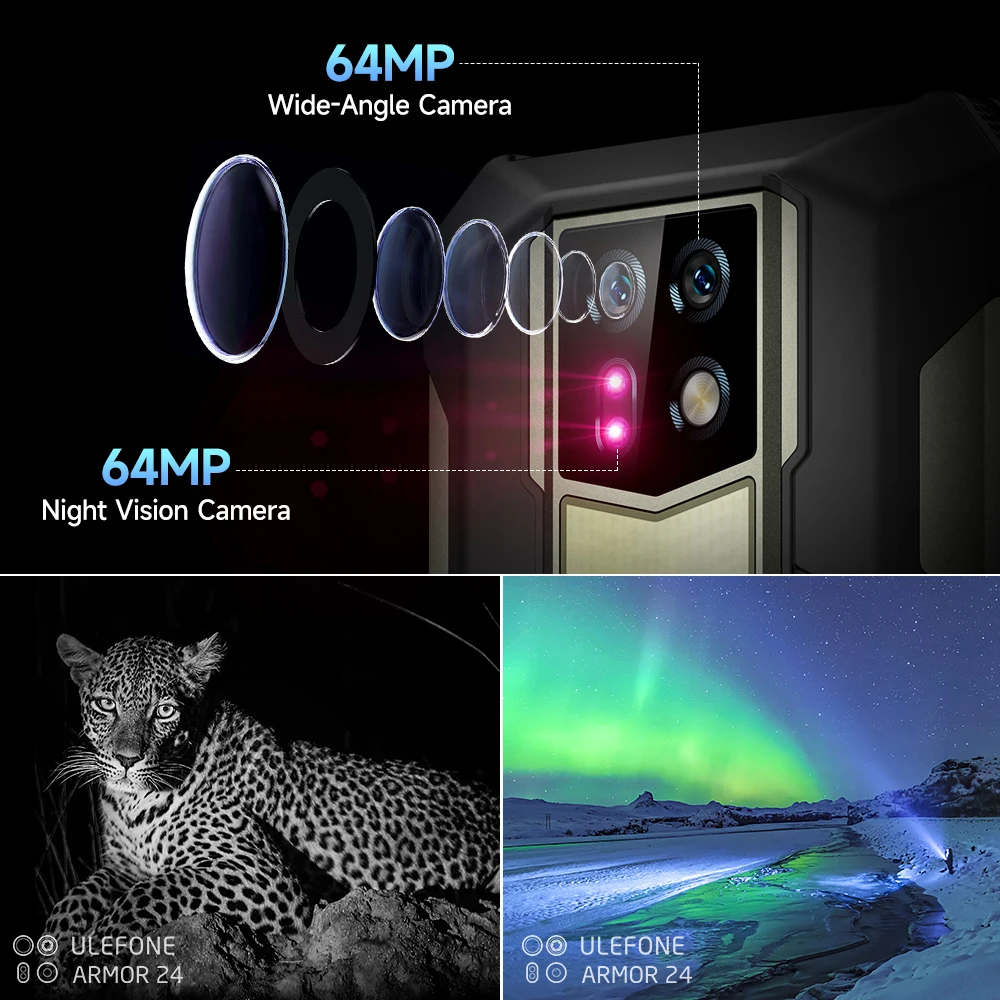

64MP Night Vision Camera

NightElf Ultra 2.0 Algorithm

Visuals penetrate darkness through powerful IR sensor. The night vision lens has an industry-leading mega pixels 64MP, along with advanced Ulefone NightElf Ultra 2.0 algorithm and less interference. In low light or totally dark environment, you are still able to capture very clear and detailed images, bringing you into great scenes of night shooting, wildlife observation, and helping a lot in field rescue and pinhole camera detection.

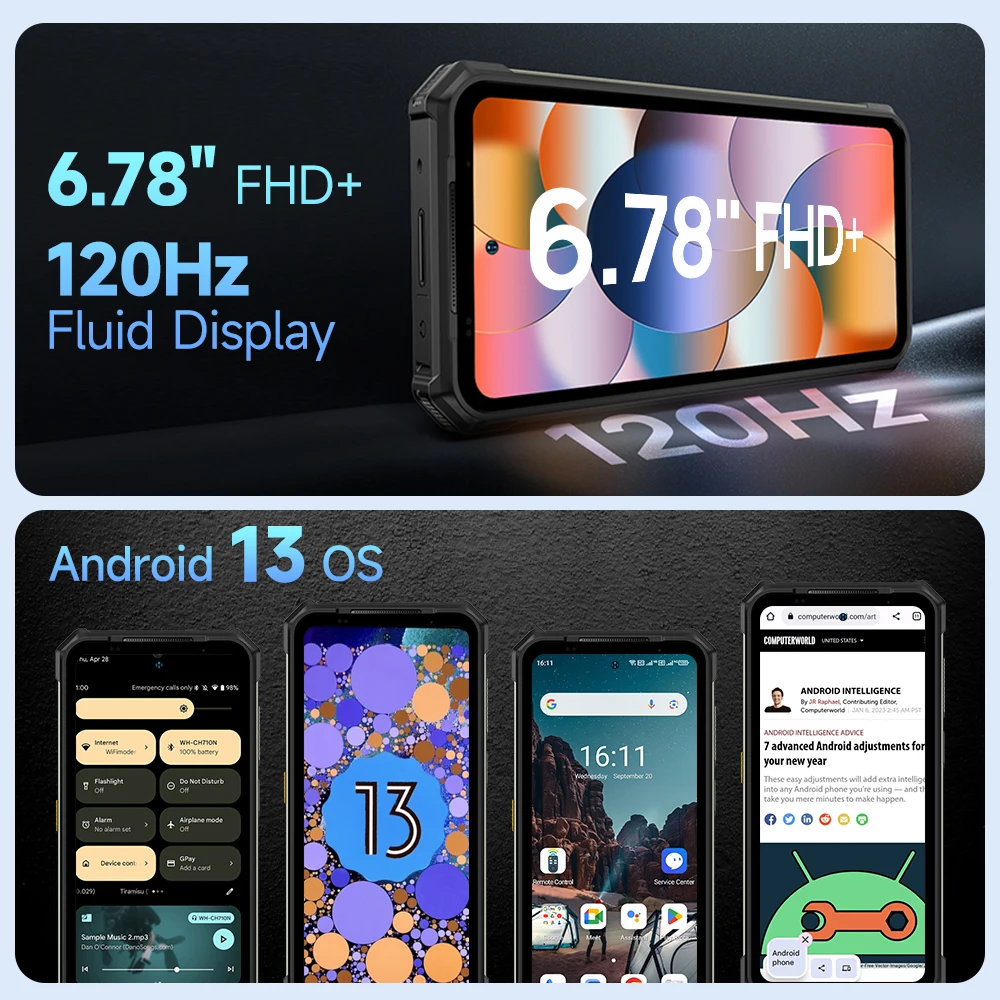

6.78″ FHD+ 120HzDisplay

Corning® Gorilla® Glass 5

Armor 24 boasts a super large 6.78-inch FHD+ display with broader vision, delivering sharper and much more detailed images. 120Hz high refresh rate combined with 240Hz touch sampling rate result in fluid motion and ultra responsive gaming. Corning® Gorilla® Glass 5 backs the rugged screen against scratches, shocks.

* Accessories need to be purchased separately

Up to 24GB RAM, 256GB ROM

24GB RAM =12GB RAM + 12GB Virtual RAM

With up to 24GB of RAM, together with 256GB of internal storage, Armor 24 provides the flexibility, convenience, and performance necessary to handle intensive multitasking, store media files, play games fluidly and ensure a smooth user experience.

Featuring Universal Remote Control

Armor 24 with Infrared blaster can be used to control various devices such as televisions, air conditioners, with compatible apps. Easy to manage your home entertainment devices without trouble of multiple remote controls.

Expanded Global 4G Networks

4G Global Network:

GSM: B2/3/5/8

WCDMA: B1/2/4/5/8

LTE-FDD: B1/2/3/4/5/7/8/12/17/19/20/28A/28B/66

LTE-TDD: B34/38/39/40/41

（Not compatible with AT&T, Cricket, Sprint,Verizon, Boost Mobile）

About Power charger

1： We will ship European plug by default.

2： If you have any questions about the plug of the charger, please contact customer services in advance. Please note that the plug of the charger is not within the scope of After-Sales services.

*Gifts/premiums are not covered by the warranty and will not be compensated if they are damaged.

The specific gift is subject to the actual sales of the product.

* Product size and weight may vary by configuration, manufacturing process and measurements. All specifications are subject to the actual product.

Armor 24 Specifications

Physical Characteristics

Color

Black

Material

PC

USB

Type-C, USB 2.0

Headphone Jack

3.5mm

Card Slots

3, 1x Nano-SIM + 1x Nano-SIM + 1x microSD

Size & Weight

Product Size

181.2*87*27.5 mm

Product Weight

647g (phone)

Package Size

103.5*197.5*64.5 mm

Product size and weight may vary by configuration, manufacturing process and measurements. All specifications are subject to the actual product.

Ruggedness

Certification

IP68/IP69K/MIL-STD-810H

Working Temperature

-20℃ – 55 ℃ (-4℉ – 131℉)

Display

Screen Size

6.78-inch (*6.78 inches is the diagonal length of the display when the four rounded corners are taken to be pointed corners, the actual viewable area is slightly smaller.)

Screen Resolution

1080 x 2460 FHD+

Aspect Ratio

20.5:9

PPI

396

Color Depth

8bit, 16.7M

Refresh Rate

120Hz

Screen-to-Body Ratio

84%

Multi-touch

10

Processor

CPU Model

MediaTek Helio G96

Main frequency

2.05GHz

CPU Core

8, 2 x Arm Cortex-A55, 6 x Arm Cortex-A76

GPU

Arm Mali-G57 MC2 1.0GHz

RAM & Storage

RAM

24GB RAM=12GB +12GB (The virtual RAM can be activated in Settings at your will. )

ROM

256GB

Max. Expansion Supported

2TB

Rear Camera

Rear Camera Numbers

2

Main Rear Camera

Pixel: 64MP

Details: SONY IMX686 CMOS sensor, 0.8μm, 6 piece lens, FOV 79.8°, ƒ/1.89 large aperture

Night Vision Camera

Pixel: 64MP

Details: OV64B CMOS sensor, FOV 79.8°, ƒ/1.79 large aperture

Flash

1

Video Recording Resolution

2K@30fps, 1080P@30fps, 720P@30fps, 480P@30fps

Special Features

Normal mode, Night Vision Mode, Film Mode, 64MP Mode, Night Mode, Gif, Portrait, Pro Mode, Panorama, Slow Motion, Time Lapse, Intelligent Scanning

Front Camera

Pixel

16MP

Details

S5K3P8 sensor, 1.0μm, 6 piece lens, FOV 76.3°, ƒ/2.2 large aperture

Video Recording Resolution

1080P@30fps, 720P@30fps, 480P@30fps

Special Features

Normal mode, Film, Gif, Portrait

Battery & Charging

Capacity

22000mAh

Watt Hours Per Battery

85.14 Wh

Battery Type

Li-polymer battery

Charging Details

66W, 11V/6A

Standby Time

1300 Hours

Talk Time

100 Hours

Network & Connectivity

Card Type

Nano+Nano+microSD

Cellular

4G/3G/2G（Not compatible with AT&T, Cricket, Sprint,Verizon, Boost Mobile）

4G: FDD-LTE: B1/2/3/4/5/7/8/12/17/19/20/28A/28B/66

TDD-LTE: B34/38/39/40/41

3G: WCDMA: B1/2/4/5/8

2G: GSM: B2/3/5/8

Standby Mode

Dual sim dual standby

VoLTE

Support

WiFi

2.4G/5G, 802.11 a/ac/b/g/n

Bluetooth Version

BT5.2

Navigation

GPS/GLONASS/Beidou/Galileo

Audio

Speaker Numbers

1

Speaker Model

1326 Box

Smart PA

AW88394

Security

Fingerprint ID

Support

Face Unlock

Support

System & Features

Android Version

Android 13

Language

Indonesian, Malay, Catalan, Czech, Danish, German, Estonian, English, Spanish, Filipino, French, Croatian, Italian, Latvian, Lithuanian, Hungarian, Dutch, Norwegian, Polish, Portuguese, Romanian, Slovak, Finnish, Swedish, Vietnamese, Greek, Turkish, Bulgarian, Russian, Serb, Ukrainian, Armenian, Hebrew, Urdu, Arabic, Persian, Hindi, Bengali, Thai, Korean, Burmese, Japanese, Simplified Chinese, Traditional Chinese

Blinking Notification Light

Support, red/green/blue light

Battery Status Light

Support

Audio Format Supported

MID/FLAC/MP3/M4A/AAC/AMR/OGG

Video Format Supported

MOV/MKV/3GP/MP4

Image Format Supported

GIF/JPEG/PNG/BMP

Text Format Supported

TXT/HTML

FM Radio

Support,headset-free FM radio

Cell Broadcast

Support

Sensor

Proximity Sensor, Gravity sensor, Light Sensor, Acceleration Sensor,

Geomagnetic sensor, Gyro sensor, Coulomb counter,

Pedometer, Infrared sensor

Special Features

Underwater Camera

Support

Gloves Mode

Support

Digital Toolbox

Height Meter, Compass, Gradienter, Flashlight, Hanging Painting, Magnifier, Alarm bell, Plumb bob, Protractor, Noise Test, Pedometer

OTG Function

Support, max 10W reverse charging

NFC

Support

IR Blaster

Support

Others

Packing List

1x Phone

1x AC Power Charger ( EU Plug)

1x Data Cable (100cm)

1x Protective Film (Pre-installed)

1x SIM Needle

1x Lanyard

1x Multi-language User Manual

1x Multi Function Instruction Card

1x Warranty Card

1x Charging Instruction Card

1x Safety Prompt Card

1x Acessories Ecosystem Brochure

Product Certification

CE, IC, IP68, IP69K, MIL-STD-810H, WEEE, ROHS.TAC, UN38.3,MSDS, IEC62133

1.1: For non-human damage, we support 1 year warranty counted from the date of purchase. not including accessories and batteries.(Buyer is responsible for the returning shipping cost.)

1.2 : For any exchange or refund,we need the product must be in its original condition,including the box,and all accessories.Buyer is responsible for the returning shipping cost.

After receiving the goods, please inspect the package immediately and record an unboxing video. If there are any issues, please contact us promptly

2.1:The difference between (European union)(Other Area)(Russian Area)

There is no difference between software and hardware, just to comply with relevant laws and regulations. Users are expected to select the corresponding version based on their region when purchasing.

When the corresponding version is out of stock. we will replace another version for you,does not affect the use . Please don’t worry

2.2:The stated ROM amount shows the maximum available ROM with nothing installed. However, the Android OS will occupy some of this ROM. The available ROM on the device will be less than the publicity.

2.3: The standard testing information of the phone is referred to the information from AnTuTu Benchmark App, and we don’t bear the testing information from CPU-Z as it is normally suitable for computer. Also, we don’t bear the test information from other apps or through other devices. Since we can’t make sure their accuracy and profession.

3.1:We ship to most of countries.except AFO&FPO.

3.2: Items are shipped from China using Ali Express Standard Shipping,reach most of countries within 10 to 20 business Delivery time depends on destination and other factors, it may takes up to 30-45 business days .

4.1: We maintain high standards of excellence and strive for 100% customer satisfaction!

4.2: Feedback is very important, we hope you can contact us immediately before you give us neutral or negative feedback, so that we can satisfactorily address your concerns. It is impossible to address issues if we do not know about them .
