Ulefone Armor 23 Ultra 5G Rugged Phone Satellite Message 120W Smartphone 64MP Night Camera 24GB+512GB NFC Android 13Mobile Phone – 509

Armor 23 Ultra 5G

 Two-way Satellite Message

(* Russia and Ukraine are not supported ,Please check https://bullitt.com/coverage/ for coverage maps)

• MediaTek Dimensity 8020 5G

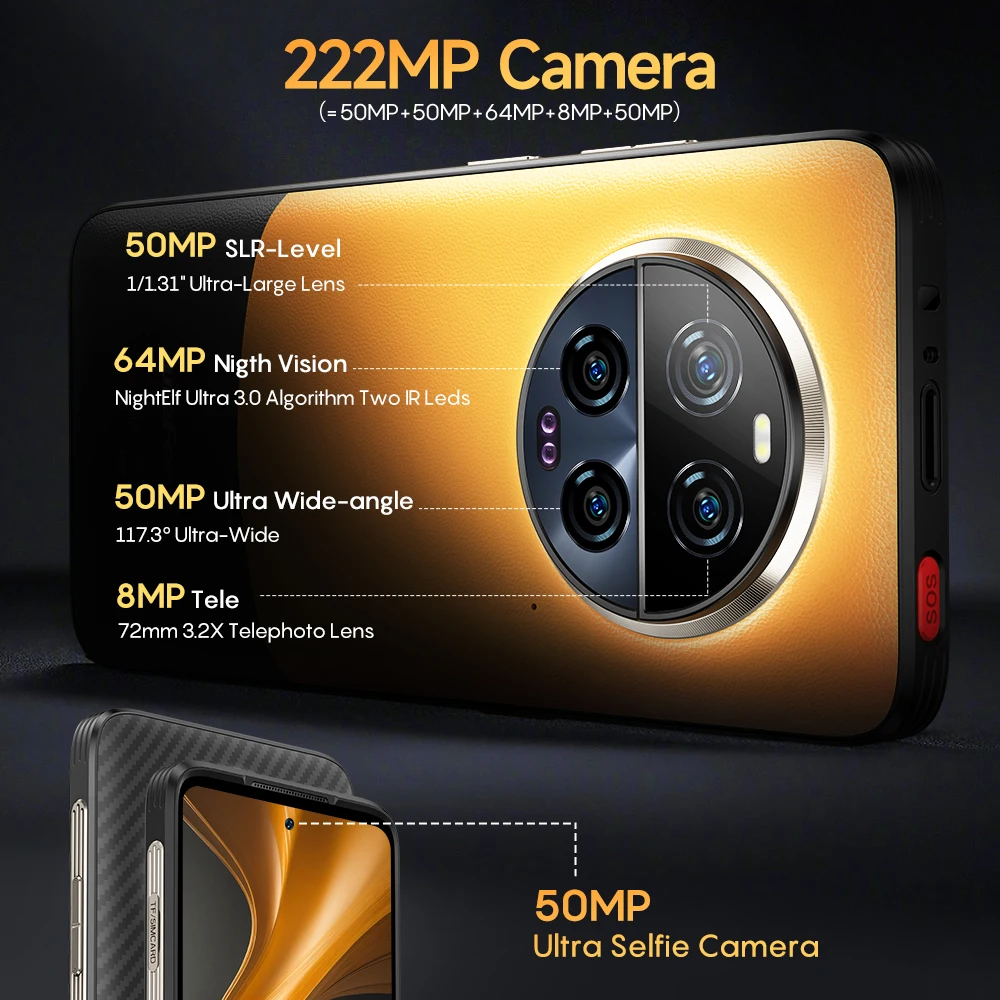

• 222MP Camera （222MP =50MP+50MP+64MP+8MP+50MP)

   1: 50MP SLR-level Main Camera （1/1.31 Ultra-Large）

  2: 50MP Ultra Wide-angle Camera

   3: 64MP Night Vision Camera

  4: 8MP （3.2X Optical Zoom Telephoto Lens）

   5: 50MP Ultra Selfie Camera

• 120W Flash Charging +50W Wireless Charging

  * Only use Armor 23 Ultra original charger and cable to reach 120W

  * 50W wireless charger is sold separately. Armor 23 Ultra supports Max 50W output,And only with the charger and cable that comes    with Armor 23 Ultra, it can reach 50W. output of other devices varies for a different protocol.

• Up to 24GB RAM+512GB ROM （24GB RAM =12GB RAM + 12GB Virtual RAM）
• 5G/4G/3G/2G

*Not compatible with AT&T, Cricket, Sprint,Verizon, Boost Mobile

*Some network carriers have not been displayed because their 5G networks are not yet in mass commercial use. If you have participated in  this carrier’s testing program, please check with the carrier about the 5G frequencies they use, so that you can check whether                  Armor 23  Ultra 5G supports their network.

5G NR Sub6: N1/2/3/5/7/8/20/25/28/38/40/41/66/71/77/78/79

WCDMA: B1/2/4/5/6/8/19

LTE-TDD: B34/38/39/40/41

CDMA: BC0/BC1/BC10

LTE-FDD: B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28A/28B/66/71

GSM: B2/3/5/8

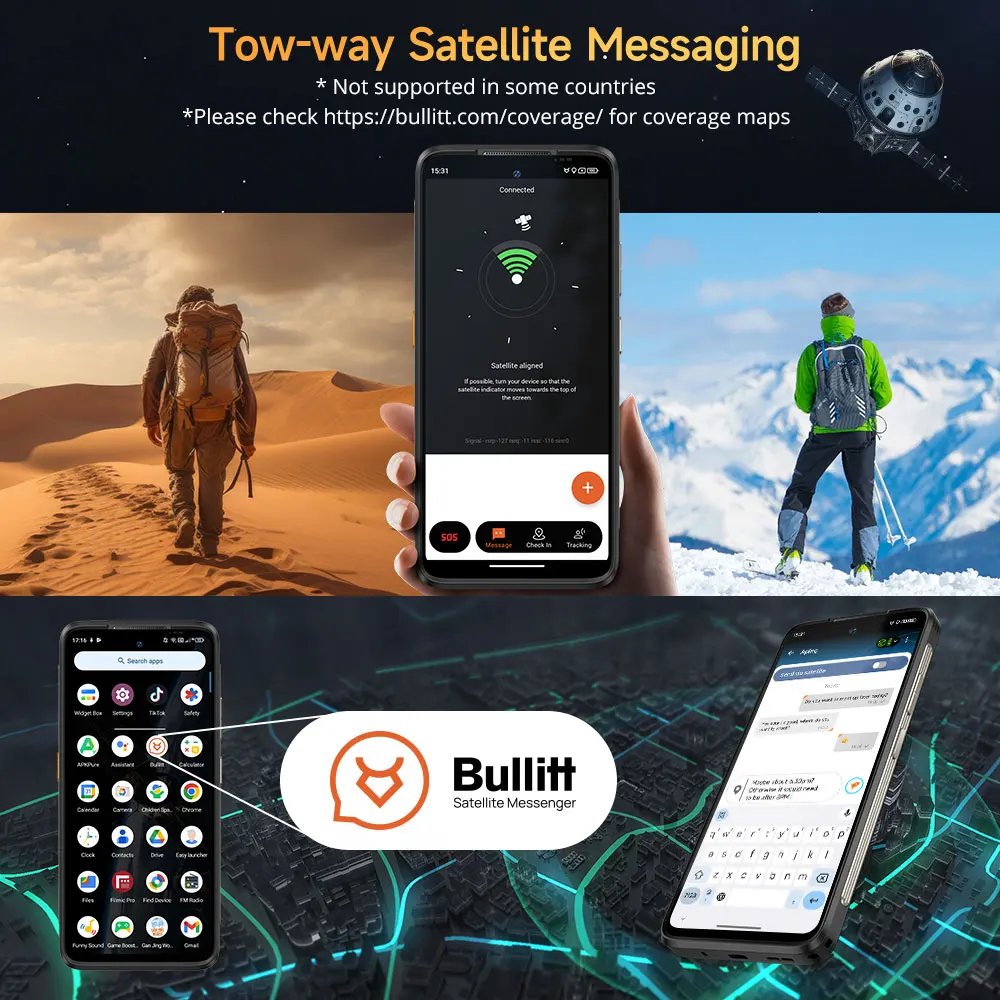

Two-way Satellite Messaging

* Russia and Ukraine are not supported ,Please check https://bullitt.com/coverage/ for coverage maps

Always online

In a cellular and WiFi dead zone? The Armor 23 Ultra has integrated two-way satellite messaging which you can rely on no matter how far off grid your adventure takes you.*

*Please check https://bullitt.com/coverage/ for coverage maps

Bullitt Satellite Messenger App

Russia and Ukraine are not supported ,Please check https://bullitt.com/coverage/ for coverage maps

The Armor 23 Ultra is powered by Bullitt satellite messenger. The world’s first integrated smartphone solution providing two-way satellite messaging. Communicating via GEO stationary satellites, the Armor 23 Ultra can switch automatically to satellite messaging when there is no cellular or Wi-Fi coverage. Smart, safe and reliable, allowing you to stay connected with family and friends whenever you need. Bullitt’s satellite service has coverage in 47 countries and will continue to expand in 2024.

*Please check https://bullitt.com/coverage/ for coverage maps

One-Key Satellite SOS

Russia and Ukraine are not supported ,Please check https://bullitt.com/coverage/ for coverage maps

Optional Standby Mode

When using Armor 23 Ultra, the satellite feature can be set for selected standby modes, if you do not want it you can even set it off. Besides sending and receiving text-based messages, sharing locations, satellite SOS service is available. In case of critical, life threatening conditions, the SOS button allows you to quickly contact a dedicated 24/7 international response centre for emergency assistance.

* Bullitt Satellite Messenger Coverage

To use the satellite service, including: messaging, location sharing or SOS, you will need a Bullitt Empowered device and the Bullitt Satellite Messenger app.

IMPORTANT NOTICE:

The satellite communication function cannot be used in the following countries

●Russia ● Crimea region of the Ukraine

●Afghanistan ● Cuba   ●Georgia  ●India  ●Iran  ● North  ●Korea ● Myanmar ●Sudan ●Syria

●Thailand ●Vietnam ●China

*PLEASE BE AWARE THAT LOCAL LAWS AND THE LIST OF SANCTIONED OR EMBARGOED COUNTRIES MAY CHANGE WITHOUT NOTICE AND WE TAKE NO RESPONSIBILITY FOR THE ACCURACY OF THE ABOVE LIST. IT IS IMPORTANT THAT YOU REVIEW THE RESTRICTIONS FOR SATELLITE COMMUNICATORS FOR THE COUNTRY WHERE YOU ARE LOCATED OR INTEND TO TRAVEL TO BEFORE YOU USE OR ATTEMPT TO USE THE SERVICE.

*Other limitations on service. Bullitt Satellite Messenger does not provide universal coverage and the ability to send and receive messages via the satellite network is not guaranteed at all times and in all places. Please also note that some aspects of the Bullitt Satellite Messenger service are provided by various communication devices and networks, including but not limited to satellites and their links to certain satellite ground stations, satellite antennas and supporting equipment. This means that the services may become limited or temporarily unavailable without notice from time to time. Please be aware that a satellite service is wireless and requires a clear line of sight toward the satellite. This means that the services will be subject to transmission and reception limitations, including those caused by: (i) your location, including conditions that obstruct the line of sight between you and the satellite communication systems; (ii) the condition of the satellite communication systems; (iii) the condition of your device; and (iv) weather conditions, atmospheric conditions, magnetic interference, environmental, and other conditions beyond our control or the control of our third-party service providers.

IP68/IP69K, MIL-STD-810H Certified

Not Bulky, yet Tougher

* Armor 23 Ultra is splash, water, and dust resistant and was tested under controlled laboratory conditions with a rating of IP68 under IEC standard 60529 (maximum depth of 1.5 meters up to 30 minutes). Charger and accessories are not water-resistant. Splash, water and dust resistance are not permanent and might decrease as a result of normal wear. Do not attempt to charge a wet Armor 23 Ultra. Liquid damage not covered under warranty.

6.78″ FHD+ 120Hz Display

Expansive 6.78 inches screen delivers more immersive experience when you are gaming, streaming. FHD+ resolution elevates image sharpness down to crystal-clear details with more vibrant colors. With 120Hz high refresh rate, you are in a fantastic visual journey.

* 6.78 inches is the diagonal length of the display when the four rounded corners are taken to be pointed corners, the actual viewable area is slightly smaller.

UP TO 24GB RAM +512GB ROM

• 24GB RAM = 12GB RAM + 12GB Virtual RAM
• 512GB ROM 2TB Expansion

* The actual available RAM and storage are less than the listed total capacity due to the occupied storage of the operating system and software pre-installed in the device.

* The micro SD card is not included, and need to be purchased separately. It is recommended to use Class 10 memory cards, other types of memory cards are not guaranteed to be fully compatible.

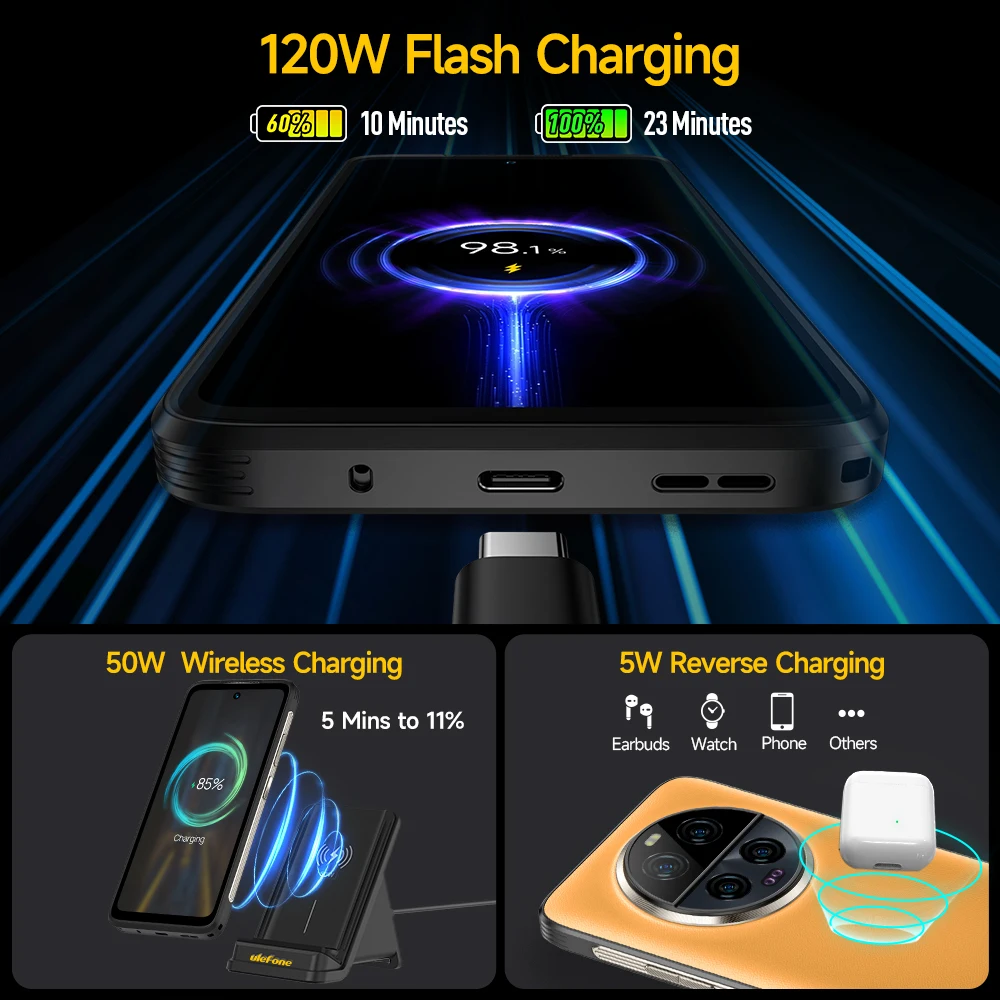

120W Flash Charging + 50W Wireless Charging + Reverse Charging

*（50W wireless charger is sold separately. Armor 23 Ultra supports Max 50W output,And only with the charger and cable that comes with Armor 23 Ultra, it can reach 50W. output of other devices varies for a different protocol.

Equivalent 5280mAh

New Gen Stacking Technology

* This product uses dual-cell series connection design:

  Typical capacity: 2640 mAh (7.74V), equivalent to 5280 mAh (3.87V)

  Typical energy:20.434 Wh

* The battery is non-removable, removing it may cause damage to the device.

Dual 5G, SA&NSA High Speed Network

With both SA and NSA 5G networks supported, the next-gen connectivity powerhouse brings a super fast and reliable online experience. Revolutionized network coverage with 55 frequency bands, stay connected in every corner of the globe.

*Not support other carriers such as Verizon, AT&T 5G network.

*Not compatible with AT&T, Cricket, Sprint,Verizon, Boost Mobile

*Some network carriers have not been displayed because their 5G networks are not yet in mass commercial use. If you have participated in this carrier’s testing program, please check with the carrier about the 5G frequencies they use, so that you can check whether Armor 23 Ultra 5G supports their network.

* NFC and Google Pay is supported, and you are suggested to download Google Pay to use it; the available countries and regions are for your reference: https://pay.google.com/about.

About Power charger

1 Please choose EU plug or US plug when placing an order. （ * No other plug specification are available）

2： If you have any questions about the plug of the charger, please contact customer services in advance. Please note that the plug of the charger is not within the scope of After-Sales services.

Armor 23 Ultra Specifications

Physical Characteristics

Color

Umbra Orange/Elite Black

Material

PC

USB

Type-C, USB 3.1 Gen 1(Device: USB 3.1 Gen 1, Host: USB 2.0)

Card Slots

3, 1x Nano-SIM + 1x Nano-SIM + 1x microSD

Keys

Right: Power button(Fingerprint) + Volume button, Left: Custom Key,

Top: SOS Key

Size & Weight

Product Size

177.4 x 81.5 x 12.75 mm

Product Weight

332g

Package Size

198.2 x 106.5 x 70.5 mm

Product size and weight may vary by configuration, manufacturing process and measurements. All specifications are subject to the actual

product.

Ruggedness

Certification

IP68/IP69K/MIL-STD-810H

Splash, Water, and Dust Resistant

Maximum depth of 2 meters up to 30 minutes

Drop resistance

Up to 2M tall

Working Temperature

-20℃ – 55 ℃ (-4℉ – 131℉)

Display

Screen Size

6.78-inch

Screen Resolution

1080 x 2460 FHD+

Aspect Ratio

20.5:9

PPI

396

Color Depth

8bit, 16.7M

Refresh Rate

120Hz

Screen-to-Body Ratio

0.86

Multi-touch

10

Processor

CPU Model

MediaTek Dimensity 8020

Main frequency

2.6GHz

CPU Core

8, 4 x Arm Cortex-A78, 4 x Arm Cortex-A55

GPU

Arm Mali-G77 836MHz

RAM & Storage

RAM

24GB=12GB LPDDR4X +12GB virtual RAM (The virtual RAM can be activated

in Settings at your will. )

Storage

512GB UFS3.1

Max. Expansion Supported

2TB

Rear Camera

Rear Camera Numbers

4

Main Rear Camera

Pixel: 50MP

Details: Samsung S5KGN1 CMOS sensor, 1.2μm, 7 piece lens, FOV 84.7°,

ƒ/1.65 large aperture

Night Vision Camera

Pixel: 64MP

Details: OV64B1B CMOS sensor, ƒ/1.79 large aperture

Ultra-wide Angle Lens

Pixel: 50MP

Details: Hi5022Q CMOS sensor,FOV 117.3°, ƒ/2.2 large aperture

3.2X Optical Zoom TelephotoLens

Pixel: 8MP

Details: Hi847 CMOS sensor,3.2X-30X Focal Length

Flash

2

Video Recording Resolution

4K@30fps, FHD@30fps, HD@30fps, VGA@30fps

Special Features

Normal mode, Night Vision Mode, Film Mode, 50MP Mode, Night Mode, Gif,

Portrait, Pro Mode, Panorama, Slow Motion, Time Lapse, Macro, Intelligent Scanning

Front Camera

Pixel

50MP

Details

Details: Hi5022Q CMOS sensor, 1.0μm, 5 piece lens, FOV 80.4°,

ƒ/2.25 large aperture

Video Recording Resolution

FHD@30fps, HD@30fps, VGA@30fps

Special Features

Normal mode, Film, 50MP, Gif, Portrait

Battery & Charging

Capacity

5280mAh (Equivalent to 2640mAh, 7.74V)

This product uses dual-cell series connection design:

Typical capacity: 2640 mAh (7.74V), equivalent to 5280 mAh (3.87V)

Typical energy:20.434 Wh

Watt Hours Per Battery

20.434 Wh

Battery Type

Li-polymer battery

Charging Details

120W, 20V/6A

Wireless Charge

50W

Standby Time

240 Hours

Talk Time

24 Hours

Network & Connectivity

Card Type

Nano+Nano+microSD

Cellular

5G/4G/3G/2G

Band Details

5G: 5G NR Sub6: N1/2/3/5/7/8/20/25/28/38/40/41/66/71/77/78/79

*Not support other carriers such as Verizon, AT&T 5G network.*Not support

other carriers such as Verizon, AT&T 5G network.*Some network carriers

have not been displayed because their 5G networks are not yet in mass

commercial use. If you have participated in this carrier’s testing program,

please check with the carrier about the 5G frequencies they use,

so that you can check whether Armor 23 Ultra 5G supports their network.

4G: FDD-LTE: B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28A/28B/66/71

TDD-LTE: B34/38/39/40/41

3G: WCDMA: B1/2/4/5/6/8/19

2G: GSM: B2/3/5/8CDMA: BC0/BC1/BC10

Standby Mode

Dual sim dual standby

VoNR

Support

VoLTE

Support

WiFi

2.4G/5G/WiFi 6, 802.11 ax/ac/a/b/g/n

Bluetooth Version

BT5.1

Navigation

(L1+L5) GPS/GLONASS/Beidou/Galileo

Satellite Communication

Type

Two-way Satellite Messaging (send and receive text messages, share location,

SOS via satellite）

App

Bullitt Satellite Messenger

Satellite Service Operator

Empowered by Bullitt

Satelite Network Operator

Powered by Skyko

Satellite Coverage

Albania, Andorra, Austria, Belarus, Belgium, Bosnia and Herzegovina, Bulgaria,

Channel Island, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland,

France, Germany, Gibraltar, Greece, Holy See, Hungary, Ireland, Isle of Man, Italy, Latvia,Liechtenstein, Lithuania, Luxembourg, Malta, Moldova, Monaco,

Montenegro, Netherlands, North, Macedonia, Norway, Poland, Portugal,

Romania, San Marino, Serbia, Slovakia, Slovenia, Spain, Sweden, Switzerland,

United Kingdom, Canada, United StatesPlease checkhttps://bullitt.com/coverage/for coverage maps

Satellite Plans

Please refer tohttps://bullitt.com/plans/

Audio

Speaker Numbers

1

Speaker Model

1216 Box

Smart PA

AW88394

Security

Fingerprint ID

Support

Face Unlock

Support

System & Features

Android Version

Android 13

Language

Indonesian, Malay, Catalan, Czech, Danish, German, Estonian, English, Spanish,

Filipino, French, Croatian, Italian, Latvian, Lithuanian, Hungarian, Dutch,

Norwegian, Polish, Portuguese, Romanian, Slovak, Finnish, Swedish,

Vietnamese, Greek, Turkish, Bulgarian, Russian, Serb, Ukrainian, Armenian, Hebrew, Urdu, Arabic, Persian, Hindi, Bengali, Thai, Korean, Burmese, Japanese, Simplified Chinese, Traditional Chinese

Blinking Notification Light

Support, red/green/blue light

Battery Status Light

Support

Audio Format Supported

MID/FLAC/MP3/M4A/AAC/AMR/OGG

Video Format Supported

MOV/MKV/3GP/MP4

Image Format Supported

GIF/JPEG/PNG/BMP

Text Format Supported

TXT/HTML

FM Radio

Support,headset-free FM radio

Cell Broadcast

Support

Sensor

Proximity Sensor, Gravity sensor, Light Sensor, Acceleration Sensor,

Geomagnetic sensor, Gyro sensor, Coulomb counter, Pedometer,

Air pressure sensor, Infrared sensor

Special Features

Underwater Camera

Support

Gloves Mode

Support

Digital Toolbox

Height Meter, Compass, Gradienter, Flashlight, Hanging Painting, Magnifier,

Alarm bell, Plumb bob, Protractor, Noise Test, Pedometer, Barometer

OTG Function

Support, max 5W reverse charging

NFC

Support

IR Blaster

Support

Others

Packing List

1 x Phone

1 x AC power charger (EU plug)

1 x Type-C Data cable (100cm)

1 x Protective Film (Pre-installed)

1 x SIM needle

1 x Lanyard

1 x Multi-language user manual

1 x Multi Function Instruction card

1 x Bullitt Satellite Messengger User Guide

1 x Warranty card

1 x Charging Instruction card

1 x Safety Prompt card

1 x Accesories Ecosystem Brochure

1 x Service Center Instructions

Product Certification

CE, FCC, IP68, IP69K, MIL-STD-810H, WEEE, ROHS.TAC, UN38.3,MSDS, IEC62133

1.1: For non-human damage, we support 1 year warranty counted from the date of purchase. not including accessories and batteries.(Buyer is responsible for the returning shipping cost.)

1.2 : For any exchange or refund,we need the product must be in its original condition,including the box,and all accessories.Buyer is responsible for the returning shipping cost.

After receiving the goods, please inspect the package immediately and record an unboxing video. If there are any issues, please contact us promptly
