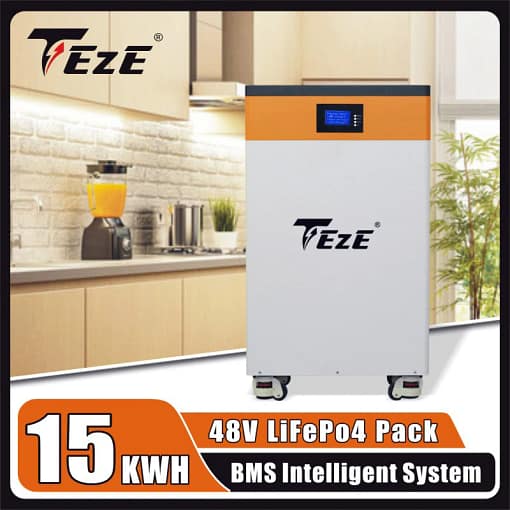

TEZE LiFePO4 15KWH 48V 300Ah PowerWall Battery Pack 51.2V 16S 6000+ Cycles Built-in BMS RS485/CAN Energy Solar Storage System –

UNBOXING TEST VIDEO

15KWh Storage System（15S）

Rate Capacity : 304Ah

Energy Power : 14592Wh

Nominal Voltage : 48V（15S）

Cycle Life : 6000 Cycles @0.2C

Max Charge Voltage : 53.2-54.75V

Weight : 125KG

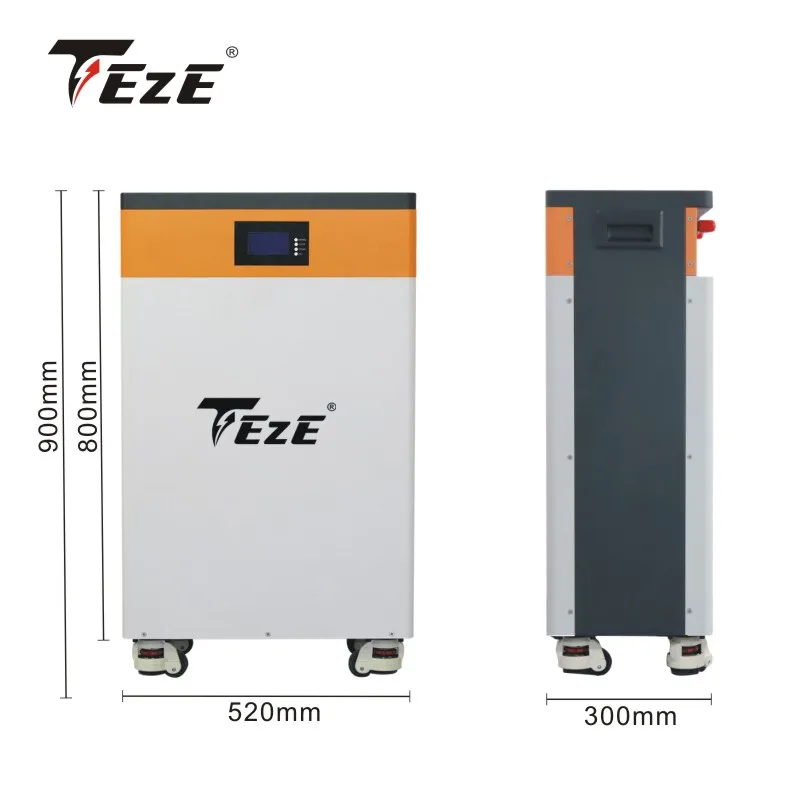

Dimensions(L*W*H) : 520x300x900mm

Standard Current: 50A

Maximum Power：5KW

Maximum Charging Current : 100A

Maximum Dicharge Current : 100A

Charging Temperature : -5~55°C

Discharging Temperature : -20~60°C

Communication : RS485/CAN/RS232

Support Inverter Brand: GROWATT、Deye、GOODWE、VICTRON、SOFAR、SRNE、VOLTRONIC POWER, ETC….

15KWh Storage System（16S）

Rate Capacity : 304Ah

Energy Power : 15565Wh

Nominal Voltage : 51.2V(16S)

Cycle Life : 6000 Cycles @0.2C

Max Charge Voltage : 57.2-58.4V

Weight : 131KG

Dimensions(L*W*H) : 520x300x900mm

Standard Current: 60A

Maximum Power：5KW

Maximum Charging Current : 100A

Maximum Dicharge Current : 100A

Charging Temperature : -5~55°C

Discharging Temperature : -20~60°C

Communication : RS485/CAN/RS232

Support Inverter Brand: GROWATT、Deye、GOODWE、VICTRON、SOFAR、SRNE、VOLTRONIC POWER, ETC….

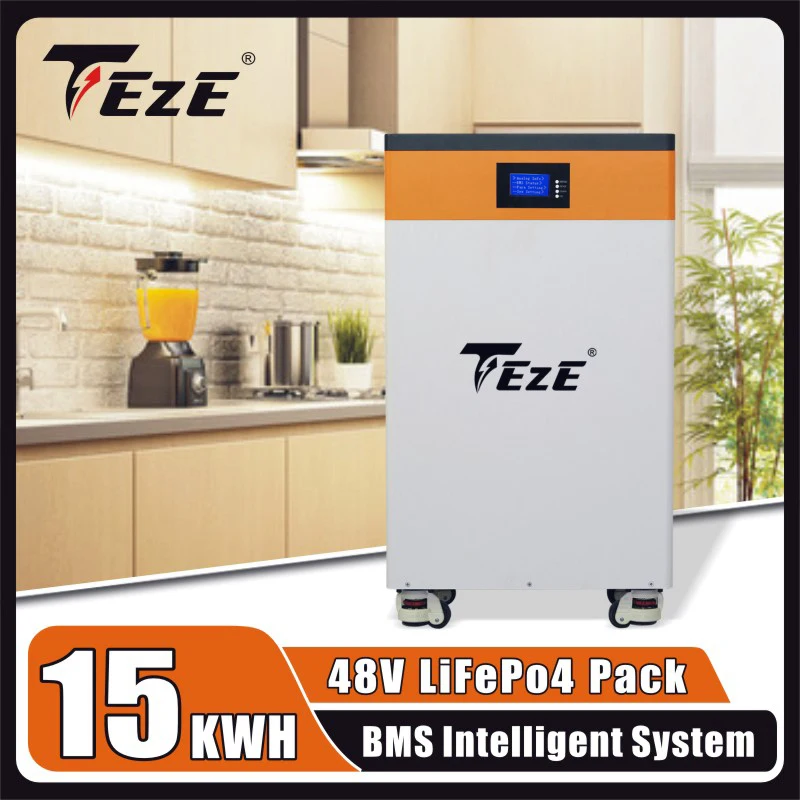

Powerwall 15KWH 48V 300AH Home energy storage system

*RS485/Can Comminication

*Built-in BMS

*2X High Current Port

High-quality energy storage system

*Grade A+ (15/16 3.2V 300AH Cells)

*Smart BMS（Support 100A current)

*Extinguisher (Built-in temperature Control fire extinguisher)

*Balancer(Built-in 5A Active Balancer)

Brand New Upgrade

Improved upgrade content:

1. Built-in temperature control fire extinguishing device x2

2. Built-in active balancer, can be manually turned on/off

3. It adopts the brand-new Grade A+ EVE304AH with QR code, which has a longer service life.

4. Add resin insulating board to the internal structure to reduce the risk of metal short circuit of the cell.

5. BMS is compatible with more brands of inverters and will continue to be updated. .

more. . .

New Upgrade

1.Using the Brand New Grade A+ EVE304AH

2.Built-in temperature sensor fire extinguishing system*2

3.Built-in active balance module,can be turned on/off manually

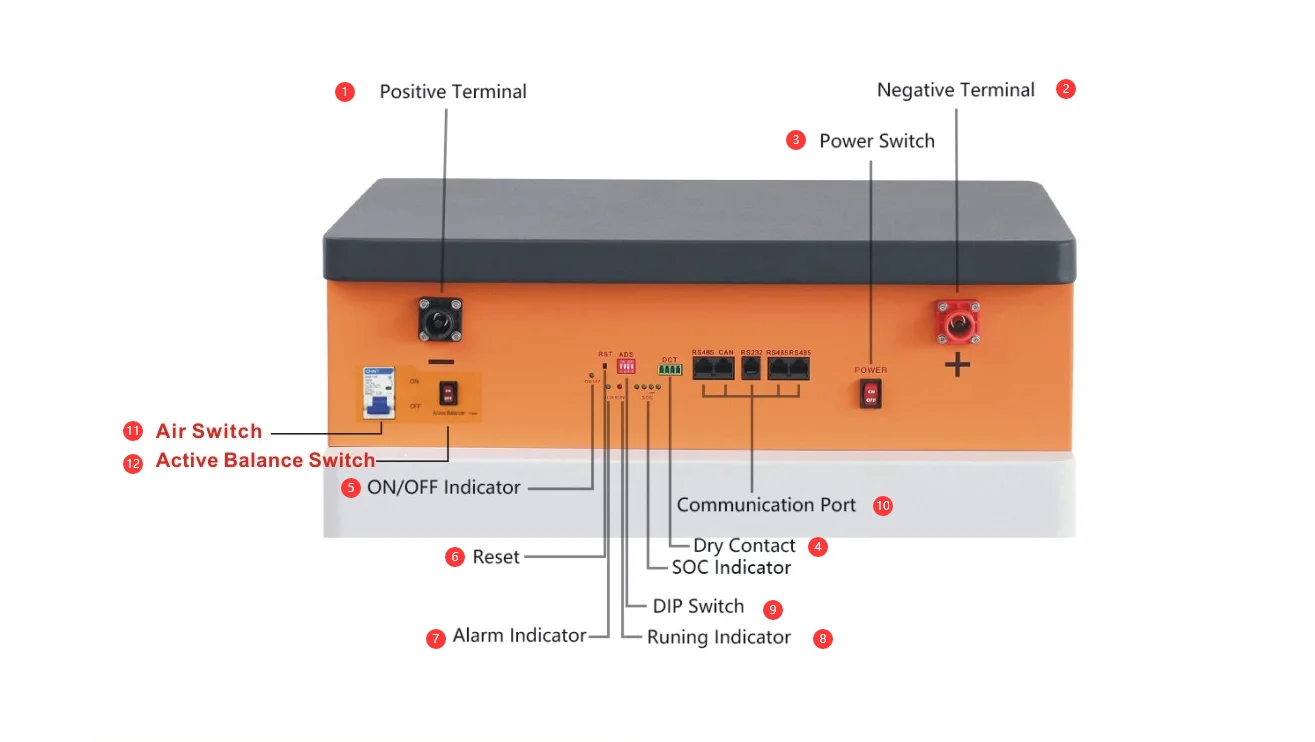

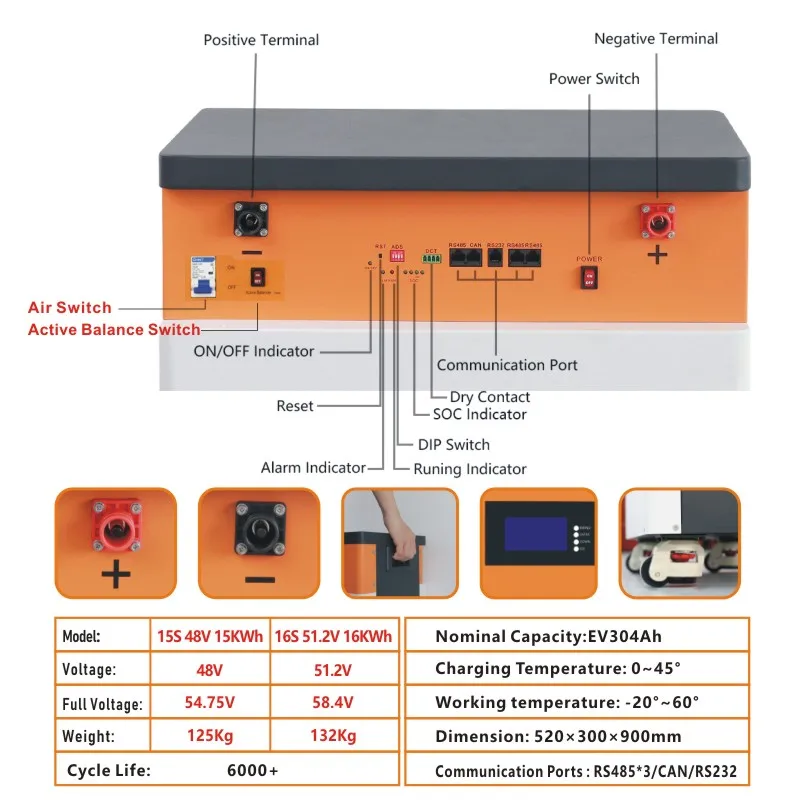

①Positive Terminal

②Negative Terminal

③Power Switch

④Dry Contact

⑤ON/OFF Indicator

⑥Reset

⑦Alarm Indicator

⑧Runing Indicator

⑨DIP Switch

⑩Communication Port

⑪Air Switch

⑫Active Balance Switch

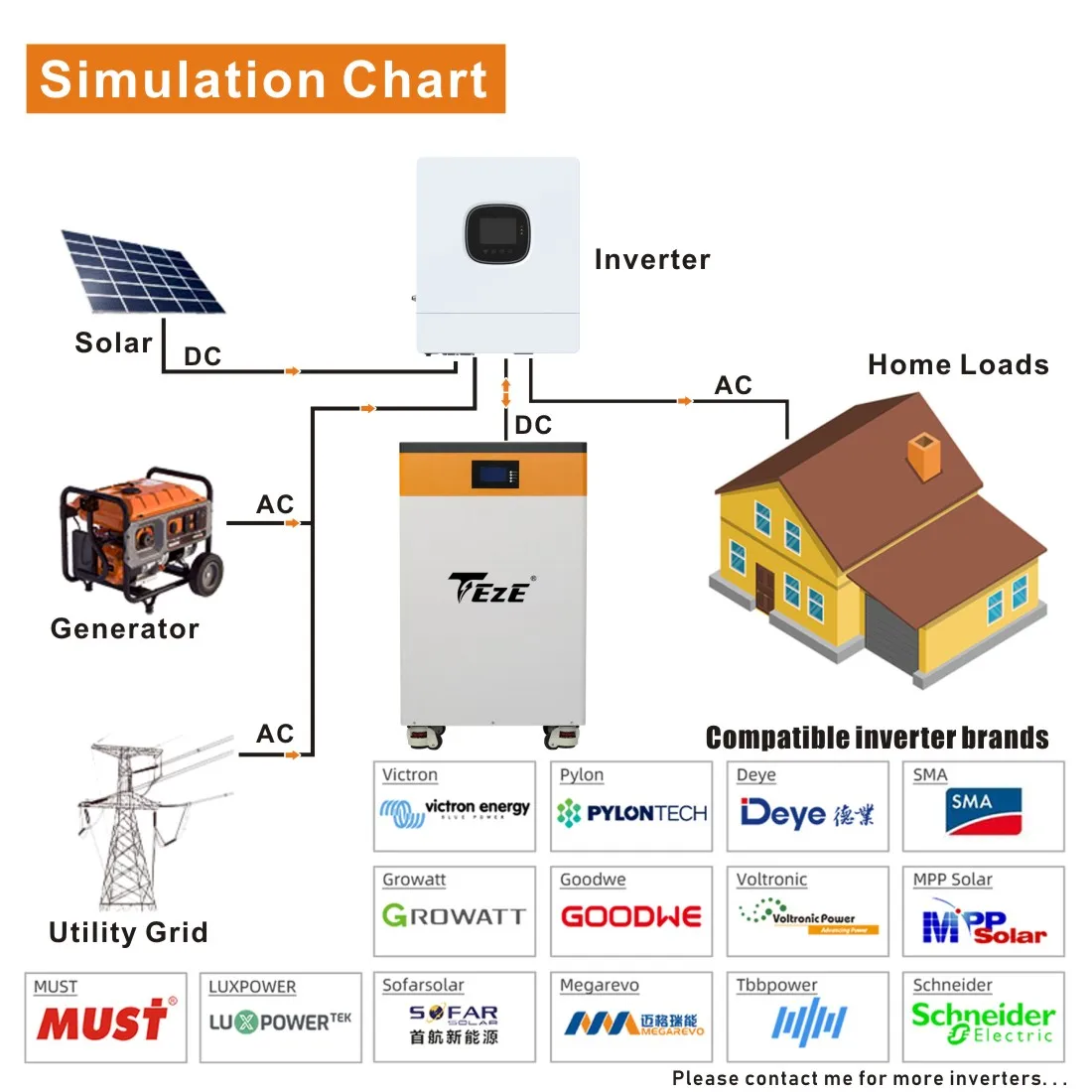

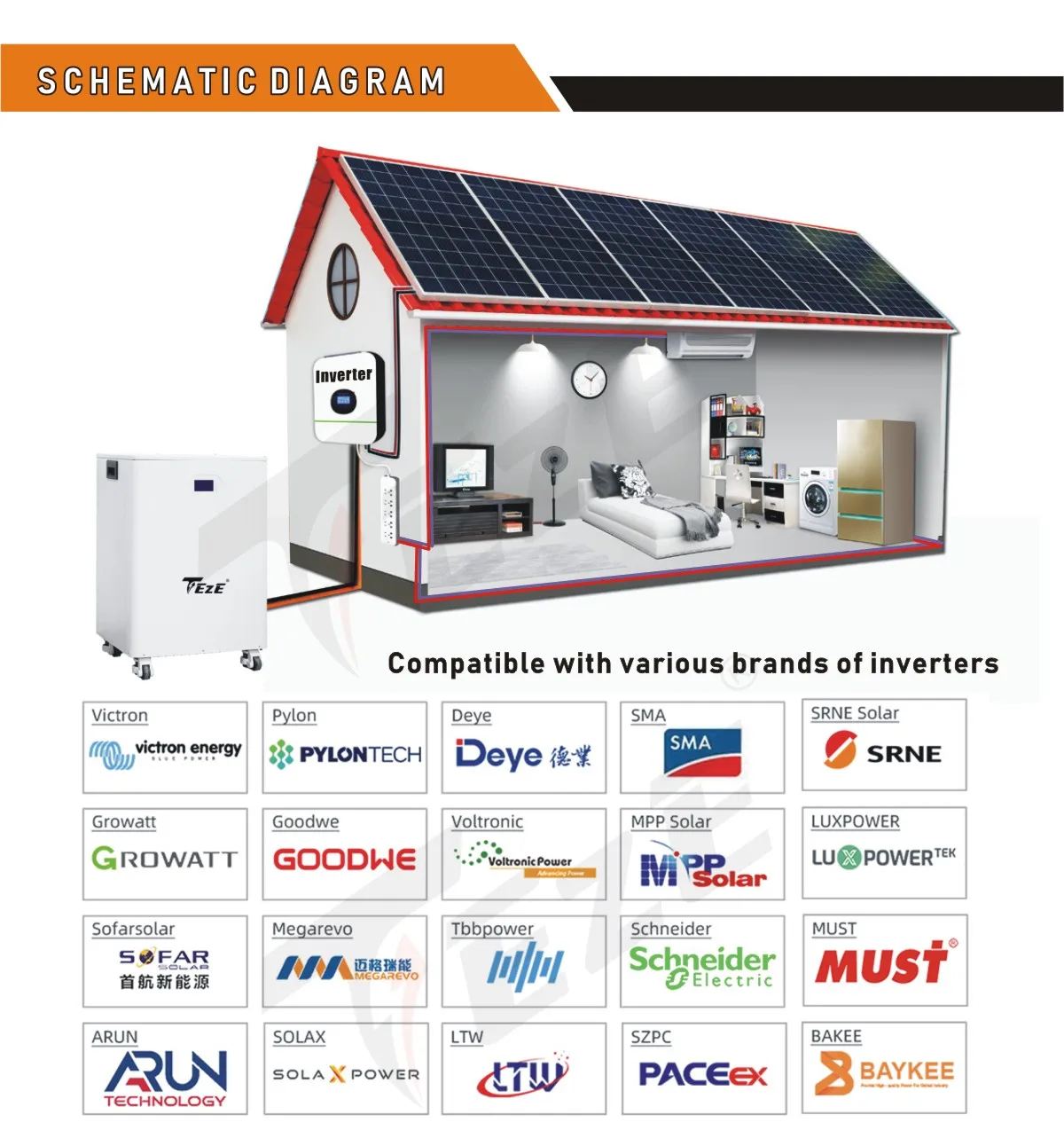

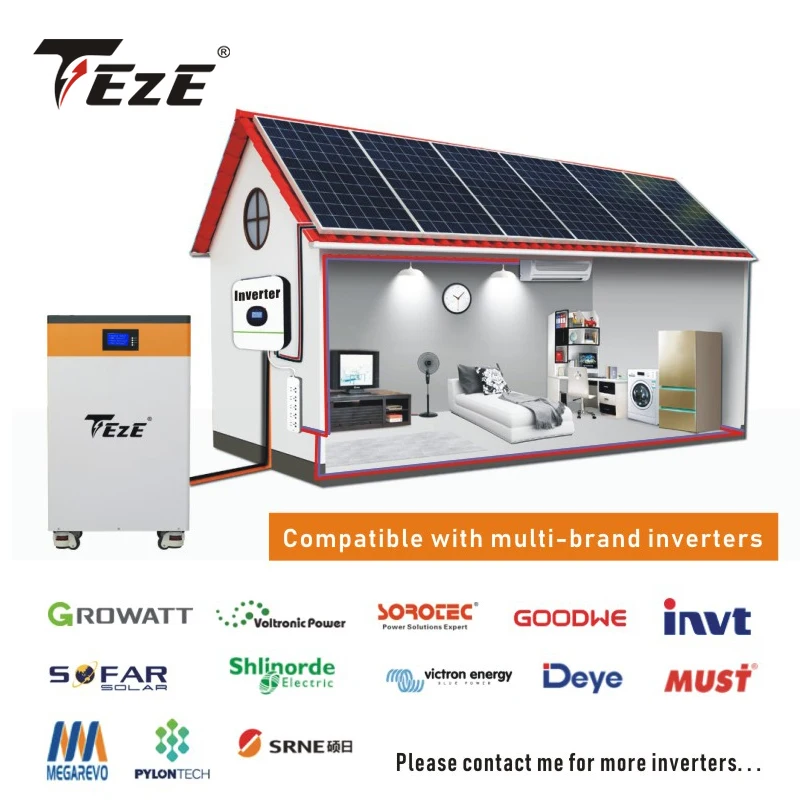

Compatible with various brands of inverters

Victron,Pylon,Deye,SMA,SRNE Solar,Growatt,Goodwe,Voltronic,MPPSolar,

LUXPOWER,Sofarsolar,Megarevo,Tbbpower,

Schneider,MUST,ARUN,SOLAX,LTW,SZPC,BAYKEE

PC Software Monitor

RS232 TO USB

PC Monitoring Battery Capacity Voltage and Status

Packing

1.15Kwh Energy Storage System

2.High Current Cable

3.RS232 to USB Cable

4.Electronic manual

—— Customer Reviews ——

window.adminAccountId=2662968693;

Specifications:
Product Specifications:
- Capacity: 300Ah
- Voltage: 51.2V (16S)
- Cycle Life: 6000+ Cycles @0.2C
- Communication: RS485/CAN/RS232
- Compatible Inverter Brands: GROWATT, Deye, GOODWE, VICTRON, SOFAR, SRNE, VOLTRONIC POWER, and more
- Dimensions: 520x300x900mm
- Weight: 131KG

Features:
|51.2v 16s 6000+ Cycles|

**Robust Energy Storage Solution**
The TEZE LiFePO4 15KWH 48V 300Ah PowerWall Battery Pack is a game-changer in the world of renewable energy storage. Designed for those who demand reliable and efficient energy solutions, this battery pack is a perfect fit for a wide range of applications, from off-grid living to commercial solar installations. With a high-capacity 300Ah rating, it ensures that you have ample power at your disposal, making it an ideal choice for powering homes, businesses, or even electric vehicles.

**Built for Durability and Performance**
Crafted with the latest in battery technology, the TEZE PowerWall Battery Pack boasts a cycle life of 6000+ cycles at a low discharge rate of 0.2C, ensuring long-lasting performance and a reduced need for replacement. The inclusion of a built-in BMS (Battery Management System) with RS485/CAN communication allows for seamless integration with various inverter brands, offering compatibility and peace of mind. The robust design, including a fire extinguishing device and active balancer, ensures the safety and longevity of the battery pack, making it a reliable and safe energy storage solution.

**Versatile and User-Friendly**
This PowerWall Battery Pack is not just about performance; it's also designed with the user in mind. The compact dimensions of 520x300x900mm and a manageable weight of 131KG make it easy to install and maintain. The battery pack's compatibility with a wide range of inverter brands means that it can be tailored to suit your specific energy needs, ensuring that you get the most out of your renewable energy system. Whether you're looking to power your home, business, or contribute to a greener future, the TEZE LiFePO4 15KWH 48V 300Ah PowerWall Battery Pack is an excellent choice for anyone seeking reliable and efficient energy storage.
