EU NO VAT

1. This battery is transported to the EU and the US without the customer paying tariffs.

2. Customers in the EU do not need to pay VAT.

3. Because it is a super large product and super power battery, our transportation will arrive at the destination port by sea and then be transported to the customer’s location by truck. It takes about 45 days to deliver.

4. European islands don’t support delivery.

Specification

Model

16S 51.2V 20KWh

Battery type

LiFePO4

Cell & Format

16S1P, EVE 400AH Grade A+

Nominal Voltage

51.2V

Nominal Capacity

400AH

Nominal Energy

20480Wh

Cycle life

6000+ @0.2C, 25℃, 80% DOD

Max. Continuous Output Power

10240W

Max. Charge Voltage

57.6V

Discharge Cut-off Voltage

43.2V

Max. Continuous Charge Current

180A

Max. Continuous Discharge Current

200A

Charging Standard Current

0.2C 80A

Charge Temperature

0℃~55℃

Discharge Temperature

-20℃~60℃

Temperature controlled fire extinguisher

Yes

Active Balancer

Yes

Net weight

208 KG

Gross weight

228 KG

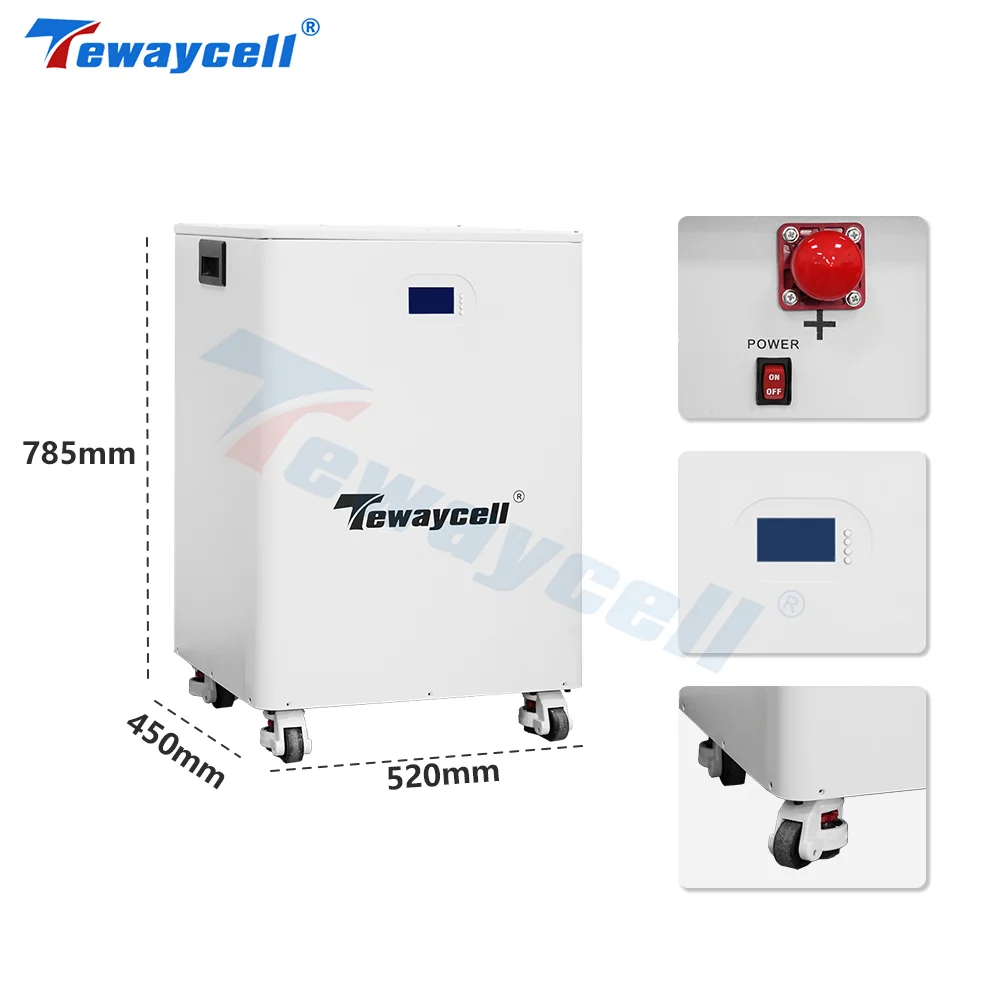

Dimensions (L*W*H)

785(wheel included) *520*450 mm

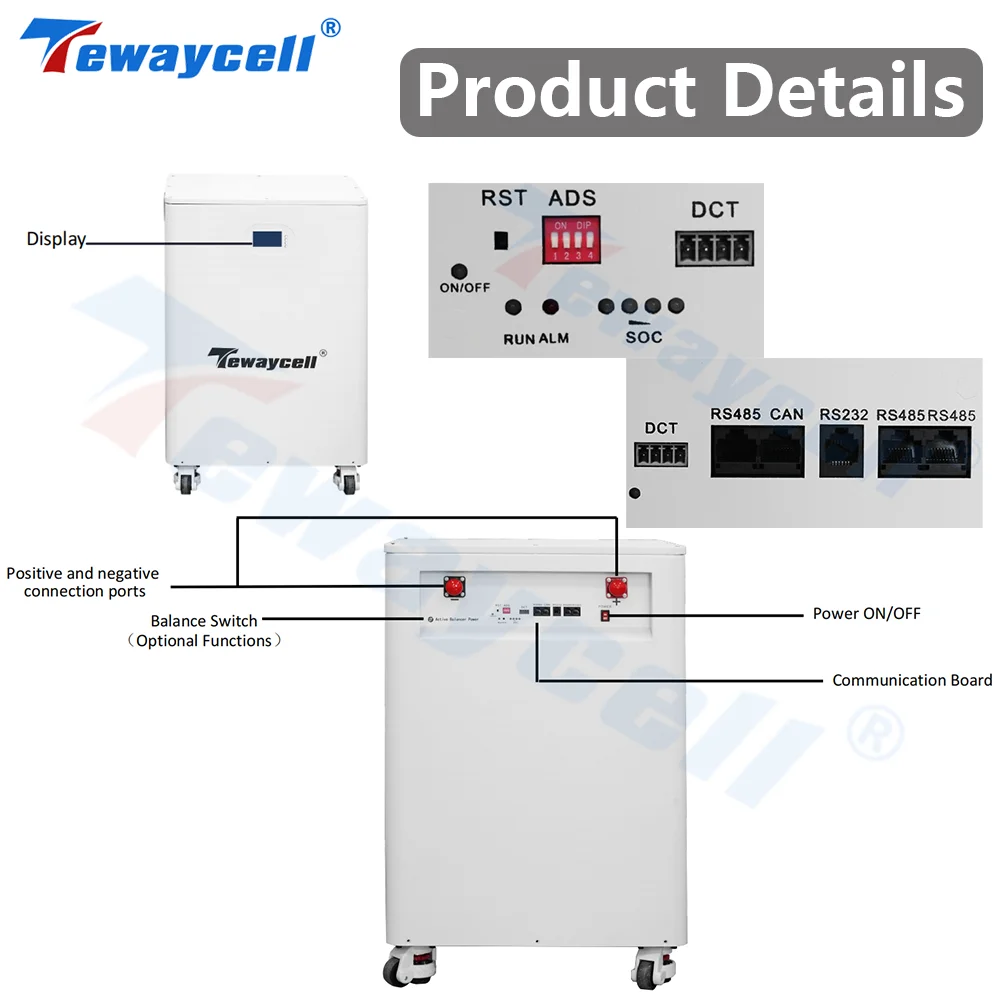

Communication Ports

RS485*3 / CAN / RS232

Adaptable inverter list

GROWATT, Deye, GOODWE, VICTRON, SOFAR, SRNE, VOLTRONIC POWER

Shell material

SPCC

Dustproof and waterproof rating

IP55

Warrantty

10 years Life, 7 years Warranty AH

Feature

Fire extinguishing function and active balancing modul

Fire Extinguishing Function

The battery is equipped with an aerosol fire extinguishing device. When the battery experiences a short circuit and catches fire, the fire extinguishing device can detect the temperature and automatically extinguish the fire.

NOTICE

• No matter what the charging model is, once the temperature of the cell is above the absolute charging temperature, charging should be stopped.

• Please check the orientation of the positive and negative terminals before packaging.

• Connect the terminal or wire to the battery module, and pay attention to insulation to prevent short circuit.

• When not in use for a long time, the battery should be stored in a cool and dry place (< 35°C, 30%~50% SOC, charge and discharge once every 3 months).

• Do not place the battery in direct sunlight or a heat source.

• Do not wear metal jewelry (such as rings, watches, accessories, etc.) when handling the battery unit.

Remind!!!

Do not charge beyond the maximum charging rate!

Do not disassemble or modify the battery!

Do not throw or hit the battery!

Do not pierce the battery with sharp objects (such as nails, knives, pens, electric drills) !

Do not mix with other types of batteries or modular units!

Do not excessively squeeze the battery during use!

Do not place the battery in a high temperature greater than 60°C!

Do not use conductive materials to connect the positive and negative terminals (such as metals, wires) !

Very Important! About transportation!

1. The battery (especially the high-power battery you purchased) is a special commodity, the terms of transportation are very strict, all logistics companies in China, including China Post, UPS, FedEx, DHL, are unable to directly transport electricity Pool.

2. So we have shipped your order. Once the battery arrives in Europe or the US, we will declare the import at European or US customs. When the battery goes through European or US customs, we will ship it to you via UPS or FedEx. So the UPS number we provide will not be updated until the battery is over. This is a normal phenomenon.Secondly, we will help you solve the customs clearance problem.

3. Delivery takes 30-45 working days. Generally, 35-45 working days later, the package will arrive at the transfer station. After the customs clearance is completed, the package will be picked up and delivered, and the logistics information will be updated. Once the shipping number is updated, you can receive the goods within 3-5 days at most.
