EU NO VAT

1. This battery is transported to the EU and the US without the customer paying tariffs.

2. Customers in the EU do not need to pay VAT.

3. Because it is a super large product and super power battery, our transportation will arrive at the destination port by sea and then be transported to the customer’s location by truck. It takes about 45 days to deliver.

4. European islands don’t support delivery.

Specification

DATA SHEET

Model

TW-AO-MB51200-5KW

INVERTER OUTPUT

EU Version

US/CA Version

Battery Capacity

200AH

Battery Energy

10240WH

Rated Output Power

5000W

Max. Charging & Discharging Current

100A

Battery Working Voltage Range

44.8 ～ 57.6V

Rated Output Voltage

220V / 230Vac (L1 / N / PE single-phase)

120 / 240Vac (L1 / L2 / N / PE split phase)

Switch Time

＜15ms (typical)

DOD Designed Life- span

80%

>6000 Cycles @ 0.2C / 25℃ Charging / Discharging at 80%DOD, Until 80% Capacity.

PV INPUT

Solar Charge Type

MPPT

Max. Output Power

5500W

Max. Output current

22A

41.7A

PV Operating Voltage Range

120-500Vdc

MPPT Voltage Range

120-450Vdc

AC INPUT

EU Version

US/CA Version

PV Charging Current Range

0-100A

Input Voltage Range

(170-280Vac) ± 2% / (90-280Vac) ± 2%

90-140Vac

Frequency Range

50Hz ± 0.3Hz / 60Hz ± 0.3Hz

AC Charging Current Range

0-60A

0-40A

GENERAL PARAMETER

MPPT Tracking Efficiency

99.9%

Battery Inverter Efficiency

>92.00%

Protection Degree

IP20, Indoor Only

Operating Temperature Range

-15~55℃, >45℃ derated

5~131℉, >113℉ derated

Charging temperature range

0-45℃

Discharging temperature range

-10-45℃

Noise

< 60dB

Cooling Method

Force-Air Cooling

Warranty

5 Years

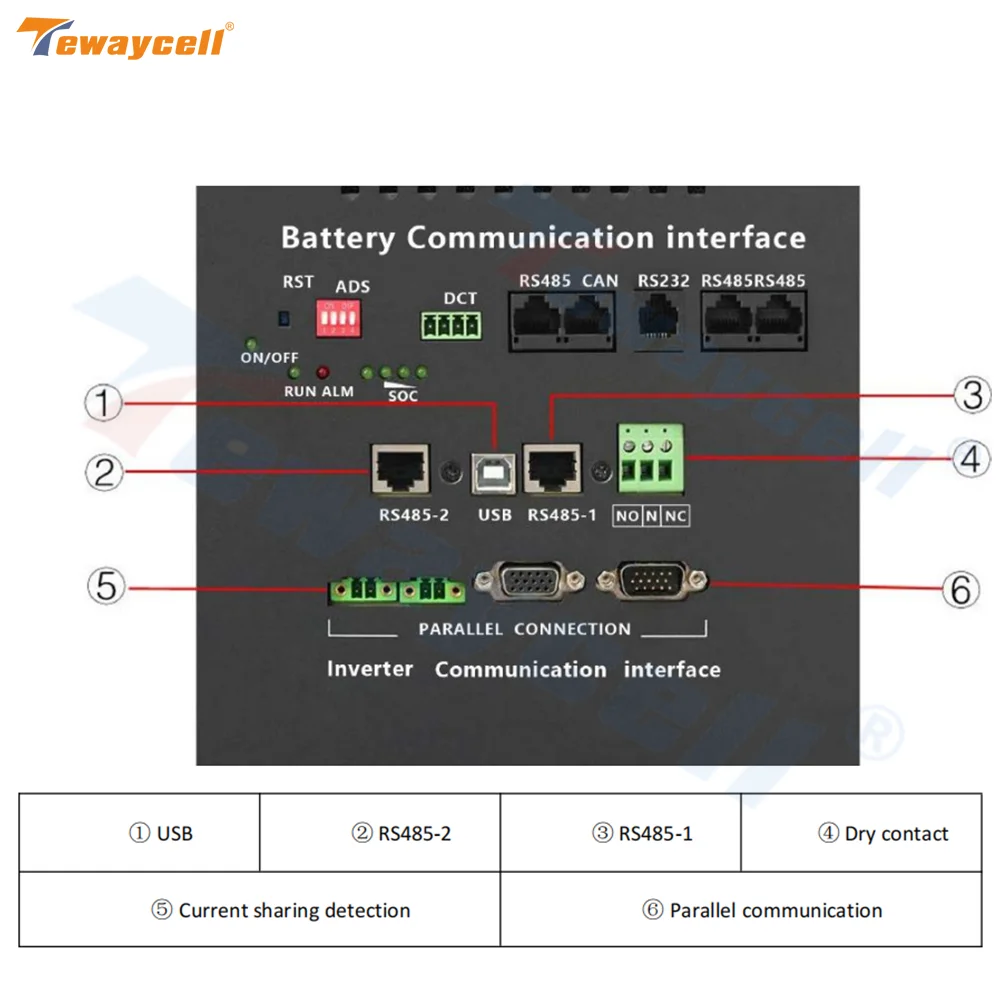

Inverter Communication Interfaces

RS485 / CAN / USB / Dry contact

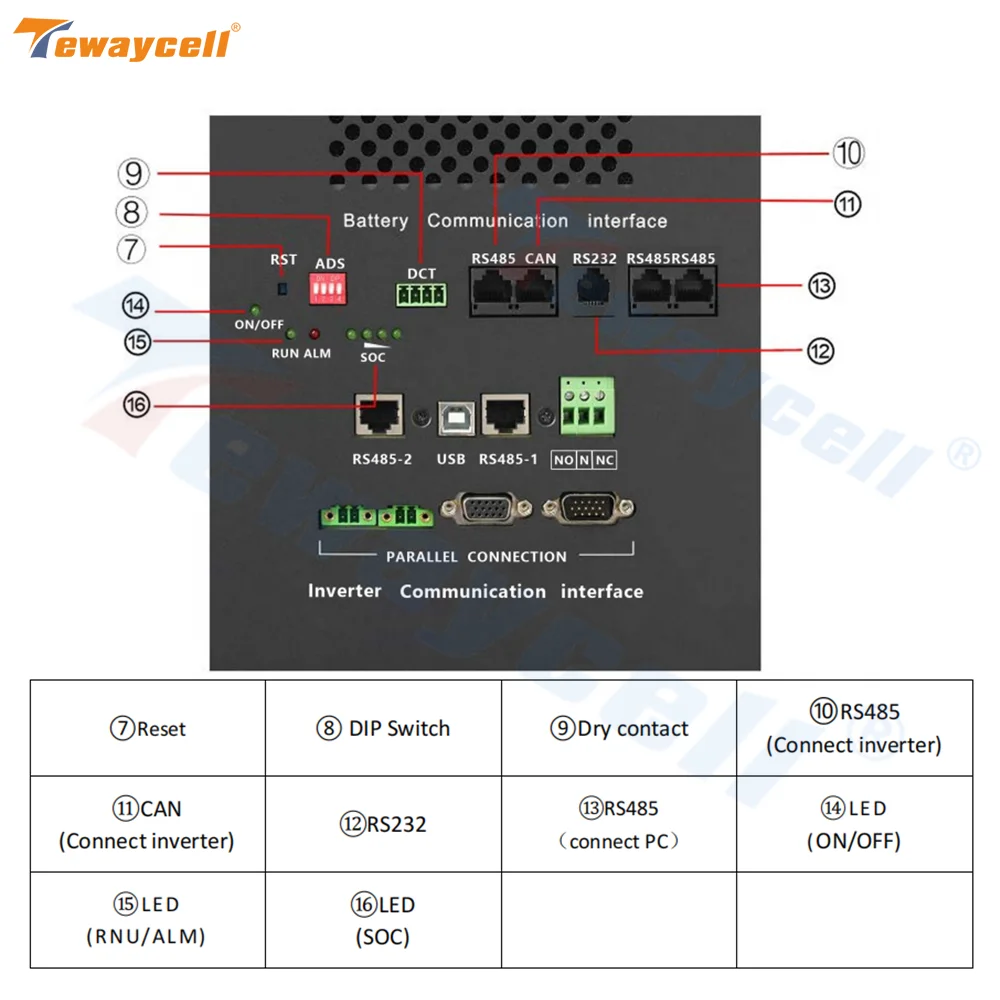

Battery Communication Interfaces

RS485 / CAN / RS232

External Modules (Optional)

Wi-Fi / GPRS

Net weight

111KG

Gross weight

137 KG

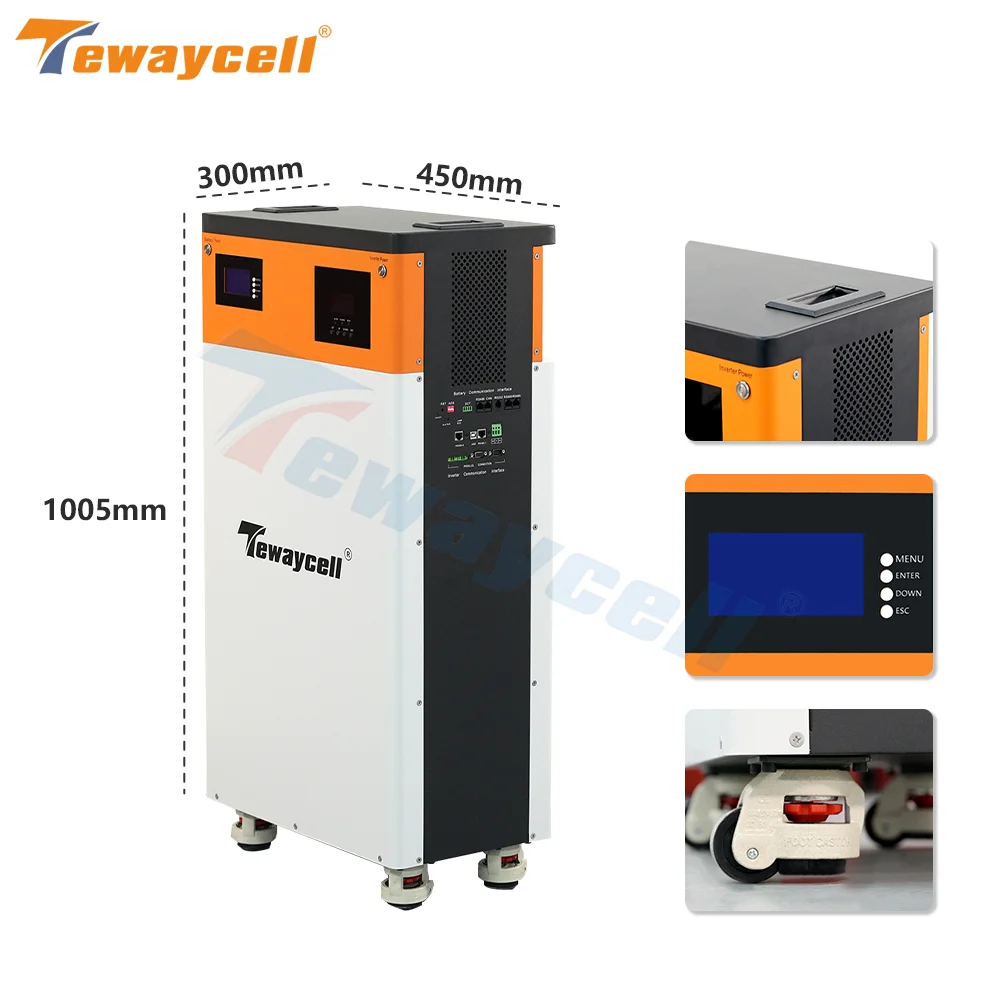

Dimensions (L*H*W)

1005×450×300 mm

Fire Extinguishing Function

The battery is equipped with an aerosol fire extinguishing device. When the battery experiences a short circuit and catches fire, the fire extinguishing device can detect the temperature and automatically extinguish the fire.

NOTICE

• No matter what the charging model is, once the temperature of the cell is above the absolute charging temperature, charging should be stopped.

• Please check the orientation of the positive and negative terminals before packaging.

• Connect the terminal or wire to the battery module, and pay attention to insulation to prevent short circuit.

• When not in use for a long time, the battery should be stored in a cool and dry place (< 35°C, 30%~50% SOC, charge and discharge once every 3 months).

• Do not place the battery in direct sunlight or a heat source.

• Do not wear metal jewelry (such as rings, watches, accessories, etc.) when handling the battery unit.

Remind!!!

Do not charge beyond the maximum charging rate!

Do not disassemble or modify the battery!

Do not throw or hit the battery!

Do not pierce the battery with sharp objects (such as nails, knives, pens, electric drills) !

Do not mix with other types of batteries or modular units!

Do not excessively squeeze the battery during use!

Do not place the battery in a high temperature greater than 60°C!

Do not use conductive materials to connect the positive and negative terminals (such as metals, wires) !

Very Important! About transportation!

1. The battery (especially the high-power battery you purchased) is a special commodity, the terms of transportation are very strict, all logistics companies in China, including China Post, UPS, FedEx, DHL, are unable to directly transport electricity Pool.

2. So we have shipped your order. Once the battery arrives in Europe or the US, we will declare the import at European or US customs. When the battery goes through European or US customs, we will ship it to you via UPS or FedEx. So the UPS number we provide will not be updated until the battery is over. This is a normal phenomenon.Secondly, we will help you solve the customs clearance problem.

3. Delivery takes 30-45 working days. Generally, 35-45 working days later, the package will arrive at the transfer station. After the customs clearance is completed, the package will be picked up and delivered, and the logistics information will be updated. Once the shipping number is updated, you can receive the goods within 3-5 days at most.
