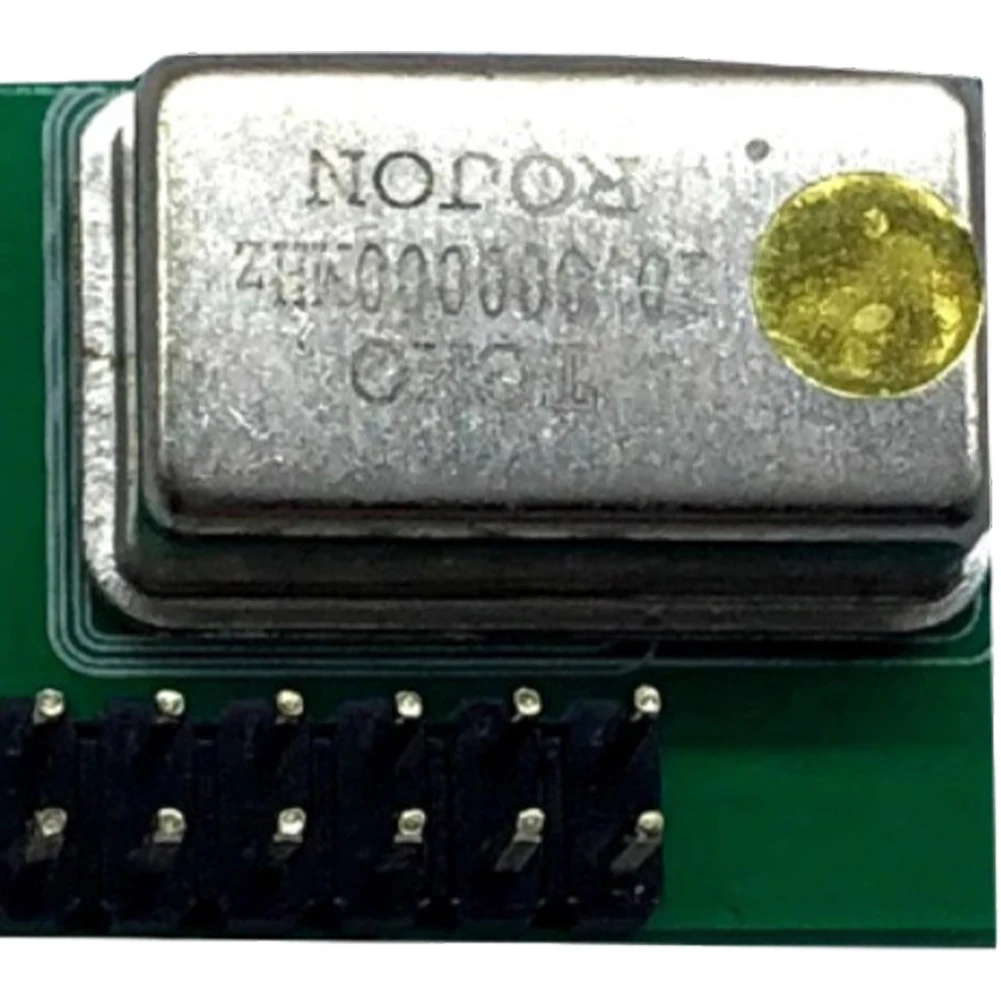

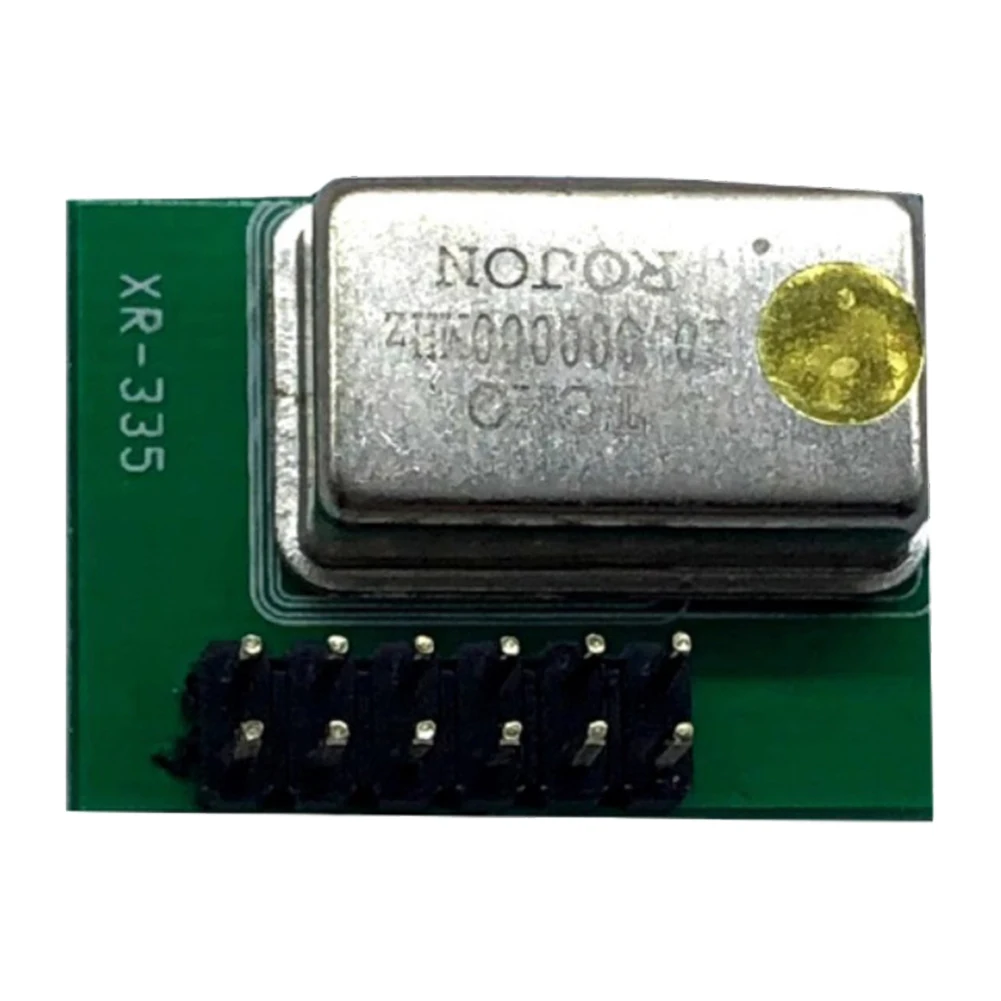

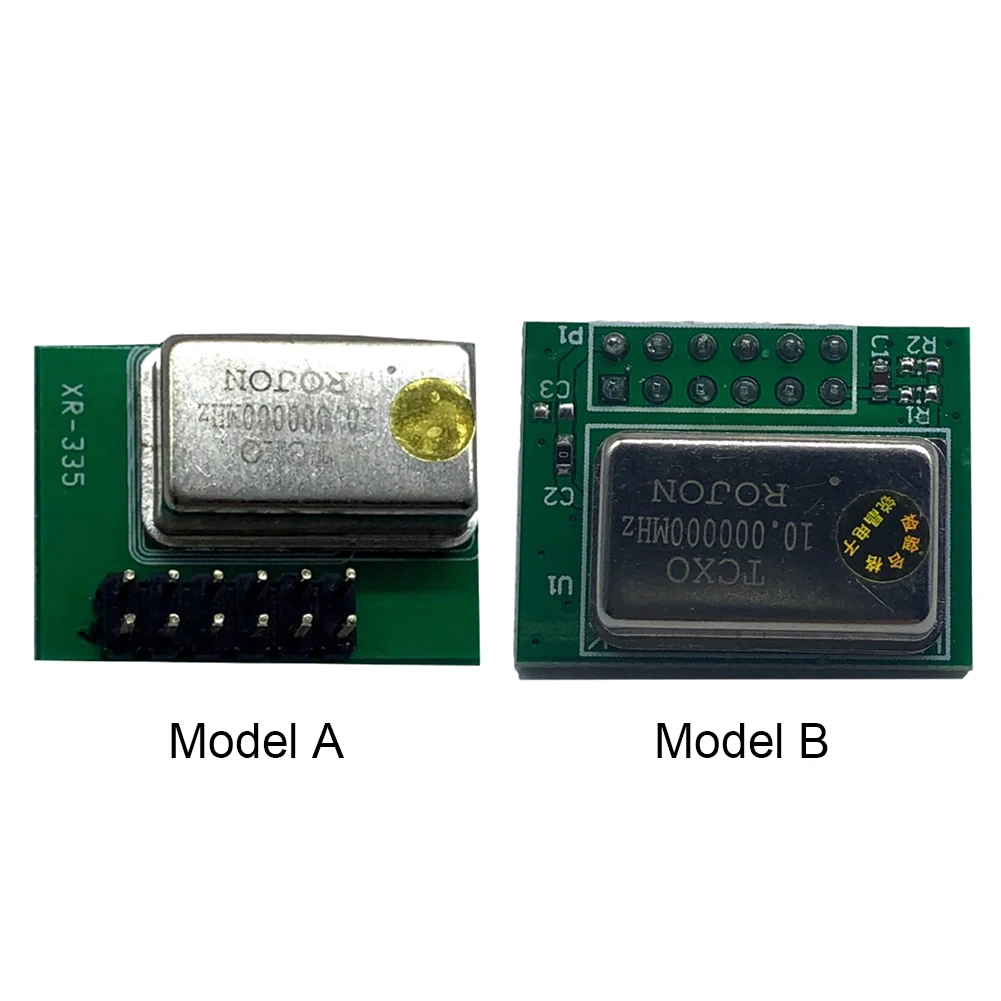

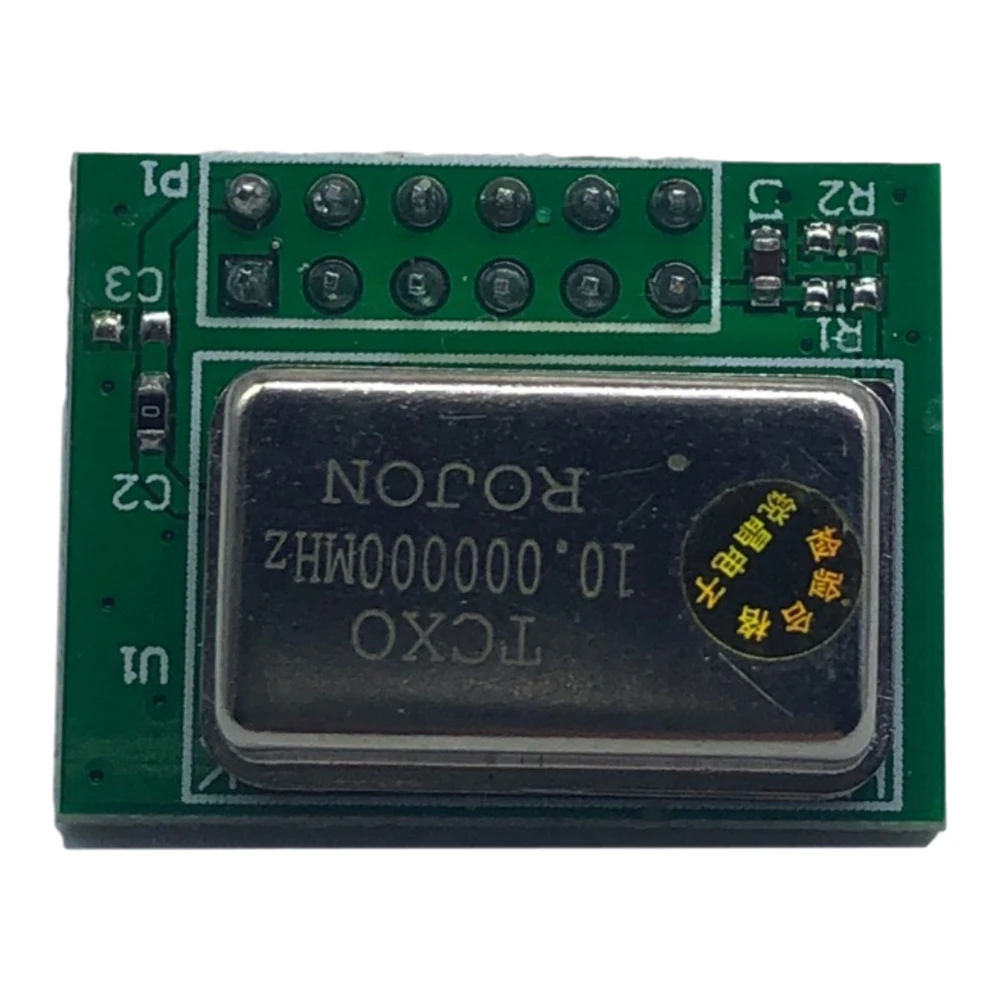

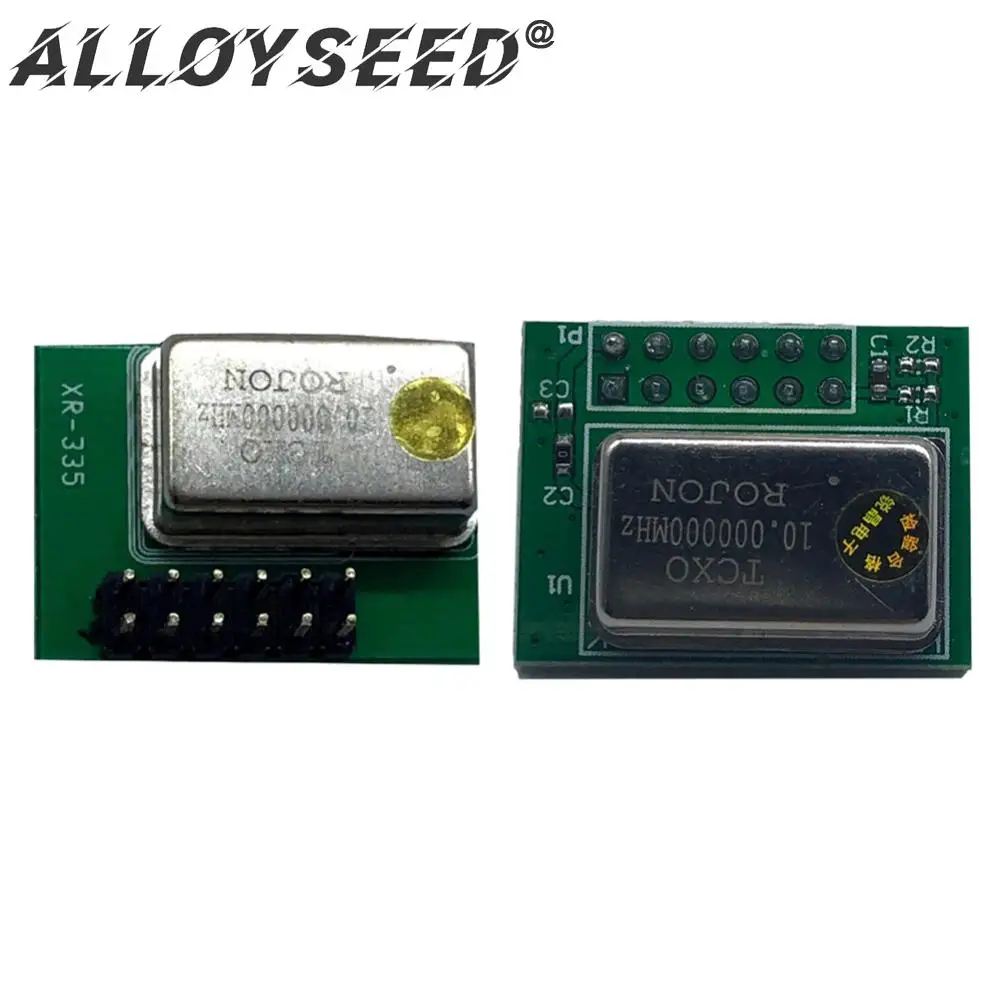

TCXO Clock PPM 0.1 TCXO Clock Oscillator Module High Accuracy TCXO CLK GSM/WCDMA/LTE for HackRF One GPS Applications – 509

TCXO External Clock PPM 0.1 TCXO Clock Oscillator Module High Accuracy Clock Module GSM/WCDMA/LTE for HackRF One GPS Applications

Feature:

1. High-Precision Clock: Our TCXO Clock features an exceptionally high clock accuracy, typically measured in parts per million (PPM), providing precise and stable clock signals.

2. Designed Specifically: This TCXO External Clock is designed to meet the high-precision clock requirements for HackRF One, addressing all its needs regarding clock accuracy.

3. Frequency Stability: External TCXO Clock Oscillator Module generally boast excellent frequency stability, maintaining a stable operating frequency across different temperatures and environmental conditions.

4. Signal Accuracy: The high precision offered by the external TCXO clock enables more accurate sampling and modulation/demodulation capabilities, enabling for HackRF to receive and transmit radio signals with greater precision.

5. Low Phase Noise: External TCXO Clock Module often exhibit low phase noise characteristics, which is crucial when dealing with weak signals and receiving low signal-to-noise ratio transmissions.

Specification:

Origin: Mainland China

Gain(dB): 10

describe:

1. In order to solve all for Hackrf One clock accuracy needs, for Hackrf One clock was born to meet the for Hackrf One clock demand for high accuracy.

2. Allow for Hackrf One to be used in higher clock applications such as GPS simulation, GSM/WCDMA/LTE data analysis, etc.

3. Since the for HACKRF clock is a passive OC, the accuracy of the factory board is usually 20PPM, the frequency deviation of 1MHZ is around 20HZ, and 1GHZ is a change of 20KHZ. Usually the frequency will be affected by changes in the environment. Usually this effect will occur in situations where the requirements are not high. What impact, for example, does it have on wireless reception? After all,for HACKRF has a 20MHZ bandwidth, but its meaning is different in terms of wireless transmission. For example, in the GPS system, the frequency is 1575.42MHZ. If the PPM is 20, then the frequency offset is 1575.42MHZ+(1575.42*20=0.0315084 MHZ)=1575.42+3, so it cannot meet the application of GPS, but the PPM 2 accuracy of 0.003MHZ obviously meets the requirements.

4. The external clock adopts high-precision TCXO design, and the DIP packaging accuracy is 0.1-0.5ppm.

Application scenarios:

1.GPS application

2. Other occasions requiring high-precision clocks

Application scope:

for Hackrf One has a built-in external clock.

Working temperature: -20℃-85℃

Accuracy (PPM): 0.1~0.5

Size: 31*20*12MM/1.22×0.79×0.47inch

Note:

Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!

Please allow 1-2cm measuring deviation due to manual measurement.

1 x for Hackrf One TCXO Clock
