T-Display-S3 ESP32-S3 1.9 inch ST7789 LCD Display Development Board WIFI Bluetooth5.0 Wireless Module 170*320 Resolution – 7

T-Display-S3 Introduction

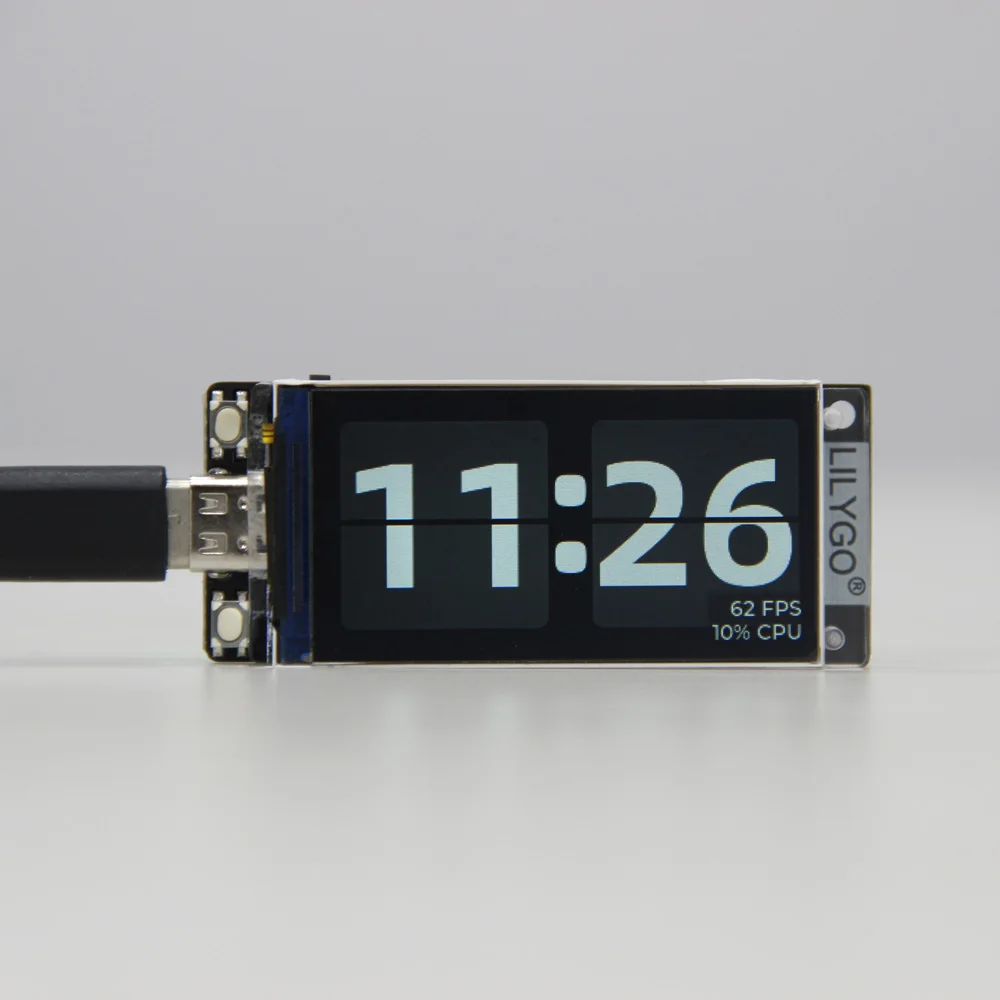

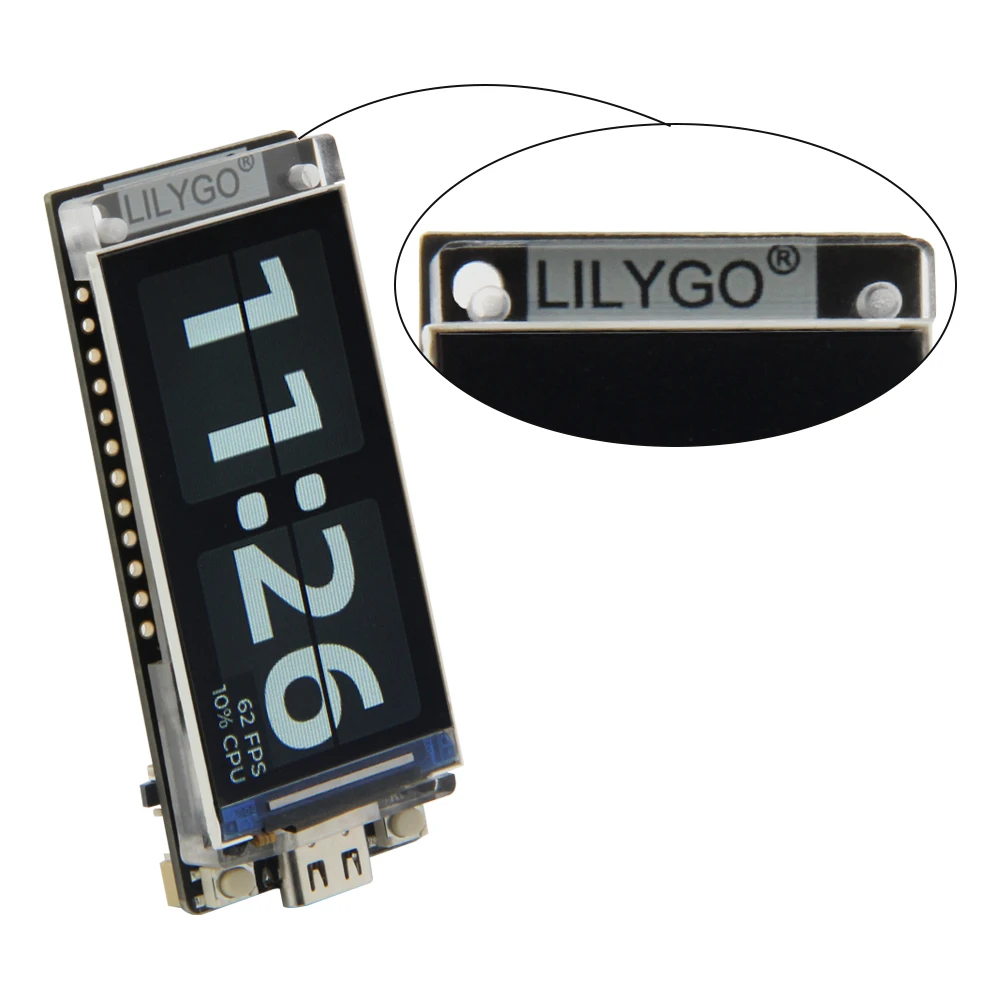

• Introducing the latest addition to the T-Display series – the T-Display-S3. Equipped with the latest ESP32-S3 and Bluetooth 5.0, this model boasts a larger 1.9 inch screen and features an acrylic plate for added stability.
• The T-Display-S3 maintains the sleek and modern design of the T-Display series.

There are MIDI expansion boards for use with the T-Display S3

• Connect it to headphones or a stereo and playback the simulated sound!
• Compatible with T-Display S3 Basic Version and Touch Version.

⚠️[Please note that the package does not include the T-Display S3 device, only the MIDI Board; please select the appropriate version of the S3 to use with the MIDI Board according to your needs].

T-Display S3-MIDI

More Information

• Github
• T-Display-S3 Touch Edition
• From YouTube’s “Useful Electronics” presentation:
• Contribution from “У Павла!“

What engineers have done with T-Display-S3

Car Dashboard/Controller, Game, Monitors….

Certification

• “CE” “FCC” “TELEC(MIC)” “UKCA“

The board uses USB as the JTAG upload port. When printing serial port information on USB, CDC_ON_BOOT configuration needs to be turned on. If the port cannot be found when uploading the program or the USB has been used for other functions, the port does not appear. Please enter the upload mode manually.

• Press and hold the BOOT button when the power is off, the button is located behind the RST button.
• When the USB is connected, first press and hold the BOOT button, then click reset and then release the BOOT button

Please refer to the diagram for further instructions. Check

T-Display-S3 Specifications

MCU

ESP32-S3R8 Dual-core LX7 microprocessor

Flash

16MB

PSRAM

8MB

Wireless Connectivity

Wi-Fi 802.11

Bluetooth 5.0 + BT mesh

Programming Platform

Arduino-ide、Micropython

Bat voltage detection

IO04

Onboard Functions

Boot+Reset+IO14 Button

1.9 inch ST7789V IPS TFT LCD

Drive Chip

ST7789

Resolution

170(H) x 320(V)

Screen Size

1.9″ Diagonal

Interface

8-Bit Parallel

Screen Type

TFT IPS LCD

Pixels Per Inch(PPI)

Screen Color

Full color

Color

White

Support USB/Li-Po Battery Dual Power Supply

T-Display-S3

No Soldering Pin

Soldering Pin

What’s in the box?

1 X T-Display-S3

2 X 2.54mm Male Pin (1*12P)

1 X Power Cable 1.25mm 2P

T-Display-S3 With Shell

T-Display-S3 With Shell

Grey Shell

Black Shell

What’s in the box?

1 X T-Display-S3 With Shell

2 X 2.54mm Female Pin (1*12P)

2 X 2.54mm Male Pin (1*12P)

1 X Power Cable 1.25mm 2P

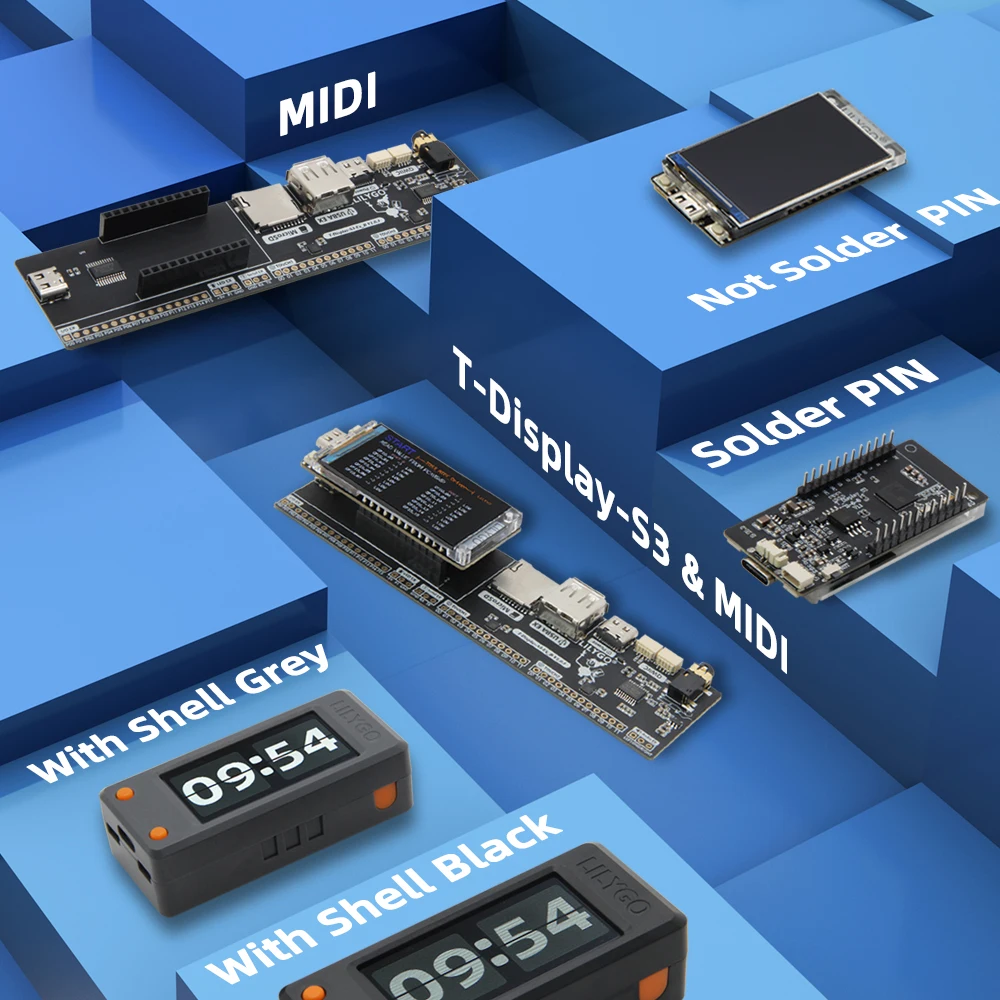

T-Display-S3-MIDI Shield

T-Display-S3 Shield ⚠ [Please note that the package does not include the T-Display S3 device, only the MIDI Board.]

Only MIDI Shield

Not include the T-Display S3

What’s in the box?

1 X Shield

1 X 2.54mm Male Pin (1*16P)

2 X 2.54mm Male Pin (1*12P)

3 X 2.54mm Male Pin (1*3P)

1 X USB Type-C to USB Type-C
