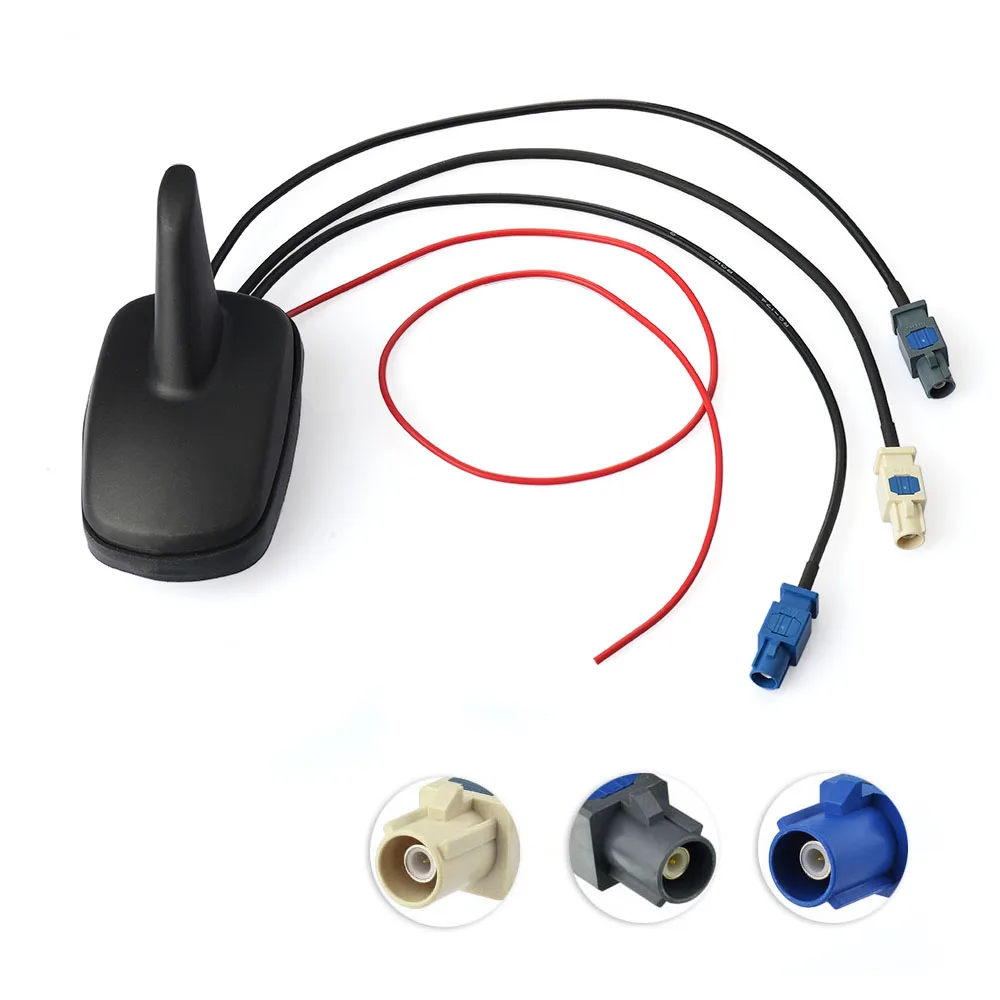

Superbat Car Multi-band Combined DAB+GPS+FM Radio Amplified Shark Fin Roof Mount Antenna Fakra RG174 5M Cable for Alpine Ezi-DAB – 509

Superbat DAB/DAB+/GPS/FM Car Digital Radio Amplified Aerial Roof Mount Aerial Antenna and Fakra Aerial Connector RG174 5M Coaxial Cable for Alpine Ezi-DAB

Specification

DAB

Frequency:174MHz～240MHz (Band III) 1452MHz～1492MHz (L-Band)

Impedance :50 Ω

Amplification：20dbi

VSWR:≤2.0:1

Connector :Fakra “G” Male/Plug

Power Supply:+12v

Cable:30cm RG174

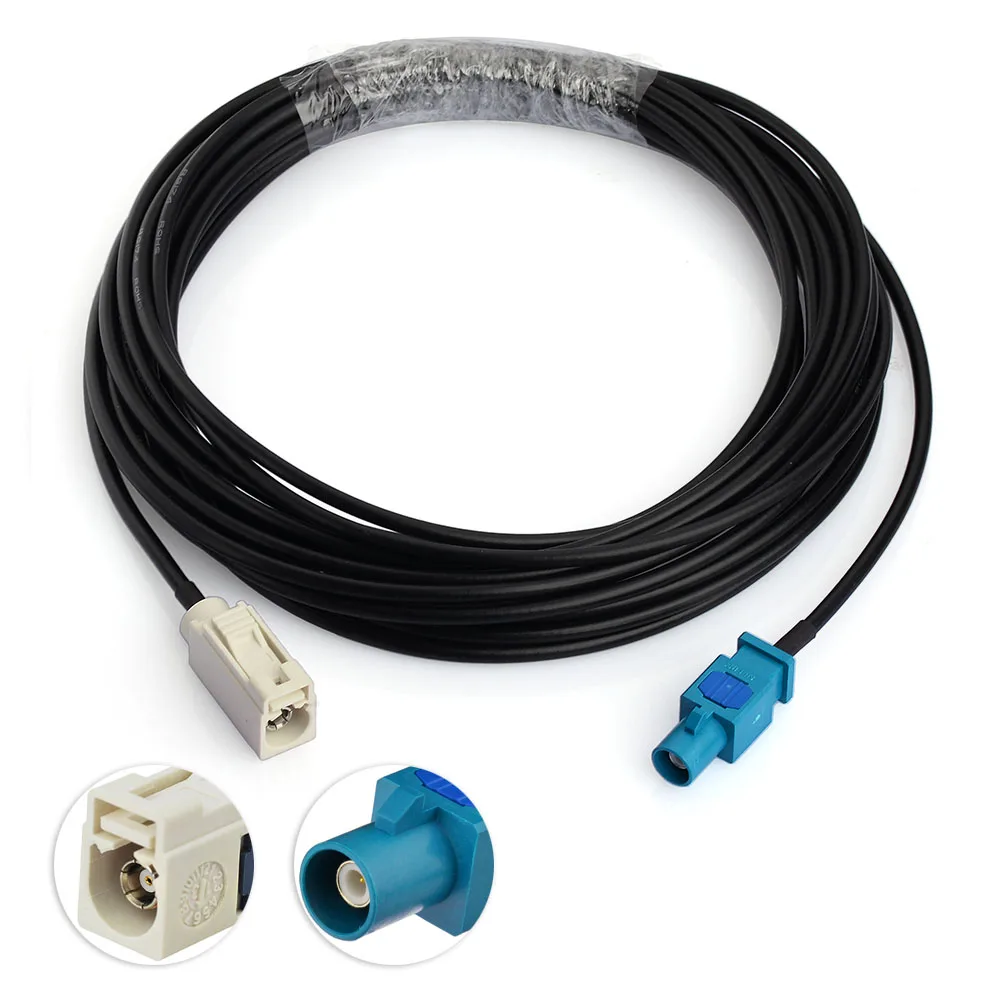

Aerial Replacement Cable:Fakra “G”-Fakra “Z” RG174 5M

GPS

Frequency:1575.42MHz

Impedance :50 Ω

Amplification:28±3db

VSWR:≤1.5:1

Gain:32dbi

Connector: FAKRA“C” Male/Plug

Cable:30cm RG174

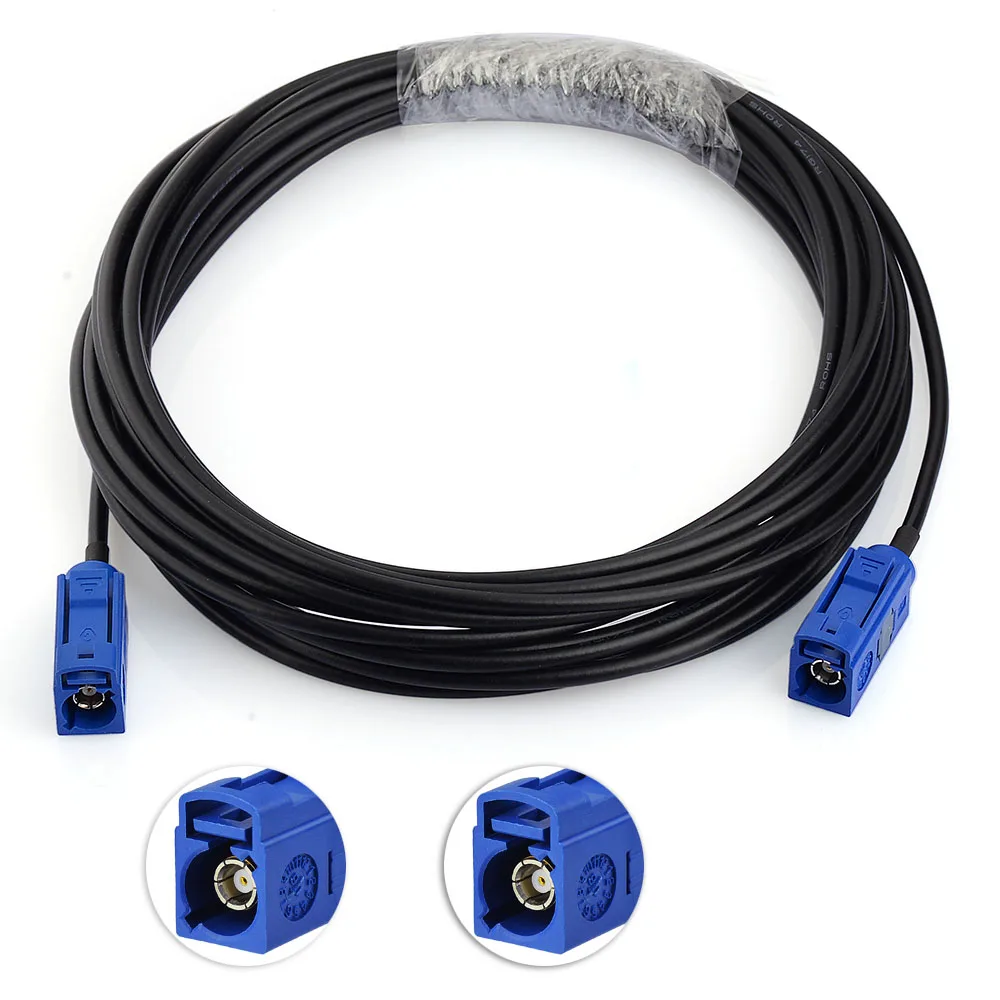

Aerial Extension Cable:Fakra-Fakra RG174 5M

FM

Frequency:87.5-108 MHz

Impedance : 50 Ω

Amplification:20dB

VSWR:≤2.5:1

Connector:FAKRA“B” Male/Plug

Power Supply:+12v

Cable:30cm RG174

Aerial Replacement Cable:FARKA “B”-FAKRA “Z” RG174 5M

Voltage : 12V direct feed for both DAB an FM

Current Consumption : 50mA

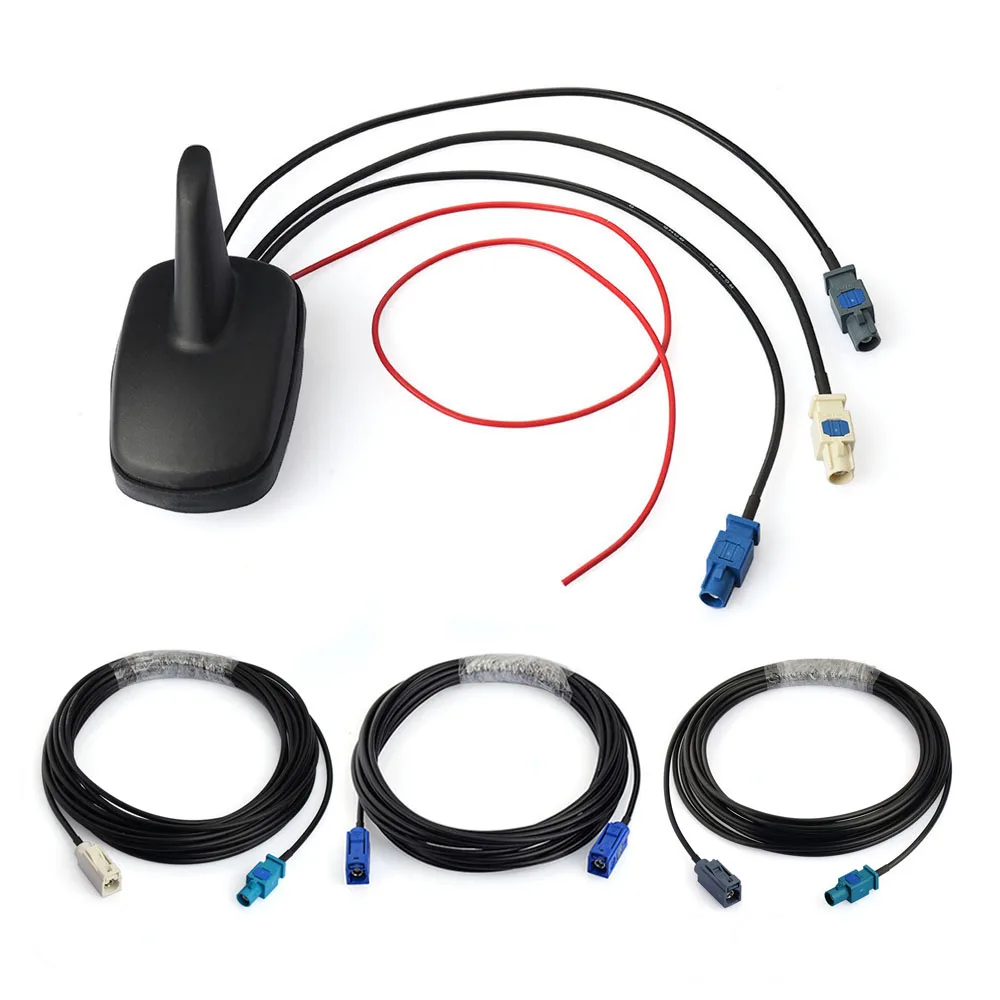

Package Included:

1pcs DAB/FM/GPS Amplified Aerial

1pcs Fakra”G” to Fakra”Z” 5M Aerial Replacement Cable

1pcs Fakra”B” to Fakra”Z” 5M Aerial Replacement Cable

1pcs Fakra”C” to Fakra”C” 5M Aerial Extension Cable

Advantages:

Very neat and stylish.

Roof mount DAB car radio aerial.

No need to unscrew mast for carwash, etc.

Can also be fitted to wing, boot lid etc. (at slight expense of performance)

Vandal resistant.

Amplified

Listing Suitable for the Following DAB Radios：

Alpine Ezi-DAB

Pure Highway 300Di

Cautions:

DAB / FM / GPS only.

FM reception good, but not up to a top quality, full rod aerial.

Not designed for AM reception; will nevertheless receive strong MW signals.

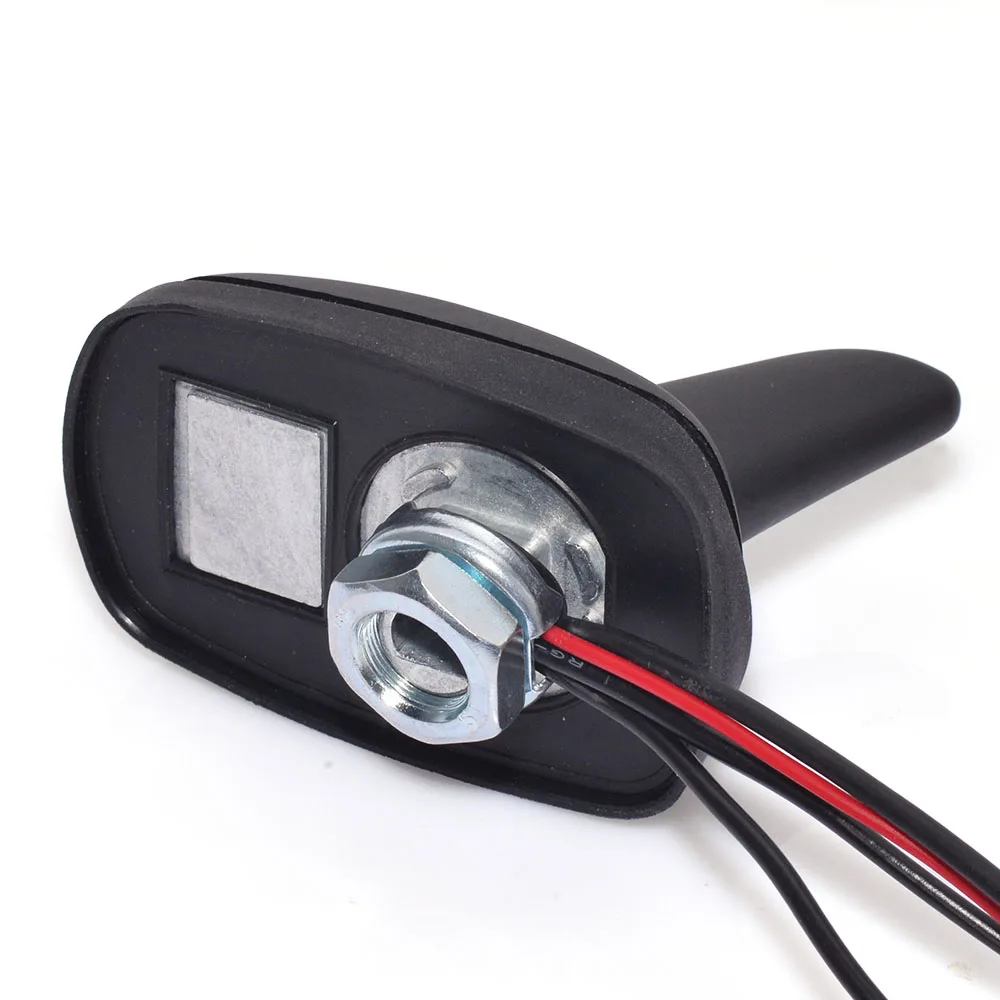

Mounting surface must be flat to within 1.5mm.

Must not be mounted on a panel whose underside is exposed to the elements.

Max Panel Thickness: 2.5mm
