Superbat Car Mini GPS Antenna WICLIC for BMW TRAFFIC PRO – Becker 4769 Becker DTM High Pioneer Mercedes Sony JVC Similar Models – 509

Superbat WICLIC GPS Mini Magnetic Base Antenna Aerial Connector Cable for Pioneer JVC Beker GPS Navigation Receiver

Product Description

* Becker Traffic Pro 4720, 4723, 4724, 4725, 4730, 4733, 6549

* Becker Traffic High Speed 7820, 7822, 7823, 7824, 7825, 7830, 7833

* Becker Indianapolis 7920, 7922, 7925, 7923, 7935

* Becker DTM ´7802, 7810, 7813

* Becker DTM High Speed

* Becker Online Pro

* Becker Traffic Star

* Pioneer ANH-P9R, ANH-P-9R-BK, ANH-P 10MP

* Mercedes APS30… and similar models with round connector

* Sony MEX.100NV…and similar models with round connector

* JVC KD-NX1, KD-NX1R, KD-NX1B, KDNX301….and similar models with round connector

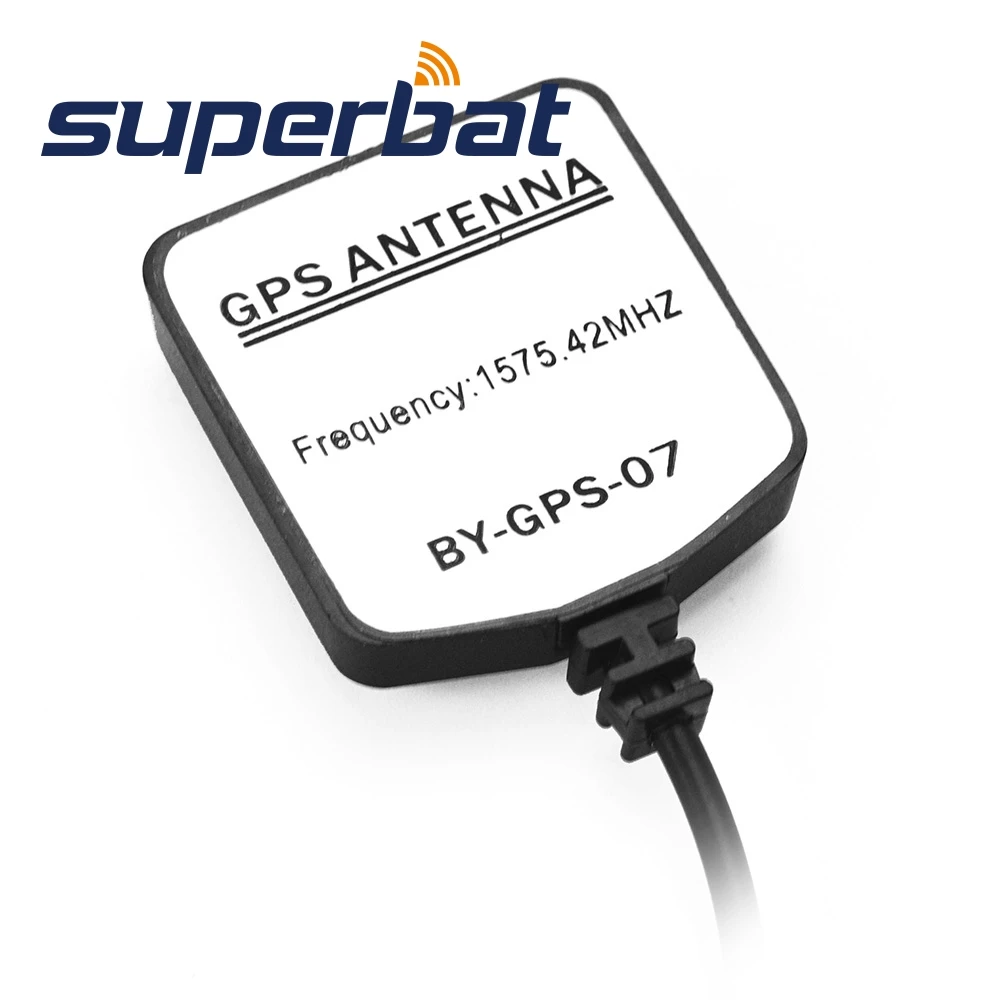

Dielectric Antenna

Center Frequency: 1575.42MHz+-3 MHz

V.S.W.R: 1.5:1

Band Width: +-5 MHz

Impedance: 50 ohm

Peak: Gain >3dBic Based on 7×7cm ground plane

Gain: Coverage >-4dBic at –90°<0<+90°(over 75% Volume)

Polarization: RHCP

LNA/Filter

LNA Gain (Without cable): 13dB/26dB/28dB/other Typical

Noise Figure: 1.5dB

Filter Out Band Attenuation (f0=1575.42 MHZ):

7dB Min f0+/-20MHZ ;

20dB Min f0+/-50MHZ;

30dB Min f0+/-100MHZ

V.S.W.R: <2.0

DC Voltage: 2.7V/3.0V/3.3V/5.0V/3.0V to 5.0V/other

DC Current: 5mA /11mA/15mA Max

Mechanical

Weight: <110gram

Size: 44.0×35.5×14.0mm

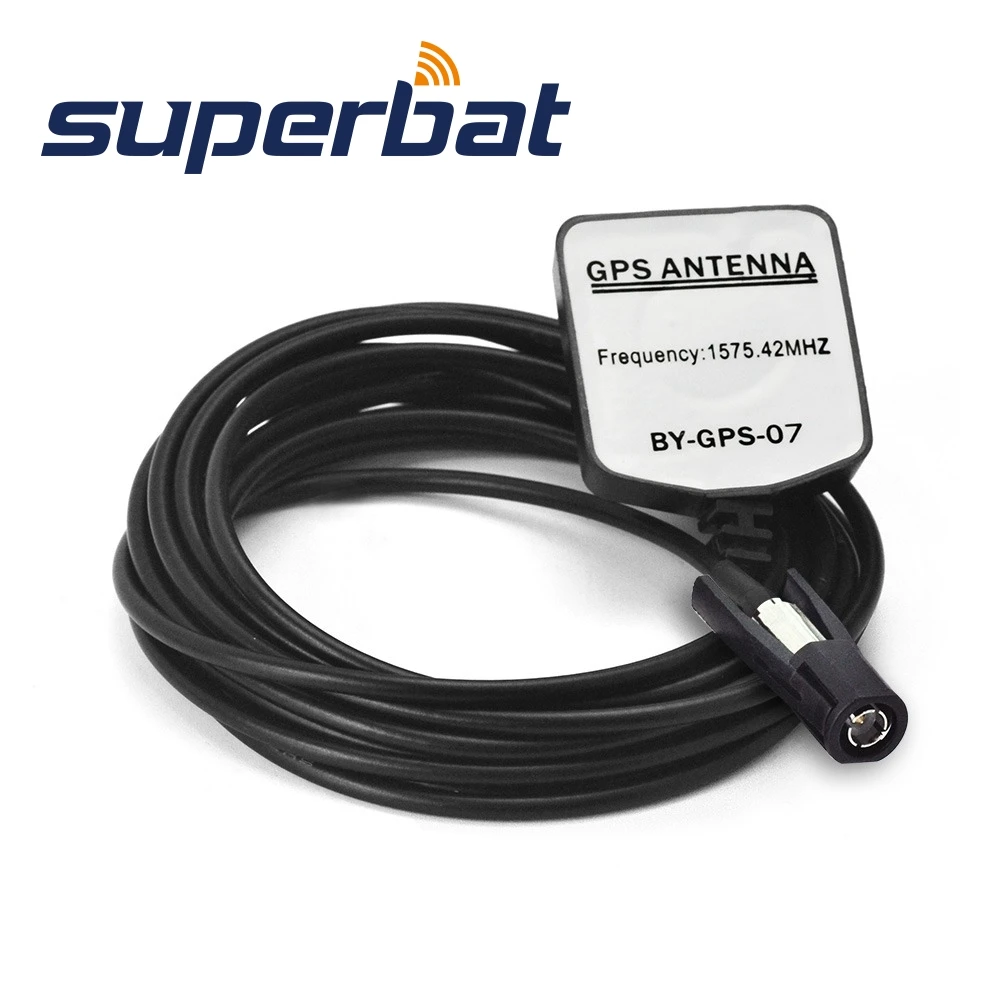

Length:3 meter

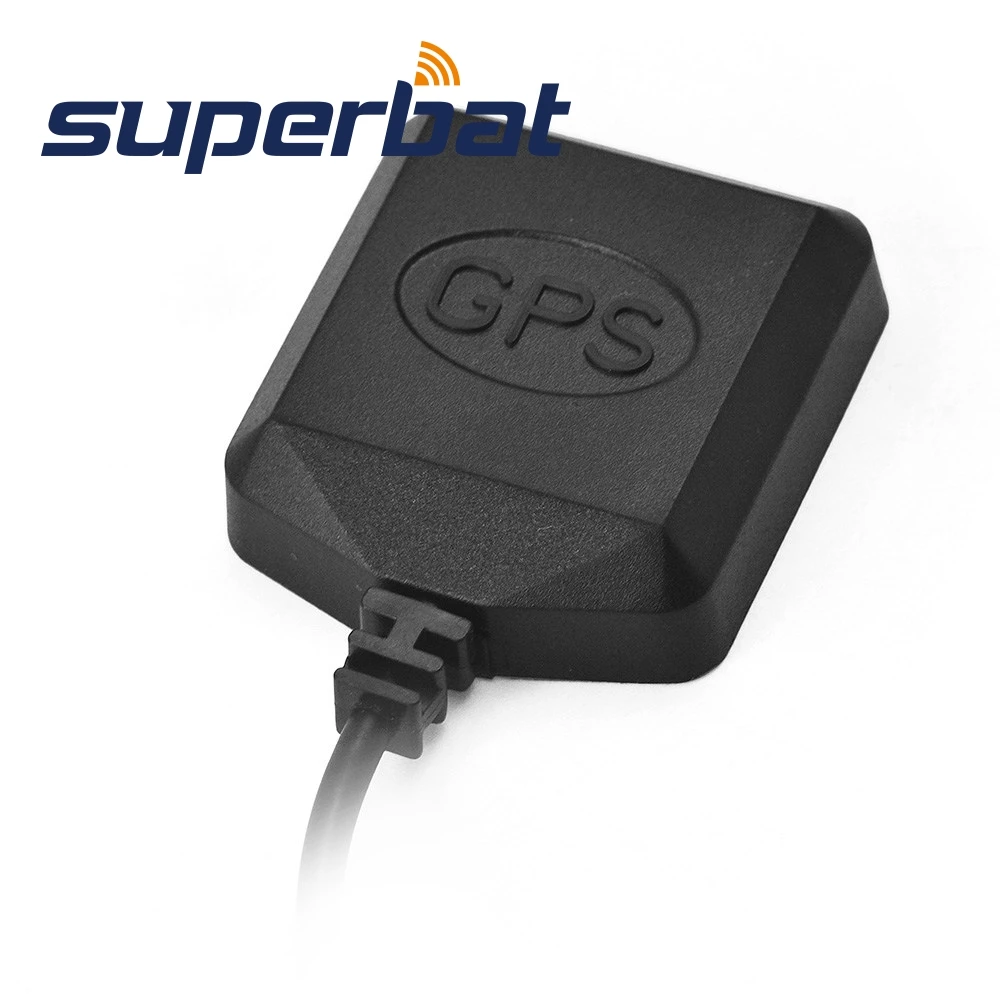

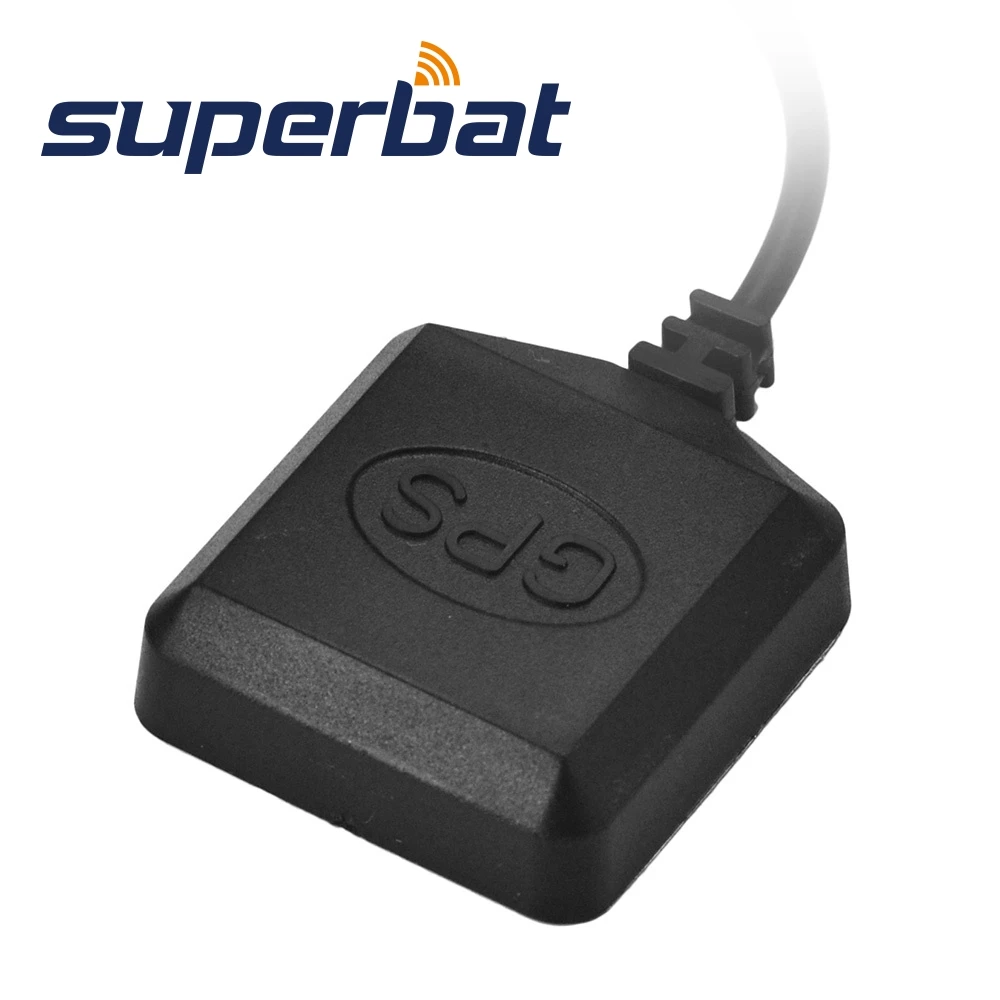

Mounting Magnetic Base

Housing: Black

Environment

Working Temp: -40~+85

Storage Temp:-45~+100

Vibration Sine sweep: 1g(0-p)10~50~10Hz each axis

Humidity: Humidity95%~100%RH

Weatherproof: 100%Waterproof
