Superbat 8dbi 4G LTE Wide Band 700-2700Mhz Omni Directional Antenna for Huawei 4G Router Mobile Cell Phone Signal Booster Cellul – 509

Superbat 8dbi White 4G LTE Antenna Wide Band 700-2700Mhz Omni Directional Antenna SMA Male Connector for Huawei 4G Router Mobile Cell Phone Signal Booster Cellular

Description

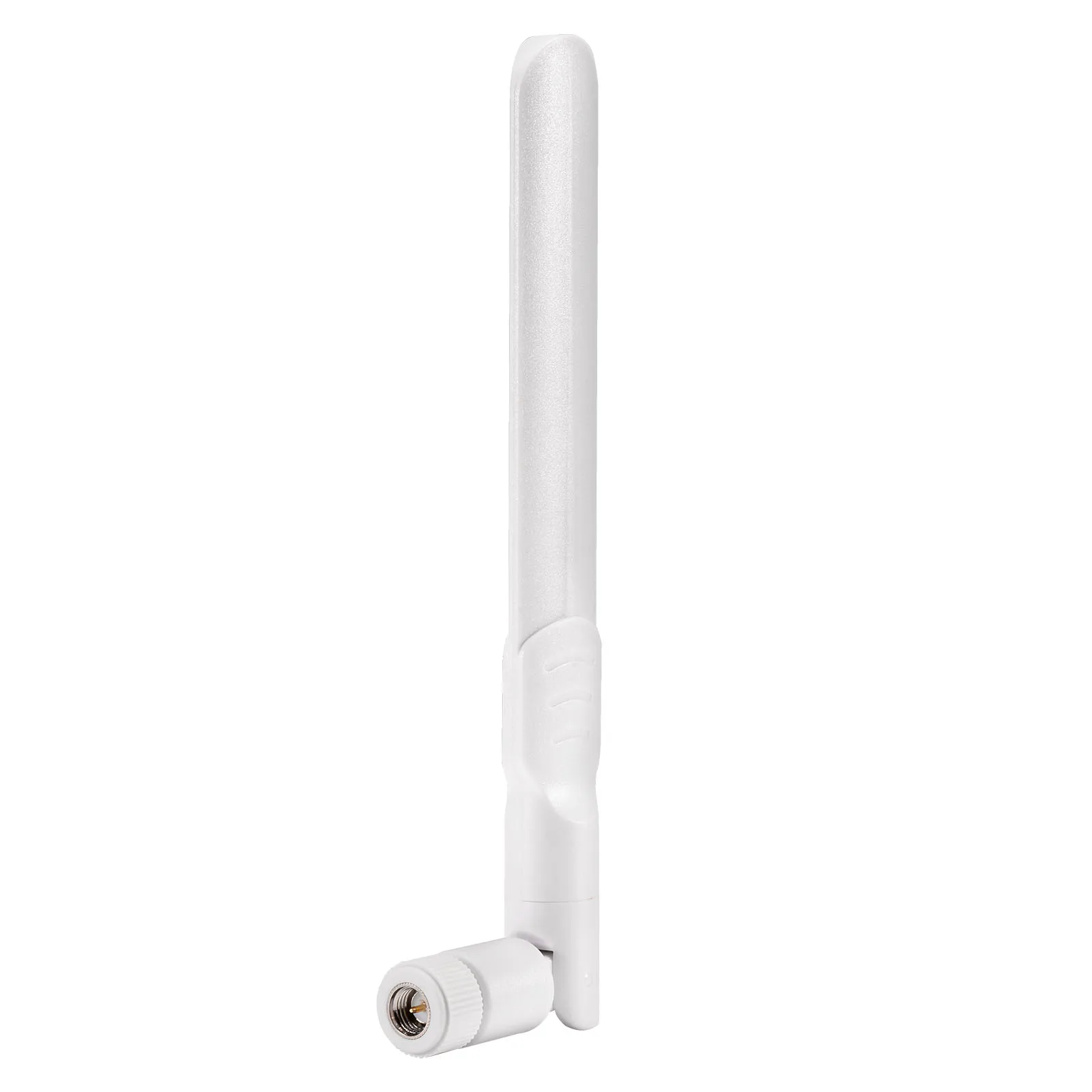

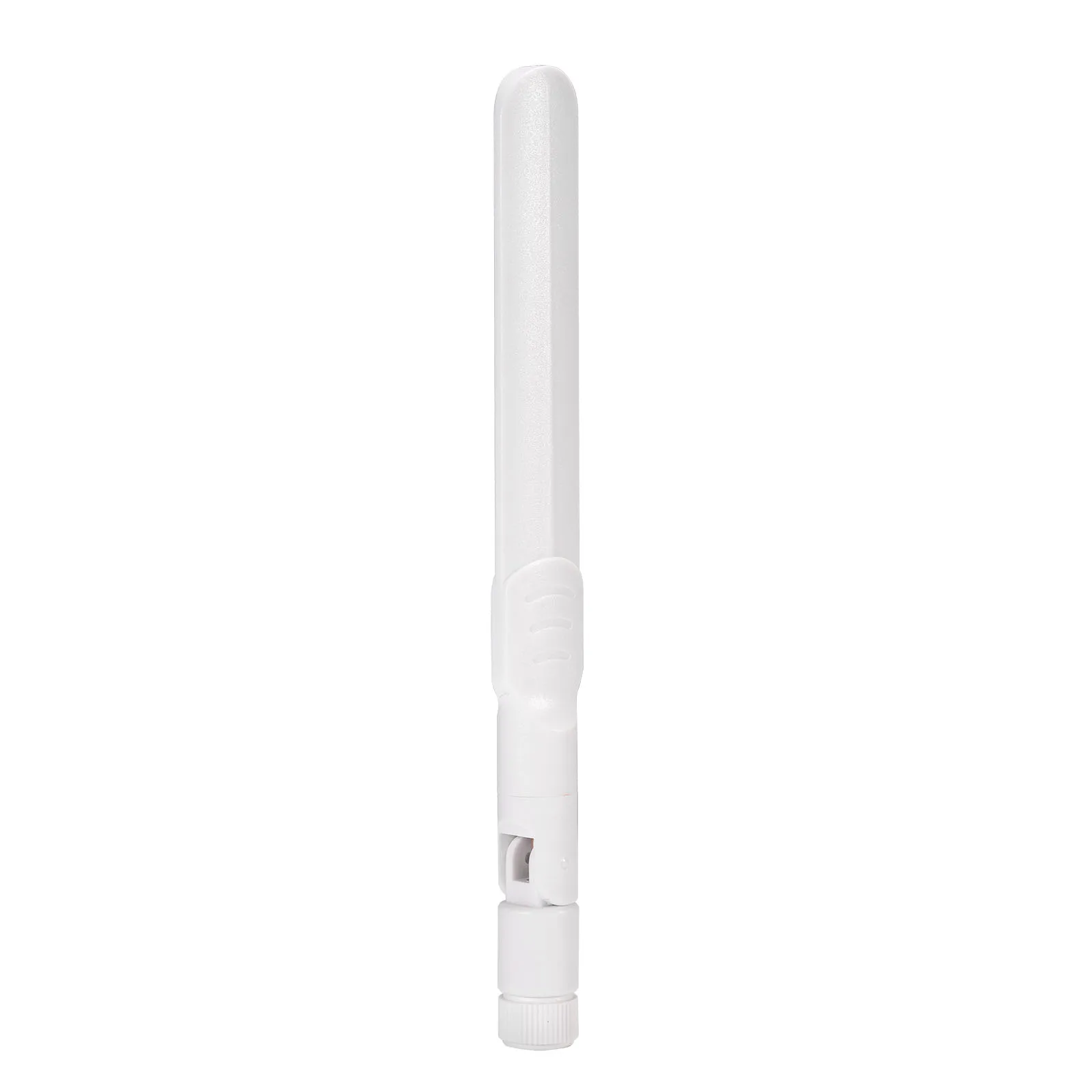

The Superbat Flat Swivel Antenna is a high-efficiency mid-gain 3G/4G/GPS omnidirectional antenna. The “rubber-duck” style antenna is an 6.3 inch (160 mm) omni-directional antenna that provides 8 dBi of gain and supports all 2G, 3G and 4G/LTE/xLTE/AWS frequency bands (700-2700 MHz) ,such as Verizon Wireless, AT&T Wireless, T-Mobile, Rogers, Bell Mobility and Telus as well as most other cellular operators worldwide.

Important Note!!:

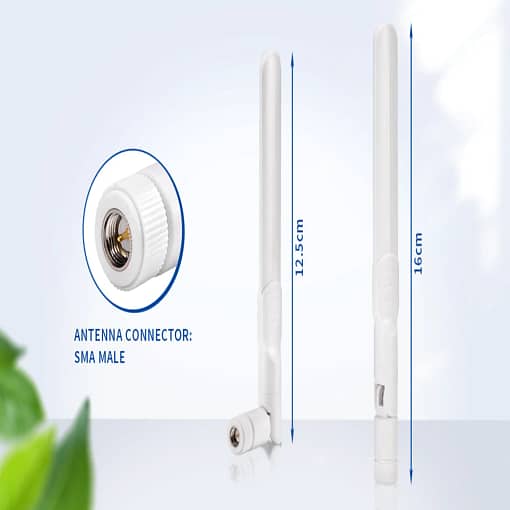

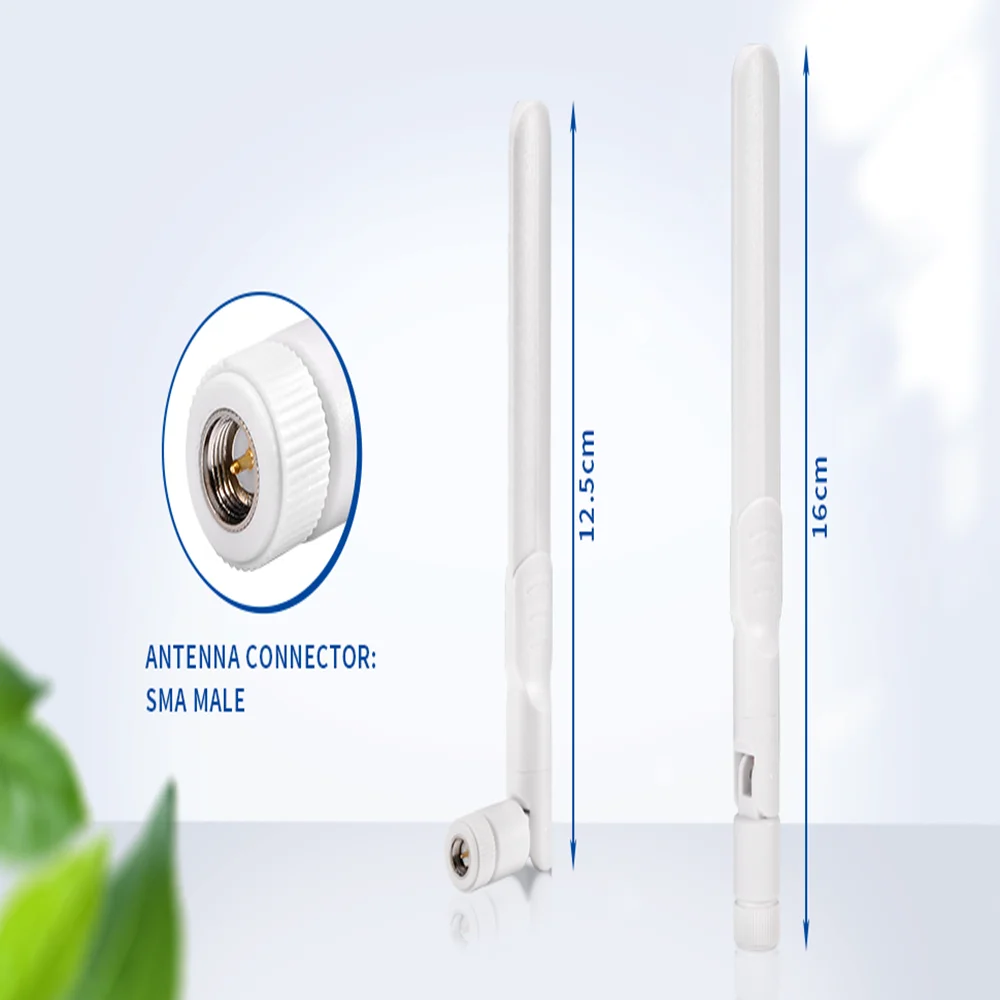

This antenna with SMA Male Plug connector (Thread inside with Pin)

It only match SMA Jack connector (Thread outside without Pin)

**Please confirm your device interface type before purchasing**.

Specification

Gain: 8dBi

Antenna Length: 16cm

Frequency Range: 700-960MHz/1710-2700MHz

Vswr: < 2.0

Polarization: Vertical

Max power: 50 W

Temperature: -40°С ~ +80°С

Connector Type: SMA Male

Input Impendence: 50Ω

Radiation: Omni Directional

Weight: 15g

Installation: Screw

Package List: 1 x Antenna;(As the Picture Shown)
