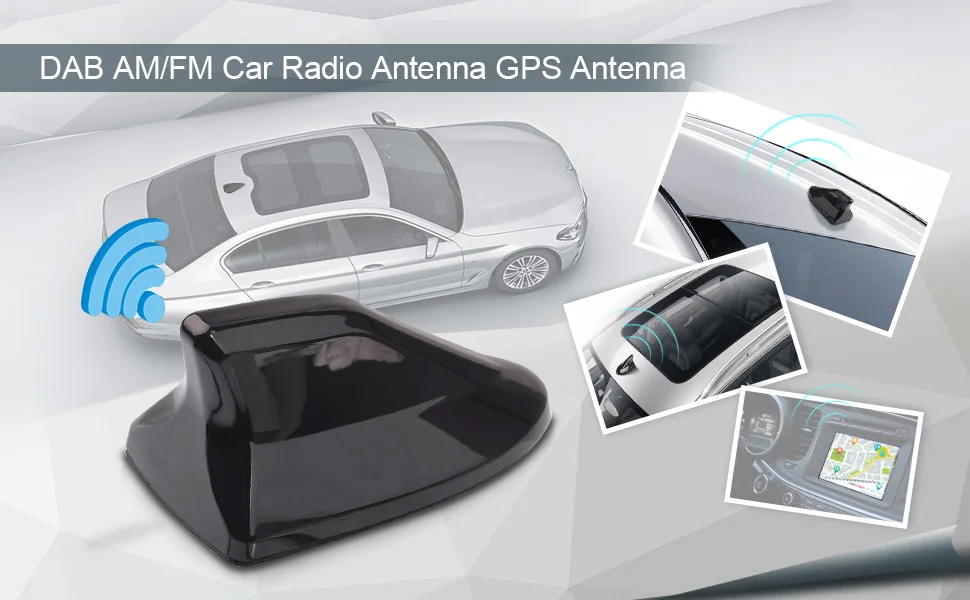

Superbat Car Roof Top Shark Fin Antenna Vehicle GPS Navigation System DAB Digital Radio Tuner DAB+ Receiver Car Stereo FM/AM Radio Combined Amplified Antenna

Description:

Type：Roof Mount Aerials

Feature:

1)Combine GPS, DAB and FM/AM Antenna Application.

2)Car Top Roof Thru Hole Mount.

3)5 Meters of Antenna Adapter Cable and Signal Amplifier Power Supply Cable.

4)Apply to Normal Aftermarket Car Navigation Head Unit and In-Car DAB Digital Radio or DAB+ USB Stick Receiver

FM/AM/DAB Radio Antenna Specification:

Working Voltage: DC 9V-16V

Working Current: ≤60mA

DAB Frequency: 170MHz～240MHz (Band III), 1452MHz～1492MHz (L-Band)

FM/AM Frequency: 522～1710KHz(AM), 87.5～108MHz(FM)

Output Gain: 18dB±3dB (Band III), 8dB ±3dB (L-Band) , 13±3dB(AM), 16±3dB(FM)

Output Impedance:  50Ω

V.S.W.R: ≤2.5:1 (FM/DAB)

Noise: ≤3dB(FM/DAB)

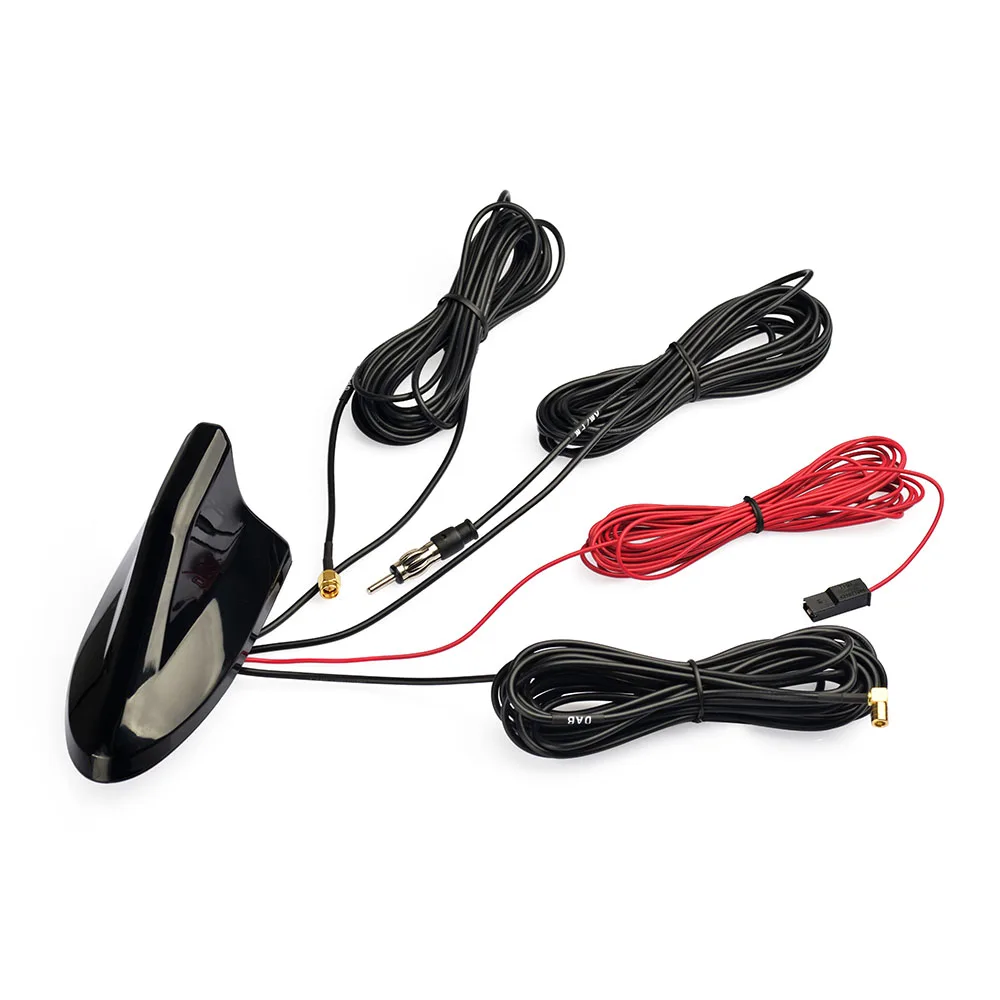

Cable Length: 5 meters

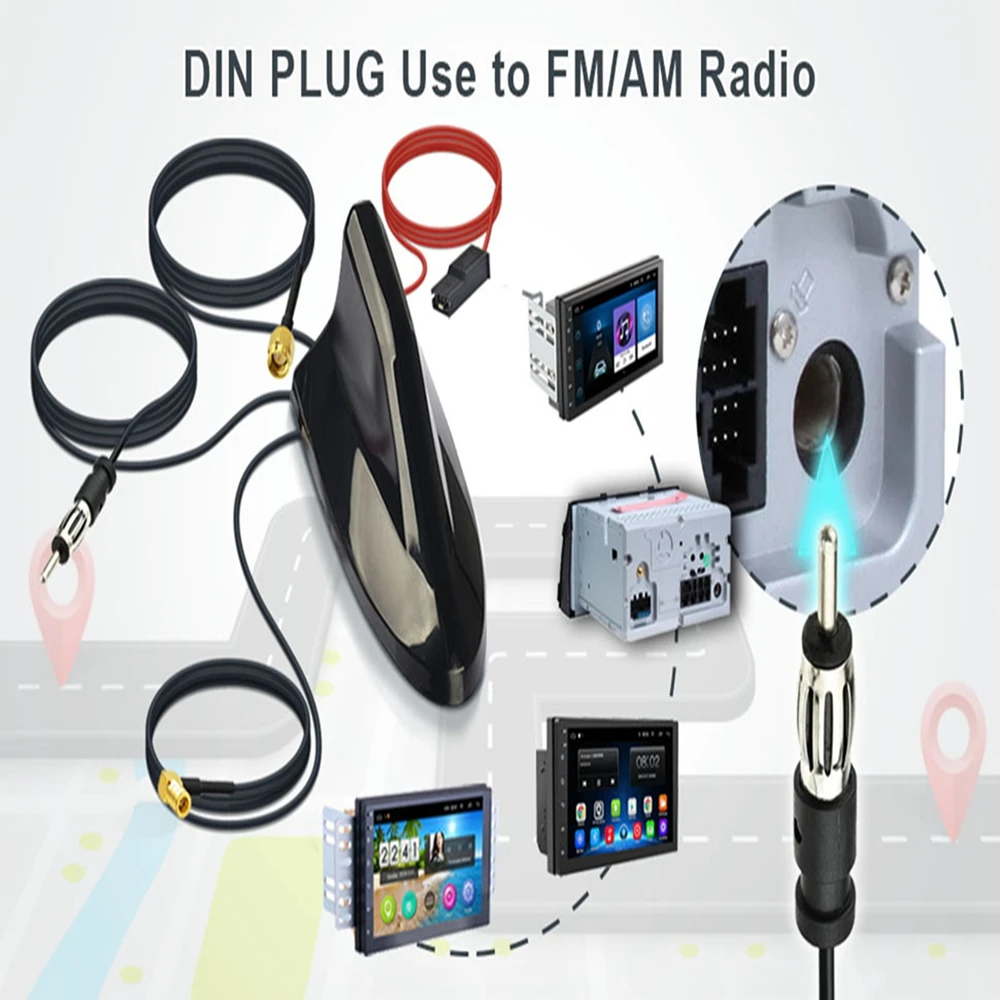

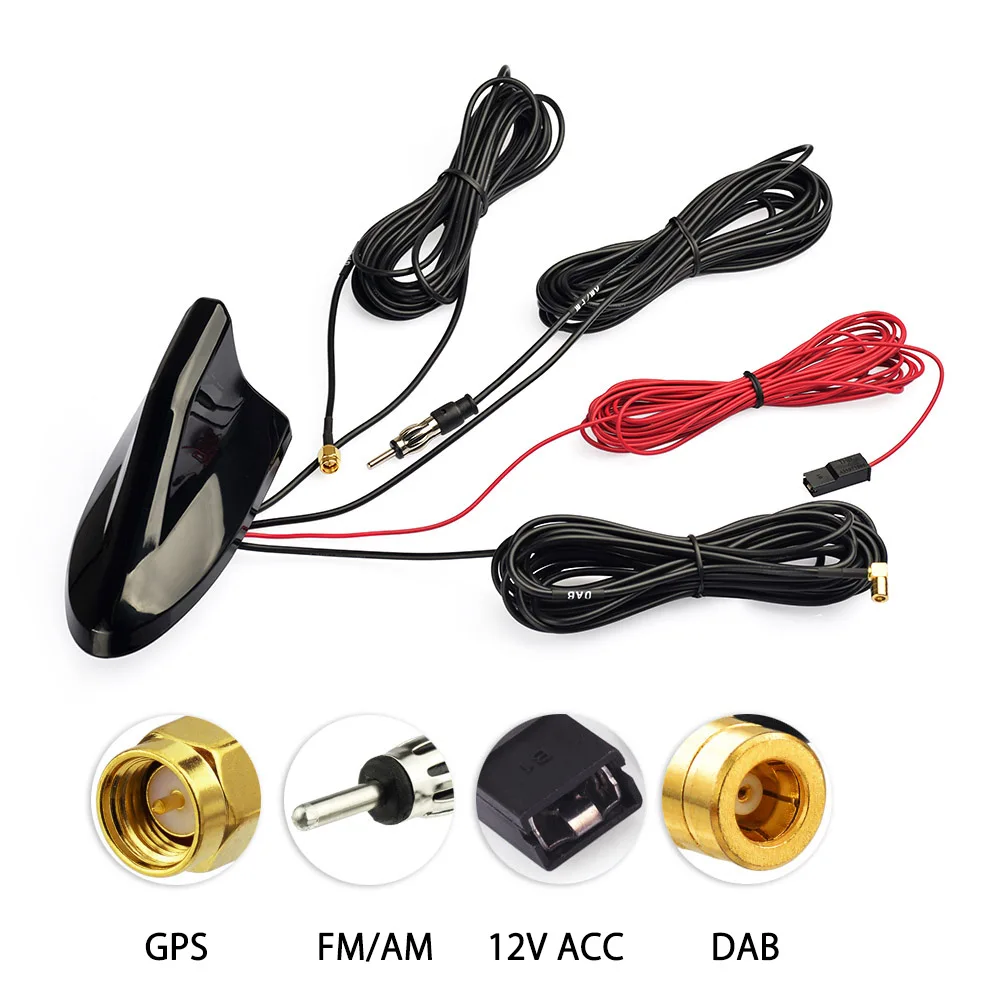

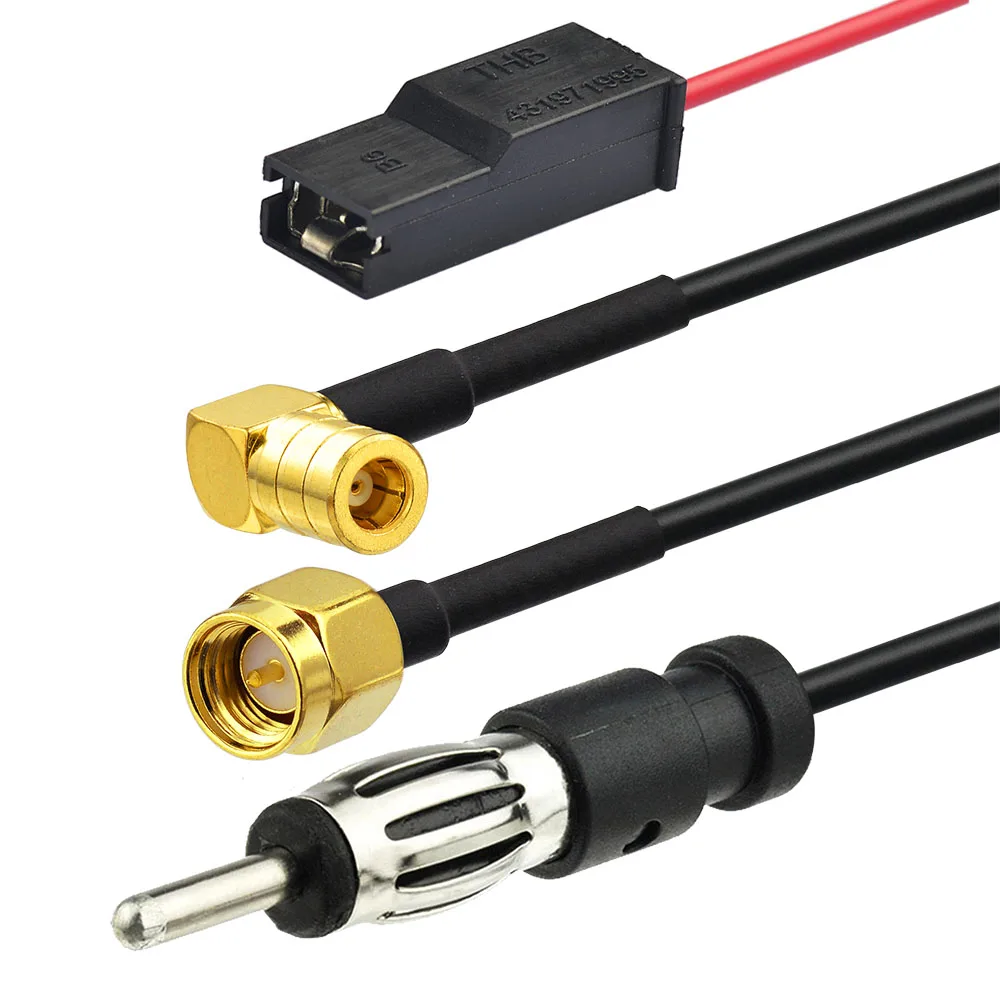

Cable Connector: Din Male/Plug(FM/AM Radio)

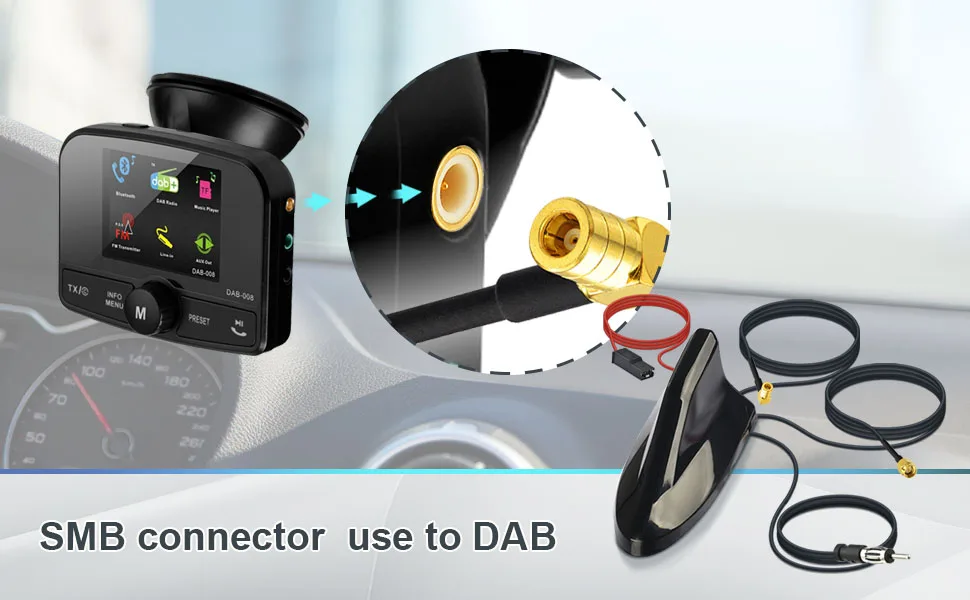

               SMB Male/Plug Right Angle(DAB Digital Radio)

               SMA Male/Plug(Implement by Accessoried Connector Adapter for DAB+ Receiver)

GPS Navigation Antenna Specification:

Working Voltage: DC 3V-5V

Working Current: 10mA≤I≤30mA

Frequency：1575.42 ±1.023MHz

Output Gain: 28dB±3dB

Output Impedance: 50Ω

V.S.W.R: ≤2.0:1

Noise: ≤1.5dB

Cable Length: 5M

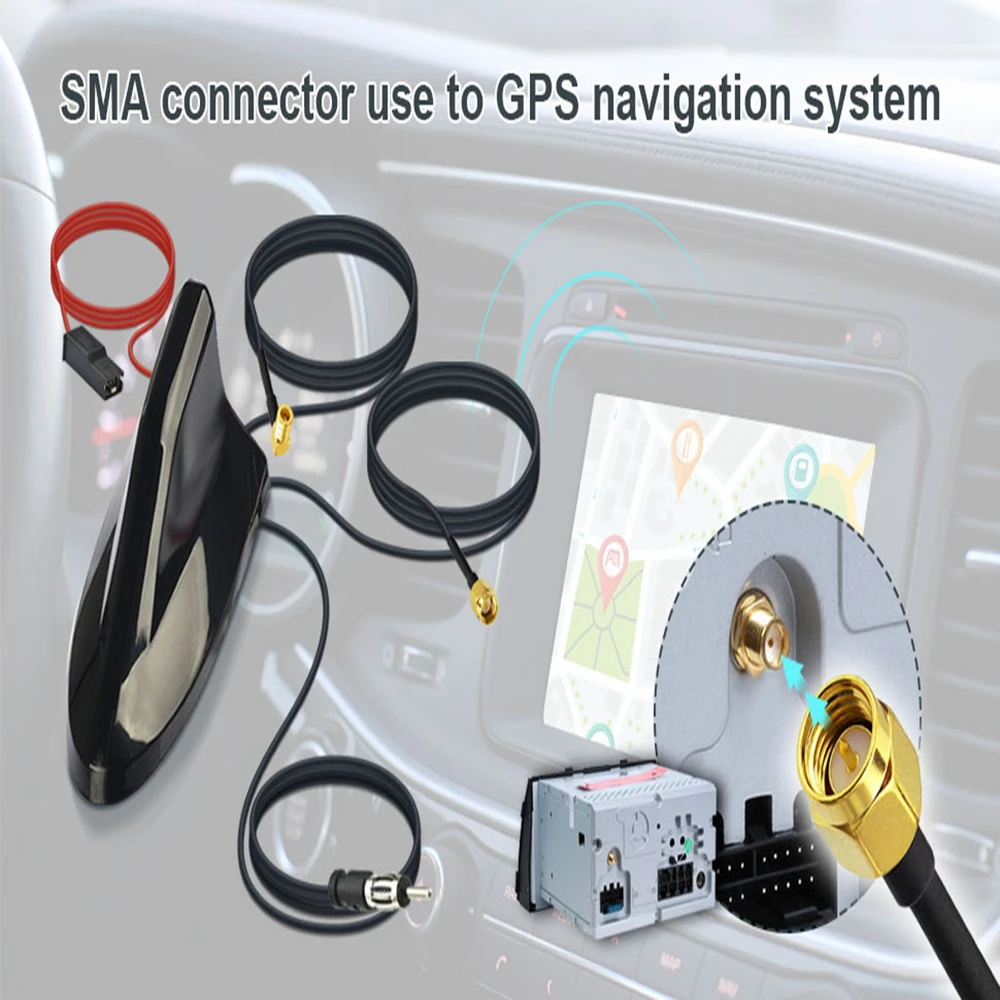

Cable Connector: SMA Plug Male(GPS)

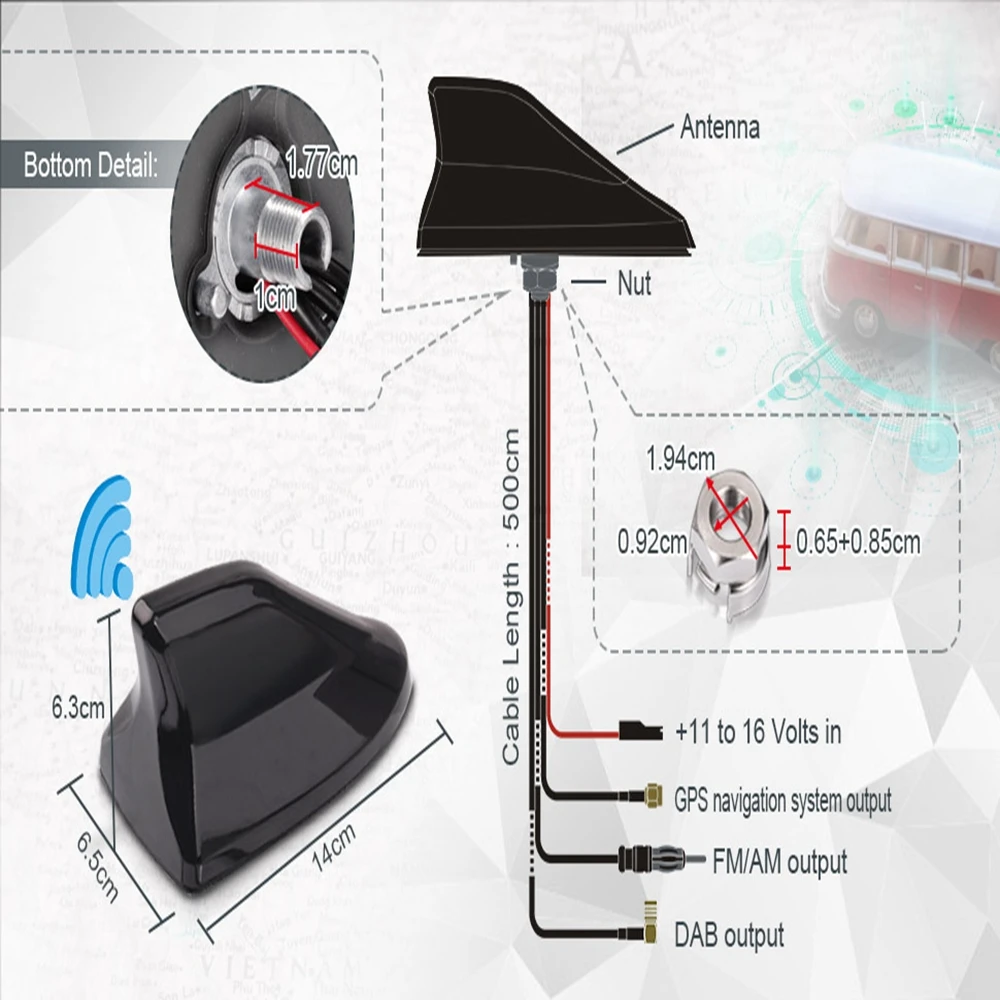

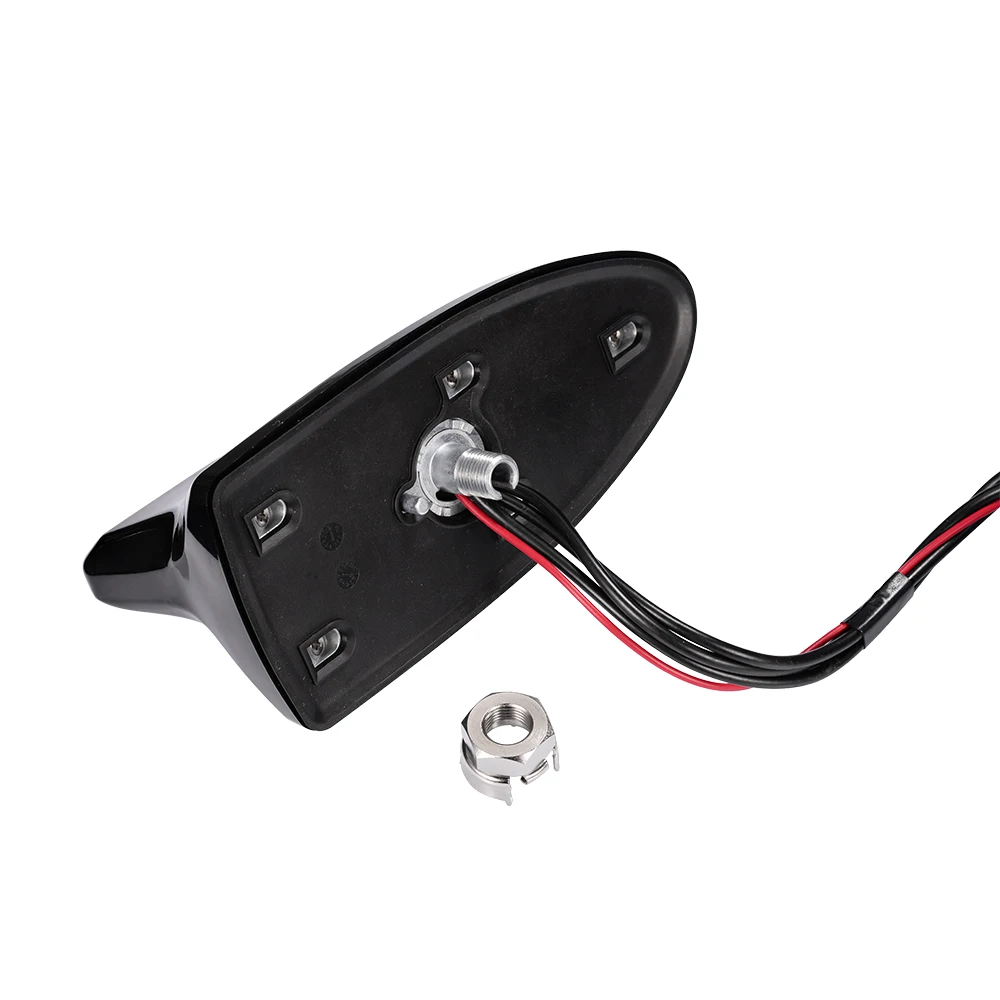

Roof Mounting: Drilling Hole Diameter 10.5mm

Dimensions (Length*Width*Height) :138.4mm * 65mm * 63mm

Net Weight: 505g

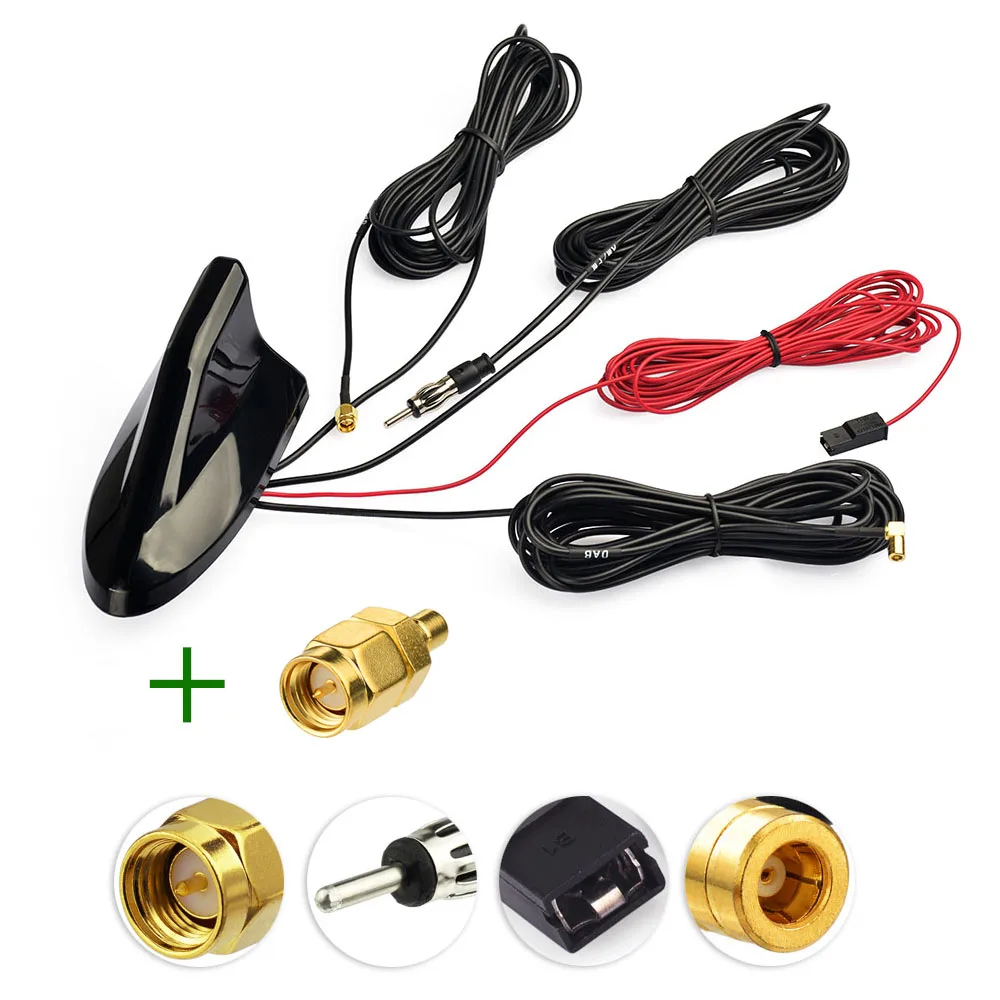

Packaging List:

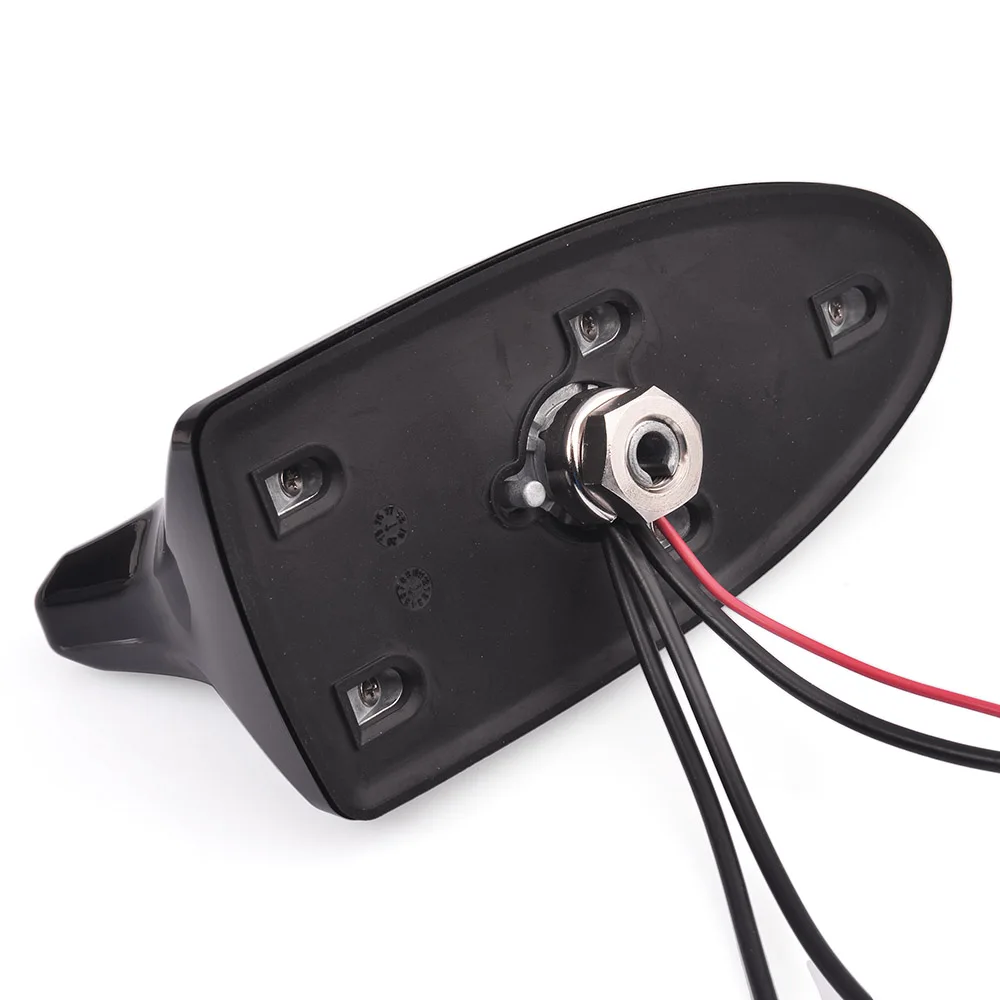

1 x Antenna (Including Mounting Nut)

1 x Accessoried SMA Plug/Male to SMB Jack/Female Coaxial Connector Adapter

window.adminAccountId=200577414;

Specifications:
FM/AM Frequency: 522-1710KHz(AM), 87.5-108MHz(FM)
Output Impedance: 50 ohm
DAB Frequency: 170MHz-240MHz (Band III), 1452MHz-1492MHz (L-Band)
Output Gain: 18dB+-3dB (Band III), 8dB+-3dB (L-Band), 13+-3dB(AM), 16+-3dB(FM)
V.S.W.R: 2.5:1 (FM/DAB)
Gain(dB): 18dB+-3dB (Band III), 8dB+-3dB (L-Band), 13+-3dB(AM), 16+-3dB(FM)

Features:
|What Antenna Do I Need|Position Antenna|Aerial Antenna|

**Enhanced Signal Reception**
The Superbat Car Roof Top Shark Fin Antenna is a state-of-the-art communication antenna designed to elevate your in-car entertainment experience. With a robust output gain of 18dB+-3dB for FM/AM frequencies and 8dB+-3dB for DAB, this antenna ensures a strong and stable signal reception, even in remote areas. The V.S.W.R of 2.5:1 for FM/DAB frequencies guarantees minimal signal loss, while the noise level of ≤3dB for FM/DAB frequencies ensures a clear and uninterrupted audio experience.

**Versatile Compatibility and Installation**
This antenna is not just about performance; it's also about versatility. It's compatible with a wide range of car navigation head units and in-car DAB digital radio or DAB+ USB stick receivers, making it a universal solution for your vehicle's communication needs. The 5-meter antenna adapter cable and signal amplifier power supply cable provide ample length for installation flexibility, allowing you to mount the antenna on your car's roof with ease. The included mounting nut ensures a secure fit, while the 5-meter cable length offers the freedom to position the antenna for optimal signal reception.

**Durable and Stylish Design**
The Superbat Car Roof Top Shark Fin Antenna is not just a functional piece of equipment; it's also a stylish addition to your vehicle's aesthetics. The sleek shark fin design not only looks modern but also serves as an aerodynamic element, reducing wind resistance and noise. The antenna's robust build quality, with a net weight of 505g, ensures durability and longevity, even in harsh weather conditions. Whether you're looking to enhance your GPS navigation, enjoy crystal-clear FM/AM radio, or tune into DAB digital radio, this antenna is the perfect choice for those who value both performance and style.
