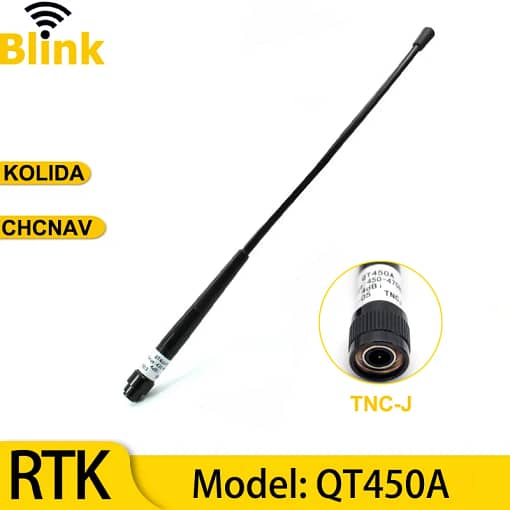

RTK GPS System Survey Antenna 4dBi 450-470MHZ TNC-J QT450A Base Station UHF Radio Whip Antenna for CHCNAV KOLIDA GNSS Receivers –

Main Technical Specifications

Product Name: RTK GPS GNSS Antenna

Model: QT450A

Gain: 4dBi

Connector: TNC-J

Frequency: 450-470MHZ/ 462-467MHz

Applicable brands and models: CHCNAV T3 T5 T7 T8 X10 X91 X900 i50 i 60 i70, KOLIDA K3 K5 K9 K86+

Special Note

1. Difference between radio antenna and network antenna:

This link antenna is a small radio antenna and is used in the base station mode of the radio station erected by itself; both the built-in radio and the external radio mode are installed on the nose, and the large radio in the external radio mode uses another transmitting large antenna.

2. Antenna interface distinction: There are mainly two types of interfaces, one is TNC-J, the other is SMA-J. Please pay attention to the interface of your instrument when purchasing.

3. Select the antenna model according to the brand: the frequency of the radio antenna of different brands may be different, and the inappropriate frequency may affect the signal.

<1>410-430MHz for Trimble etc..

<2>430-450MHz for STRONEX, UniStrong, GEOMAX, PENTAX etc..

<3>450-470MHz for SOUTH, Hi-Target, CHCNAV, SANDING, TIANYU, RUIDE, SinoGNSS etc..

<4>410-470MHz for CHCNAV New Radio Antenna, STRONEX S10, UniStrong G10 etc..
