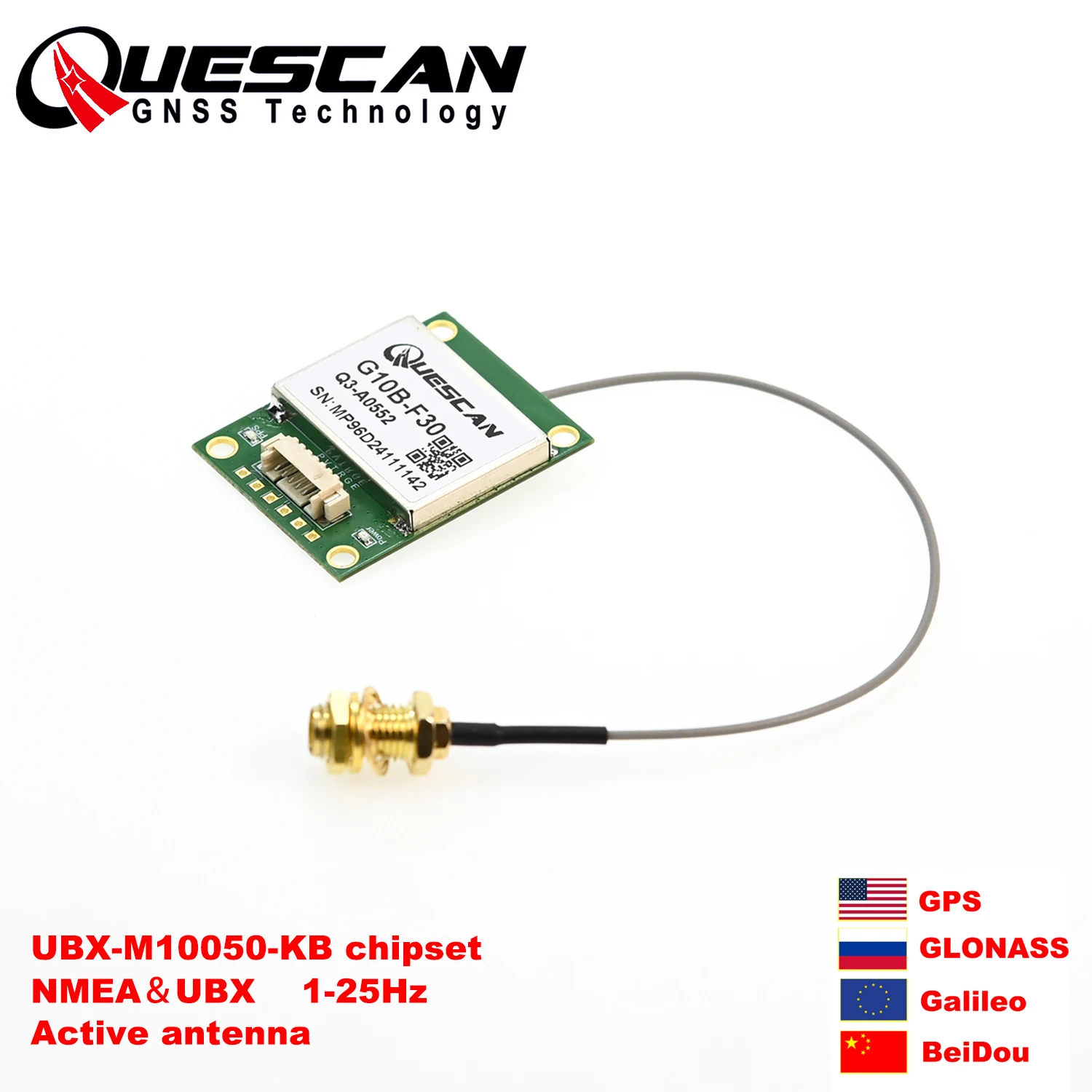

QUESCAN UBX M10050 KB GPS Module with Active Antenna GPS GLONASS BeiDou Galileo Receiver GNSS Positioning Module,1-25Hz –

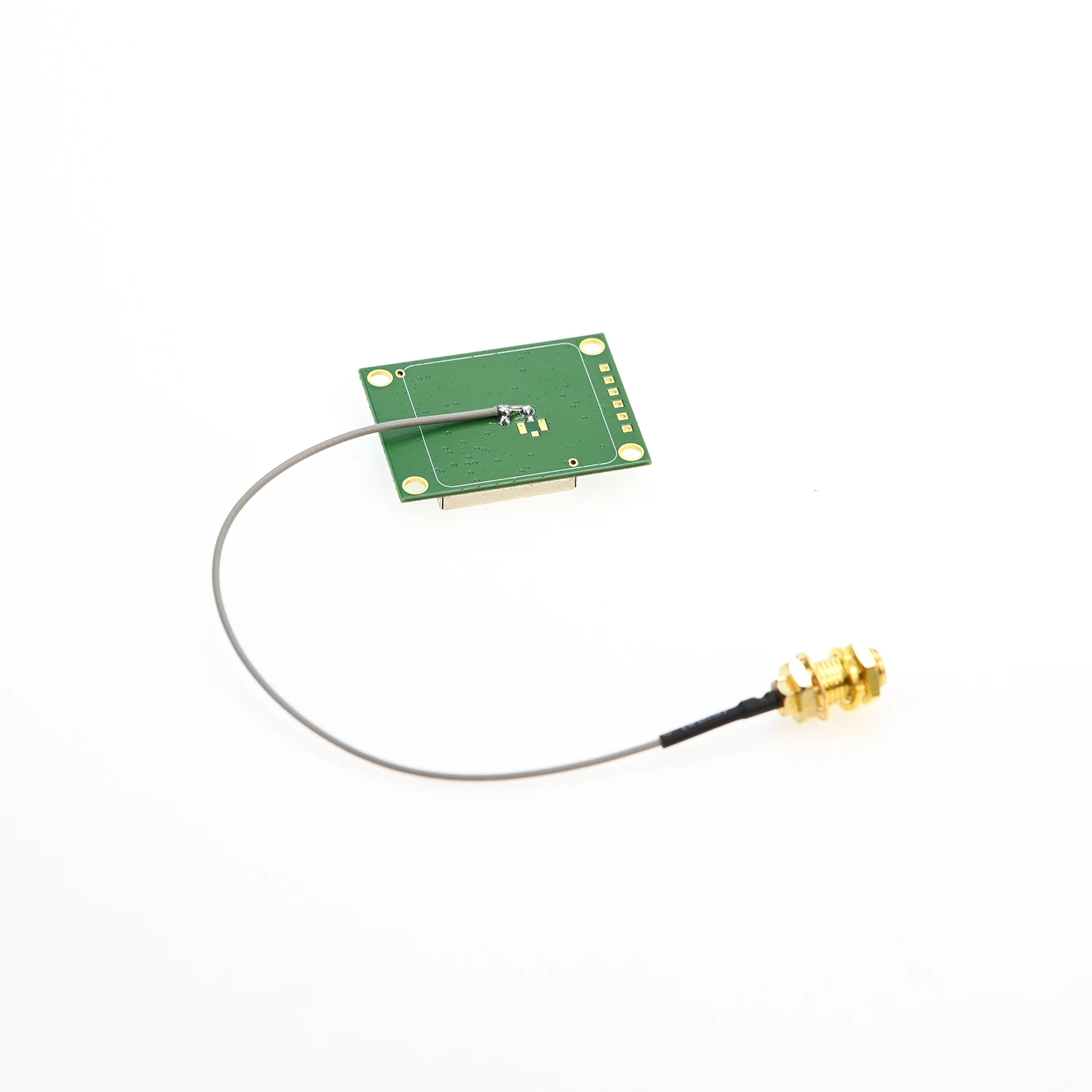

Overview

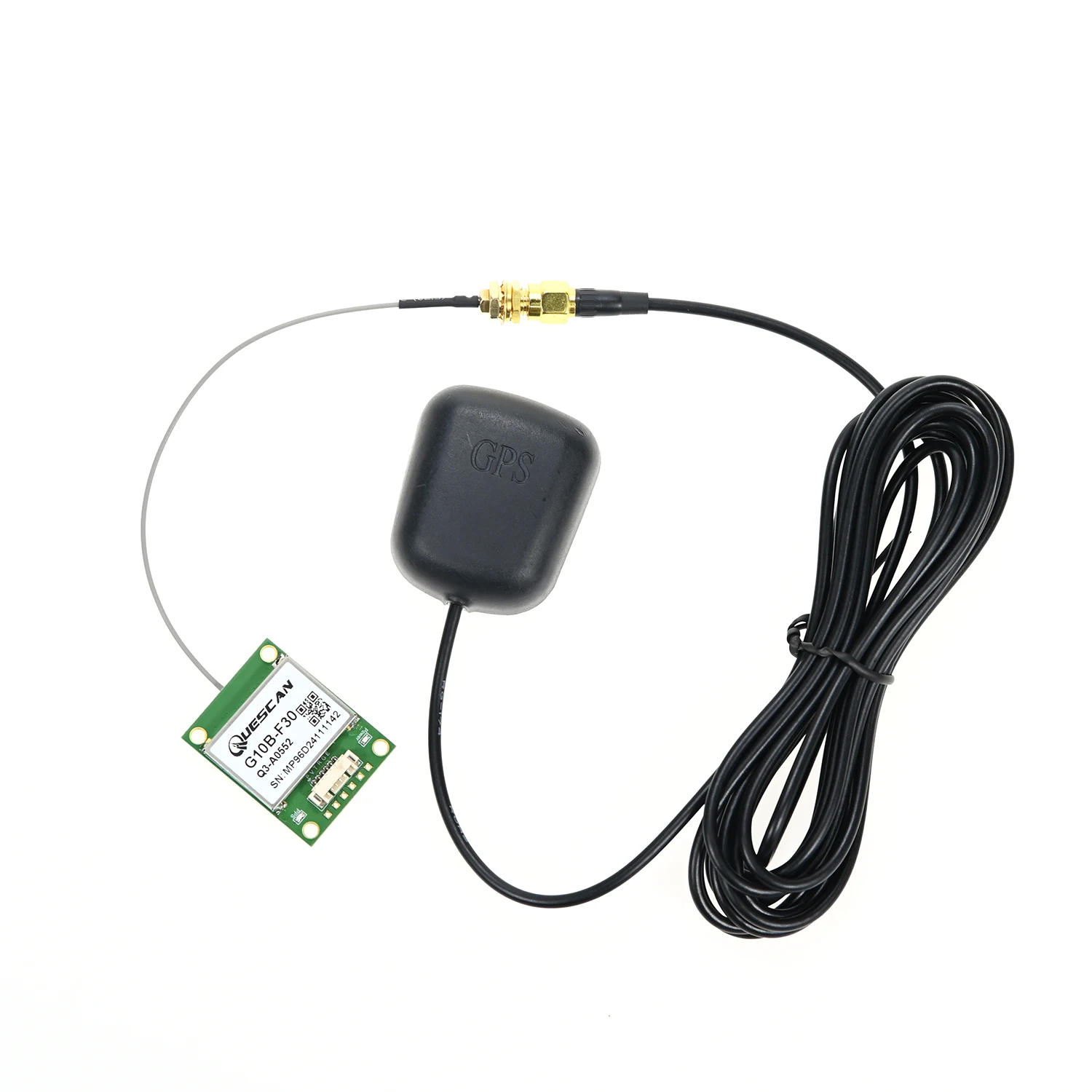

G10B-F30 module features the u-blox M10 standard precision GNSS platform and provides exceptional sensitivity and acquisition time for all L1 GNSS signals. G10B-F30 is a highly cost-effective GNSS L1 solution. G10B-F30 uses an active antenna design, which provides better signal quality, faster locking, and higher accuracy.

The M10 platform supports concurrent reception of four GNSS (GPS, GLONASS, Galileo, and BeiDou). The high number of visible satellites enables the receiver to select the best signals. This maximizes the position availability, in particular under challenging conditions such as in deep urban canyons.

u-blox Super-S (Super-Signal) technology offers great RF sensitivity and can improve the dynamic position accuracy with small antennas or in non-line-of-sight scenarios.

Parameter

Supported GNSS constellations

G10B-F30 is a concurrent GNSS receiver that can receive and track multiple GNSS systems. The single RF front-end architecture enables concurrent reception of multiple GNSS constellations. The receiver can be configured for a subset of GNSS constellations to achieve lower power consumption.

The factory configuration on G10B-F30 is concurrent reception of GPS,Galileo,GLONASS and BeiDou B1C with QZSS and SBAS enabled.

The following GNSS and their signals are supported:

The following augmentation systems are supported:

1.BeiDou B1I cannot be enabled simultaneously with BeiDou B1C or GLONASS L1OF.

2.The augmentation systems SBAS and QZSS can be enabled only if GPS operation is also enabled.

Supported protocols

For more details, please refer to official documents.

Pin Definition

Dynamic platform

The dynamic platform model can be configured through the CFG-NAVSPG-DYNMODEL

configuration item. For the supported dynamic platform models and their details please refer to the table below. The default dynamic model is Portable.

Dynamic platform models and details:

Factory Settings

•GPS+Galileo+GLONASS+BeiDou+QZSS+SBAS

•38400 baud, 8 bits, no parity bit, 1 stop bit.

•1Hz navigation update rate.

•1PPS time pulse

•NMEA version 4.11.

•Input messages: NMEA and UBX.

•Output messages: NMEA GGA, GLL, GSA, GSV, RMC, VTG and TXT.

The main talker ID includes:

GP-GPS/BD or GB-Beidou/GA-Galileo/GL-GLONASS/GQ-QZSS/GN-More than one constellation

Configuration software

Official GNSS evaluation software for Windows: U-center 2

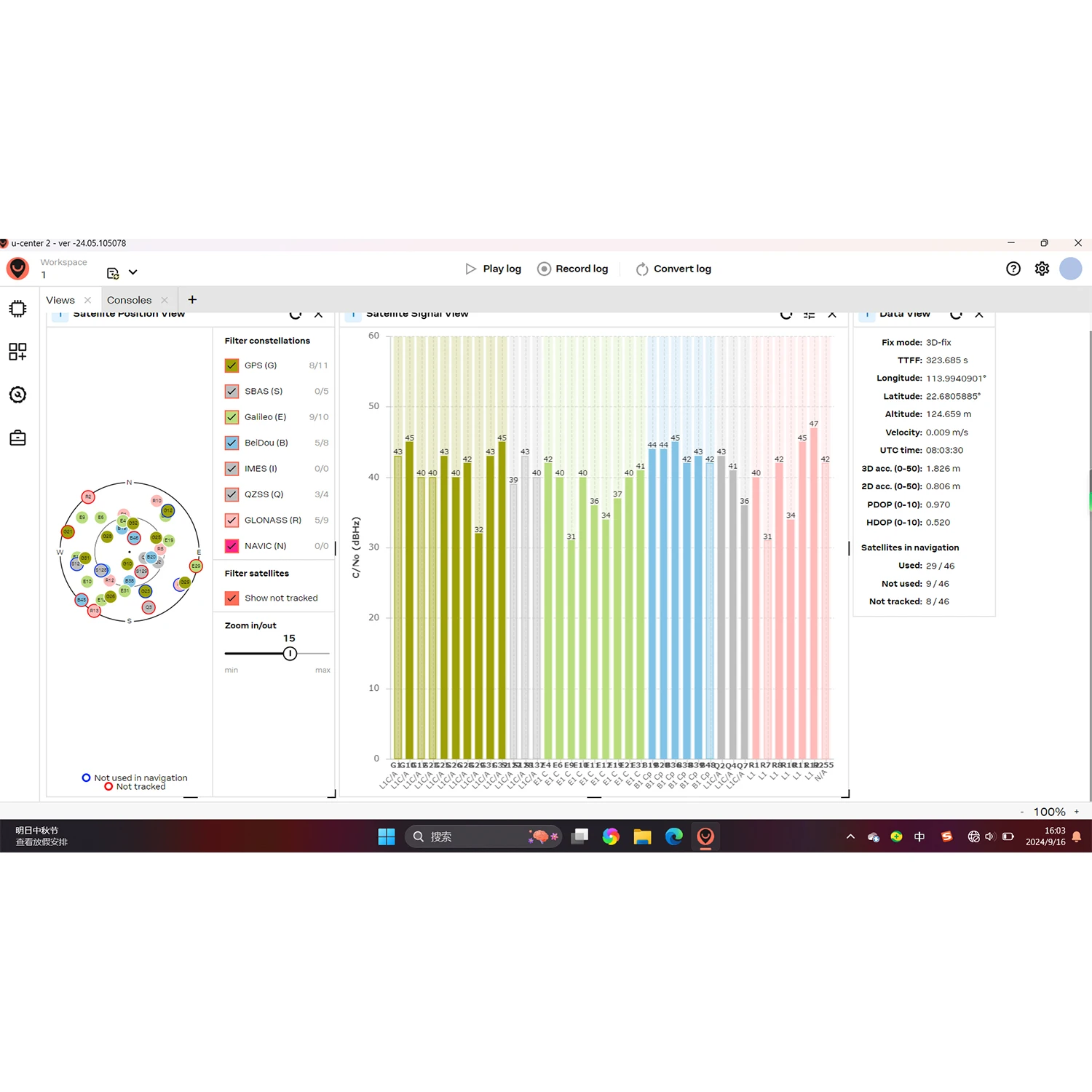

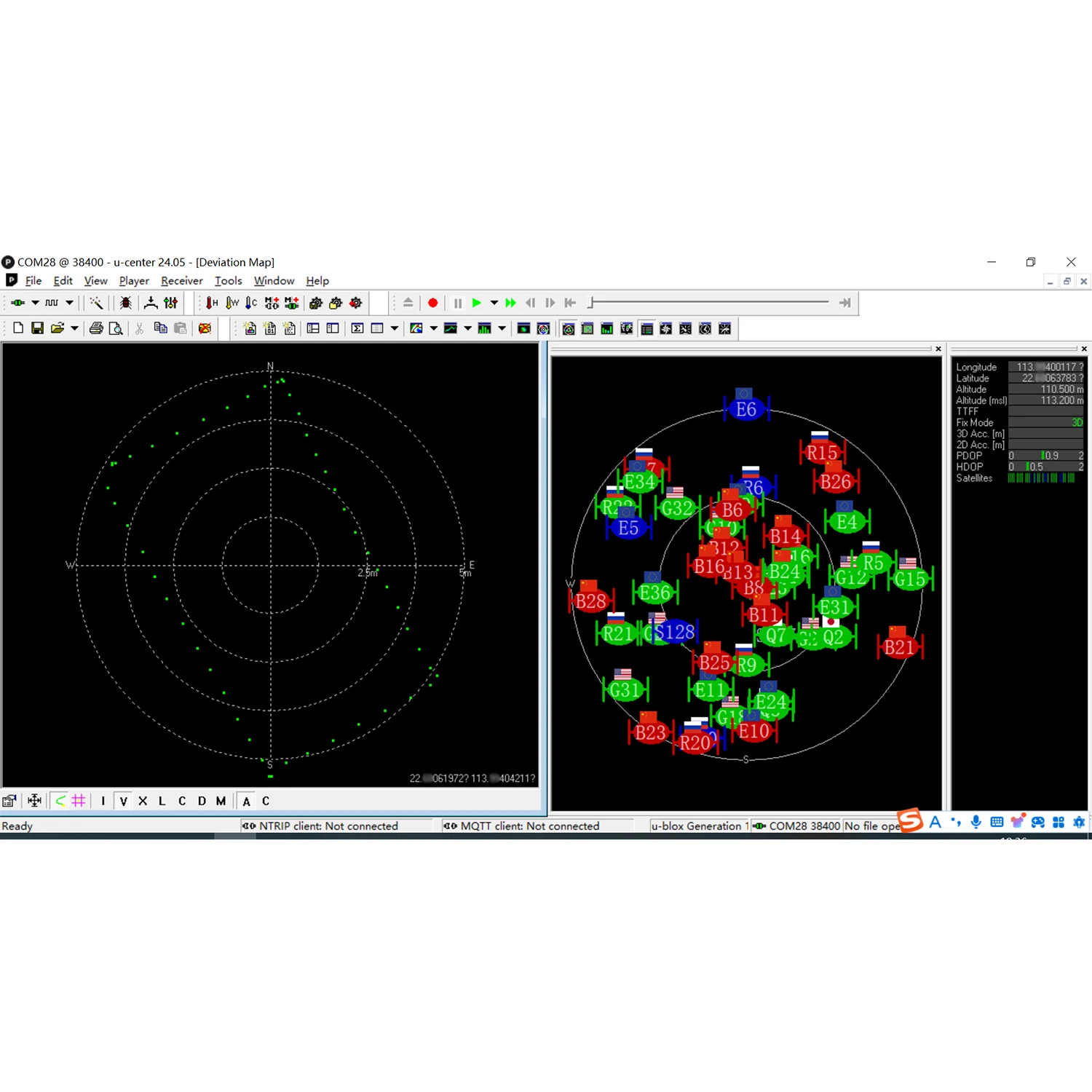

Satellite Tracking Test

via Ucenter

Some BeiDou B1C related values are not correctly reported in NMEA GBS message, they are reported with incorrect signal ID value 0. NMEA GSV and GRS messages do not support BeiDou B1C signals, the C/N0 level and residual data are not reported at all.

Workaround: Use UBX-NAV-SAT message to obtain the C/N0 and residual data for BeiDou B1C signals.
