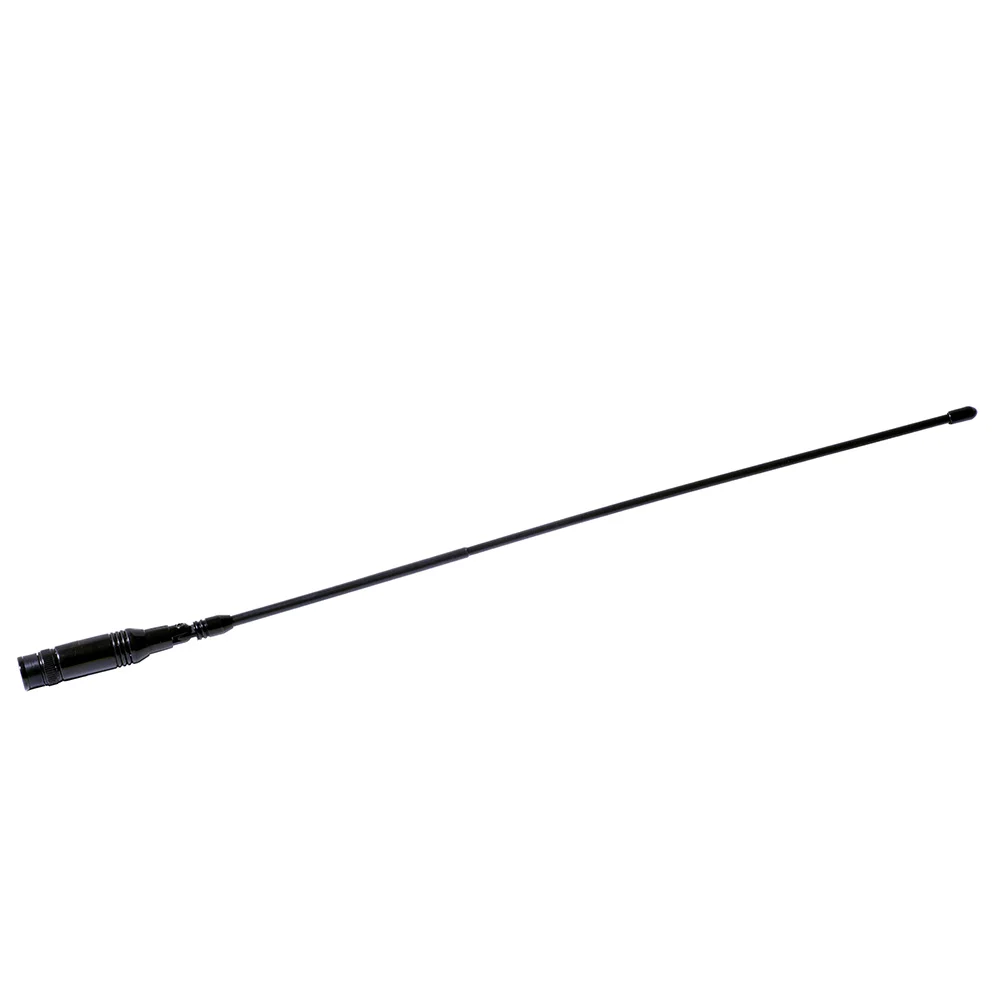

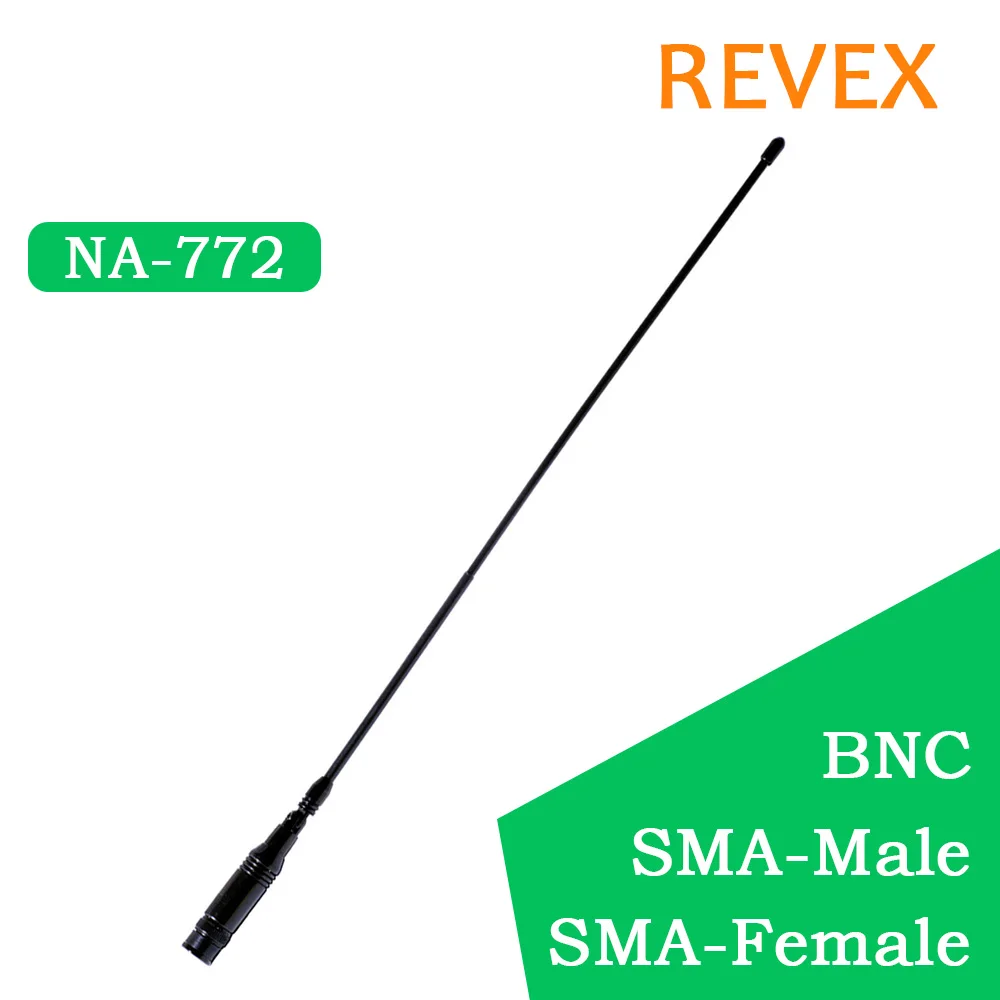

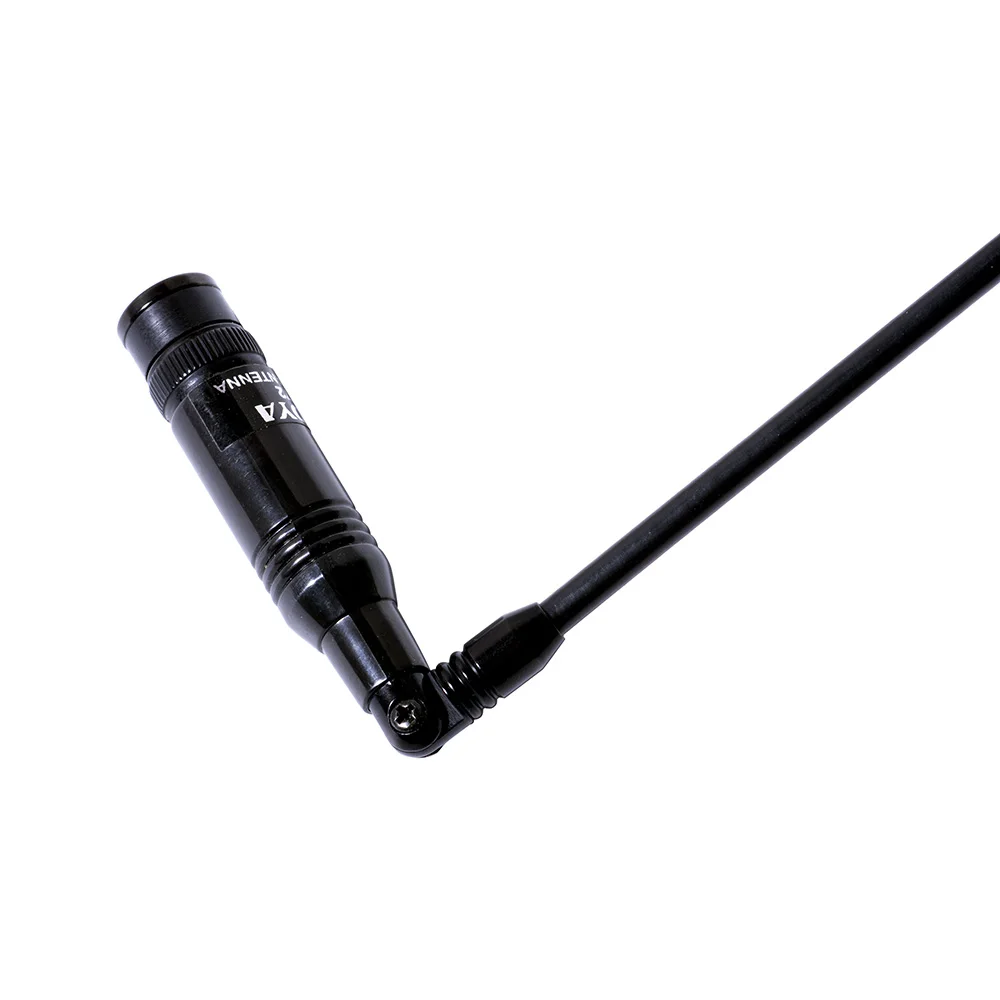

Nagoya NA-772 BNC SMA-Female SMA-Male Two Way Radio Antenna Walkie Talkie For Kenwood Baofeng UV-5R UV-3R HYT TYT Motorola TYT – 509

Specification:

Brand: NAGOYA

Model: NA-772

Band: Dual band VHF/UHF

Frequency: 144/430Mhz(136-174+400-470)MHz

Gain: 2.15dB

Max power: 10 Watts

VSWR: Less than 1.5 Downwards

Impedance: 50ohm

Connector Type: BNC,SMA-Male,SMA-Female

Omni Polarization: Vertical

Radiation: Omni

Material: ABS and Heat shrinkable sleeve

Length: about 410mm

Color: Black

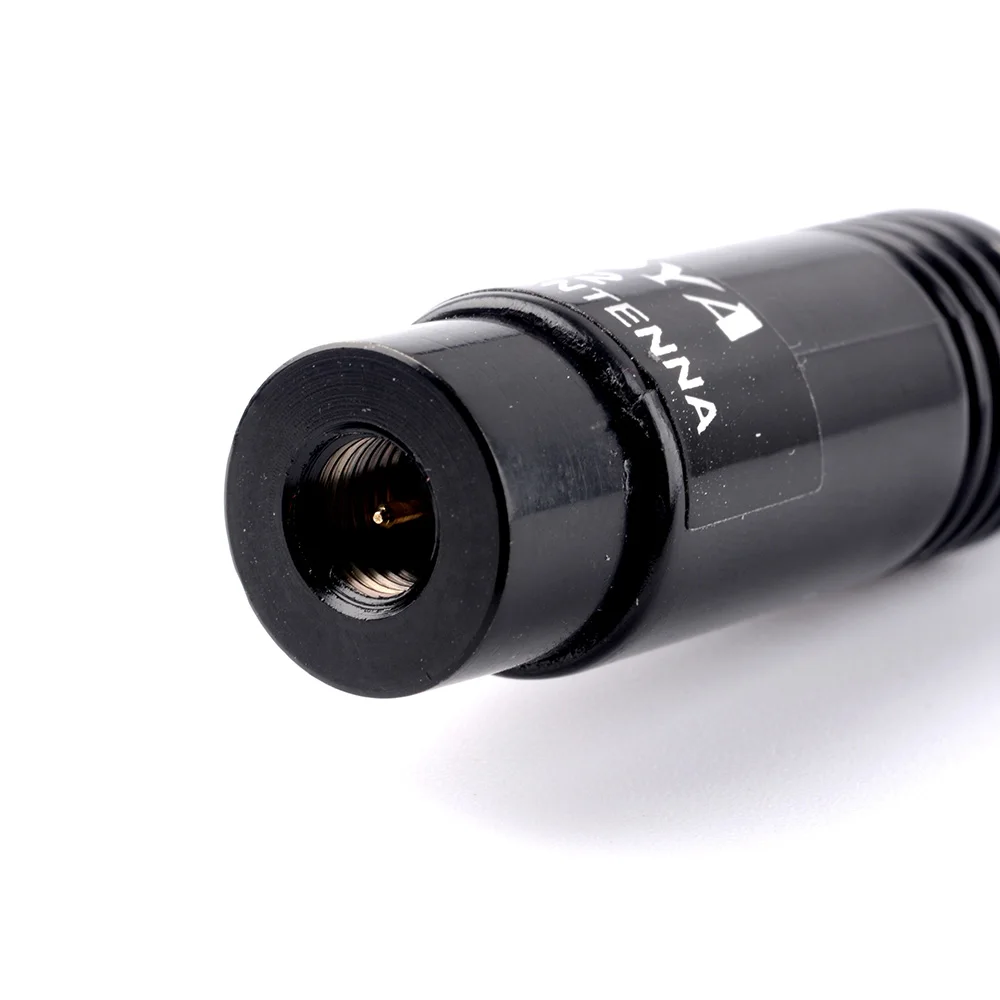

SMA-Female

Widely used on handheld Radios with SMA male interface

For Kenwood:TK-360,TK-370,TK-370G,TK-372,TK-372G,TK-3100,TK-3140,TK-3160,TK-3170,TK-3180,TK-3200,TK-3202,TK-3207

For RETEVIS:H-777,RT-5R,RT-B6,RT-5RV,888s Plus,RT5

For BAOFENG/Pofung:BF-666s,BF-777s,BF-888s,UV5R,UV5RA,UV-5RB,5RC,5RD,UV-6,UV-8,5RE plus,BF-F8+,UV-B6,UV-B5,BF-K5,BF-A5,BF-A58,UV-A52,UV-82

For HYT:TC-268,TC-268S,TC-368,TC-368S,TC-370S,TC-500-TC-500S

For LINTON:LT-3288,LT-6288,LT-3188,LT-2188,LT-3260,LT-3268,LT-6188

For WOUXUN:KG-UVD1P,KG-UV6D,KG-689,KG-689Plus,KG-669,KG-669Plus,KG-659,KG-699E,KG-859,KG-879,KG-929.

For PUXING:PX-777,PX-777Plus,PX-666,PX-888,PX-888K

For QUANSHENG:TG-K4AT,TG-K100,TG-K200,TG-K58Mini,TG-6A,TG-5A,TG-620,TG-5A Plus,TG-K4AT(UV),TG-360.

SMA-Male

Compatible For:

For Yeasu/Vertex :VX-3R,VX-6R,VX-7R,VX-8R,VX-150,FT-60R,VX-160,VX-180,VX-400,VX-300,VX-800,FT-270R,FT-250R,VX-230,VX-8DR, VX-8GR,FT-277R

For LINTON:LT-6100,LT-6188

For PUXING:PX-325, PX-333, PX-2R, PX-V6

For HYT:TH-F5 , TH-2R, TH-F7,TH-446, TH-F8

For BAOFENG:UV3R UV100 UV200

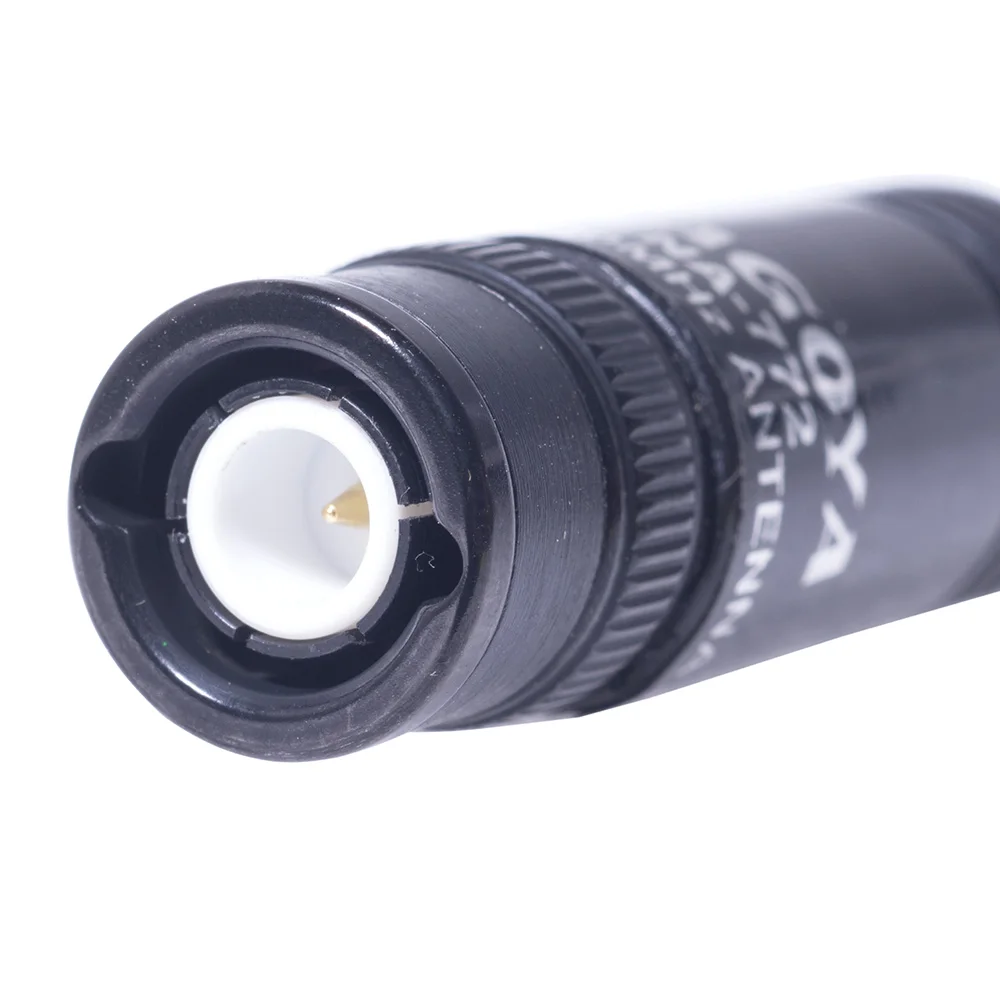

BNC

Compatible For:

For Ken wood:TK100, TK200, TK210, TK220, TK300, TK310, TK320

For I COM:IC-V8, IC-V80, IC-V82, IC-U82, IC-W32

For Motorola:HT440, CP500, CP520, 1015

For Vertex Standard:734, 834, HR146, HX300, HX320, HX400, CU32, CP/CS 5015, 0420

For Wilson:HH152, HH154, HH156, HH462, HH464

And other radios suitable for BNC connector: for YAESU, for TYT,for HYT, for BAOFENG, for PUXING

Package Contains:

1 x NAGOYA NA-772 Two way Radio Antenna
