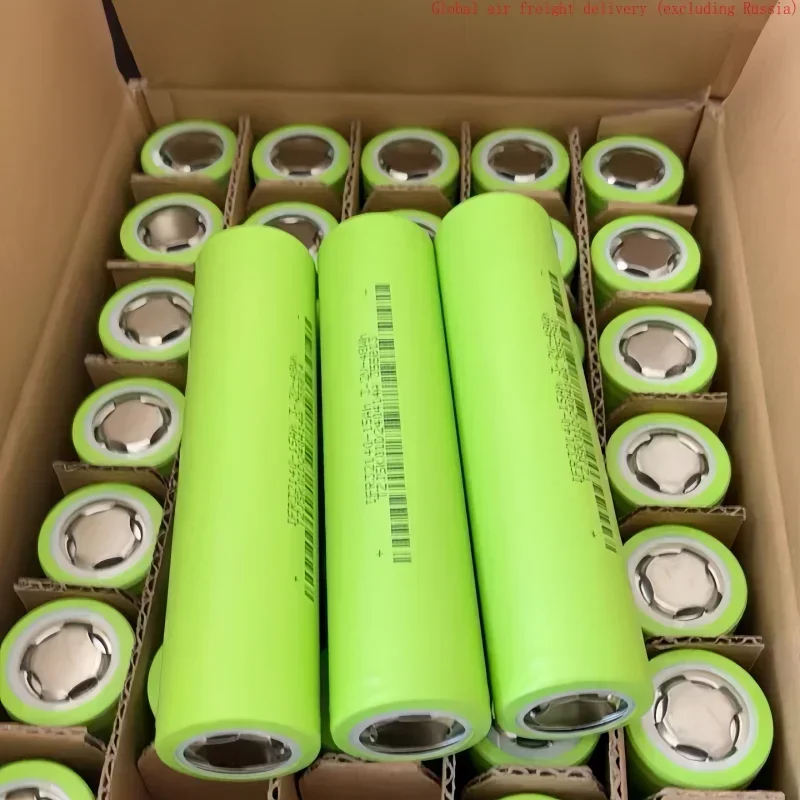

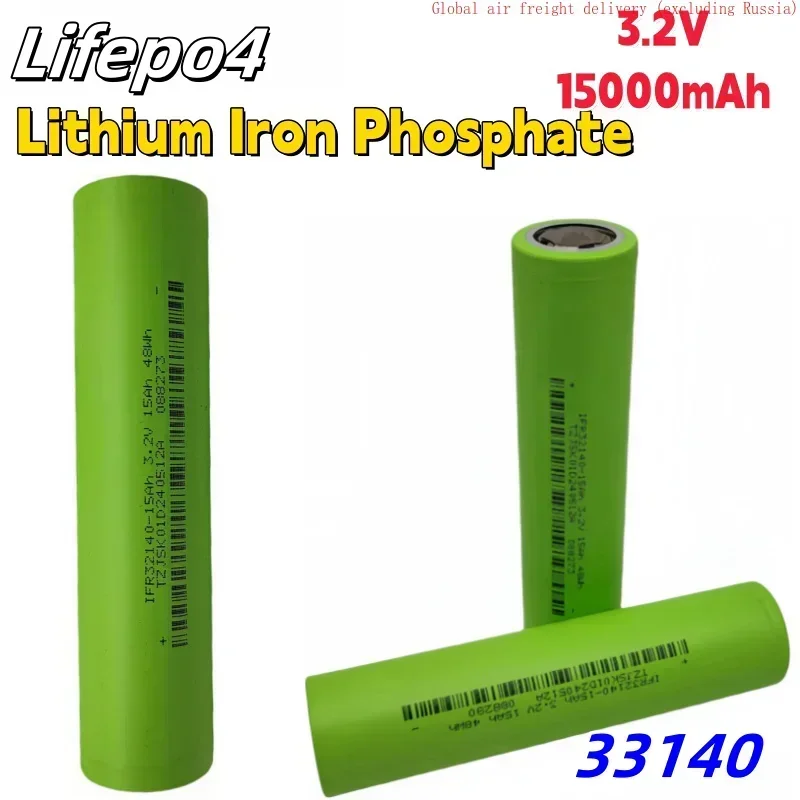

Lithium iron phosphate 3.2V 15Ah Lifepo4 battery suitable 12V 24V 36V 48V electric scooter, electric tool, electric motorcycle – 44

Product Introduction

Suitable for Lithium iron phosphate 3.2V 15Ah Lifepo4 battery suitable 12V 24V 36V 48V electric scooter, electric tool, electric motorcycle

Model: 33140

Battery type: Lifepo4

Nominal capacity: 15Ah

Voltage: 3.2V

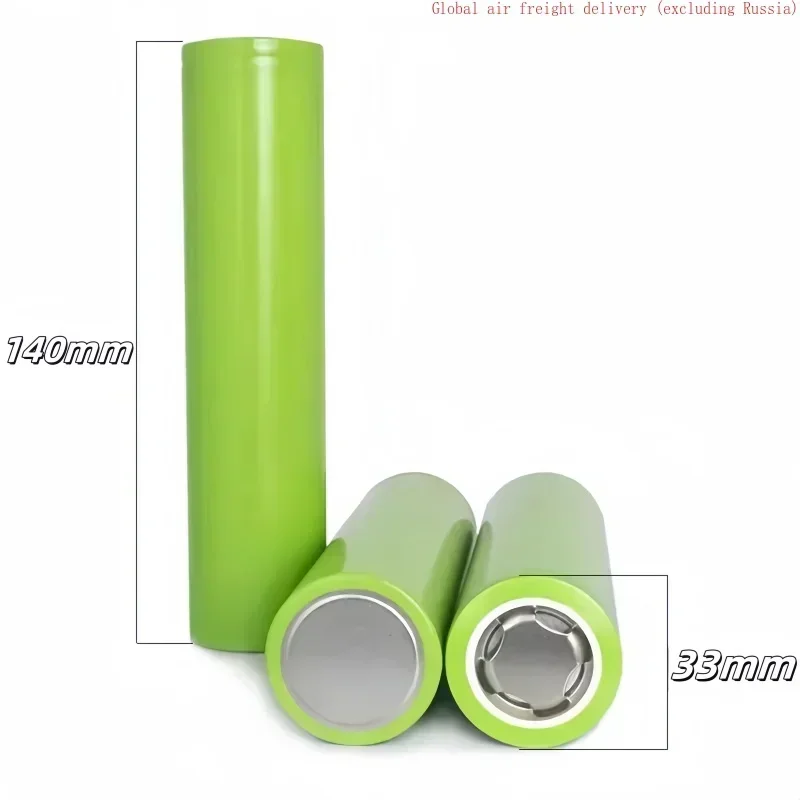

Battery size: 33x140mm

Battery weight: approximately 295g

Internal resistance: less than 8 ohms

Service life: Over 2000 cycles, DOD at 80%

Combination: can be 3S, 4S, 8S, 10S, 13S, etc.

Input charging voltage: 3.65V/phone

Charging current input: 5A

Continuous discharge current: 75A

Maximum discharge current: 5C

Discharge cut-off voltage: 1.80V/battery

Charging temperature: 0~45 degrees Celsius

Discharge temperature: -20~60 degrees Celsius

Storage temperature: -20~45cm

Brand battery features: high energy density, long lifespan, wide application, high discharge rate.

Widely used:

Electric vehicles, electric bicycles, tricycles, scooters, golf carts, hand carts, hand carts, Alat kedoktran, solar systems, solar panels, energy storage, drills, power tools, tools, LED lighting equipment, RC toys, inverters

Attention

*The default price does not include tariffs and taxes, unless otherwise specified. If you have any questions, please contact the store customer service.

*The weight and size data are obtained through manual measurement and may have deviations. Please refer to the actual product..

*The packaging and appearance of the product will be updated and iterated without prior notice. The pictures are for reference only, please refer to the actual product.

*The performance parameter data is from AERDU laboratory, please refer to the actual results. The actual test results will be affected by testing conditions such as temperature, heat loss, line loss, accuracy of testing equipment, testing parameters, etc. Please conduct multiple tests and take the average of the results to reduce bias.

*The temperature we usually accept is 25 degrees Celsius, and it is normal for the deviation between the pure resistance discharge test results and the described data within the performance parameters to be about 10%.

*Batteries are a dangerous product. Before purchasing, please ensure that you understand the relevant knowledge of lithium batteries and can safely complete the installation of the battery pack or have a professional assist with the installation. Improper operation may lead to safety accidents, such as fires, explosions, or equipment damage. Please take all necessary precautions and protective measures when using batteries.
