LiteVNA 4 inch NanoVNA 50kHz-6.3GHz / 10KHz -1.5GHz Vector Network Analyzer Antenna Analyzer HF VHF UHF SWR HW Version 4.3 –

.

Option 1 —– 4Inch NanoVNA-H4

New Updated NanoVNA-H4 4inch Vector Network Analyzer 10k-1.5GHz HF VHF UHF Antenna Analyzer Version 4.3 with SD Card Slot

Features:

This Nano VNA is a DIY product that provides perfect vector network measurement capabilities, tiny and handheld, stand-alone with 4-inch LCD display, portable with 1950mAh battery powered or USB powered.

The improved frequency algorithm can use the odd harmonic extension of si5351 to support the measurement frequency up to 1.5GHz. The 50K-300MHz frequency range of the si5351 direct output provides better than 70dB dynamic, The extended 300M-900MHz band provides better than 60dB of dynamics, and the 900M-1.5GHz band is better than 40dB of dynamics.

The default firmware main function is used for antenna performance measurement. The TX/RX method can measure the complete S11 and S21 parameters. If you need to obtain S12 and S22, you need to manually replace the transceiver port wiring

Using PC software NanoVNASaver, it can connect to a NanoVNA and extracts the data for display on a computer, and for saving to Touchstone files. We can export Touchstone (snp) files for various radio design and simulation software through PC software

The metal shield is designed to reduce the external interference and improve the measurement accuracy.

Sprcifiactions:

ABS case: 75mm x 133mm x 18mm (excluding protrusions)

Measurement frequency: 10KHz -1.5GHz

HW version：4.3

RF output: 0dbm (±2dbm)

Measurement range: 70dB (50kHz-300MHz), 60dB (300M-900MHz), 40dB(0.9G-1.5GHz));

There may be errors caused by nonlinear transformation of fundamental wave when using harmonic measurement.

Port SWR: < 1.1

Display: 3.95 inch TFT (320 x 480)

USB interface: USB type-C communication mode: CDC (serial)

Power: USB 5V 200mA, built-in 1950mAh battery, maximum charging current 1A

Number of scanning points: 101 (fixed)

Display Tracking: 4, Marking: 4, Setting Save: 5

Frequency Tolerance:<2.5ppm

Frequency Stability:<0.5ppm

Package List:

1X NanoVNA-H4 (with 1950mAh battery)

1X USB Type-C data cable

1X Type-C To Type-C cable

2X 15cm SMA male to male RG316 RF cable

1X SMA male calibration kit – OPEN

1X SMA male calibration kit – SHORT

1X SMA male calibration kit – LOAD

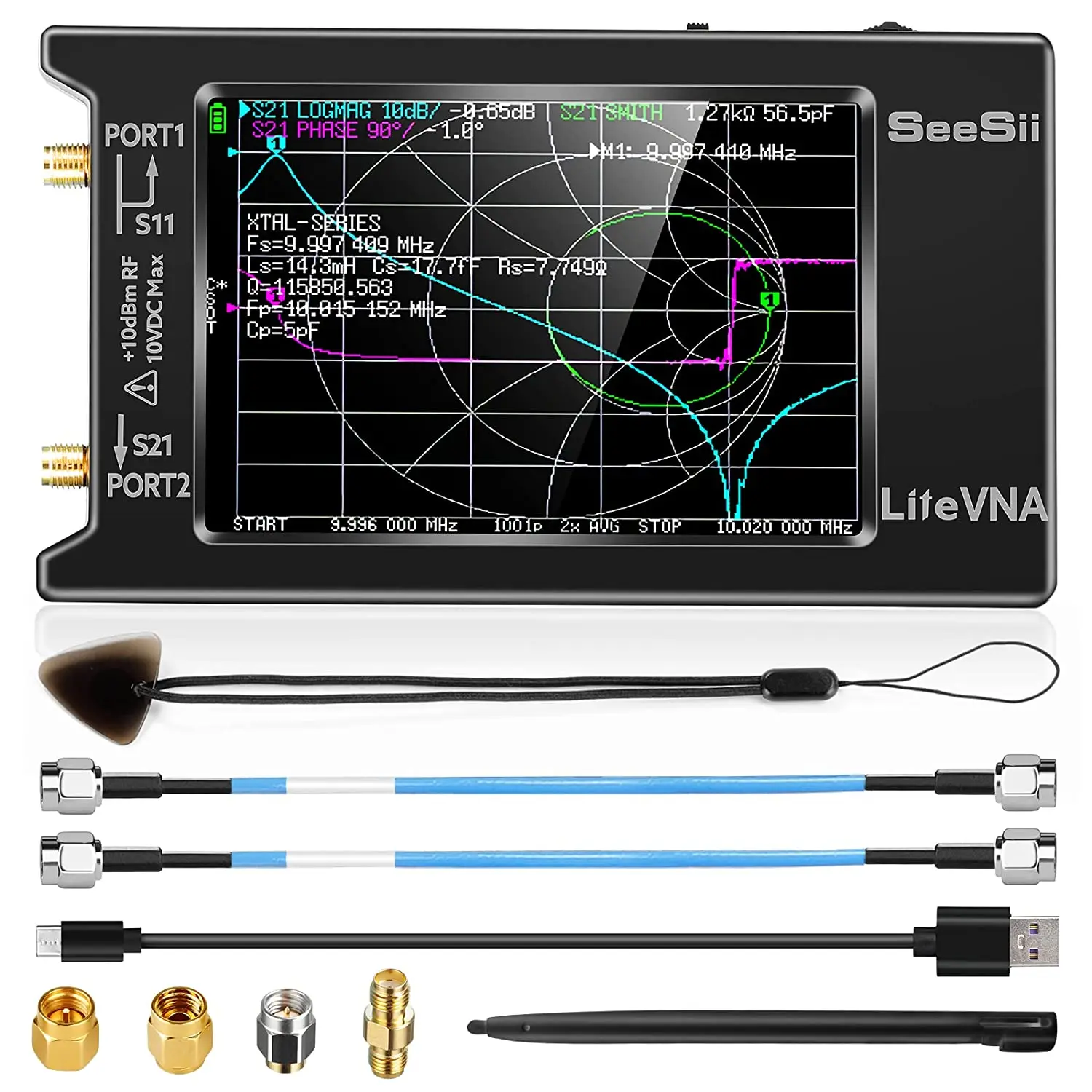

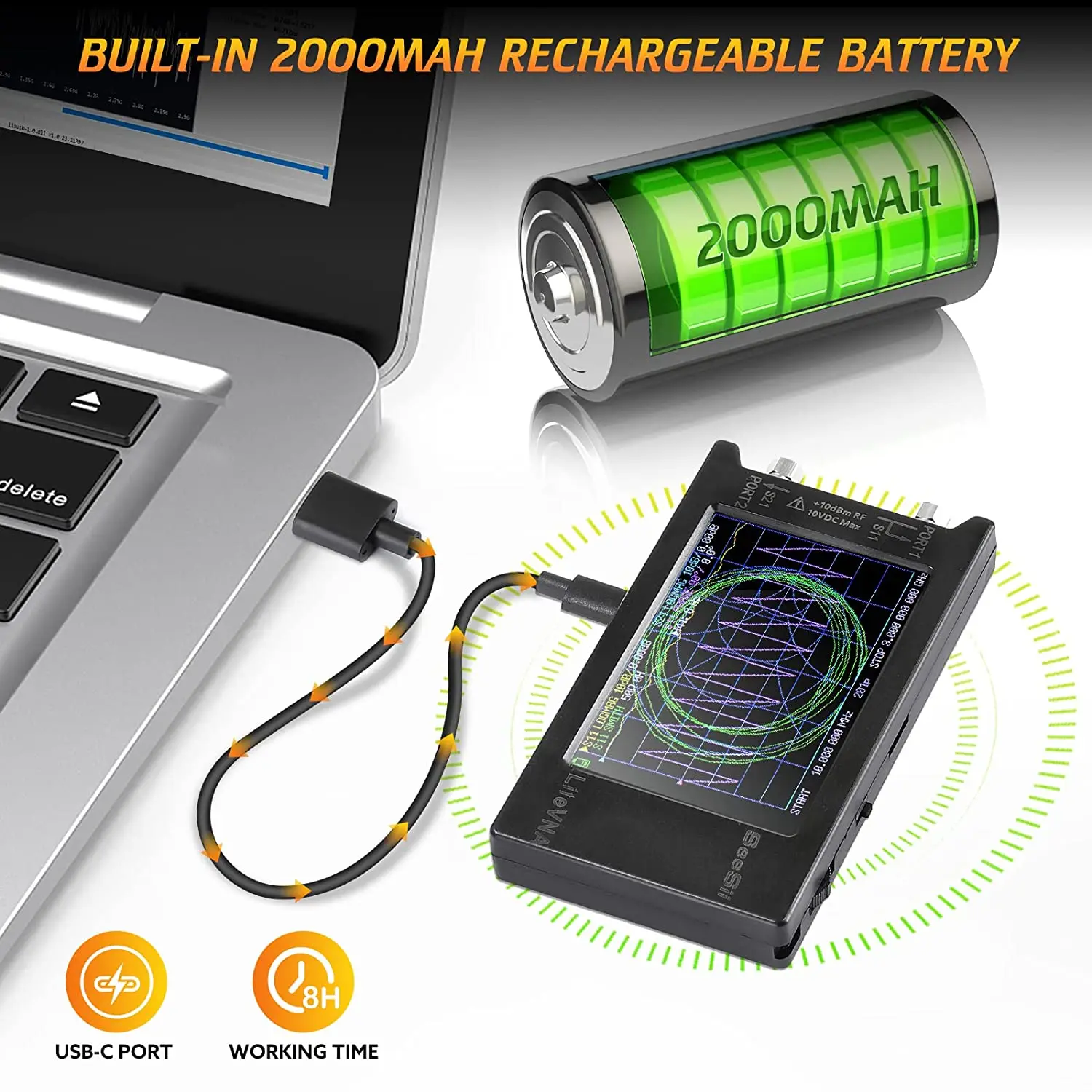

Option 2 —– 4Inch LiteVNA

Upgraded 4 inch NanoVNA 50kHz-6.3GHz Vector Network Analyzer Antenna Analyzer HF VHF UHF SWR HW Version 64-0.3

LiteVNA improves on the popular NanoVNA and SAA2. Now you can get a portable vector network analyzer (VNA) as small as the NanoVNA and capable of meeting the ultra-wide measurement range of 50 kHz to 6.3 GHz.

To minimize power consumption and size, the LiteVNA uses only one mixer, with multiple internal RF switches for S11 and S21 measurements, and IFFT calculations for TDR and DTF measurements.

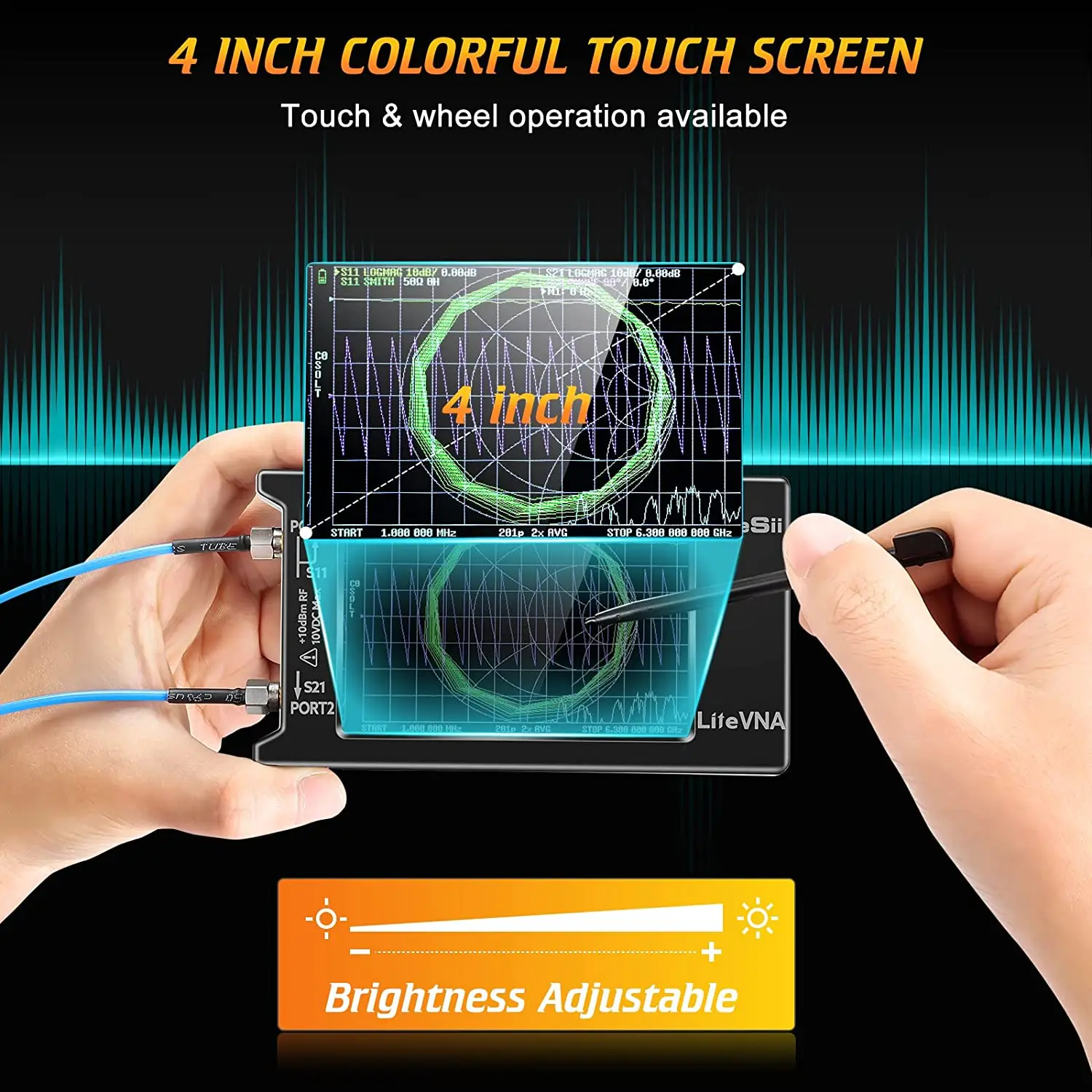

Designed with the community’s input in mind, the LiteVNA now brings faster scanning speeds and more scan points in addition to a wider measurement range. Combined with an easy-to-use interface consistent with the NanoVNA, the LiteVNA can now be easily used as a field test tool.

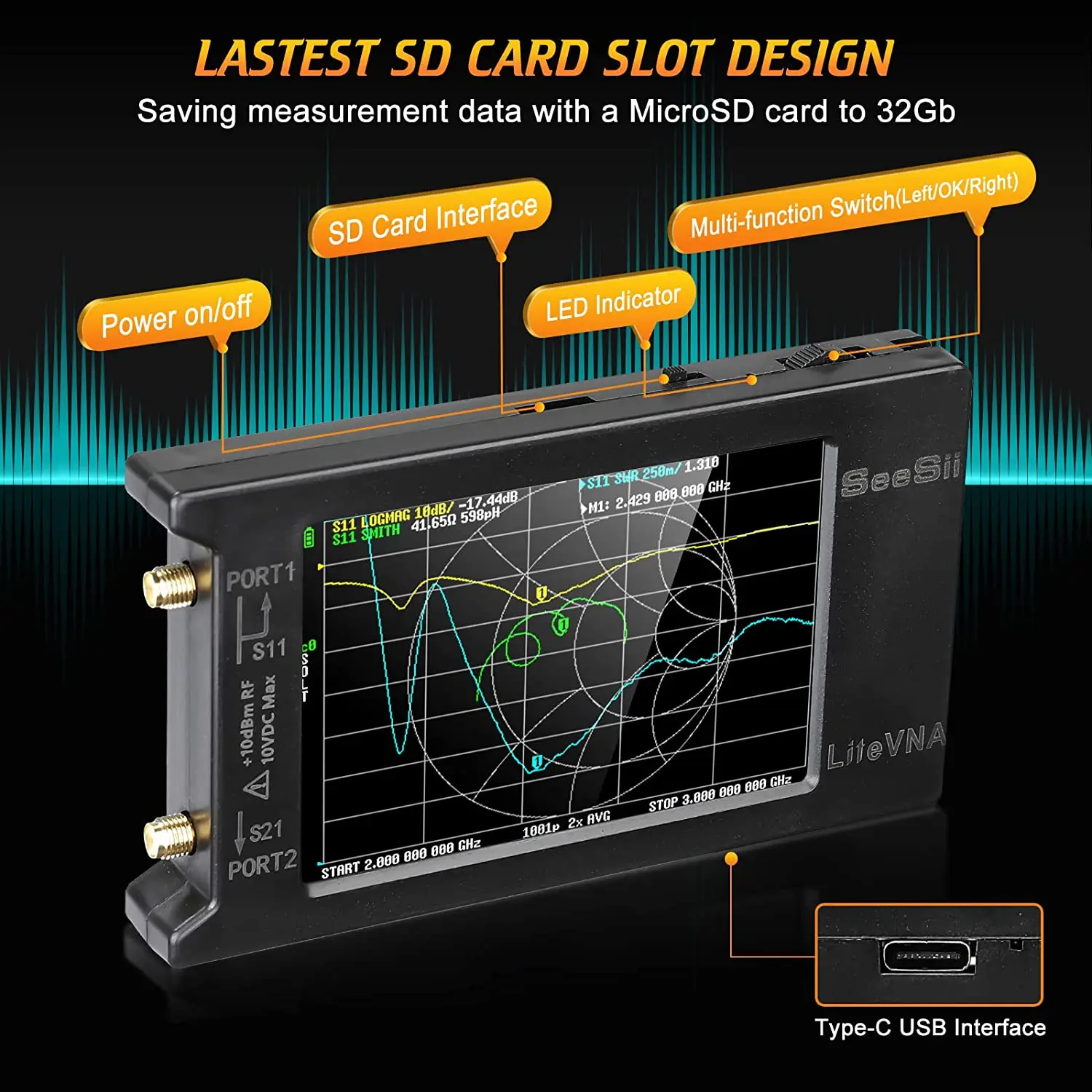

LiteVNA includes a MicroSD slot, so you can save field test data or screens to a MicroSD card at any time. With a measurement range of up to 6.3GHz, the LiteVNA is capable of meeting common amateur radio and IoT applications, as well as emerging 5GHz testing, enabling the application of the latest 5.8GHz wifi and 5.8GHz image transmission.

Option 3 —– 4.3Inch DeepVNA-101

DeepVNA-101 4.3 inch Antenna Analyzer 10k-1.5GHz SWR Meter VHF UHF Network Analyzer HW3.2 IPS LCD + Metal Case NanoVNA-F

Introduction：

This is a vector network analyzer, which can measure the S-parameters of the circuit, transmission test, reflection test, insertion loss, return loss, fault location (TDR function), antenna standing wave, impedance, filter response and so on.

With the following improvements:

1. The user buttons are changed to a rotary encoder, which makes the control more convenient and smooth.

2. New added RTC circuit, with real-time clock and perpetual calendar functions.

3. Optimize the S21 insertion loss/filter measurement performance, with a larger dynamic range.

Running firmware version: 1.0.4, new features:

1. Add RTC real-time clock, perpetual calendar function

2. The measurement data file name is in the form of YYMMDD_HHMMSS.

3. The frequency setting can choose the start and end or the center span mode.

4. The boot sound can be turned on or off.

Description：

Screen Size: 4.3 inches

Nominal Frequency: 10k – 1.5GHz

Scan Points: Up to 301 points

Battery capacity: 5000mAh/3.7V

Memory capacity size: 16MB

Up to about 1000 sets of snp file data can be saved.

Package Includes:

1 x DeepVNA 101 4.3-inch screen unit (free screen protector)

1 x USB-A to USB Type-C cable

2 x 20CM SMA male to male RG316 RF cable

1 x SMA male calibration piece-OPEN

1 x SMA male calibration piece-SHORT

1 x SMA male calibration piece-LOAD (Within 4GHz,Swr 1.025)

1 x SMA-JJ male to male connector

1 x SMA-KK female to female connector

1 x SMA-JKW male to female right angle connector

1 x Foldable machine stand

1 x Resistive screen touch pen

1 x Quick Start Guide

1 x Free EVA protective bag

Option 4 —– 4Inch TinySA ULTRA

New Handheld Tiny Spectrum Analyzer TinySA ULTRA 4″ Display 100kHz to 5.3GHz with 32GB Card Version V0.4.5.1

Specification：

Parameter

Specification

Display size

4” TFT LCD (480×320)

Max low input frequency

800MHz, 6GHz in Ultra mode

Resolution filters in 1,3,10 steps

from 200Hz to 850kHz

Max output frequency

Sinus up to 800MHz, Square wave up to 4.4GHz

output level

-104dBm to -16dBm

Ultra mode

Level calibrated up to 5.3GHz

Internal LNA gain

20dB up to 4GHz

Displayed points per scan

max 450

0-350MHz scan time

165ms

Shortest zero span time

17ms

DANL at 100MHz

-153dBm/Hz (LNA Off) / -169dBm/Hz (LNA On)

DANL degrading in ultra mode

10dB above 2.5GHz, 25dB above 5.3GHz

Phase noise at 10kHz offset

-92dBc/Hz

Phase noise at 100kHz offset

-110dBc/Hz

Input 1dB compression level

+0.5dBm (LNA Off) / -26.5dBm (LNA On)

IIP3 without LNA

+18dBm (at least 2MHz apart) / 0dBm (500Hz apart)

IIP3 with LNA

-8dBm (at least 2MHz apart)

Frequency stability

<1ppm ( -10℃ ~ +55℃)

SD card slot

micro SD card

Audio out

3.5mm headphone plug

FW update mode activation

Push jog button before switch on

Maximum current consumption

330mA

Maximum charging current

1300mA

Battery

Li-polymer 3.7V 3000mAh

RF connectors

SMA female

Communication Interface

USB-CDC(Type-C)，UART-TTL(2.54mm Connector)

Appearance Size

117x72x23mm (Excluding protruding parts)

Package includes:

Host (with 3000mAh battery, 4″display) x 1

USB Type-C data cable x1

30cm ALSR100 SMA cables x2

SMA-SMA barrel connector x1

Antenna with SMA connector x1

Lanyard and touch plectrum x1

32GB MicroSD card(plugged in the host) x1
