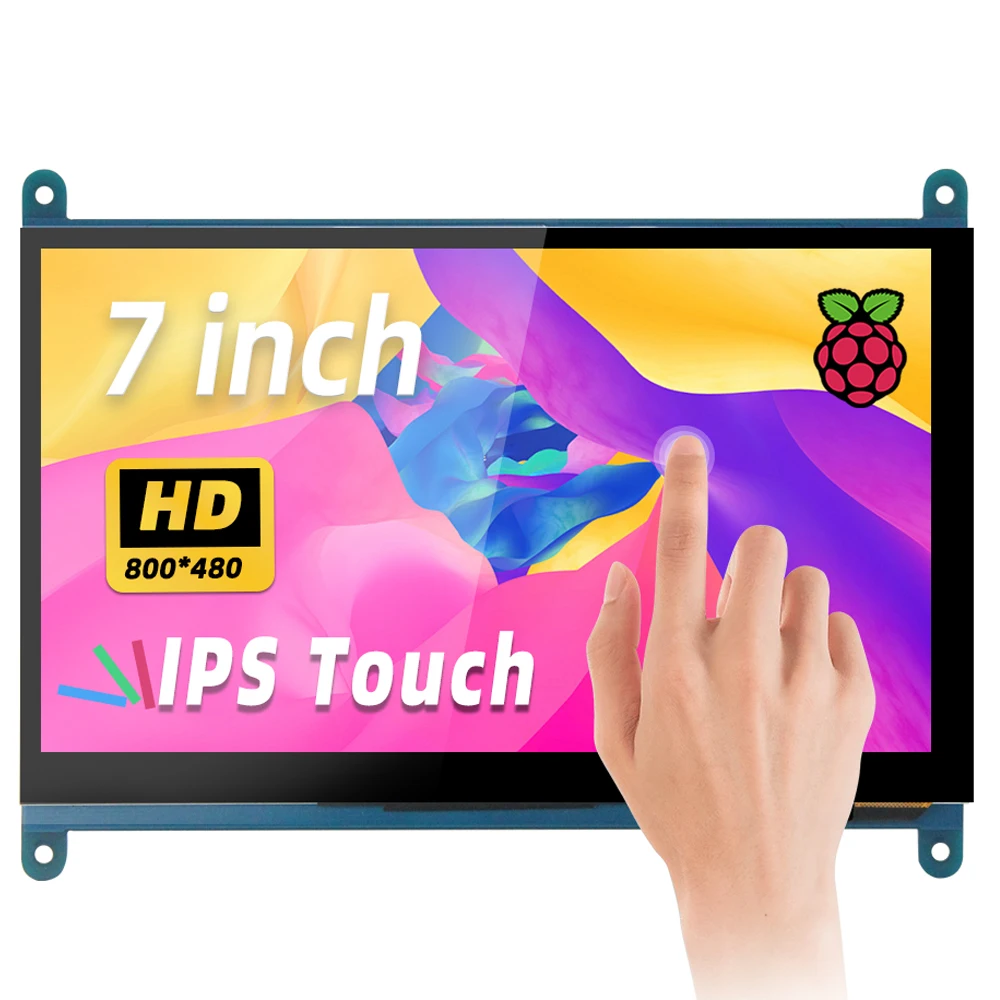

800×480 IPS LCD

For further assistance, please refer to the guidance website.

http://www.lcdwiki.com/7inch_HDMI_Display-B

1024×600 IPS LCD

For further assistance, please refer to the guidance website.

http://www.lcdwiki.com/7inch_HDMI_Display-C

Product Introduction

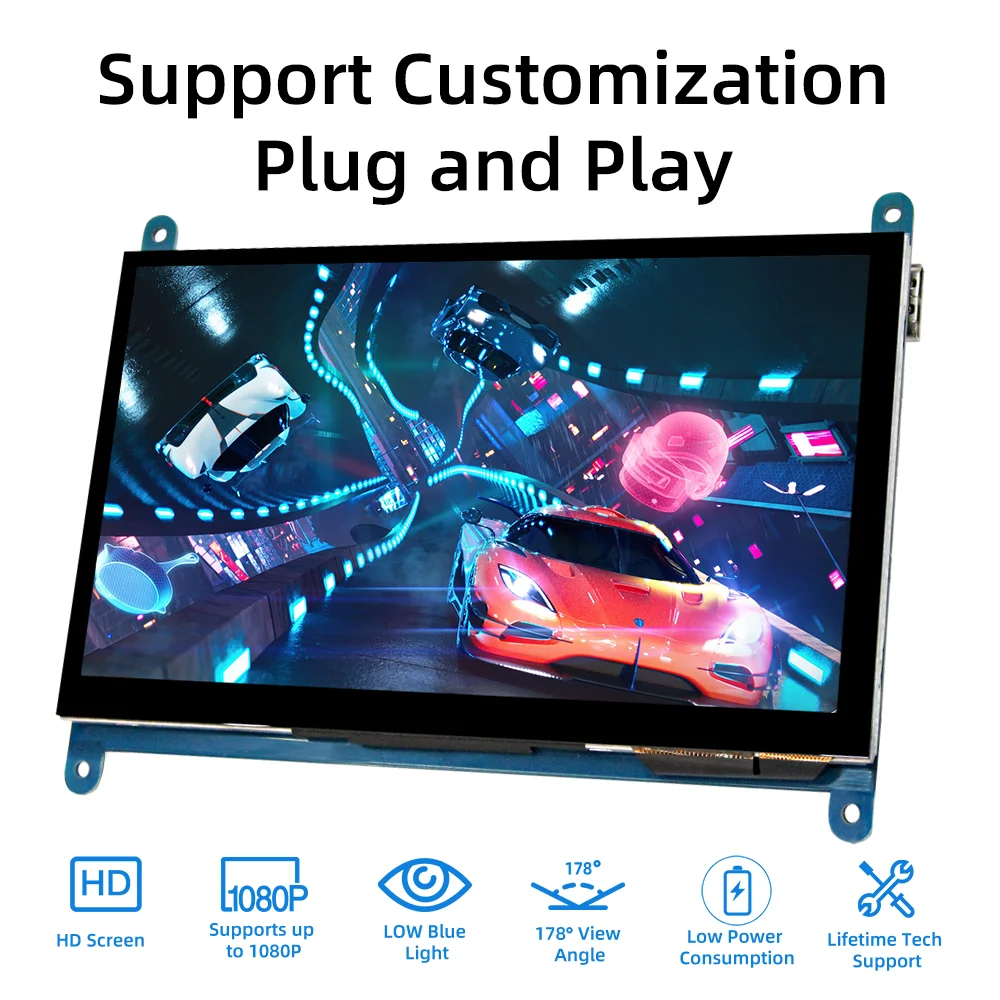

• 7-inch display with a resolution of 1024×600, configurable to a maximum resolution of 1920×1080 through software settings.
• capacitive touchscreen, it supports up to 5-point touch.
• Individual control of the backlight, enabling power-saving by turning it off when not needed.
• Compatible with popular mini PCs such as Raspberry Pi, BB Black, Banana Pi, and others.
• Versatile as a universal HDMI monitor, it can be used as a secondary display for computers via HDMI.
• When utilized as a Raspberry Pi display, it supports operating systems like Raspbian, Ubuntu, Kodi, Win10 IOT, with single-point touch capability and driver-free installation.
• As a computer monitor, it supports touch functionality on Windows 7, Windows 8, and Windows 10 (single-point touch for XP and older systems) without the need for additional drivers.
• This product has obtained CE and RoHS certifications.

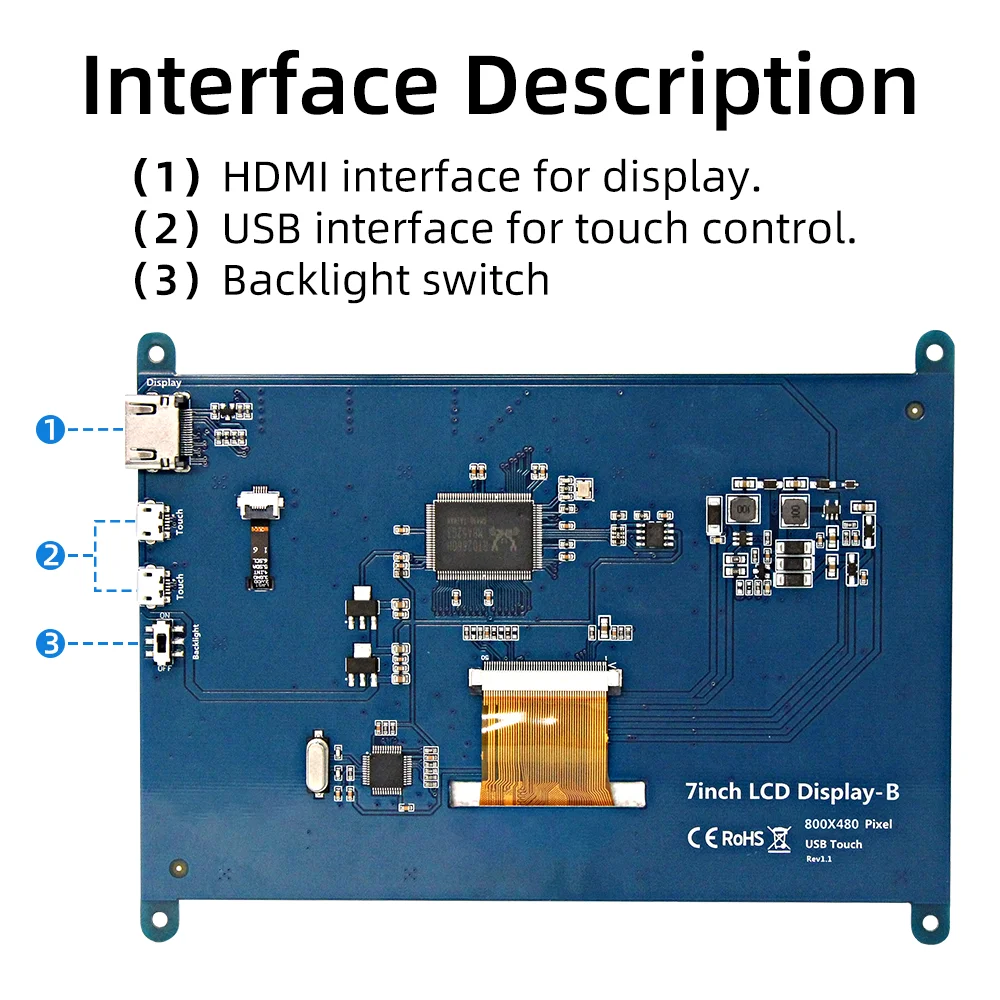

① Backlight Power Switch: Controls backlight for power savings.

② & ③ USB Touch/Power Port: For power supply and touch output; connect either one.

④ HDMI Interface: Connects motherboard and LCD display for HDMI transmission.

How to use with Raspbian/Ubuntu Mate/Win10 IoT Core System

Step 1, Install Raspbian official image

Download the latest image from the official download.

Install the system according to the official tutorial steps.

Step 2, modify the “config.txt”

After the programming of Step1 is completed, open the config.txt file of TF card root directory and

add the following code at the end of the file, save and eject Micro SD Card safely:

max_usb_current=1

hdmi_force_hotplug=1

config_hdmi_boost=7

hdmi_group=2

hdmi_mode=87

hdmi_drive=1

hdmi_cvt 800 480 60 6 0 0 0

Step 3, Drive the 5inch HDMI Display-B with the Raspberry Pi

Insert the TF Card to Raspberry Pi, connect the Raspberry Pi and LCD by HDMI cable;

connect USB cable to one of the four USB ports of Raspberry Pi, and connect the other end of the USB cable to the USB port of the LCD;

then supply power to Raspberry Pi; after that if the display and touch both are OK, it means drive successfully (please use the full 2A for power supply).

How to use as PC monitor

• Connect the computer HDMI output signal to the LCD HDMI interface by using the HDMI cable
• Connect the LCD’s USB Touch interface (Either of the two MicroUSB) to the USB port of the device
• If there are several monitors, please unplug other monitor connectors first, and use LCD as the only monitor for testing.

Package Include

• 1 x 7 inch display
• 1 x HDMI cable
• 1 x Micro HDMI adapter
• 1 x USB cable
• 1 x CD
• 1 x Screw Kit
