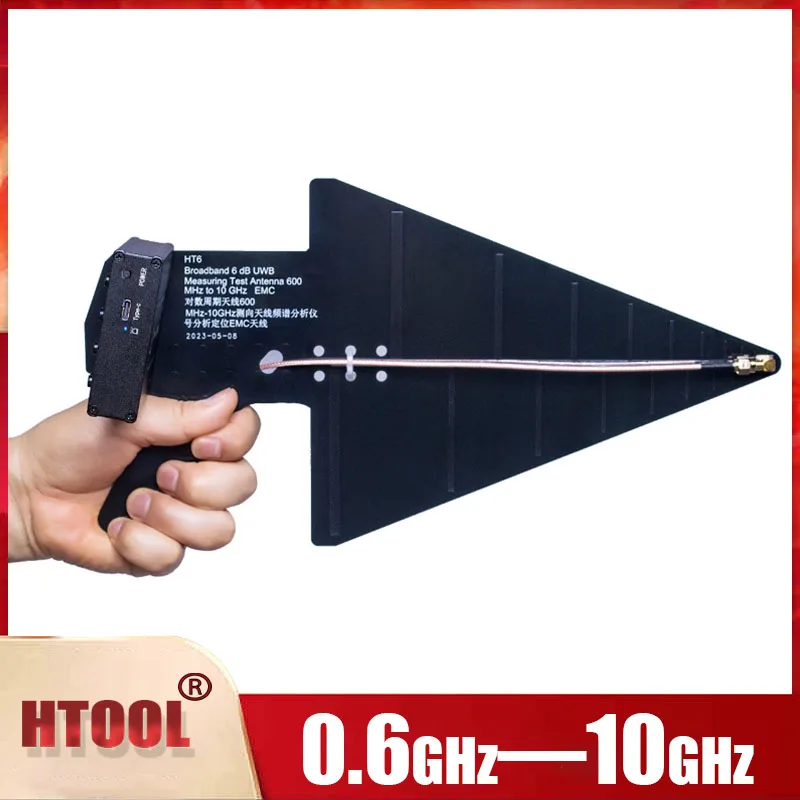

HT6 HTOOL Gain DBI ultra-wideband log-periodic antenna Directional spectrum analyzer lateral localization EMC PCB UWB – 1420

Name: Counting cycle days

Type: HT6

:600M-10G

Gain: 6dBi

VSWR: <2.2

Quasi impedance: 50 ohms

Shooting: SMA

Weight: 150 grams

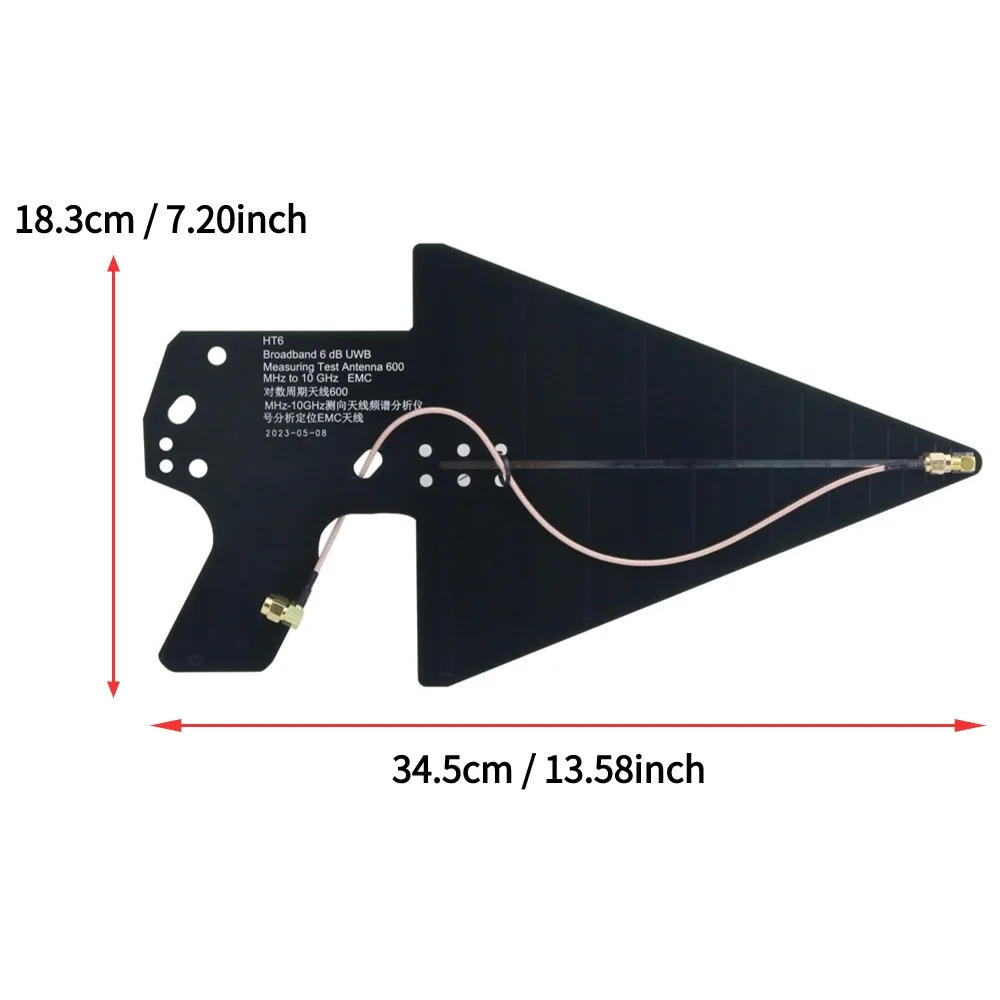

Ruler: 34.5 * 18.3 * 0.15cm

Warranty period: 1 year

Product features

The direct measurement control of HT6-60/100 has the function of determining the radiation measurement when interrupted up to 6dB (measuring the feldspar intensity and peak value (amplitude) of the magnetic radiation source).

It operates domestically in the speed range of 600MHz to 10000MHz

A wide range of work standards allow for the measurement of signal levels for all common techniques and standards.

2G (EDGE, GPRS on GSM 900, GSM 1800)

3G (900 UMTS, 2100 UMTS)

4G (LTE 800, LTE 1800, LTE 2600), YOTA

WI-FI 2400 (IEEE 802.11 b, g, n)

Application scope

Measurement of energy flux density

RF environment analysis;

Point the antenna towards the base station;

Detecting the source of signals or interference;

Analyze the working parameters of the booster and relay.

Create an electromagnetic field with a given density

Parameter measurement of various types of antennas

Measurement of electromagnetic compatibility parameters for radio electronic equipment Electromagnetic environment monitoring Electromagnetic radiation source direction finding

Easy to operate: The design is simple, the workmanship is fine, and the positioning antenna is easy to install and operate, making it easy to use.

The spectrum analysis antenna is made of PCB board, which is sturdy, durable, wear-resistant, and suitable for long-term use.

Job details: The printed circuit board antenna provides bidirectional gain of 1 to 6d in the 600MHz to 10GHz frequency band.

Widely used: This antenna can be used for analysis, positioning, broadband measurement, direction finding, etc.

Practical: The standing wave ratio (VSWR) is less than 2.2, providing continuous high field strength requirements for EMC testing.

Attention: Due to the diversity of device usage scenarios, there may be some deviation in the frequency range, and the deviation is within 30MHz!

Shipping list:

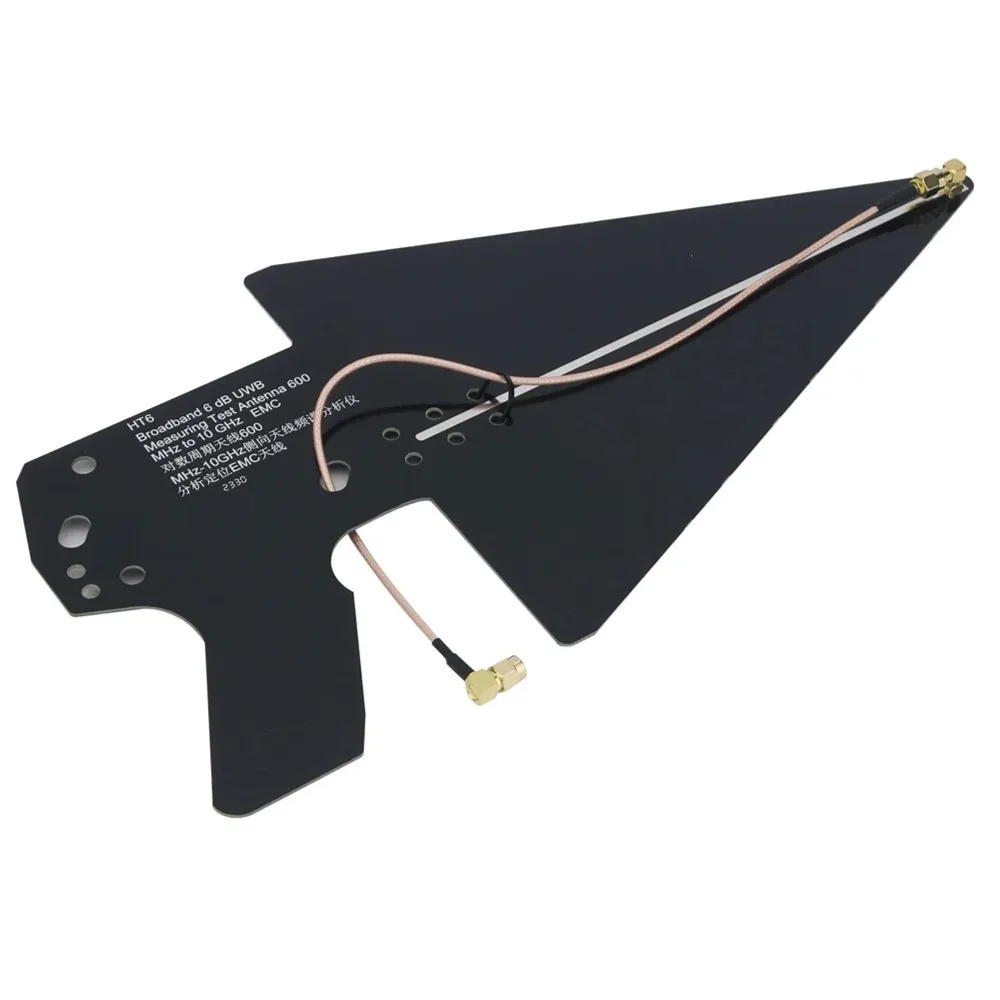

1 HT60.6-10GHz direction finding antenna

2. One RG316SMA male high-frequency connection wire

Pictures of equipment are for multifunctional display only and are shipped without equipment meters.
