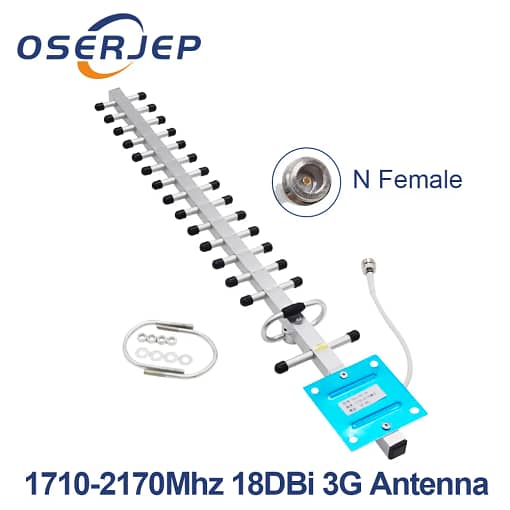

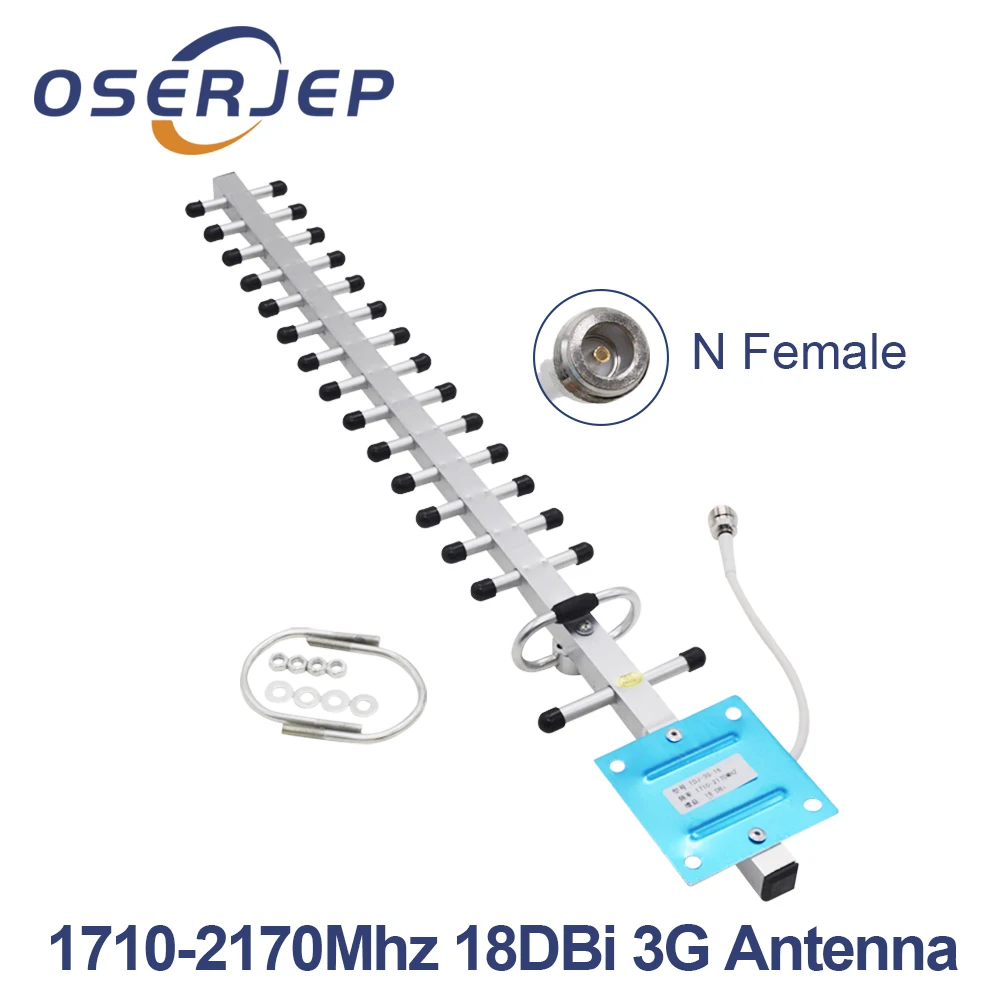

16 Unit Outdoor Yagi Antenna 1710-2170Mhz Outdoor Antenna 1800 2100MHz 3g 4g Lte N-Male N-Female External Antenna 0.3/3M Cable High Gain 18dbi

Product Features

Yagi antenna is really easy to use.

It has good directionality and has a higher gain than dipole antennas.

Use it to measure direction, long-distance communication is particularly good.

If coupled with the elevation and azimuth rotation control devices, it is also possible to arbitrarily connect with the radio stations in all directions,including spacecraft, which is not available from the upright antenna.

Applications:

Item can be used Ootdoor Antenna

Specification:

Model No.

OJ-A114

Item

Yagi 3G Antenna

Operating Frequency

1710-2170Mhz

Connector Type

N Male/N-Female

Gain

18dBi

Impedance

50 ohms

Cable Type

RG58

Cable Length

0.3M/3M

VSWR

Less than 1.5

Cable Loss

0.075 dB

Vertical Plane

72F 5F

Horizontal Plane

76F 5F

Polarization Type

Vertical or Horizontal

Rated Wind Velocity

150 Mile per Hour

Working temperature:

-40F – +140F

Package Include :

1 X N Male/N-Female 1710-2170Mhz 18DBi 0.3M/3M Yagi Antenna
