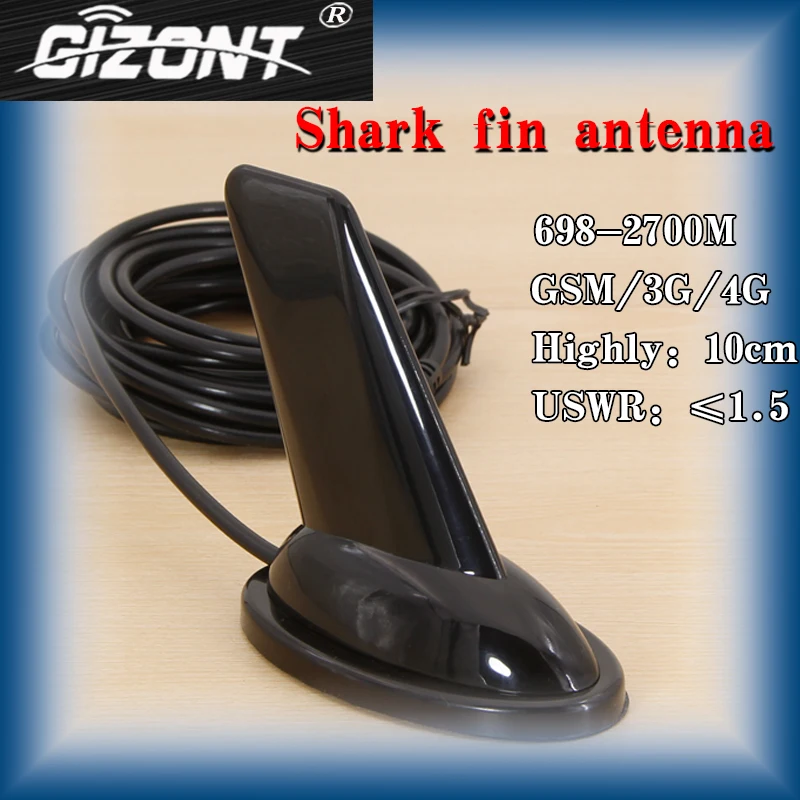

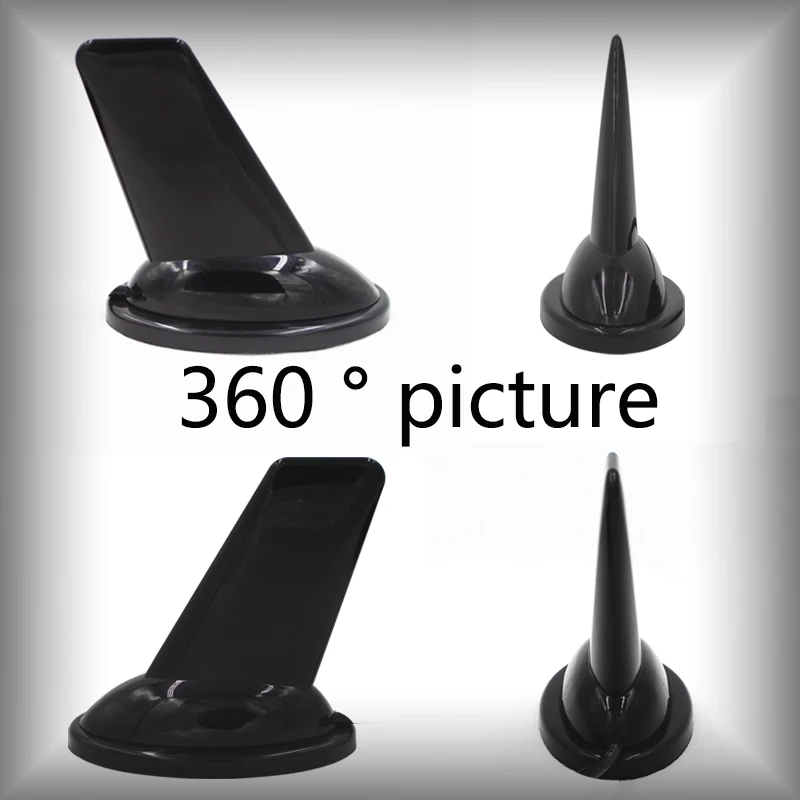

GSM 3G 4G LTE Shark fin sucker antenna GPRS DTU base Station 900/1800Mhz OMNI high gain vehicle antenna 698-2700Mhz full band – 509

Electrical parameters

Frequency: 698-960/1710-2700MHz(1.2G 1.4G 2.4G equal frequency points can be customized)

Gain: 3/5DB(peak 35DBi)

Standing wave ratio: ≤1.5

Impedance: 50Ω

Polarization mode: Vertical

Radiation direction: omnidirectional

Maximum power: 50W

Lightning protection: DC grounding

Connector type: SMA male head or N male head (can be made according to customer requirements)

Antenna height: 10CM

Feeder material: standard with 4 meters of pure copper wire (wire length can be customized)

Radiant oscillator material: circuit board

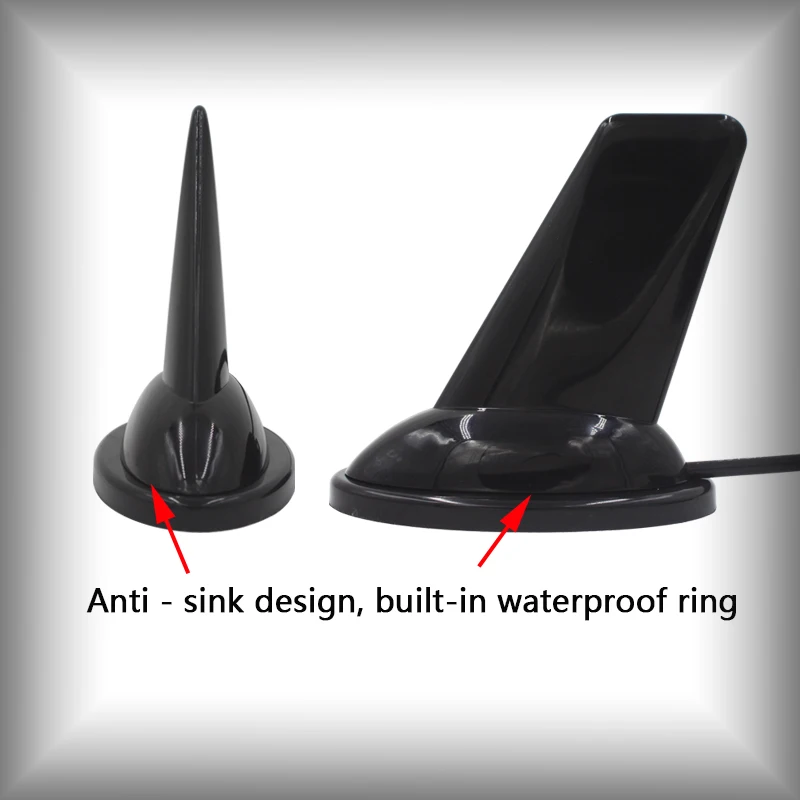

Waterproof class: IP65
