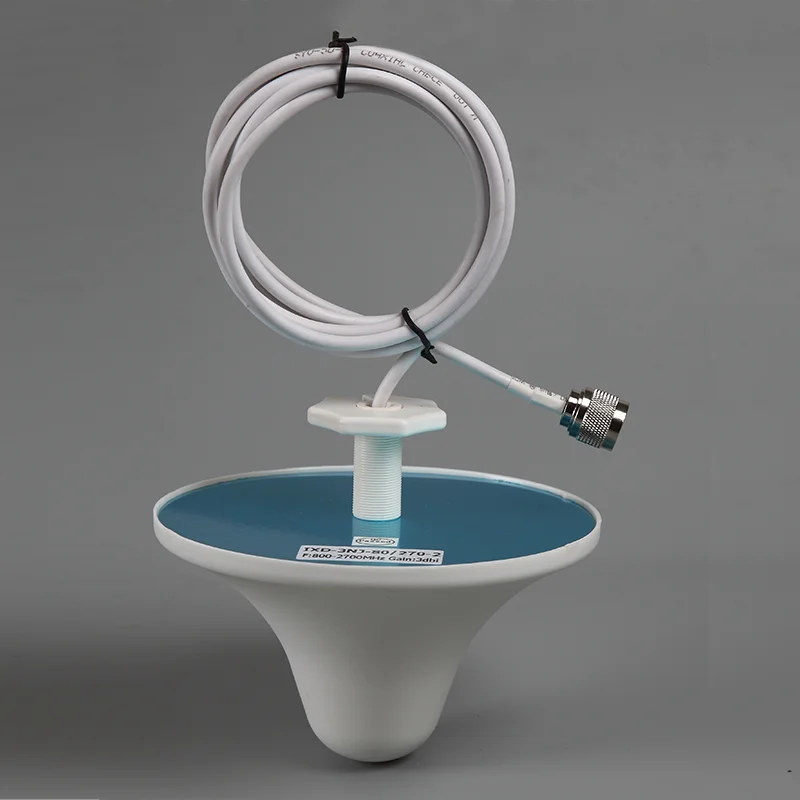

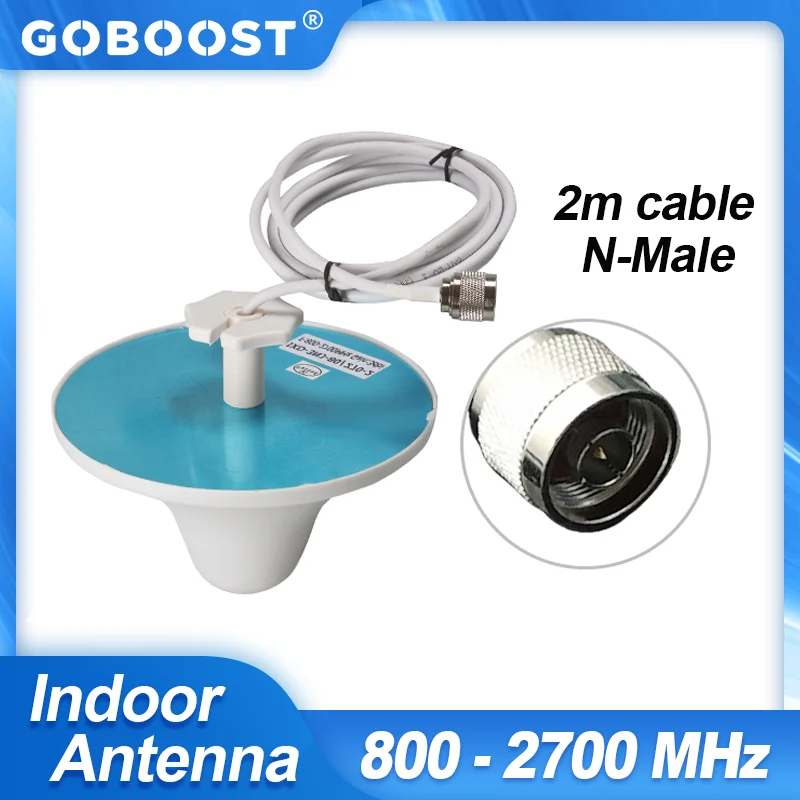

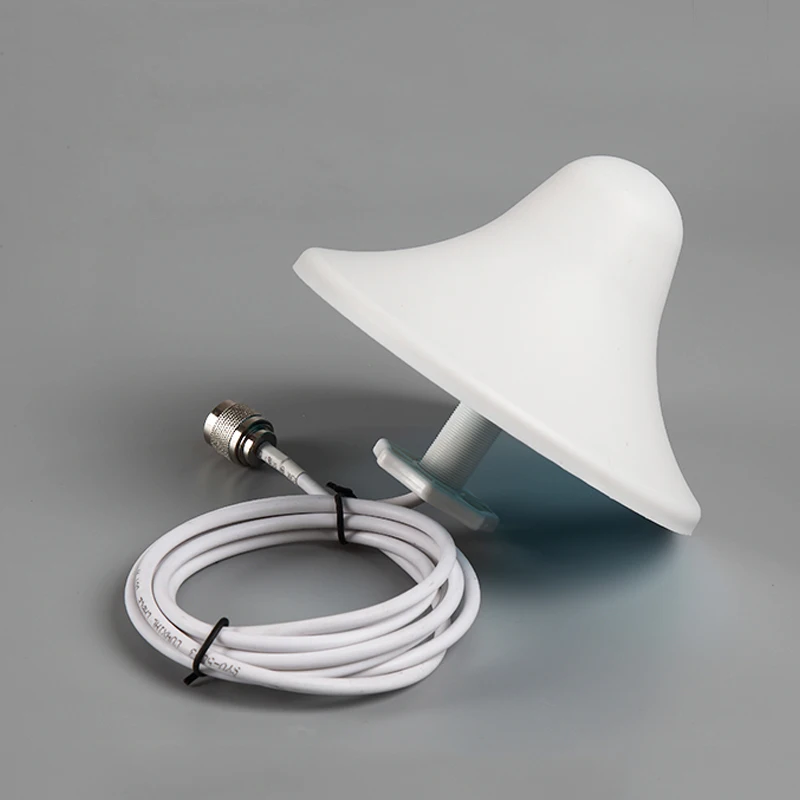

> GOBOOST Full Band 360° Omni Ceiling Antenna with 2m cable

Frequency 824-2700mhz Full Band 3dBi / with N-male connector

Transmit the signal amplified by cellular amplifier gsm 2g 3g 4g / repeater / booster

ELECTRICAL

IXD-3NK-80270

IXD-3NK-80/270

Frequency Range

824–2700MHz

Gain

3dBi

Intermodulation IM3

≤-95dBc

VSWR

≤1.5

Polarization

Vertical

Max power

100 W

Nominal Impedance

50 Ω

MECHANICAL

Connector­­­

N-male

Antenna Dimension

Φ180×90mm

Weight

150g

Color

White

Rated Wind Velocity

60m/s

Working Temperature

-40~+70℃

Mounting

Fixed with Nut

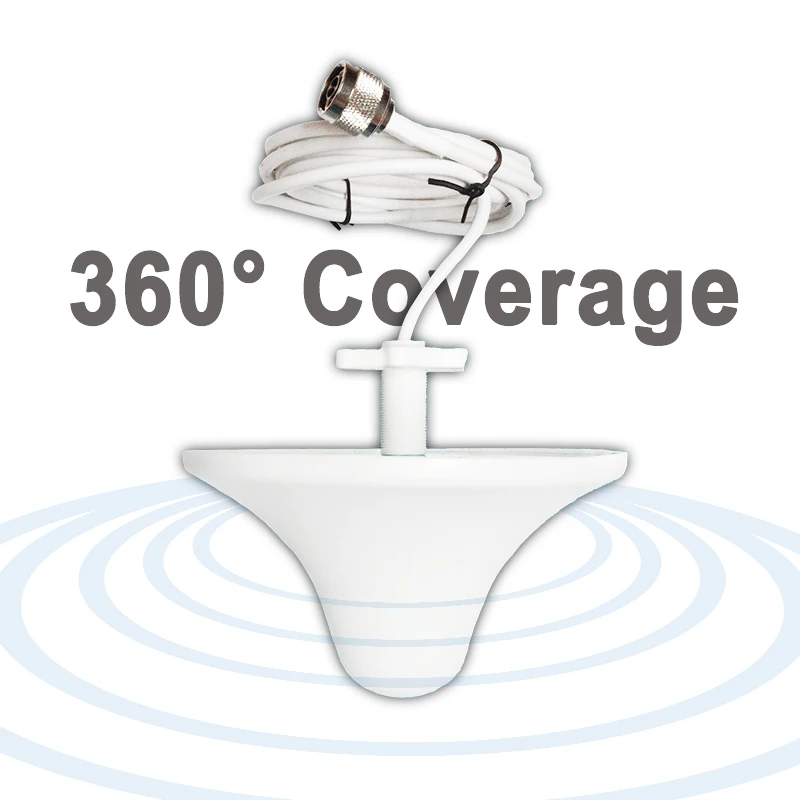

360 degree omnidirectional transmission signal.
