Faread Industrial barcode handheld scanner warehouse logistic 2D NFC Terminal reader mobile Rugged Android 10.0 smartphone pdas – 1420

Specification

PHYSICAL CHARACTERISTICS

Dimension

166mm(H)x79mm(W)x18mm(D)±2 mm

Weight

 Weight :400g (including battery&wrist strap)

Display

5.5 inch (resolution 1440 × 720) capacitive touch screen

Keypads

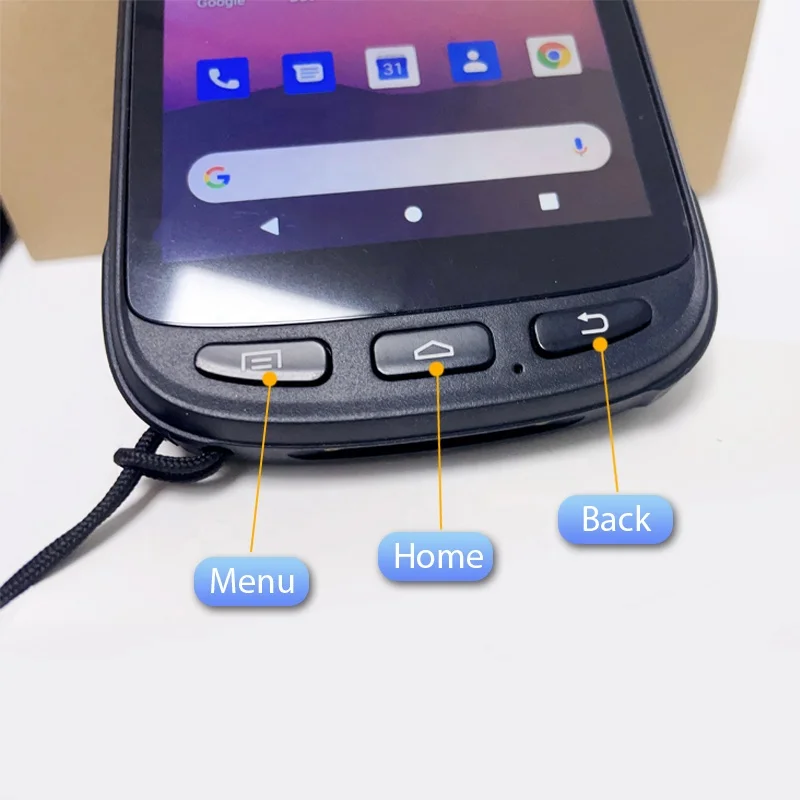

2 scan buttons, 3 screen control buttons

Backlight

LED backlight

Expansions

2 PSAM, 1 SIM, 1 TF

Battery

Rechargeable li-ion polymer, 3.7V, 4900mAh

PERFORMANCE CHARACTERSTICS

CPU

 A73, 2.0GHz Octa-Core, 64-bit processor, TSMC 12nm process technology

Operating System

Android 10.0

Storage

2GB RAM/16GB ROM or 4GB RAM/64GB ROM, Micro SD(max 256GB expansion)

USER ENVIRONMENT

Operating Temp.

-20℃ to 50℃

Storage Temp.

-20℃ to 70℃

Humidity

5%RH to 95%RH(non-condensing)

Sealing

IP65, IEC compliance

Drop Specifications

5ft./1.5 m drop to concrete across the operating temperature range

ESD

±15kv air discharge, ±8kv direct discharge

DATA COMMUNICATION

WLAN

2.4GHz/5.0GHz Dual Frequency, IEEE 802.11 a/b/g/n/ac

WWAN

2G:GSM/GPRS/Edge(850/900/1800/1900MHz)3G:WCDMA(850/1900/2100MHz)

4G:TDD-LTE(B38/B39/B40/B41)

    FDD-LTE(B1/B2/B3/B4/B7/B17/B20)

WPAN

Class v2.1+EDR, BT v3.0+HS, BT v4.2

GPS

GPS(embedded A-GPS), BeiDou, GLONASS, accuracy of 5 m

DATA CAPTUER

BARCODE READER(OPTIONAL)

2D CMOS Imager

ZeSE4710/ME5600/Others

 Symbologies

PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode, Postal Codes, US PostNet, US

Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal. etc.

RFID READER(OPTIONAL)

HF/NFC

Frequency

13.56MHz

Protocol

ISO14443A/B,ISO15693,NFC-IP1,NFC-IP2 etc.

R/W Range

3-5cm

Card reading location

Scanning head window position or the upper end of the back of the fuselage (3-5cm from the top of the device)

 CPU Reader

(optional)

Support CPU card reading and writing, use with PSAM

ACCESSORIES

Standard

1xPower Supply; 1xLithium Polymer Battery; 1xUSB data cable(Type-C)

Optional

Carrying case; Cradle

At a Glance

* Industry-leading high-end eight-core CPU

* Use the latest Android system

* High-speed, large-capacity memory combination

* 5-inch IPS high-bright screen, breaking through the boundary of the field of view

* High-speed barcode / QR code scanning

* Full protocol NFC card reading function, humanized card reading location design

* Long-lasting battery life

High Capacity Battery

for Long-time Endurance

Equipped with 4800mAH High-capacity polymer lithium battery, it can work for more than 14 hours when full charged, which can

totally meet the power duration requirements.

High-speed&Accurate

Barcode Scanning

FRD9680 serial products integrated with professional&accurate 2D barcode scanner engine shall provide accurate and fast reading

experience which meet different tough environments including dirty/defective barcodes .
