China Factory VinTelecom newly designed MINI PBX PABX MK308 phone system – 7

Telephone PBX system

308/MK(3Lines & 8 Ext. line)

Newly design with rich functions! New arrival !!!

308/MK PBX with rich features, ideal for SOHO / Small offices phone system solution! Support key phone as the console, support the programming to the pbx system by key phone and regular/ordinary phone. Support strong lingtening protection.

China PBX Factory VinTelecom Directly Supply!

China Best Facory prices to support!

Good after-sell service guaranteed!

Welcome to accept OEM/ODM orders!

Bulk Orders Negotiation!

MK308 MINI PABX is with more features than SV308 MINI PABX, MS308,like recordable OGM 50s for the default, also 60s or 90s OGM can be optional, support CO to CO transfer, Caller ID transfer, Key phone function, support 2 door phone and 2 door locks open, support system password, system CRBT, fax detection, ext. group feature……

Automated Telephone System

This SOHO-PBX 308/MK system is an ideal telephone system for small offices and home offices. It is very easy to install and use. It has all the standard features comparable to those expensive PBX systems in the market. It works with your current analog phones and you do not need to spend extra money to buy proprietary telephones to work with the PBX.

Installation is simple, no special tools, test equipment or technical skills is required. The unit has been programmed to work automatically out of the box.

3/8 MK Distinctive features:

1) MK 308 is with 50sec recordable OGM DISA in default

2) 60sec or 90sec OGM DISA are for optional

3) Follow me / External call forwarding to mobile phone

4) Can work with Key Phone for secretary/operator

5) Support 2 door phone and 2 door locks open function

6) Transfer Caller ID / External Caler ID / Intercom Caller ID

7) Ext. groups feature

8) Fax detection function, can work with fax machine

9) External music on holding

10) Real Time Clock

11) Day / Night / Lunch time setting function

12) System password

13) Strong lightening protection function

Features

SV308

MS308

MK308

keyphone interface

No

No

Yes

Day/Night Mode(Auto)

No

No

Yes

Day/Night Mode(Manual)

No

Yes

Yes

Recordable OGM(outgoing messae)

10 Seconds

20 Seconds

50 Seconds

System CRBT

No

Yes

Yes

Transfer Caller ID

No

No

Yes

Intercom Caller ID

No

No

Yes

CO to CO Transfer

No

Yes

Yes

Abbreviated Dialing

No

No

Yes

Auto IP Dialing

No

No

Yes

Redial in Indirect-dailing-out mode

No

No

Yes

Exts. Groups

No

Yes

Yes

External Line Group

No

No

Yes

Real Time Clock

No

No

Yes

Intelligent Routing(LCR)

No

No

Yes

Fax Detection

No

No

Yes

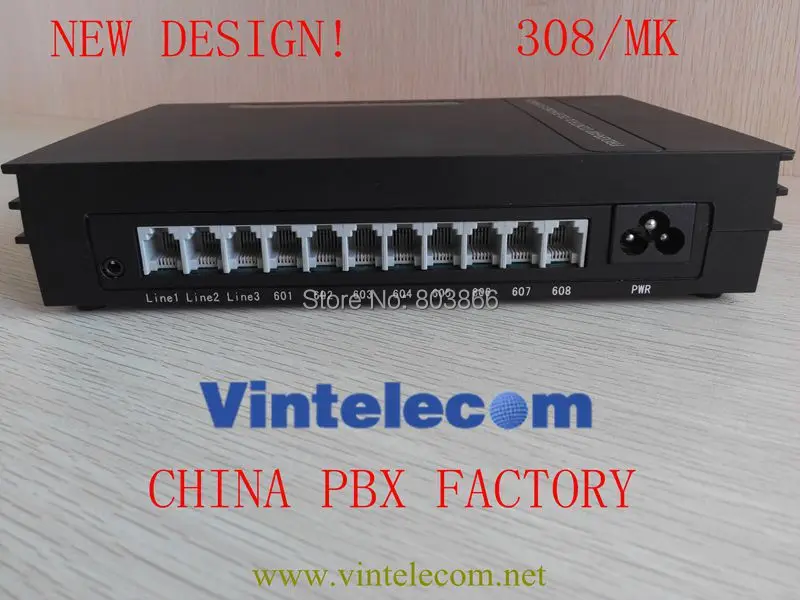

Photos Show:

Basic Features:

1) Direct or Indirect Dialing Mode

To place a call, an user can dial directly the phone number of the called party (Direct Dialing Mode).or indirectly by first dialing the access digit ‘9’ followed by the phone number (Indirect Dialing Mode)

 2) Automated Attendant Mode

Caller will listen to an user prerecorded greeting message (OGM about 10 seconds in length, eg for sales department please dial 601, engineering department please dial 602…) when the automated attendant is turned on. The automated attendant will then handle the caller’s response and then connect the call to the appropriate extension.

 3) Operator mode

An incoming call will ring one or some designated extensions; any extension whether ringing or not is able to pick up the call.

 4) Call hold, transfer

Incoming calls can be put on hold and transferred from any extension without any limit even on misdials.

 5) Caller ID (FSK/DTMF/Bellcore)

The 308 is capable of receiving FSK/DTMF (Bellcore standard) caller id sent from local telephone company. The telephones must have DTMF caller id detection capabilities and the service must be subscribed.

 6) Three-way conferencing

An established call between a CO Line and an Extension can invite a second extension to join a 3-Way conference call.

  7) Intercom call

Make internal calls from any extension.

  8) Facsimile supported

Any extension can hook up a fax machine or a PC to send or receive facsimiles.

  9) Incoming call alert

Engaged extension will receive a call waiting tone alerting the party when there is an incoming call.

  10) Toll restriction scheme

Long Distance or International Direct Dialing can be disabled on a per extension basis.

  11) Secretary assisted dialing

A secretary can make an outgoing call from his or her extension and then transfer the established call to a second extension. This feature is especially helpful for those busy executives. Once the call is connected to the second extension; the secretary can hang-up or remain connected for three-way conferencing.

   12) Limit CO line call duration

External calls can be disconnected at a preset time limit from 1 to 99 minutes on a per extension basis.

  13) External call authorization with password protection

Permit users with authorized password to make external calls.

   14) Power failure tolerant

During power failures, extension #1 remains functional and it can still receive or make outside calls.

15) Do not disturb

Extension with ‘do not disturb’ turned on will not ring.

 16) No response from caller under Auto-attendant mode

In Auto-attendant mode, after greeting the caller to dial an extension number but receiving no responses from the caller, the incoming call can be programmed either be terminated or transferred to the operator.

 17) CO line ports can be disabled or enabled individually

All CO line ports can be disabled (for Intercom only) any CO line ports can be disabled (if the disabled CO port is not connected to a CO line).

 18) Flexible Ring delay on incoming calls

An incoming call can be programmed to ring an extension immediately or with a delay of one ringing cycle, to tailor to meet the specific characteristics of the attached telephony device.

   19) Enable/disable extensions from accessing CO lines

CO lines access rights can be granted on a per extension and per CO line basis.

   20) Flexible extension number plan

User can assign extension numbers ( 1 to 4 digits) for the PBX.

  21) Recording Outgoing Greeting Message (OGM)

User can record his own greeting message which will be stored in the PBX’s non volatile memory.

  22) Playback OGM:User can listen to the recorded OGM or the on-hold music.

  23) CO Line ringing assignment

An incoming call from a specific CO line can ring one or more extensions, or no extension.

Product Specifications:

Power Supply: AC220V±10% 50/60HZ & AC110V±10%

Power consumption: ≤15W

Ringing Current: AC70V±10% 50HZ

Environment temperature: 0-40

Humidity: 10%-90%
