ATU-1000 atu1000 ATU-1KW ATU1000W Automatic Antenna Tuner 7×7 (ATU-1000W by N7DDC) DIY KIT – 509
Original price was: 504,60 $.174,00 $Current price is: 174,00 $.
Buy ATU-1000 atu1000 ATU-1KW ATU1000W Automatic Antenna Tuner 7×7 (ATU-1000W by N7DDC) DIY KIT at for . Find more 509, 5092101 and products. Enjoy ✓Free Shipping Worldwide! ✓Limited Time Sale ✓Easy Return.
FULL KIT DIY Automatic Antenna Tuner 7×7 (ATU-1000W by N7DDC)
1000 Watts tuner, 7×7 based on PIC 16F1938.
PCB Size : 270 mm x 136 mm

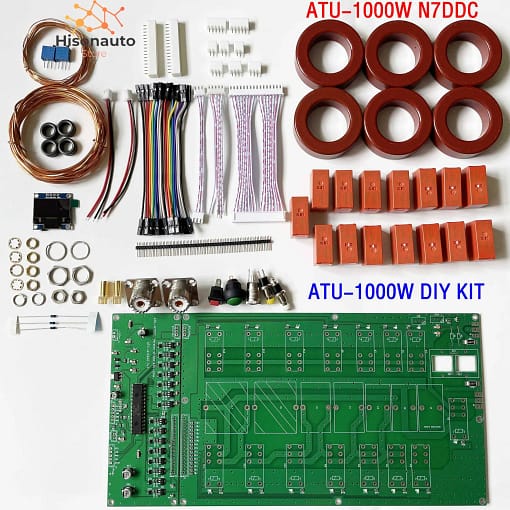

DIY Kit included:
PCB for ATU-1000W 7×7 HF autotuner
+ set of toroids:
– T200-2 (6pcs);
– FT50-43 (4pcs).
+ set of parts:
1. PIC16F1938 (1pcs) the chip has burned the latest firmware.
(Note that users cannot directly use 100W firmware to update 1KW, their firmware is not the same.)
2. 7PCS SMD capacitor: NPO material, withstand voltage 3KV-4KV
3. all other SMD parts (All SMD electronic components have been welded by machine, no need for manual welding)
4. relay 12VDC-SL-1C (analog TRA2-L-12VDC) (15pcs)
5. 0.96inch OLED screen
