AntennaHome 2.4G Magnetic Antenna, for 802.11 b/g/n,includes freq of 2.4G,Bluetooth,ZigBee,and Wi-Fi products AH2G.401 – 509

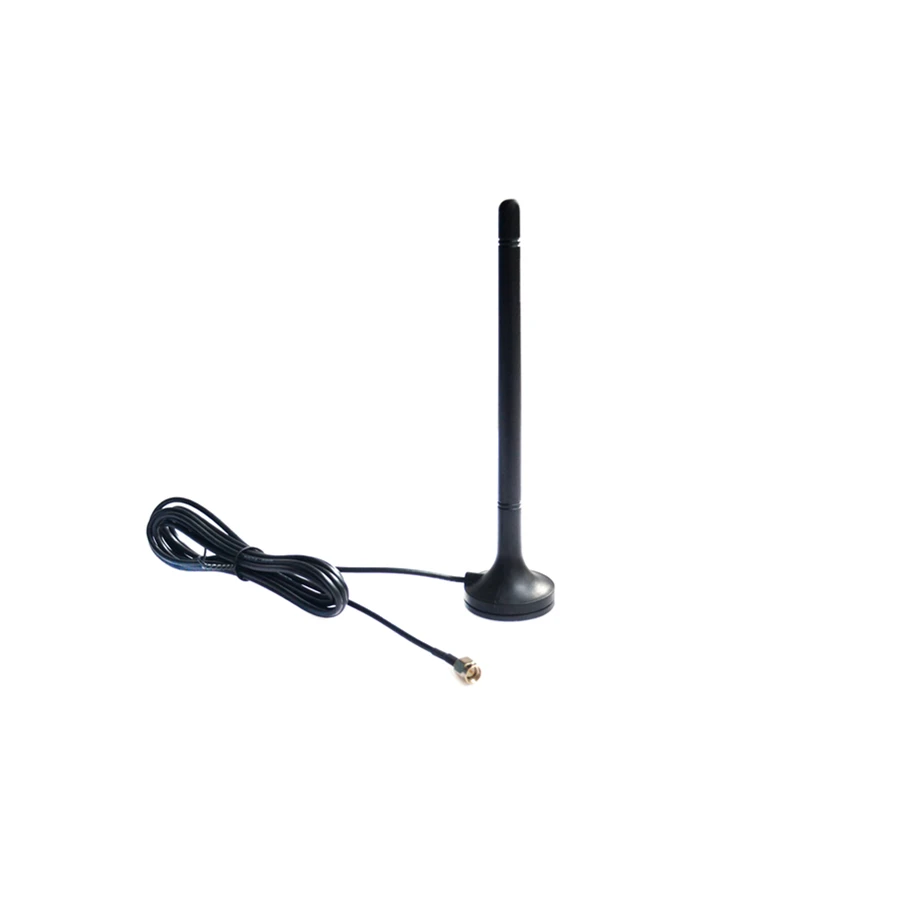

Product : H175 Rubber Magnetic SMA-J , 2.4G Antenna

PN : AH2G.401 (Ref: AN2401.0020)

Application : 802.11 b/g/n, includes frequencies of 2.4G,Bluetooth, ZigBee, and Wi-Fi products

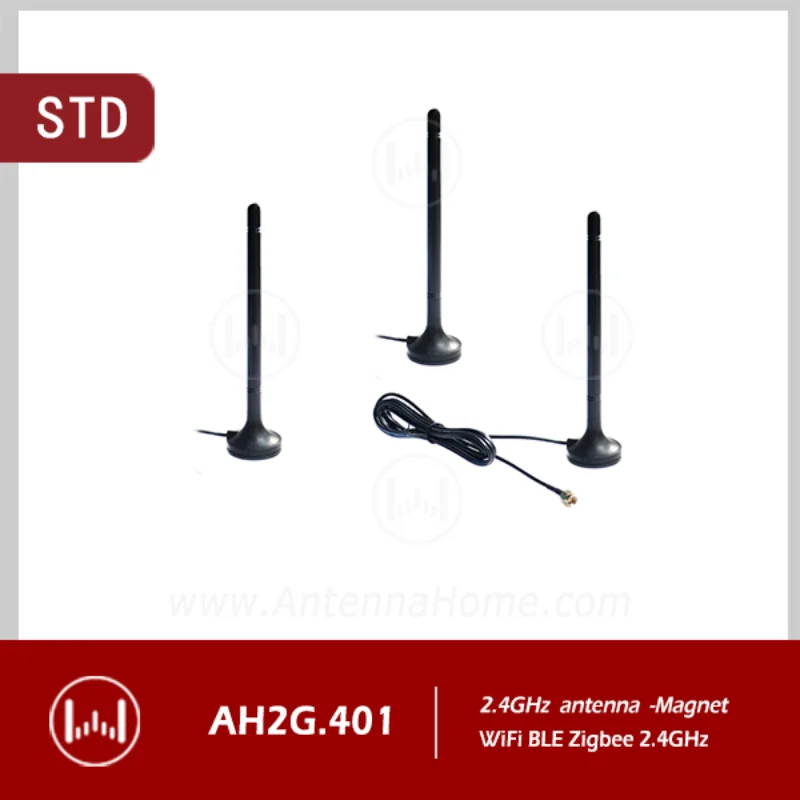

AH2G.401

Electrical Properties)

Frequency：

2400~2500 MHz

Impedance：

50Ω

VSWR：

≤2.0

Gain：

2.2 /dBi

Polarization:

Vertical / Omni

Mechanical Properties

Conn&Cable：

SMA-J & RG-174 Cable

Material&Color：

Copper/ABS

Mounting:

Magnetic

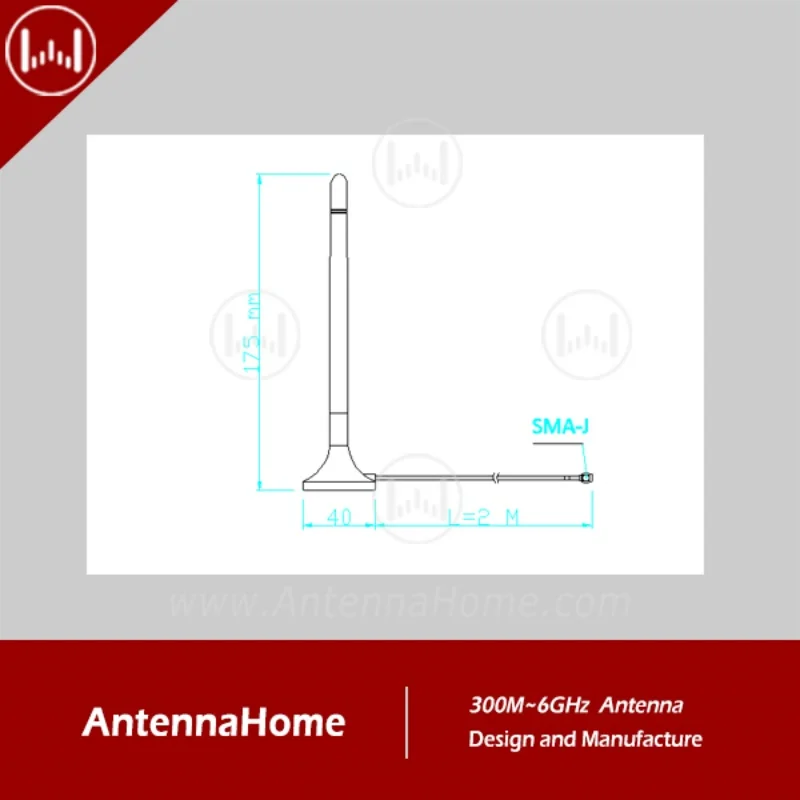

Size:

¢40×H175 mm

Weight:

40 g/pc

Operate Temp:

（-40 ~ +85 ℃
