868/915M FRP LoRa Antenna Outdoor Waterproof Omni Antenna Cellular Signal Amplifier for Gateway Agriculture Monitor Helium Miner – 509

Main Technical Specifications

Product Name: Fixed Wall Mount Fiberglass Antenna

Frequency: 860-930MHz (EU 868MHz, US 915MHz)

Antenna Gain : 8-9dBi Omni-directional

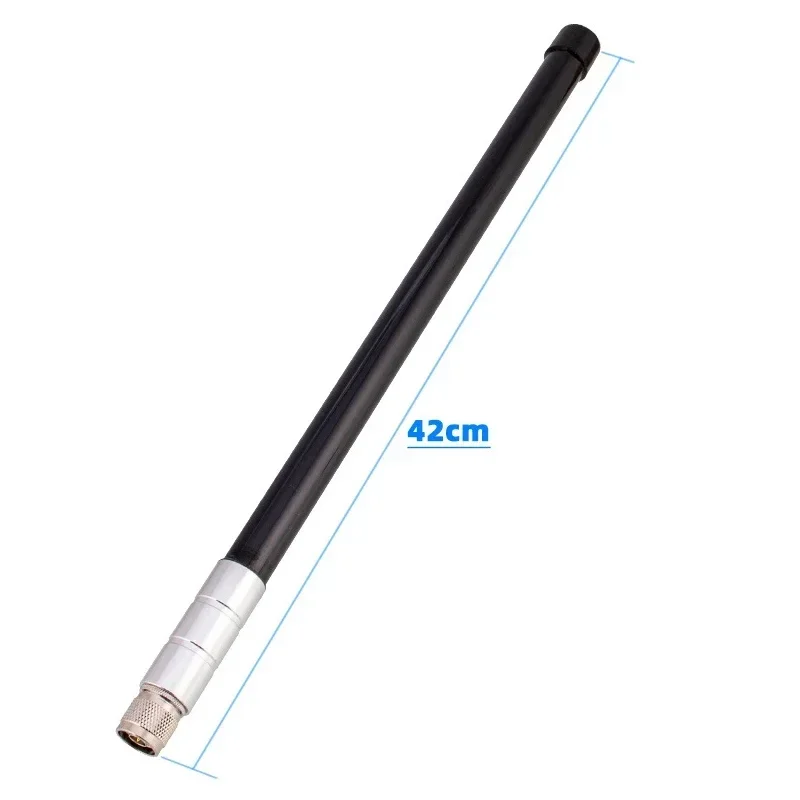

Antenna Height:42cm

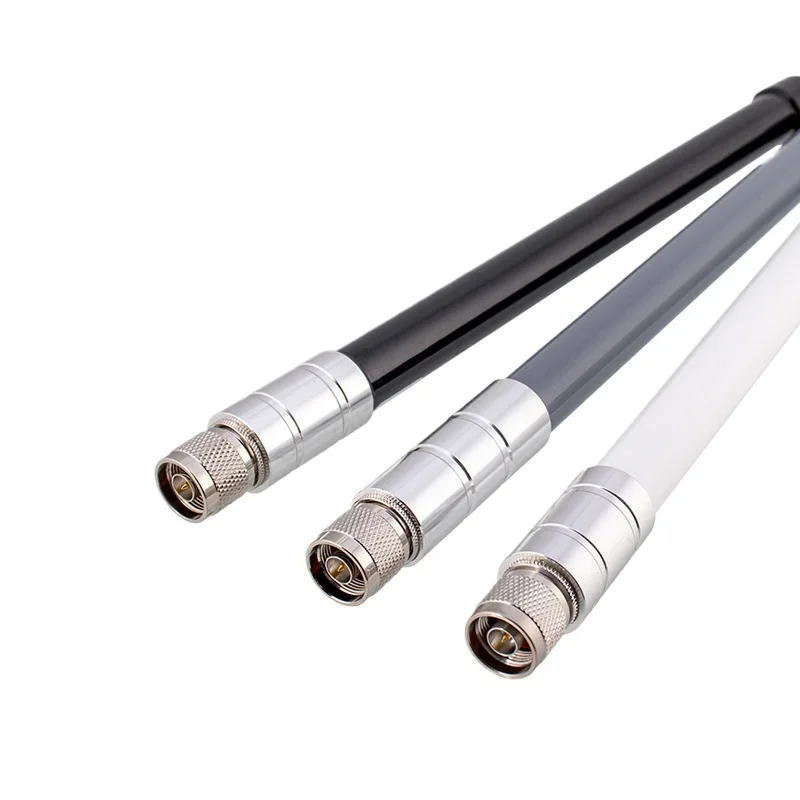

Antenna Connector:N Male Connector

Impedance : 50 Ohm

Adapter Connector:SMA Male to RP-SMA Female

Extension Cable Connector:N Female to RP-SMA Male

Extension Cable Length: 1Meter Cable RG58

Operating Temperature: -20°С ~ +80°С

Storage Temperature: -30°С ~ +85°С

Package List include:

1 x FRP Antenna

Special Note

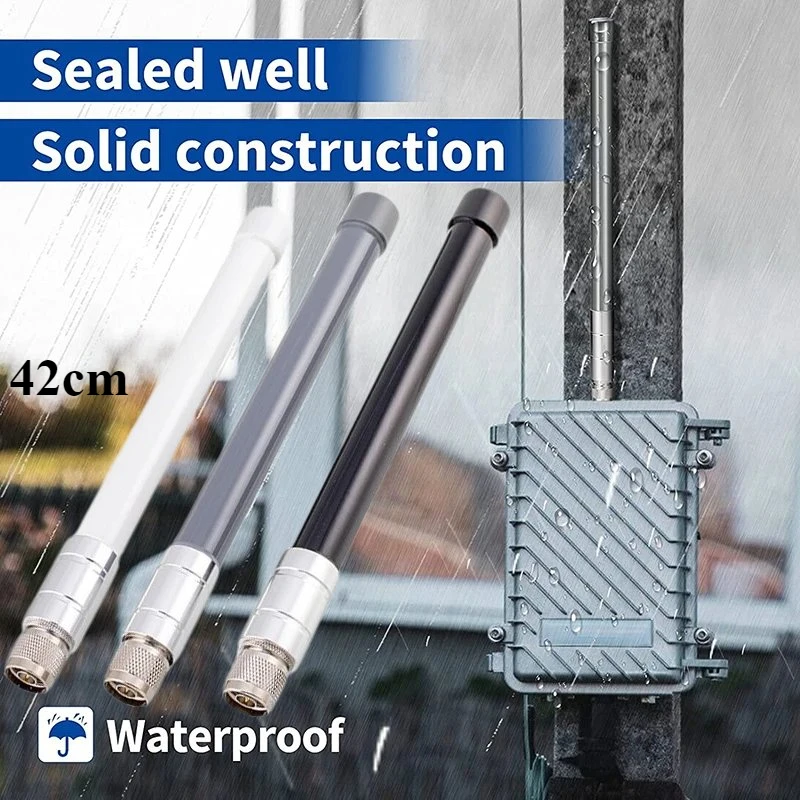

1. LoRa antenna can be used indoors and outdoors, industrial grade structure, glass fiber radome, waterproof, durable and high temperature resistance.

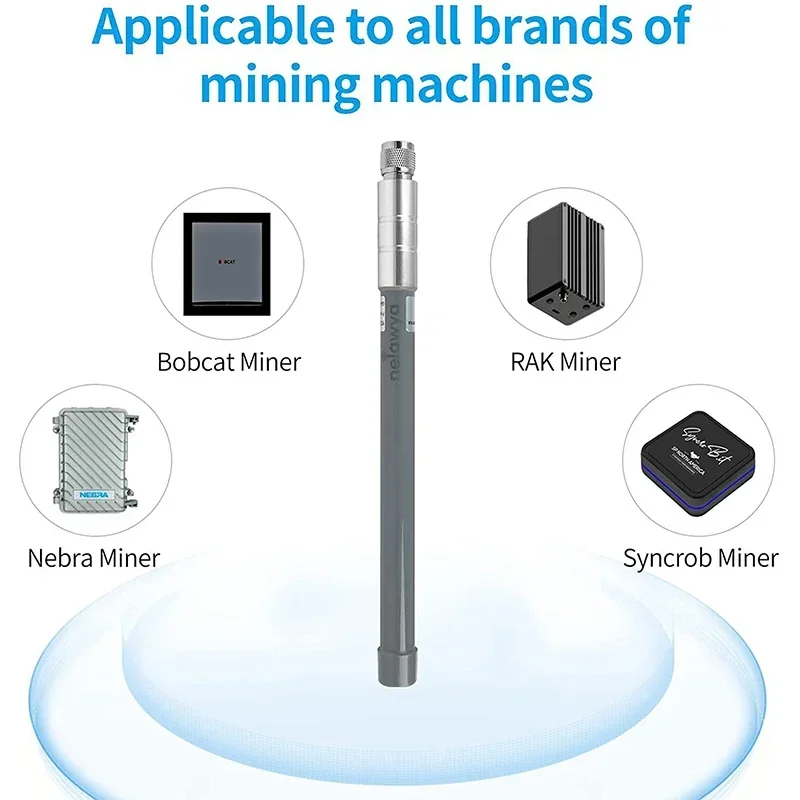

2. Compatible with HNT RAK Helium Hotspot Miner V2 V1 Bobcat Miner 300 syncrob it Dragino LPS8 MatchX M2 Pro Longfi LoRaWAN.

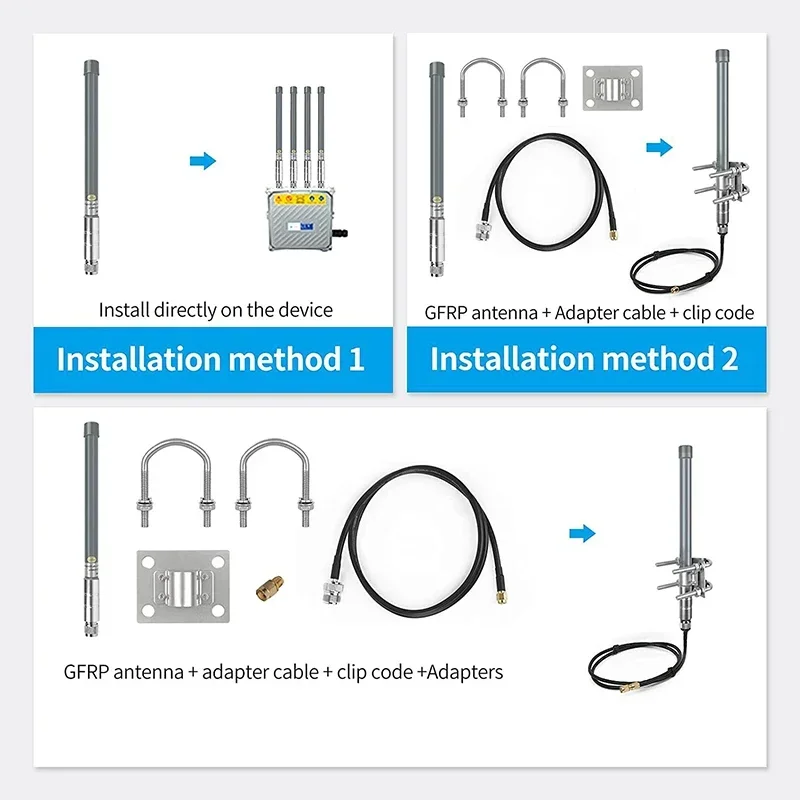

3. If it is used indoors, it is recommended to place it near the window; If it is used outdoors, we recommend that you install it in an open place; if the antenna signal does not change when you use it for the first time, please turn off the power of the device, then insert the antenna and turn the power on again.

4. Low VSWR: The VSWR of this antenna is 1.1, which is lower than other similar antennas (the closer the VWSR is to 1, the smaller the reflection and the better the match of the antenna )

5. How to choose dBi?

Lower dBi: Great performance on uneven terrains, or areas with a high hotspot density.

Higher dBi: Great performance on flat terrain and low hotspot density.

6. The difference between different monitors, the picture may not reflect the actual color of the product; manual measurement of the size, please allow 1-10mm error, thank you for your understanding!
