Item Title

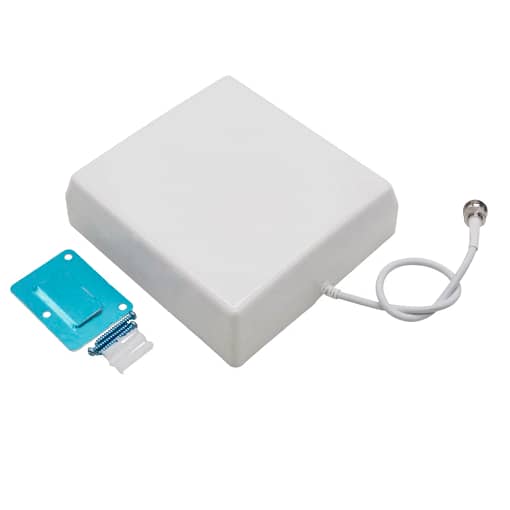

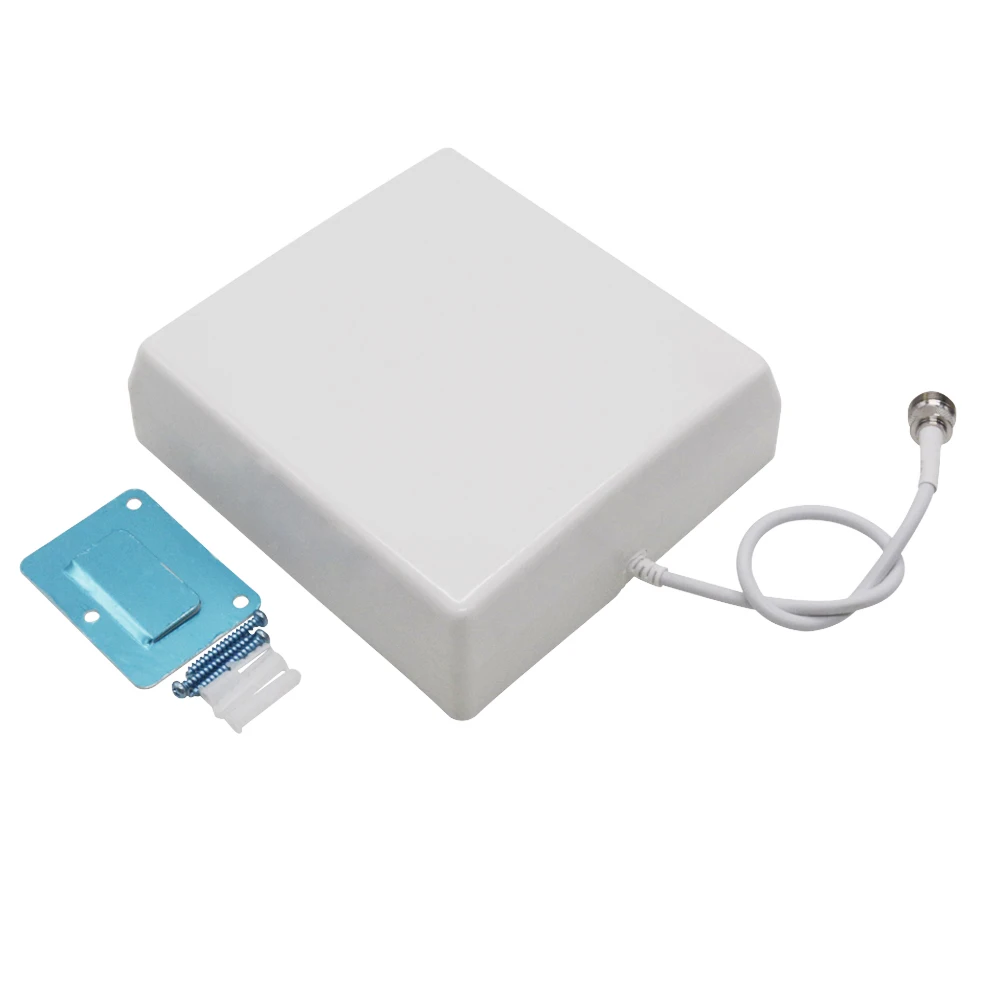

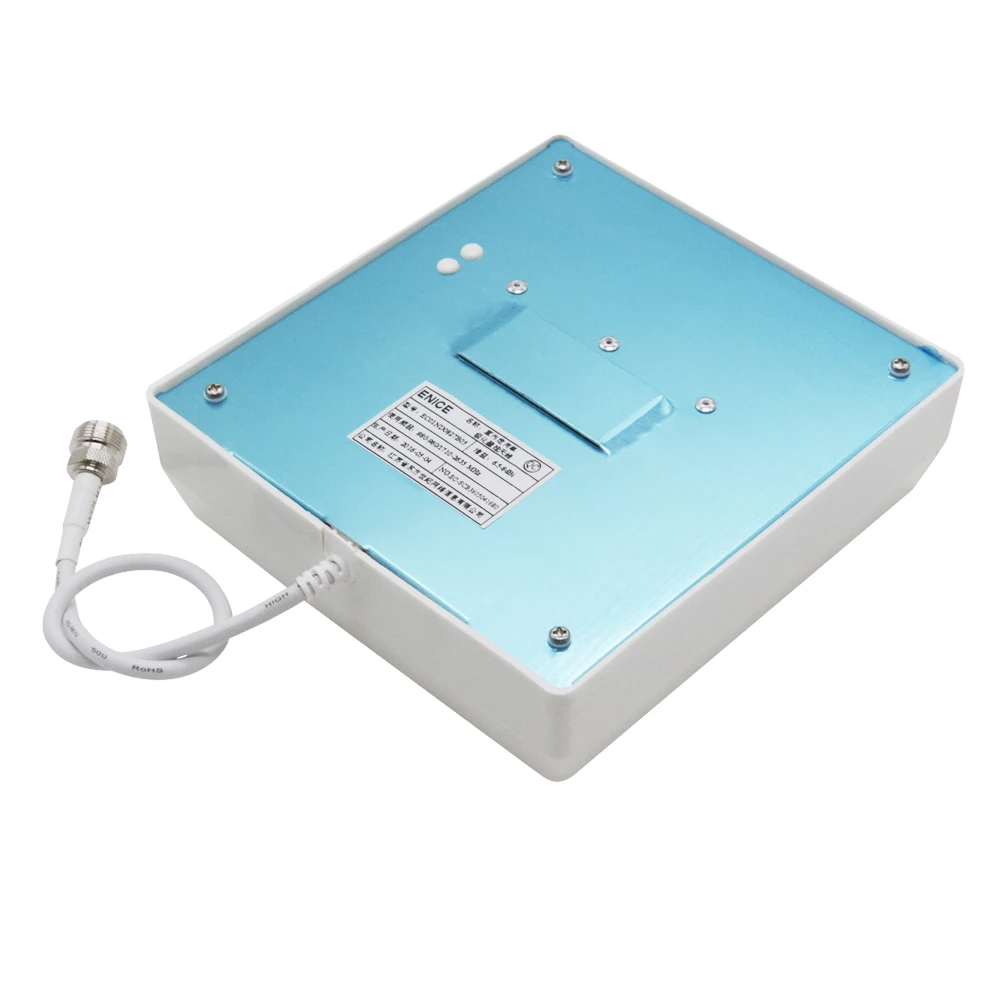

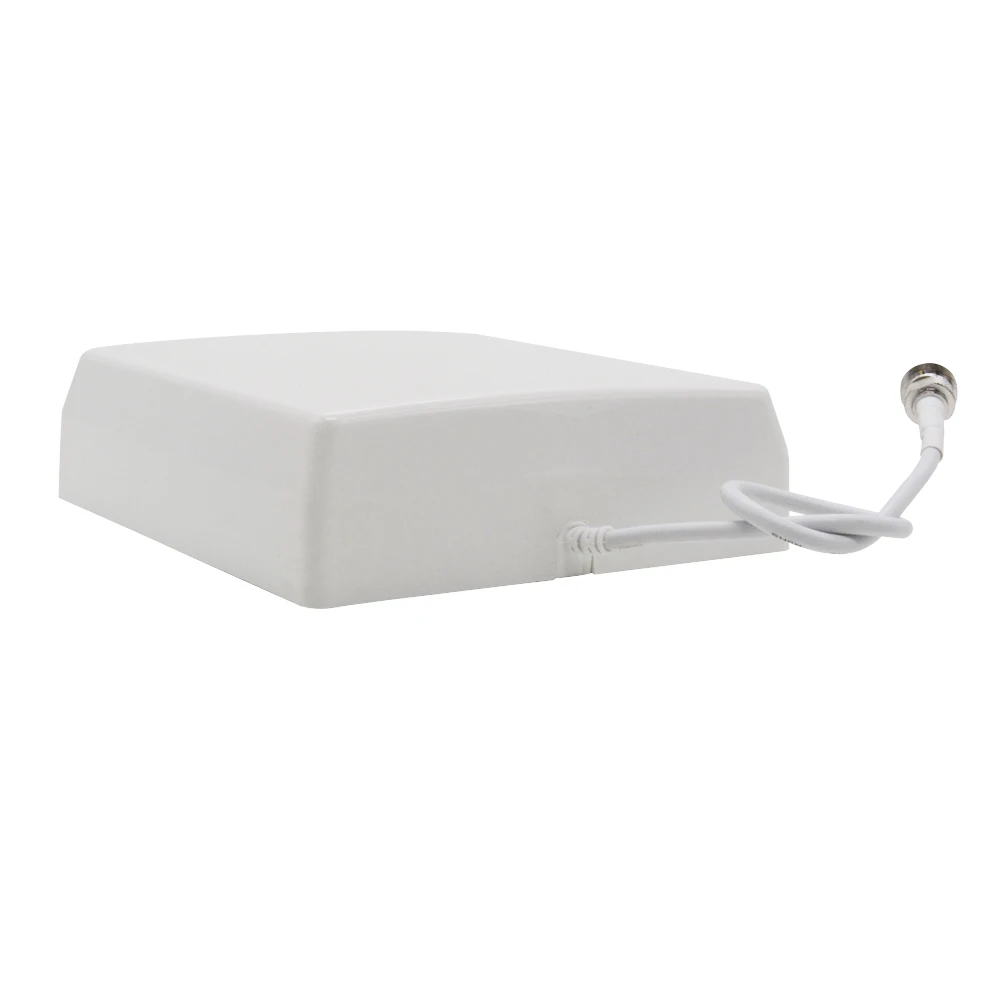

800-2700MHz CDMA GSM 2.4G DCS Indoor 2G 3G 4G Panel Antenna Panel Mobile For Cell Phone Signal Repeater Booster Indoor Antennas

[xlmodel]-[photo]-[0000]

Photos List

[xlmodel]-[custom]-[47274]

Product Details

Applied to indoor coverage system, it can cover the whole band of 806-960MHz , 1710-2170MHz ,2300-2700MHz and 3300-3700MHz

Low intermodulation, up to -160dBc (@243dBm)

Ultra-wideband, covering 806-960MHz , 1710-2170MHz ,2300-2700MHz and 3300-3700MHz

Novel style, small size, beautiful appearance

Easy to install

Meet RoHS

Electrical Specifications :

Frequency Range(Mhz)

806~960

1710~1850

1885~1915

2010~2025

2300~2400

2400~2483.5

2575-2635

Gain(dBi)

6.5

7.5

7.5

7.5

8

8

8

VSWR

1.5

Horizontal Beam Width()

9010

7510

7510

7510

7510

7510

7510

Vetical Beam Width()

85

65

65

65

65

60

55

Front to Back RatiodB

12

15

15

15

15

15

15

Polarrization

Vertical

Intermodulation IM3dBM

-85

-85

/

/

/

/

/

Input Maximum CW Power

50W

Impedance

50

Mechanical Specifications:

Antenna Type

Single-polarized directional antenna

Applicable environment

Indoor

Input Connector

N-Female

Dimensions of antenna

165X155X50mm

Weight of antenna

0.323Kg

Gross weight

0.384Kg

Cable Type

RG58

Temperature range

-40~+60

Radonme material

ABS

Package Include :

1 X Panel Antenna

1 X Baffle

3 X Plastic Wall Plug

3 X Self-tapping Screws
