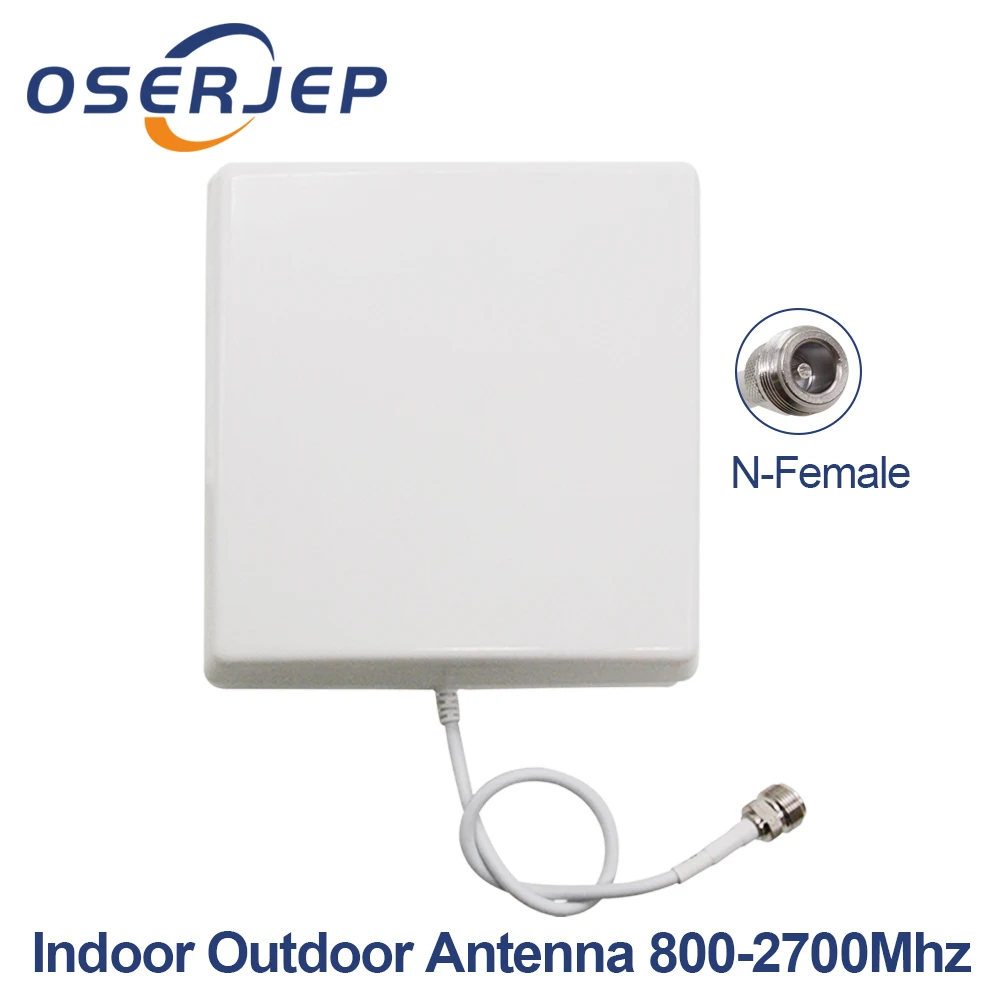

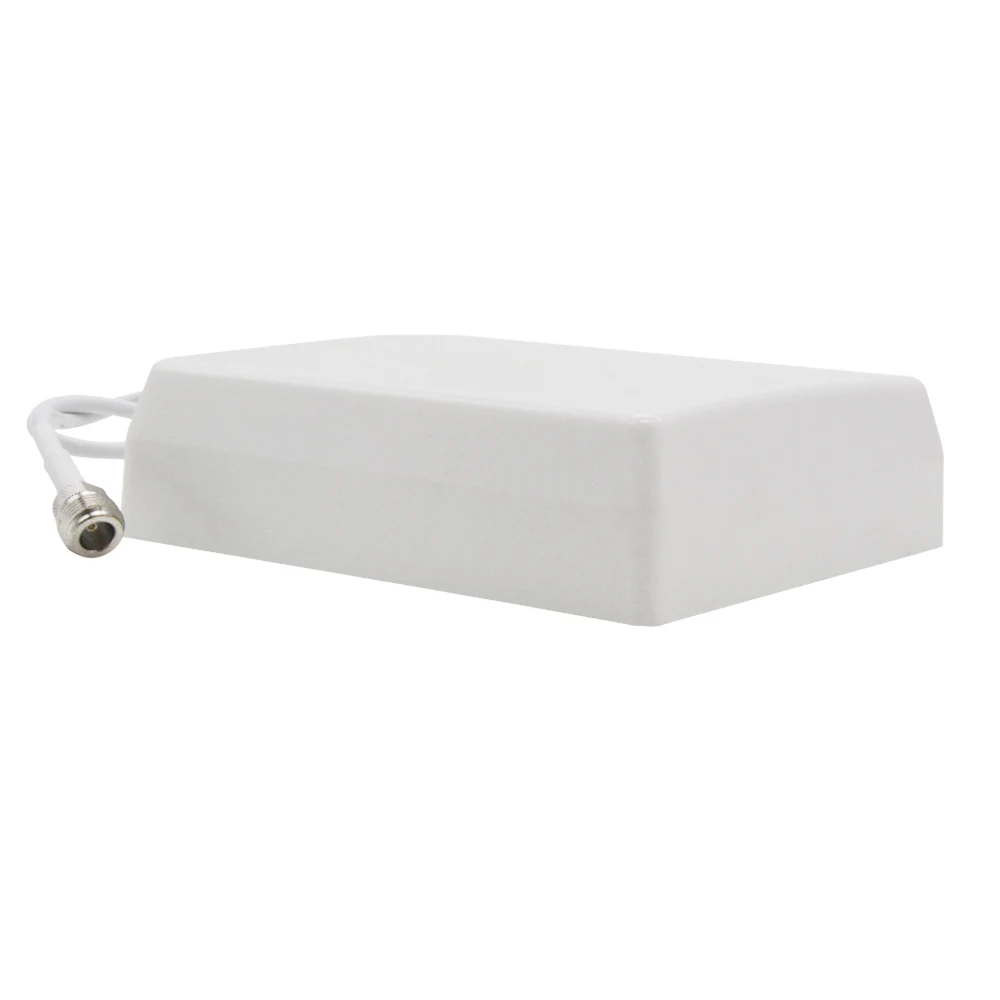

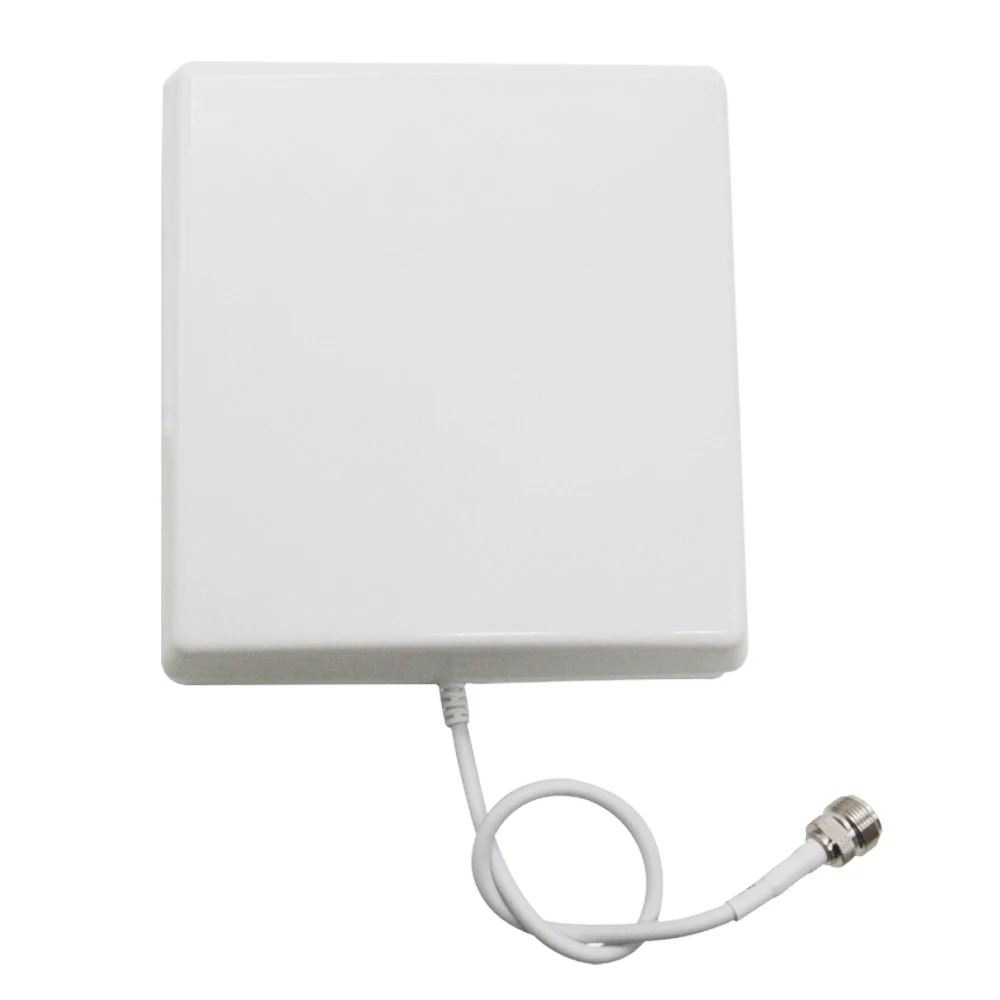

800-2700MHz CDMA GSM DCS Internal 2G 3G 4G Panel Antenna Indoor Antenna Mobile For Cell Phone Signal Repeater Mobie Booster

Feature:

1. Applied to indoor coverage system, it can cover the whole band of 806-960MHz and 1710-2700MHz
2. Low intermodulation, up to -160dBc (@2×43dBm)
3. Ultra-wideband, covering 806~960MHz and 1710~2700MHzNovel style, small size, beautiful appearance
4. Easy to install
5. Meet RoHS
6. It’s a real bargain ,Hot, Good quality, Buy it at ease

Attention:

1. This is an panel antenna only. It doesn’t work alone.
2. You need a Signal Booster/Repeater to work with this.

Electrical Specifications :

Frequency Range

806~960/1710~2690Mhz

Gain

7-8dBi

VSWR

≤1.5

Horizontal Beam Width

90°/75°

Vetical Beam Width

65°/60°

Front to Back Ratio

》8/10dB

Polarrization

Vertical

Intermodulation IM3

≤-107dBM(@33dBM

Input Maximum CW Power

50W

Impedance

50Ω

Mechanical Specifications:

Input Connector

N-50K

Dimensions of antenna

165X155X50mm

Weight of antenna

0.384Kg

Temperature range

-40℃~+70℃

Radonme material

ABS

Package Include :

1 X Panel Antenna

1 X Baffle

3 X Plastic Wall Plug

3 X Self-tapping Screws
