Item Title

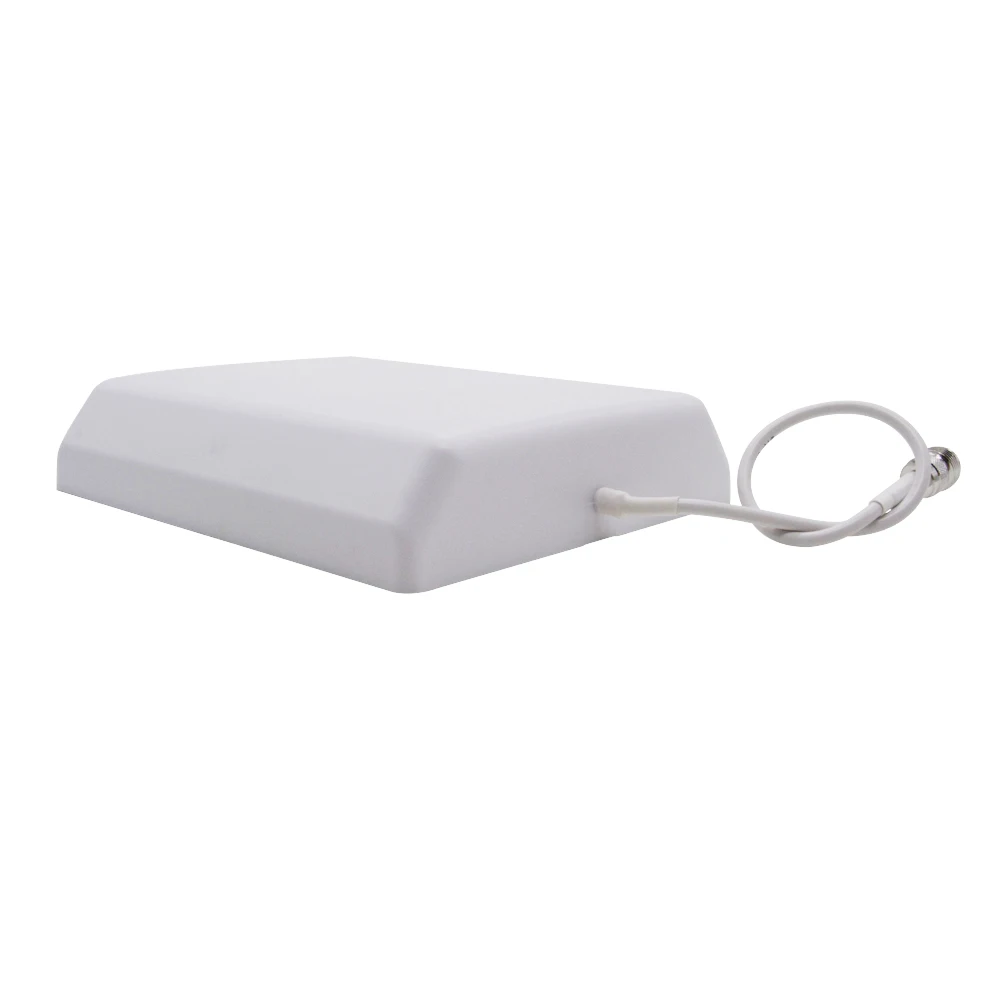

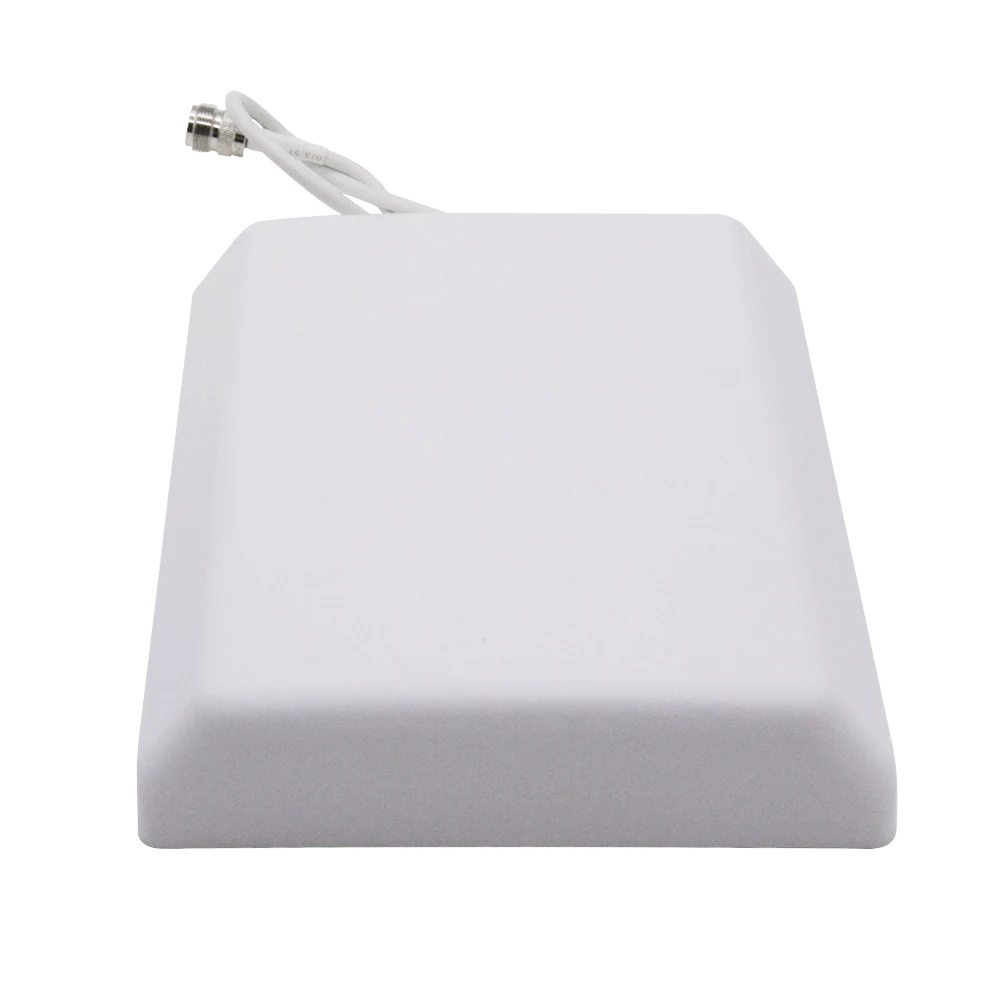

800-2700MHz CDMA GSM 2.4G 3G Enhanced 2G 3G 3G Panel Antenna Panel Mobile For Cell Phone Signal Repeater Booster Indoor Antennas















[xlmodel]-[photo]-[0000]

Photos List

[xlmodel]-[custom]-[47274]

Product Details





Electrical Specifications :

Frequency Range

806~960/1710~2690Mhz

Gain

7~8dBi

VSWR

1.5

Horizontal Beam Width

90+-15/75+-12

Vetical Beam Width

65/60

Front to Back Ratio

8/10dB

Polarrization

Vertical

Intermodulation IM3

-107dBM(@33dBM

Input Maximum CW Power

50W

Impedance

50



Mechanical Specifications:

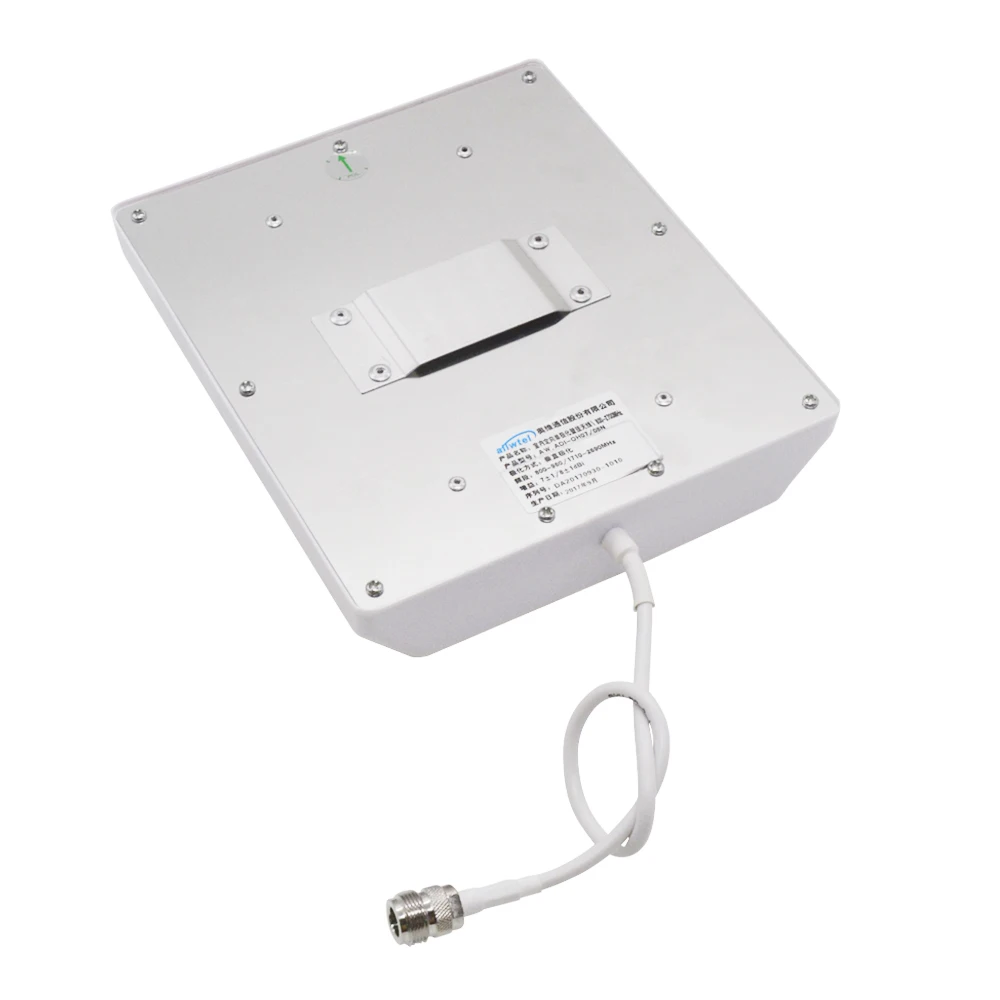

Input Connector

N-50K

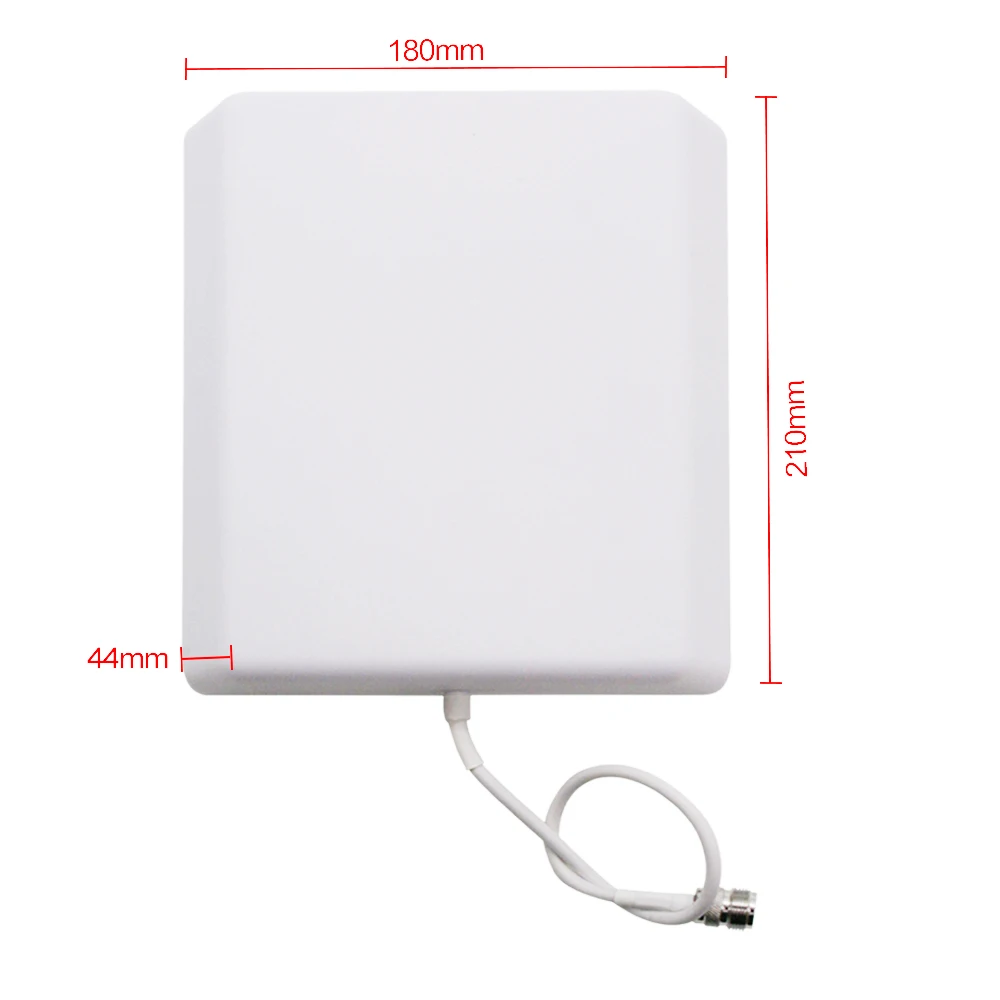

Dimensions of antenna

210X180X44mm

Weight of antenna

0.405Kg

Gross weight

0.311Kg

Cable Type

50-3

Temperature range

-40~+70

Radonme material

ABS



Package Include :

1 X Panel Antenna

1 X Baffle

2 X Plastic Wall Plug

2 X Self-tapping Screws
