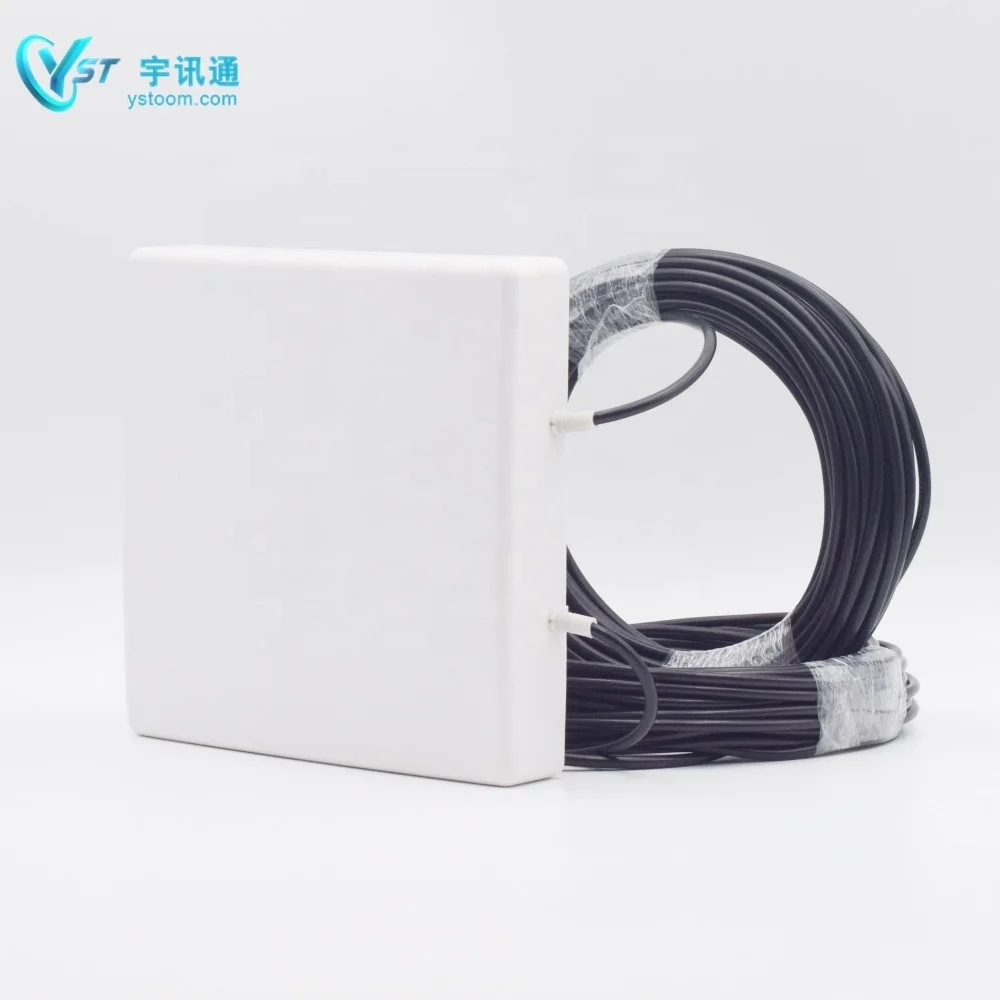

5g mobile phone mimo system’ antenna cpe outdoor panel – 509

Standardized Process Features

YP-3300/3800-2*15D-35/30,Multi band dome antenna is an outdoor directional MIMO antenna that can receive and send signals from a 35° radios. Range of antenna is dependent on three factors:

1)physical obstructions,

2)power generated by booster/amplifier,

3)reception from outside signal received and distributed by outside antenna. Besides the antenna itself,parts include equipment for mounting on the pole.

Electrical Specifications

Mechanical Specifications

Frequency Range–MHz

3300-3800MHz

Antenna Cover

ABS

Gain-dBi

2*15DBI

Cable

2*1M RG58 cable

Horizontal Beam width -°

35°

Connector Type

2*SMA male

Vertical Beam width -°

30°Color

White

F/B ratio-dB

17

Operating Temperature

-40℃~+65℃

VSWR

≤1.5

Size

215*215*40mm

Input Impedance -Ω

50

Pole Diameter

Φ35~55mm

Polarization

Horizontal and Vertical

Rated Wind Velocity

210km/h

Maximum Power -W

20

Unit Package

30*24*12cm;1.6KG

Lightning Protection

DC Ground

Carton Package

/

The Panel antenna is compatible with the following products:Booster compatibility: all 5G home and in-building boosters series,and all industrial boosters series.

Cable compatibility: Low coax cables with N male on either end.

Accessory compatibility: Couplers and splitters.

a). Multi band(3300-3800MHz)Broadband

b). 5G high speed systems

c). Directional antenna broadcasts signal in all directions

d). 2*15dB gain

e). Designed for outdoor use only,pole mounted ,easy to install

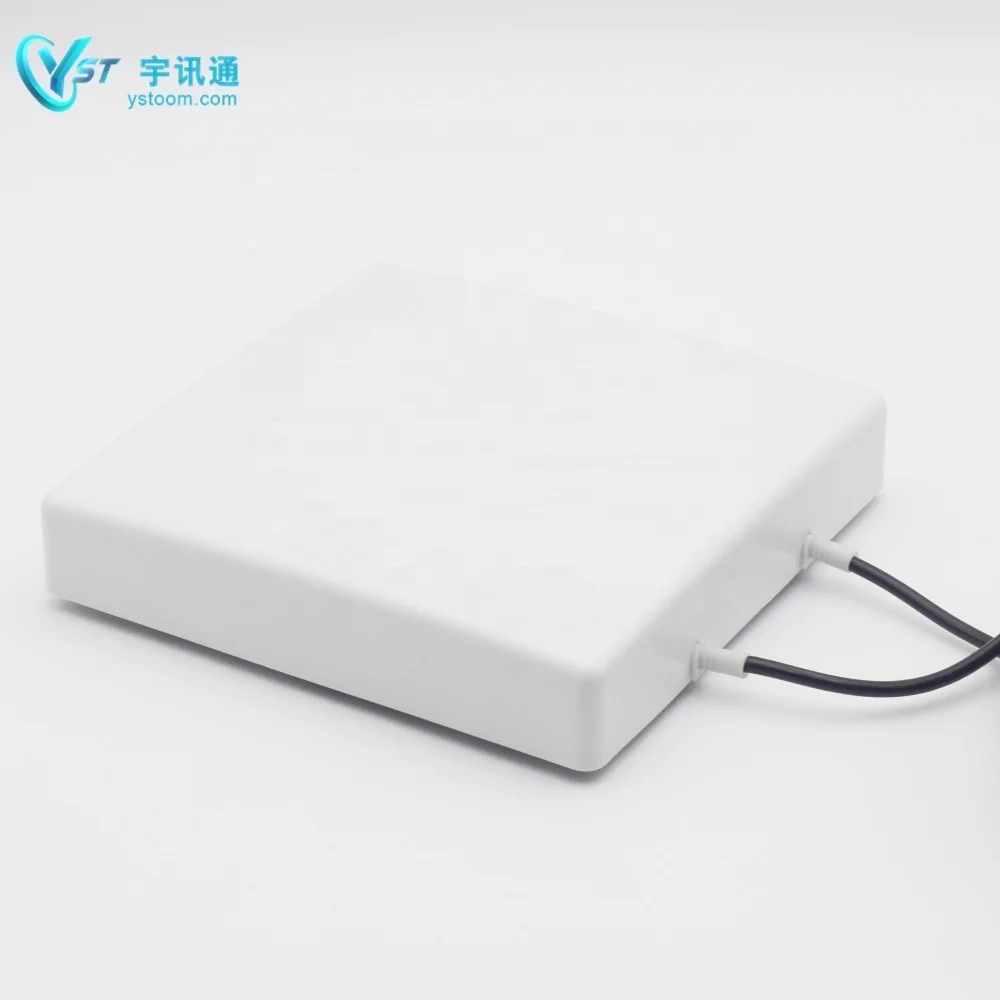

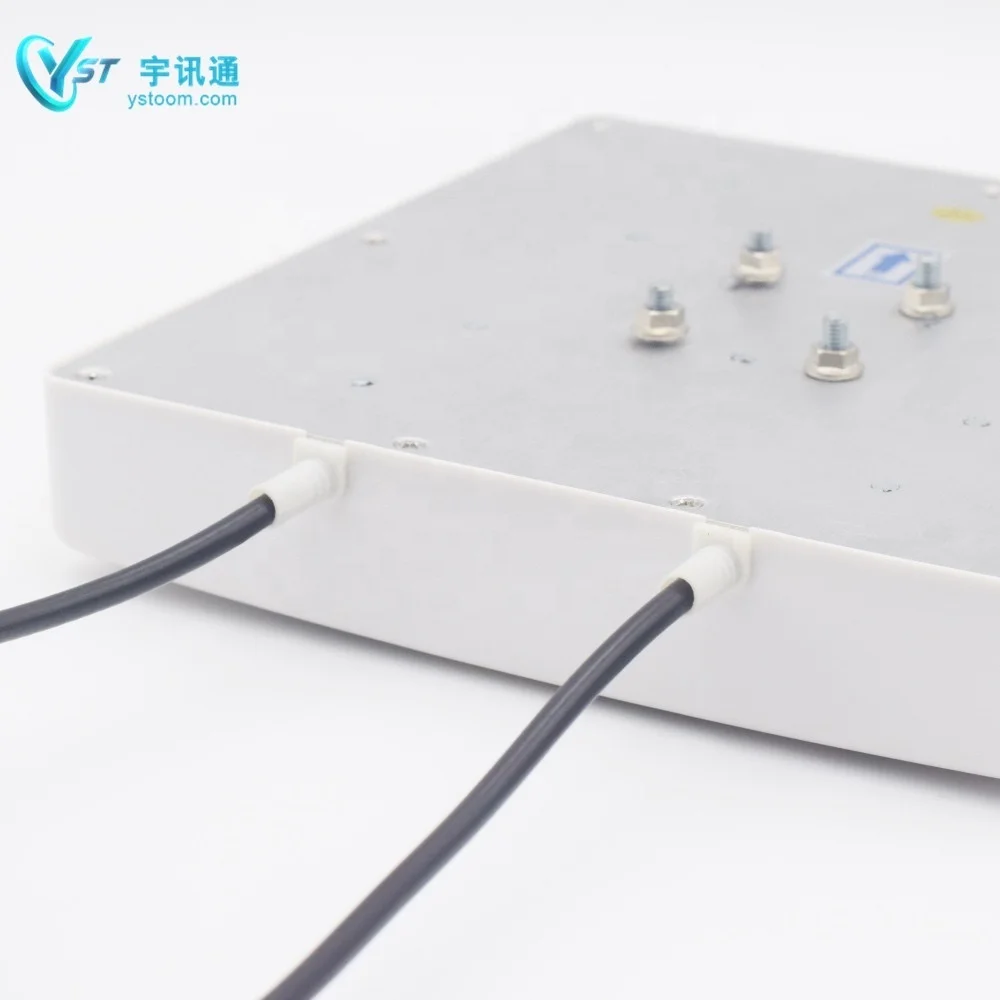

<IMG alt=”5g mobile phone mimo system’ antenna cpe outdoor panel” ori-width=”750″ ori-height=”898″/><IMG alt=”5g mobile phone mimo system’ antenna cpe outdoor panel” ori-width=”750″ ori-height=”1104″/>

<IMG alt=”5g mobile phone mimo system’ antenna cpe outdoor panel” ori-width=”750″ ori-height=”1290″/>

Standard Tips :

1* antenna with cable and connector.

1* mounting bracket .

Normally we use SMA or N connector, If you need other type connectors, please inform us. We will confirm if we can do it or not.This is an antenna only. It doesn’t work alone. You need a cell phone signal booster or repeater or router to work with this antenna, When the antenna designed together with the cable, in order to reduce the loss of the signal.the cable length is less than 15 metres .It can be install easily . If you have problem for installation,please email us directly .

Antenna is comprised of connector,pleat,cable,connecting rod and outer cover.

1. Use a pole as size of 35-55mm. Use the U bolts and L bracket fix the pole and screw them.
2. There is SMA male plug on the end of the antenna cable,we use both N male connector cable to connect the router or repeater or other equipment,but use the same extend cable N male to N male or SMA female to N male .
3. Attach the N female connection from the interior antenna to the cable leading to the connector labeled inside,on your booster/amplifier.
4. Tighten fixing nut to secure antenna (do not over-tighten).

Storage and Transportation: Store and place in non-extreme room-temperature and dry enviroment attention: This antenna should not be used near open fire or flame.

Package: Standard export cartons.

Package size :30*24*12CM

Quantity : 1pcs

Carton Weight : 0.8KG,10pcs/carton

<IMG alt=”5g mobile phone mimo system’ antenna cpe outdoor panel” width=”750″ height=”213″ usemap=”#7082″ style=”border: none; padding: 0;”/>

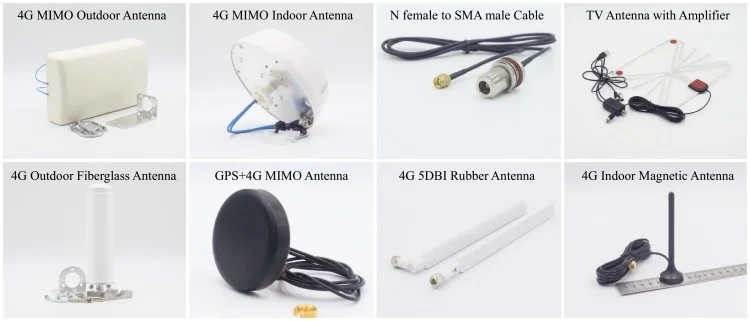

More Items For Your Choice
