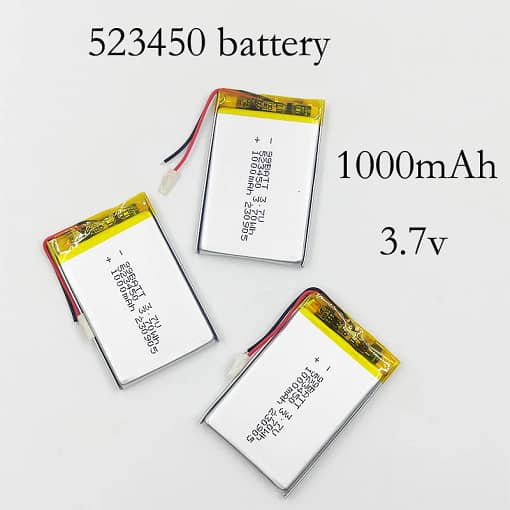

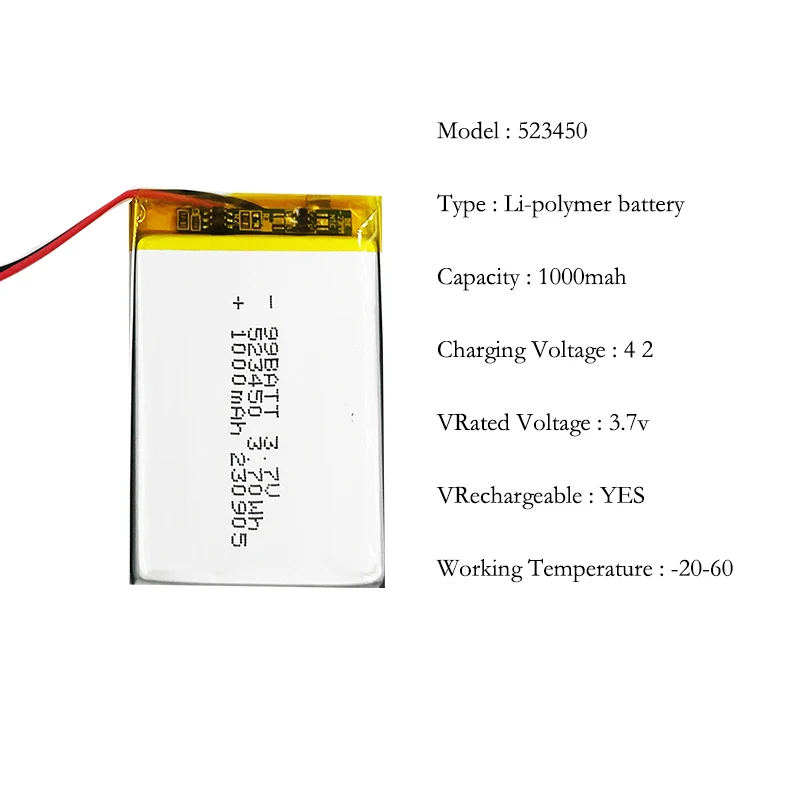

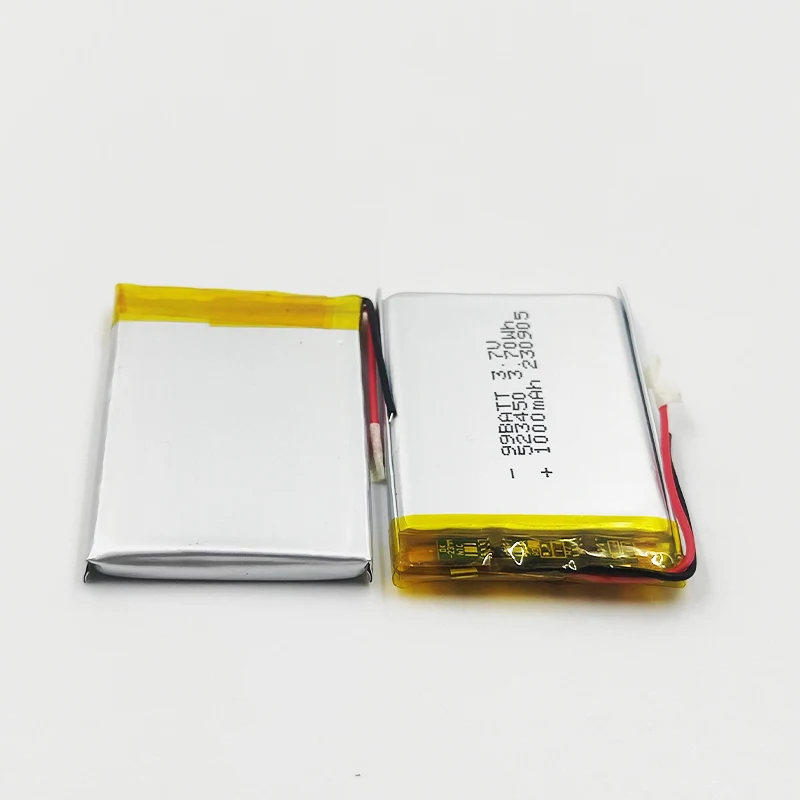

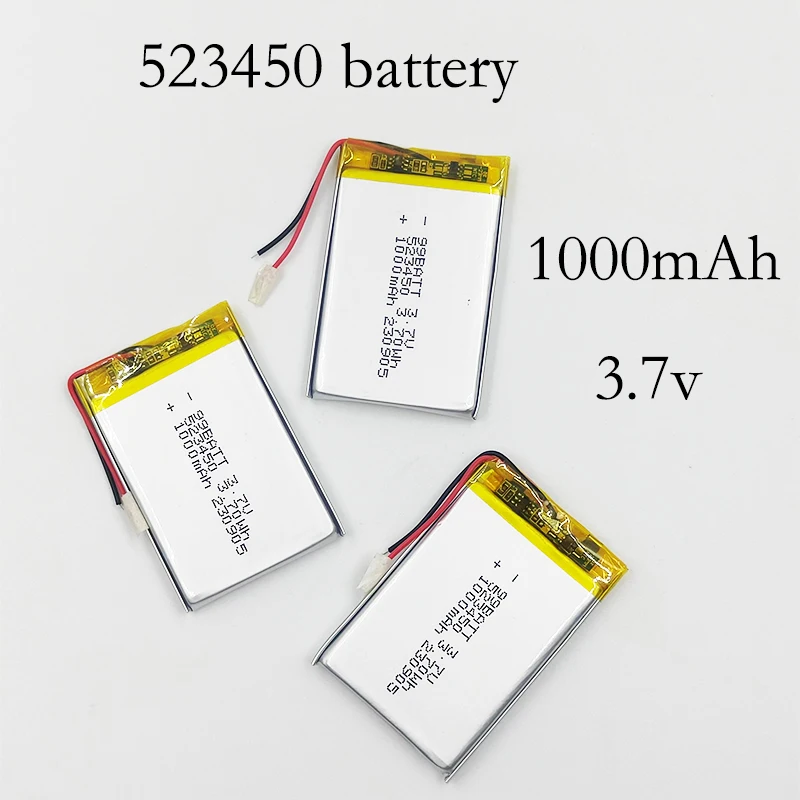

523450 1000mAh 3.7V Polymer Lithium Rechargeable Battery Li-ion Battery JST PH2.0 2pin For GPS Smart Phone DVD MP4 MP5 – 44

Product Features:

1, Built-in protection circuit PCM for prevent over charging or over discharging

2,Size: about 4.9mm (H)*34mm (W)*50mm (L)

3,Rating: DC3.7V 1000mAh

4,Plug:jst PH 2.0mm connector

5,Charging current: standard charging, fast charging: 1.0C: 0.5C

6,Standard charging method: 0.5C CC (constant current) charge to 4.25V,then CV (constant voltage 4.2V) charge till charge current is less than or equal to 0.05C.

7,Maximum discharge current: 1C

8,The maximum charge current: 1C

9,Discharge cut-off voltage: 2.75V

10,Charging time: 3-7hrs (standard); 3hrs (fast)

11,The discharge temperature: -20 degrees C~+60 degrees C

12,Protection function: over charge, over discharge, over current, short cir
