4G 3G LTE Outdoor Antenna Omni Directional Long Range 698-2700MHz Antenna for Mobile Phone Signal Booster – 509

4G 3G LTE Antenna Outdoor Omni Directional Long Range 698-2700MHz Antenna for Mobile Phone Signal Booster

Product description:

Frequency Range:698-2700 MHz

Gain:10dBi

VSWR:<2.0

Impedance:50 ohm

Polarization: Linear Vertical

Direction: Omni-directional

Feature: Fixed Wall Mount

Connector: SMA Male Connector

Cable Length:2M/6.56Feet RG58 cable

Operating Temperature:-20°С ~ +80°С

Storage Temperature: -30°С ~ +85°С

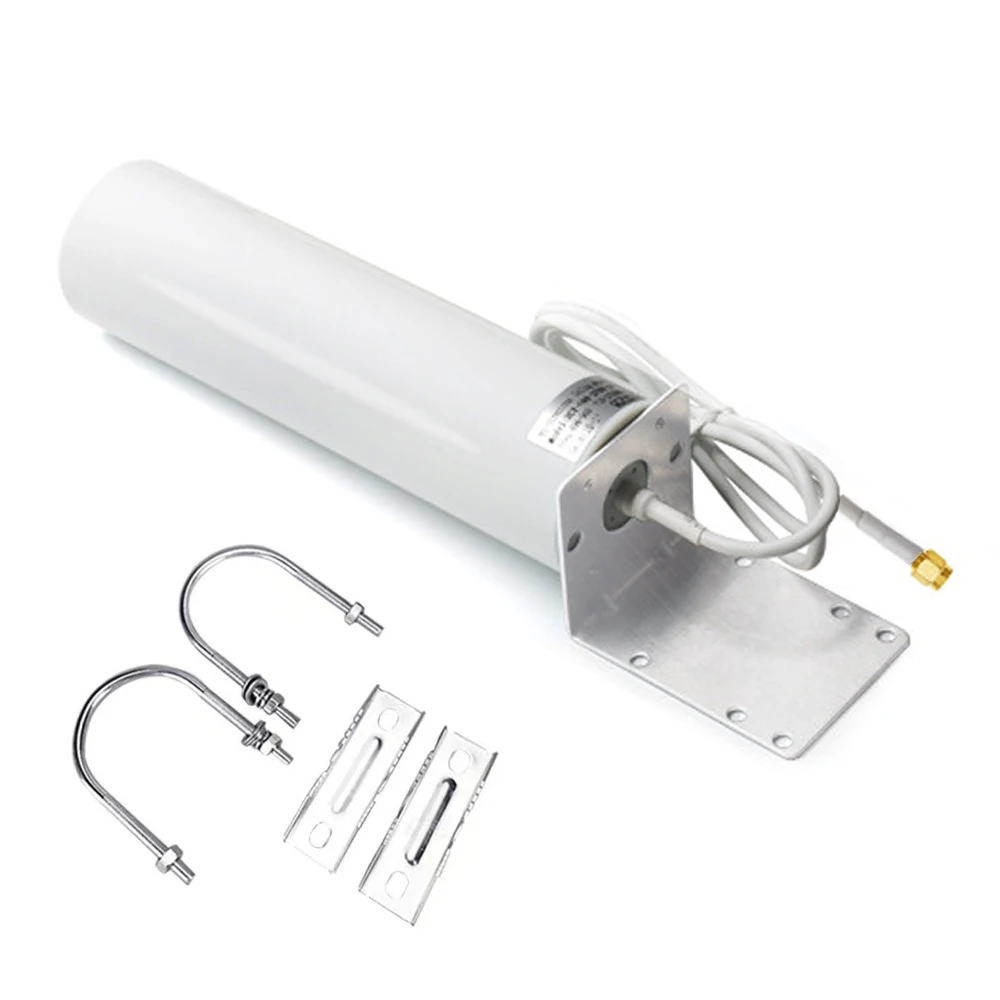

Package List:1 x Antenna Kit; (As the Picture Shown)

Feature:

Please check your equipment before buying: This antenna is SMA male connector, Frequency Range: 698-960 MHz, 1710-2170 MHz, 2300-2700 MHz.

Compatible with: Huawei 4G LTE Wireless Router B525 B525S B315 B593 B880 B890 B310 E5186 E5175; ZTE MF28G MF28D MF288 MF286 MF285 MF283 MF275U MF275R MF25D Z723EL WF721 MF279 etc.

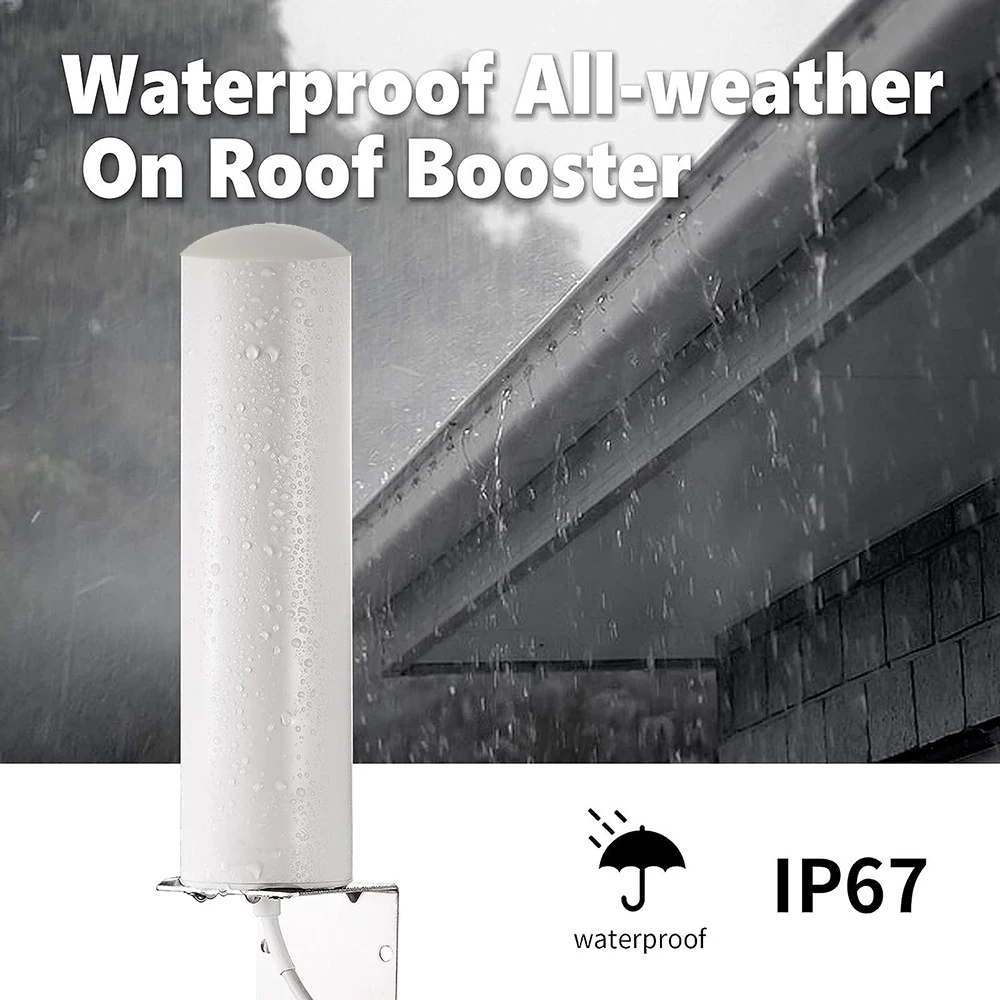

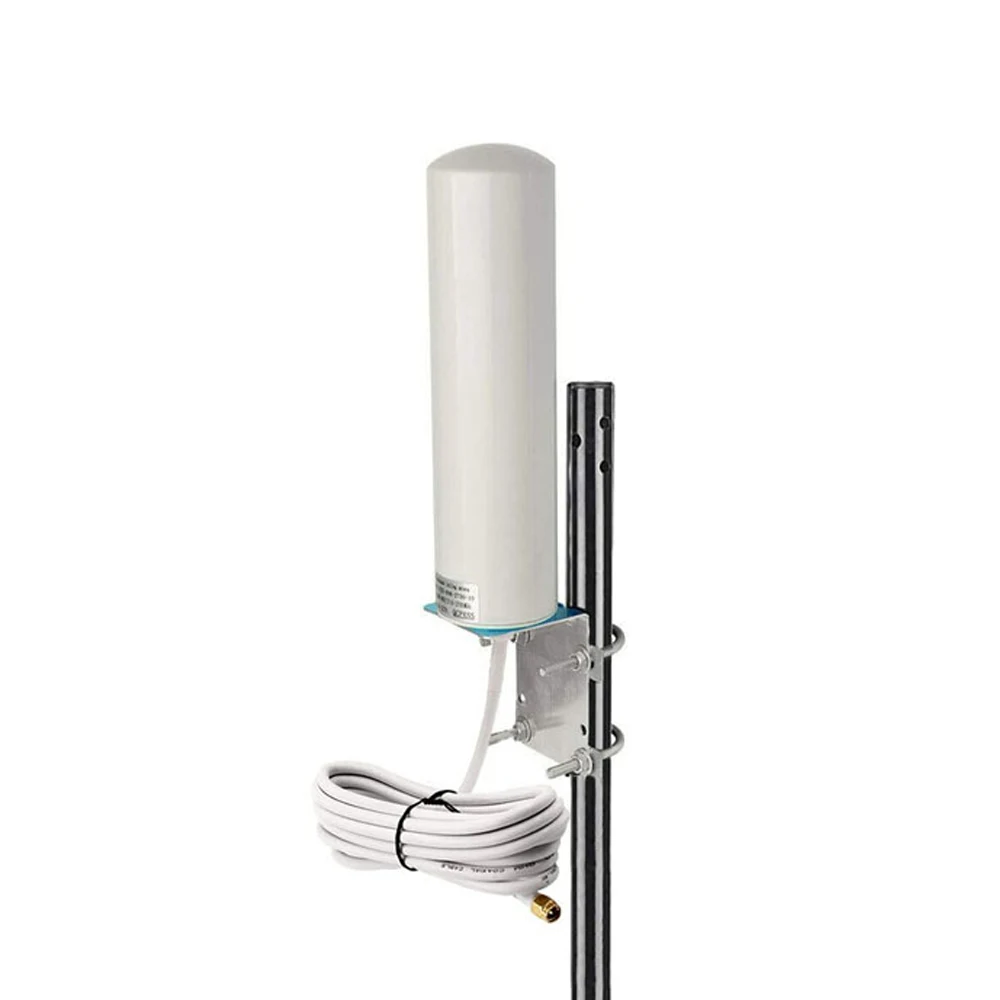

EASY TO INSTALL: Designed for exterior installation, the 4g antenna from features a rugged waterproof structure that’s designed to withstand damage from the elements. This package includes two U-bolt brackets for 1.5- to 2- inch pipe or mast. It can easily be set up in an outdoor space including home rooftops, utility poles, surveillance trailers, office and anywhere else you want.

Installation Reminder: When installing this Omni-directional antenna, please keep it as vertical as possible, In order to get a better signal, please keep the antenna as free as possible (especially the metal baffle) and high enough.

Before use, please turn off the power of your device, then plug in the antenna, and then turn on the power again.

If you are not sure whether it applies to your device, please contact us for help.
