NOTE：

Some countries need to split a single package into two packages due to weight restrictions. If you only receive part of it, don’t worry, there is another part on the way!

Different pixel quality and output interface for you to choose:

Interface options: USB/HDMI/VAG/Type-C

Pixel quality can be selected: 13MP/38MP/48MP/55MP(4K)

The number of frames transmitted per second: 30Fps/60Fps

Please pay attention to the picture and the parameter description in the packing list when purchasing!

Applicable scenarios: mobile phone repair/computer repair/watch repair/jewelry repair/various circuit board repair/various motherboard repair/any scene that needs to be enlarged can be used!

Note: Please refer to the color picture package carefully

Package

1 x Microscope Camera(Optional)

1 x Power Supply

1 x IR remoter

1 x HDMI Line

1 x 130X/180X C-mount Lens

1 x LED Ring Light

1 x Camera Stand

Product features

◆ 48 million pixel imported Panasonic CMOS image sensor;

◆ Using 1/2.33 inch image sensor, Angle of view is wider than 1/3 inch;

HDMI 1080P 60 frame image output;

◆USB2.0 driver free output 1080P 30 frame image output;

4K video recording;

◆48 million photos, JPG format, photo size 4608×3456;

One-click freezing/thawing function;

◆48 megapixel photography and 1080P video recording;

Electronic zoom function;

Support manual/automatic exposure, exposure compensation value adjustment;

Support manual/automatic white balance, red, green, blue adjustable;

◆ Provide 8 line drawing functions, line color, thickness, position adjustable;

Display/close center cross;

Support TF card storage, up to 64GB;

Support remote control operation, take photos without jitter image more clear;

◆ Support Chinese and English menu language (default English);

Support shutdown setting parameters save;

◆ Strong metal shell;

The sensor:1/2.33 inch Panasonic 48 megapixel CMOS sensor

Pixel size:1.335µm ×

Package incluede

1 x Camera Body

1 x 100V-240V power supply (EU / UK / AU Adapter for free）

1 x Camera remote

55MP 4K HDMI USB

Specification:

Picture Pixel: 9885X5560 55M Pixel

Video Frame rate: 4K(4:3)@24fps/2K@30fps/1080P@60fps

CMOS censer: SONY 1/2.33 inch

CMOS pixel: 1.33um x 1.33um

Color setting: Auto

White balance: Auto/one button calibration/Manual

EV: Auto/Manual

Camera mode HDMI output: 1080P @60 FPS

Grid line: 8 horizontal lines, 8 vertical lines

TF card: 4GB (Up to 128GB max)

Cross line: Overlap or Cancel

Lens jack: Standard C

Power: 5V-12V/1A

Size: 68x68x33mm

Weight: 200g

Working temperature: 0-70℃

48MP 2K USB HDMI 60FPS

Specification:

Model: Camera with HDMI USB2.0 two output

Image sensor: 48 megapixel Panasonic sensor

Frame rate: 1920*1080 60F/S @ HDMI output

Video save Movie size:4K(25fps) 2K(30fps) 1080P(60fps) 720P(60fps)(Note: If you need to record 4K or 2K video, you need to use the SDHC class10 TF card.)

Housing: All metal

Support:C-Mount lens

Digital magnification: 5 times digital zoom

White balance: Auto/manual

Cross cursor: Support multi-color, size adjustable

TF card interface: Max 32G

video format:MOV

HDMI interface: HDMI/USB output

Image : 48M 8000X6000/38M 7168X5376/26M 5888X4416/20M 5120X3840/16M 4608X3456

Language:Chinese/English

Mirroring: Support

Frequency:50Hz/60Hz

Monitor:16:9/16:10/4:3

Grid line: 15 Horizontal line, 15 Vertical line, Central scale line,Custom colors,Size

Power supply:5-12V 1A

13MP HDMI VGA 60FPS（Dual output）

Overall dimension: 20*70*70mm

Video Interface:HDMI

USB2.0 (Drive gratis): 1920*1080 @ 30FPS 1280*720 @ 30FPS 640*480 @ 30FPS

Lens:CS

Working voltage:12V

Working current:120mA

Stroomverbruik: MAX 0.15 W 12 V, 0.12A

Optical format:1/2.3″

Pixel size:1.4um*1.4um

Pixel array:48MP(4632*3488)

TV Lines:2000TVLine

FPS of max image:60FPS

Scanning mode:progressive

Shutter mode:electronic shutter

Dynamic range:60dB

S/N radio:45dB

OSD language:English/Chinese

AWB mode:One time white balance / manual / auto

HDR:Adjustable

Cross line:Support 5 horizontal and vertical Color / line width adjustable

B/W:allow

Freeze:allow

Output of display resolution: HDMI：1920*1080

HDMI schaal: Ondersteuning 4:3, 16:9, 16:10 scherm

13MP HDMI Type-C 60FPS

Overall dimension: 75*50*50mm

Video Interface:HDMI VGA

Lens:CS

Working voltage:12V

Working current:150mA

Optical format:1/3″

Pixel size:2.8um*2.8um

Pixel array:13MP

TV Lines:1200TVLine

FPS of max image:30FPS

Scanning mode:progressive

Shutter mode:electronic shutter

Dynamic range:65dB

S/N radio:45dB

OSD language:English/Chinese

AWB mode:One time white balance / manual / auto

HDR:Adjustable

Cross line:Support 8 colors / line width adjustable

B/W:allow

Negative:allow

Mirror flip:Support left / right / up / down

Freeze:allow

Compare:allow

Manual set bright,contrast,sharp,saturation:allow

Output of display resolution: HDMI：16:9, 4:3 VGA:Above 1920*1080P

13MP VGA 30FPS

Overall dimension: 55*43*43mm

Video Interface:HDMI Type-C

Lens:CS

Working voltage:12V

Working current:150mA

Optical format:1/3″

Pixel size:2.8um*2.8um

Pixel array:13MP

TV Lines:1200TVLine

FPS of max image:30FPS

Scanning mode:progressive

Shutter mode:electronic shutter

Dynamic range:65dB

S/N radio:45dB

OSD language:English/Chinese

AWB mode:One time white balance / manual / auto

HDR:Adjustable

Cross line:Support 8 colors / line width adjustable

B/W:allow

Negative:allow

Mirror flip:Support left / right / up / down

Freeze:allow

Compare:allow

Manual set bright,contrast,sharp,saturation:allow

Output of display resolution: HDMI Type-C：16:9 1920*1080P

Package incluede

1 x Camera Body

1 x 100V-240V power supply (EU / UK / AU Adapter for free）

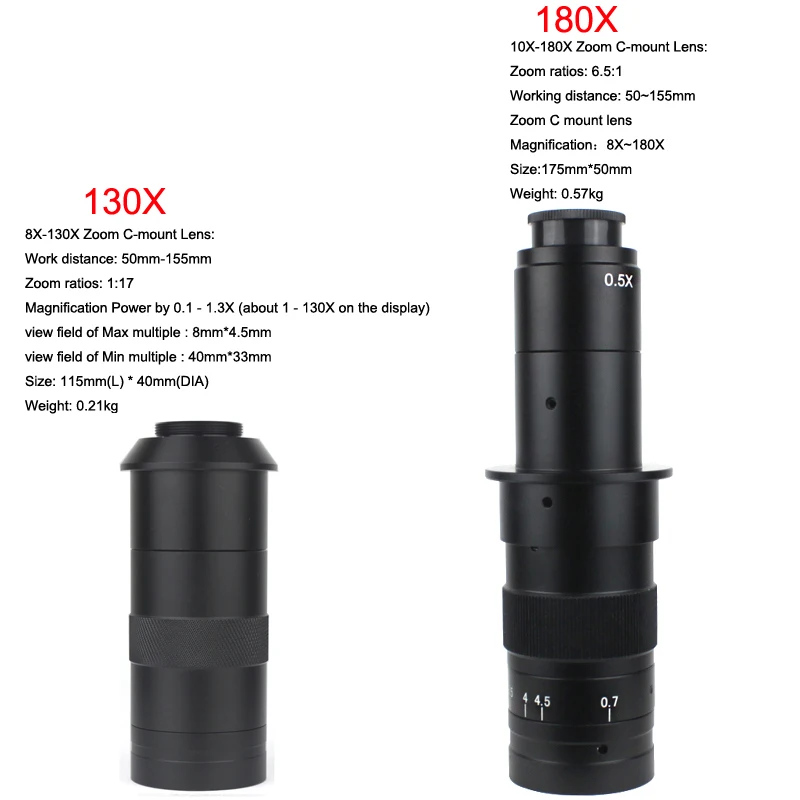

180X Lens:

180X C-Mount Lens: ( 21.5-inch Monitor)

Zoom C-Mount Lens

0.5X C-mount adapter

Objective Magnification Power by 0.7X-4.5X

Working distance: 100mm

Maximum field of view: 18.5mm*10.5mm

Minimum field of view: 2.8mm*1.6mm

1X-130X Zoom C-mount Lens:

Work distance: 40mm-200mm

Zoom ratios: 1:17

Magnification Power by 0.1 – 1.3X (about 1 – 130X on the display)

view field of Max multiple : 8mm*4.5mm

view field of Min multiple : 40mm*33mm

Size: 115mm(L) * 40mm(DIA)

Weight: 210g
