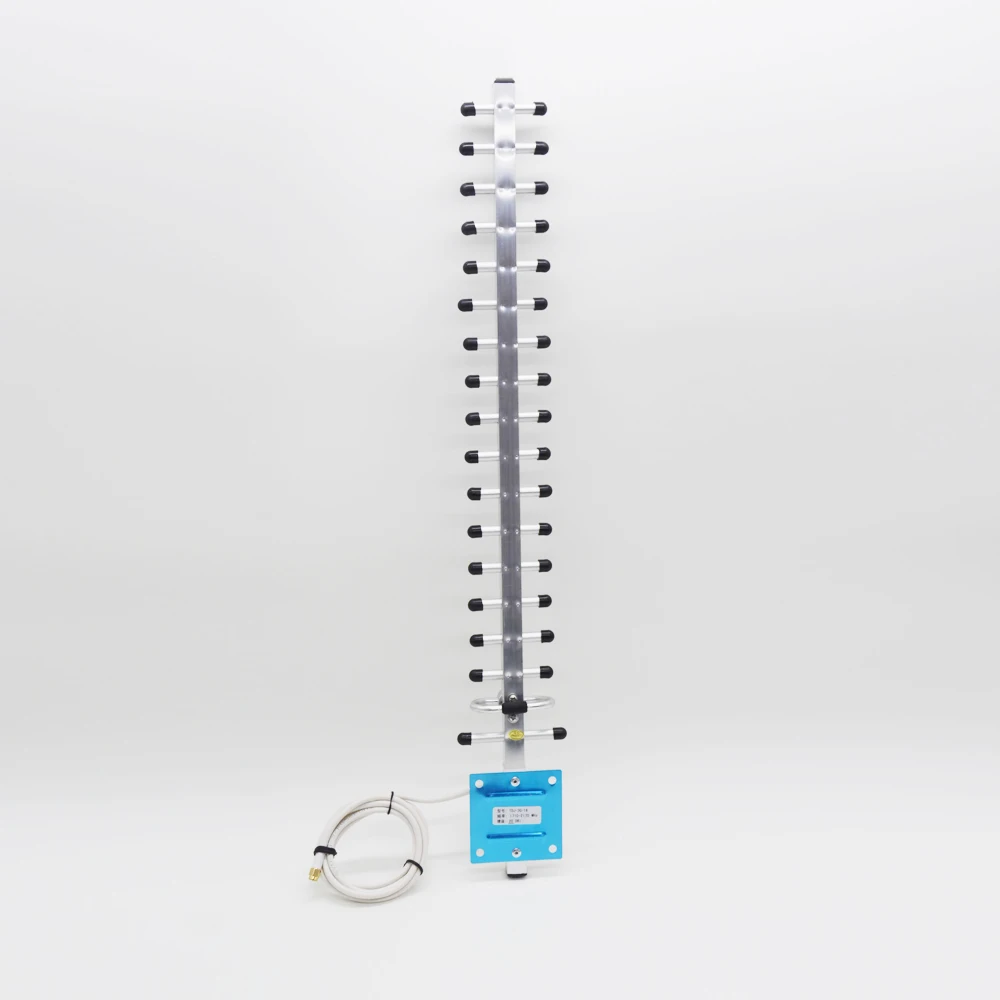

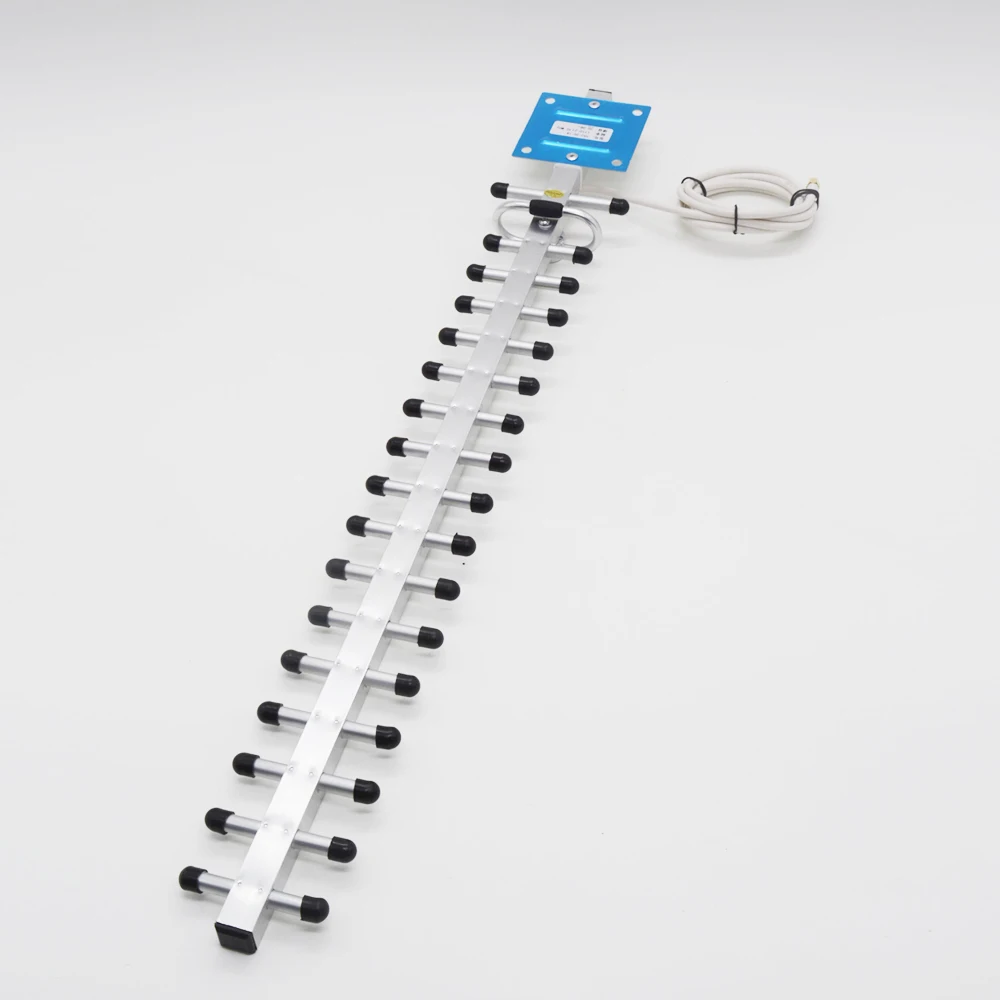

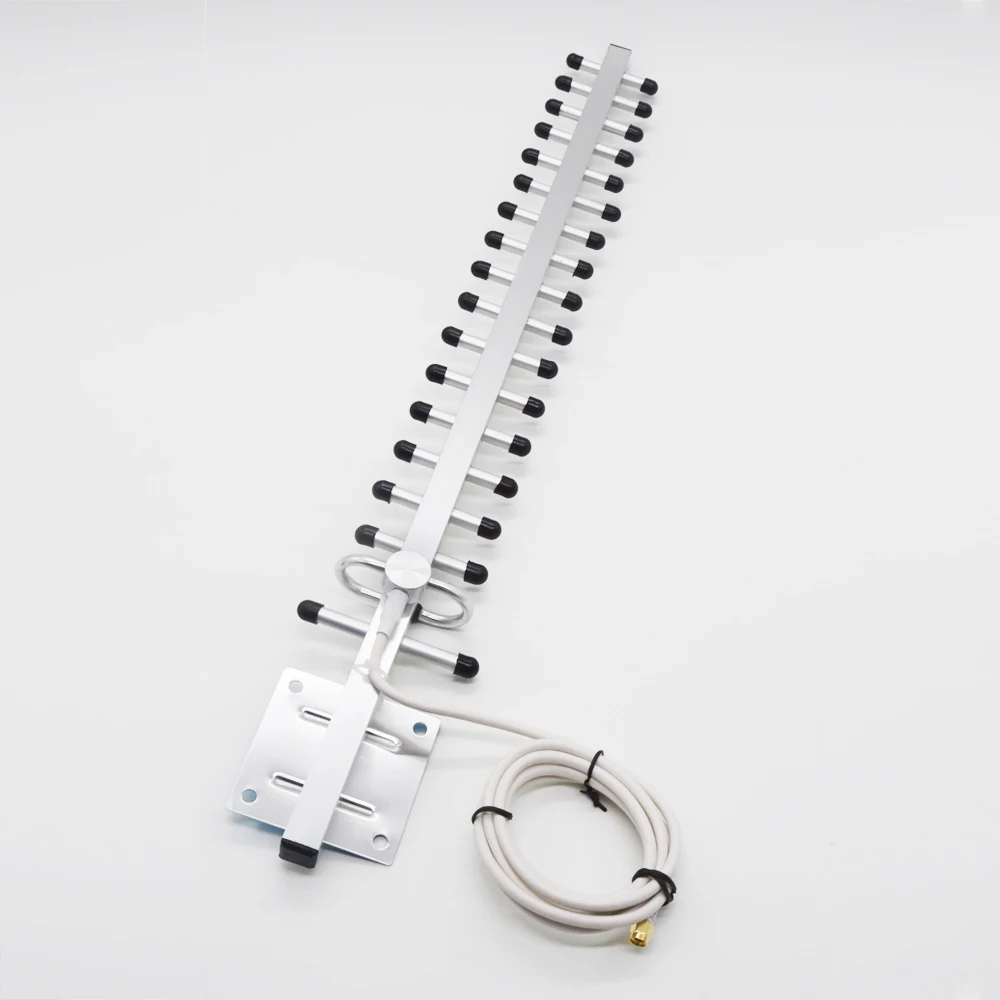

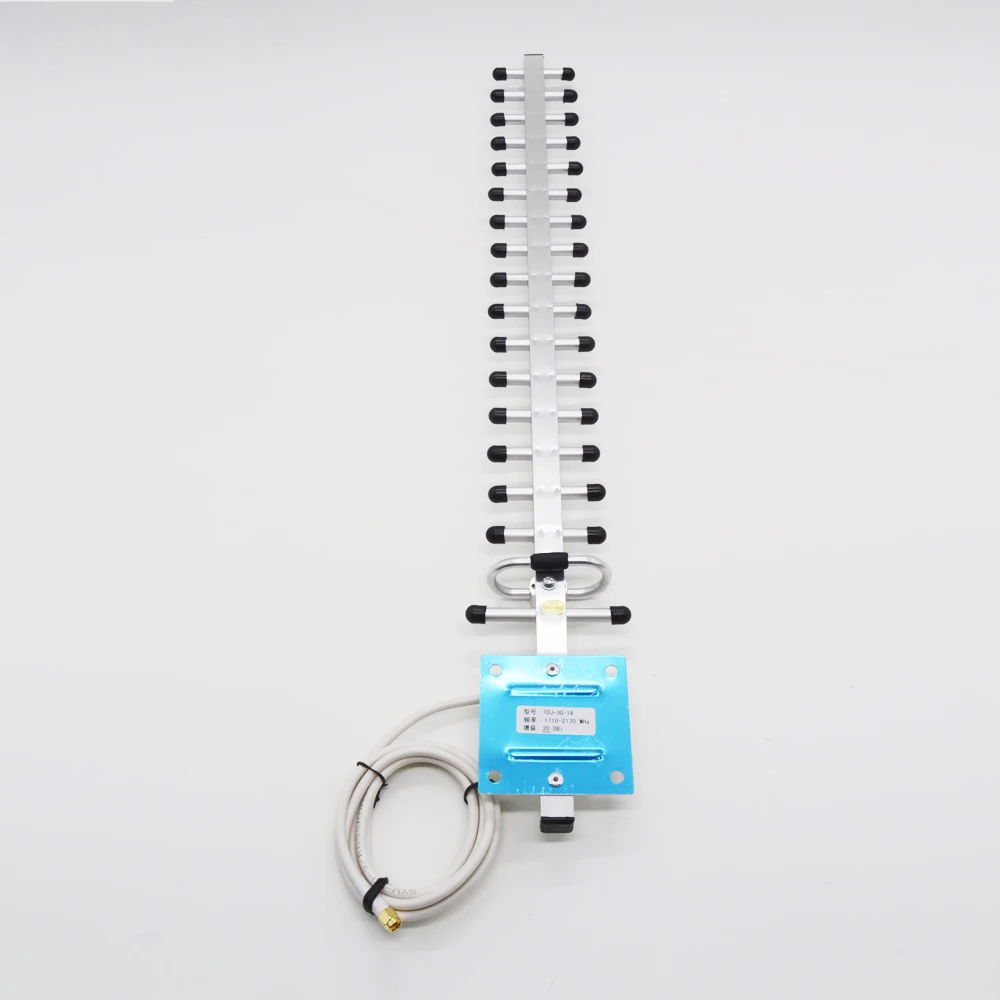

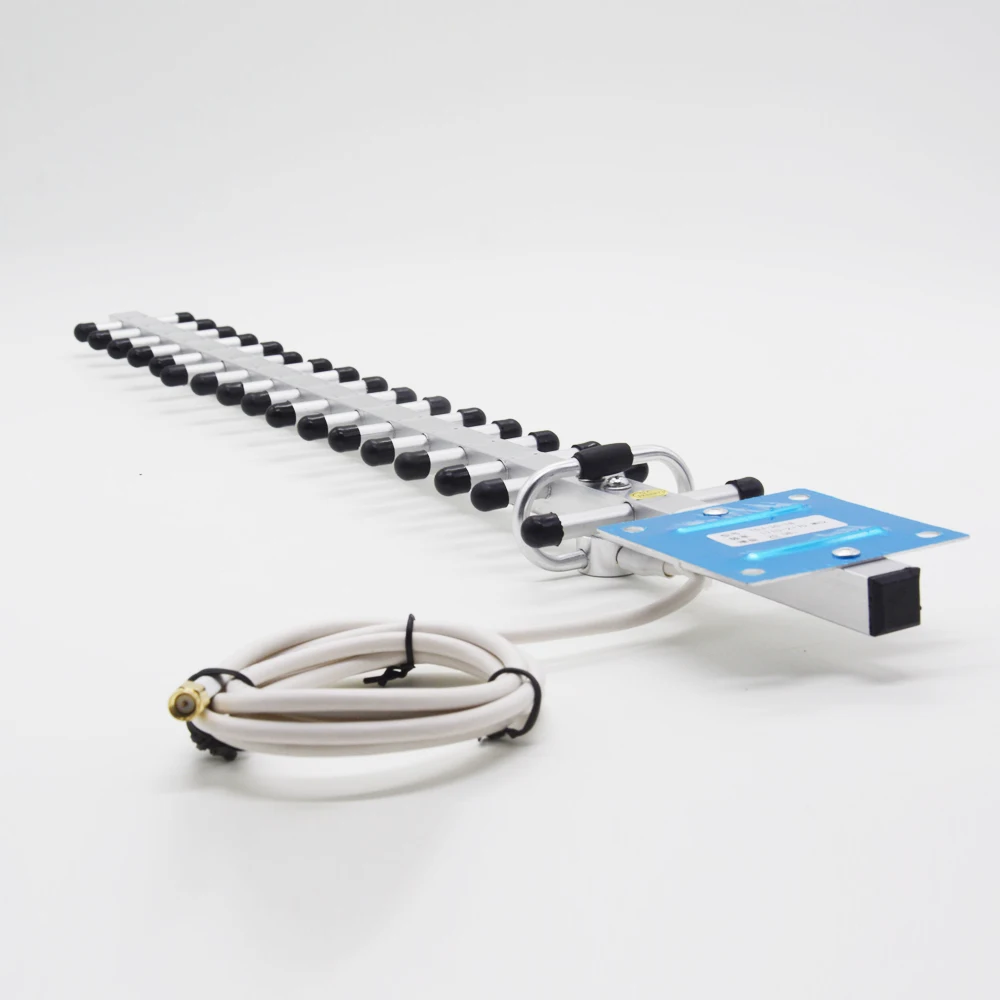

3g 4g 20dbi Antenna 3g Yagi Antenna 3g Outdoor Antenna 4g Lte External Antenna Sma Male 1.5m Cable For Signal Repeater Booster

[xlmodel]-[photo]-[0000]

Photos List

[xlmodel]-[custom]-[47443]

Product Details

Product Features

Yagi antenna is really easy to use.

It has good directionality and has a higher gain than dipole antennas.

Use it to measure direction, long-distance communication is particularly good.

If coupled with the elevation and azimuth rotation control devices, it is also possible to arbitrarily connect with the radio stations in all directions,including spacecraft, which is not available from the upright antenna.

Attention:

This is an outdoor yagi antenna only. It doesn’t work alone.

You need a Signal Booster/Repeater to work with this.

Specification:



Model No.

OS-A118

Item

Yagi 3G Antenna

Operating Frequency

 1710-2170Mhz

Connector Type

 SMA Male

Gain

20dBi

Impedance

50 ohms

Cable Type

RG58

Cable Length

1.5M

VSWR

Less than 1.5

Cable Loss

 0.075 dB

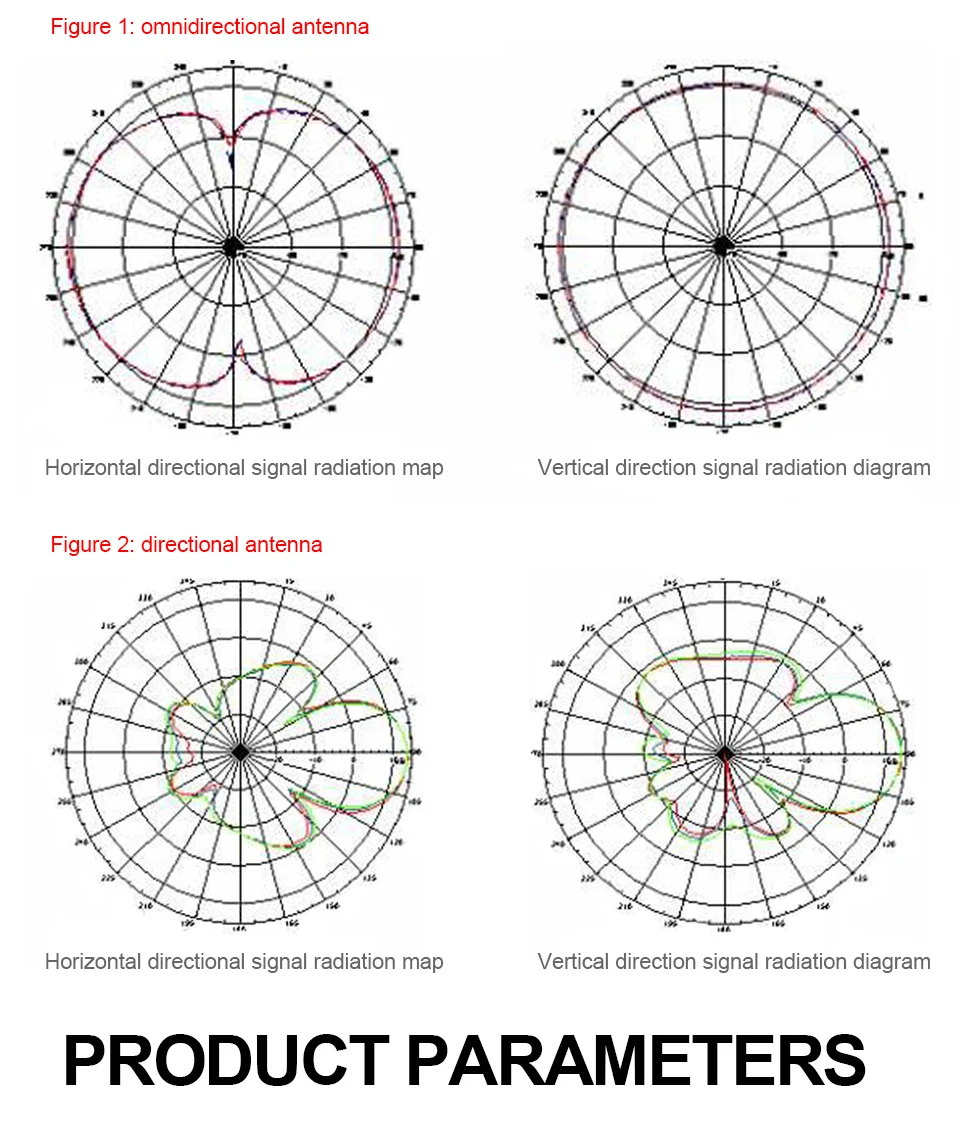

Vertical Plane

 72F 5F

Horizontal Plane

 76F 5F

Polarization Type

 Vertical or Horizontal

Rated Wind Velocity

 150 Mile per Hour

Working temperature:

-40F – +140F



Package Include :

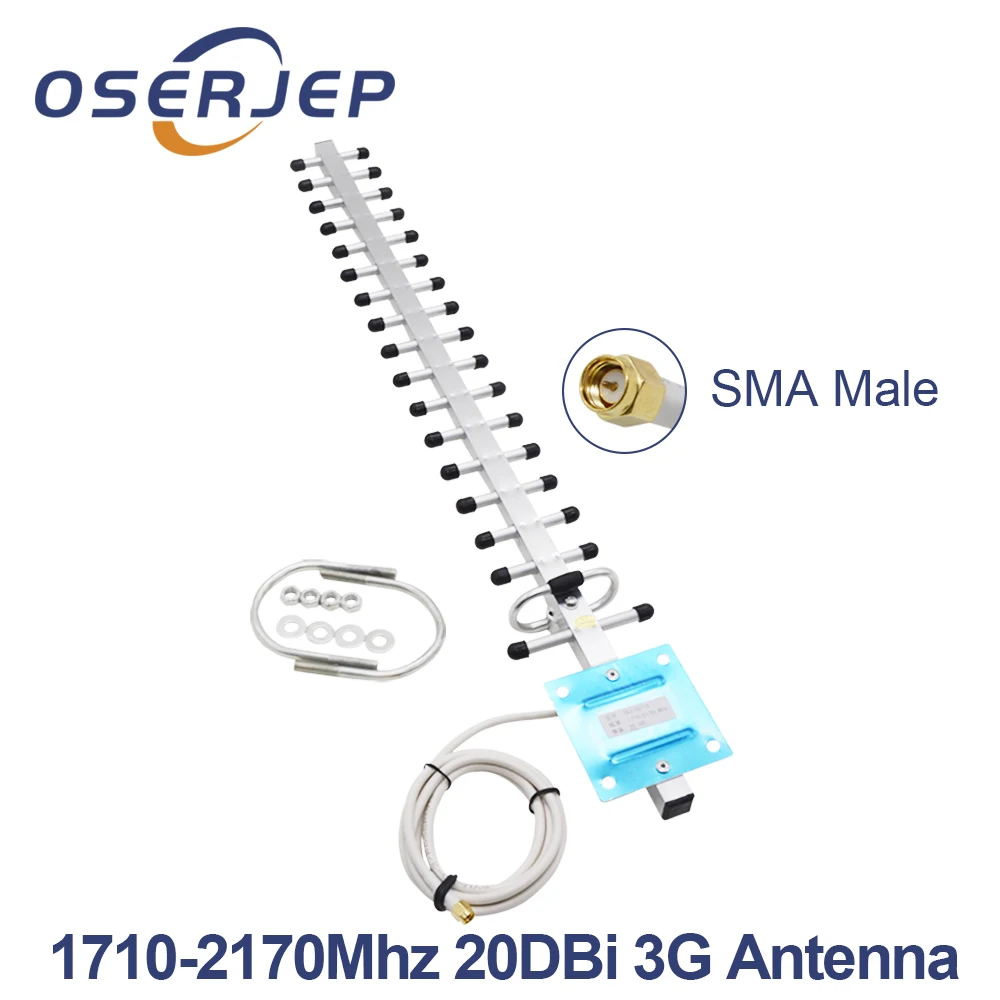

1 X SMA Male 1710-2170Mhz 20DBi 1.5M Yagi Antenna

[xlmodel]-[custom]-[47274]

Product Details

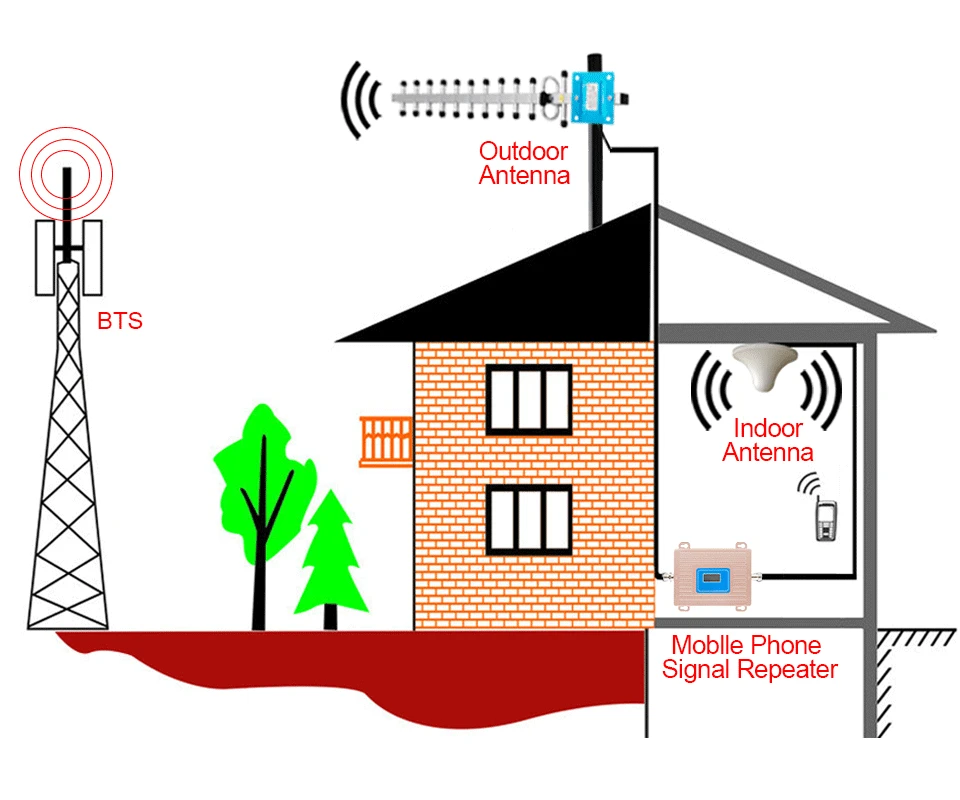

  Installation Instruction:

1.Install the outdoor antenna on the house top and point to signal tower.  2.Connect the outdoor antenna on “outdoor” port of repeater through cable

3.Connece indoor antenna on “indoor” port of repeater through cable. 4.Plug power adaptor into AC power socket and finish the installation

 Technique Support:

If the repeater does not work after under power, please check the following:

a) Make sure all the connectors are tightly connected.b) Make sure the outdoor antenna is pointing to the cell tower.

c) Make sure there is adequate signals at the place the outdoor antenna is  installed.

Also please keep the outdoor & indoor antennas are as far as  possible (better above 5 meters), and there must be thick obsticle like walls to avoid any possible signal self-oscillation which cause the mobile phone does not work.

 Note: Omni-directional outdoor antenna doesn’t need to point to cell tower.
