2g 3G 4G LTE 5G 600-3600Mhz Outdoor Panel Indoor Directional Antenna GSM DCS WCDMA CDMA Mobile Signal Repeater Antenna – 509

Product Description

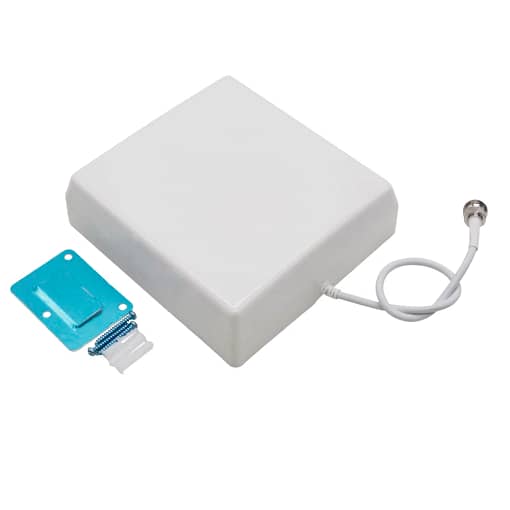

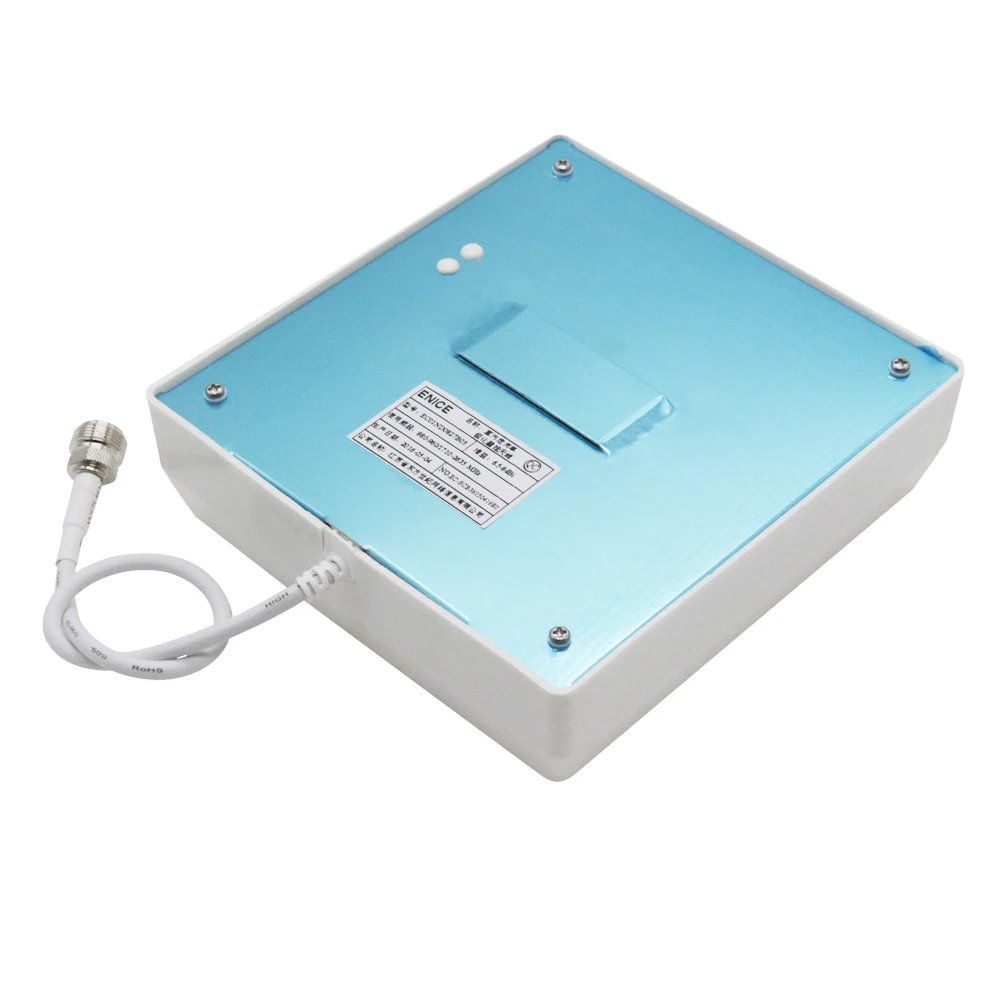

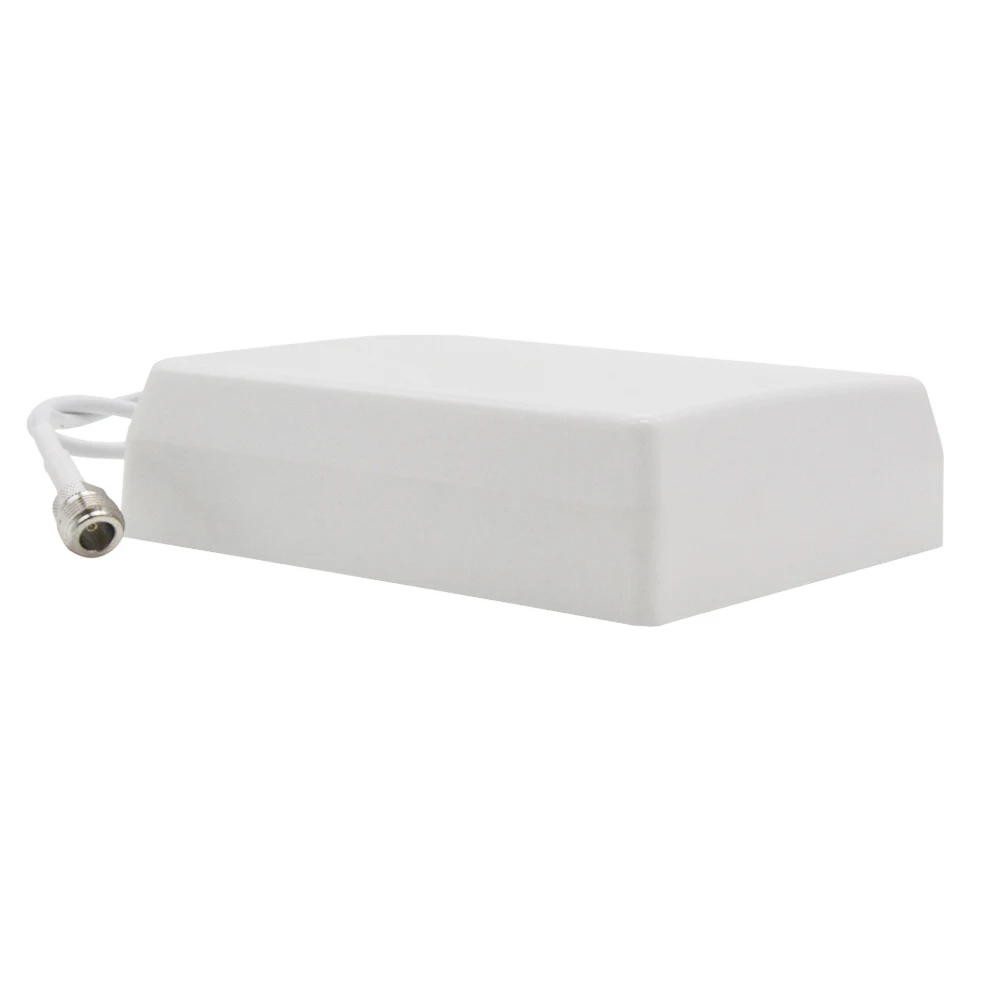

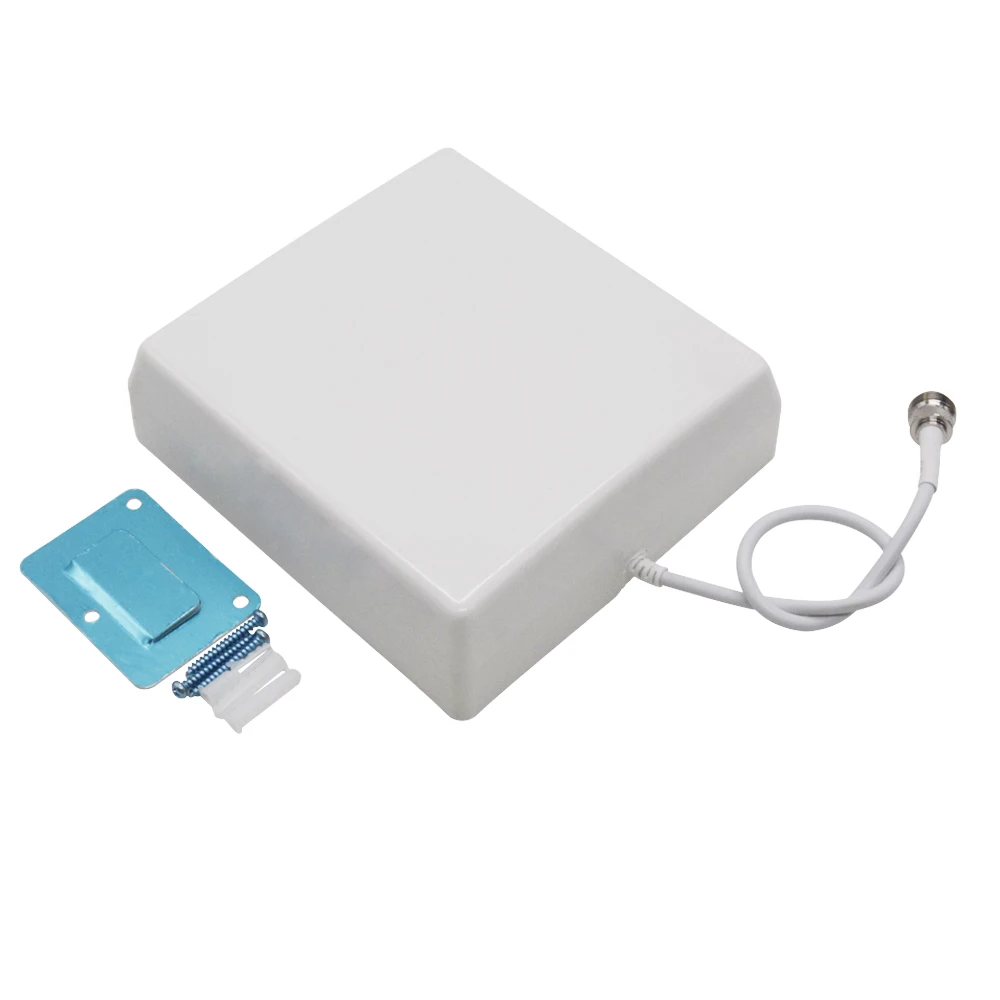

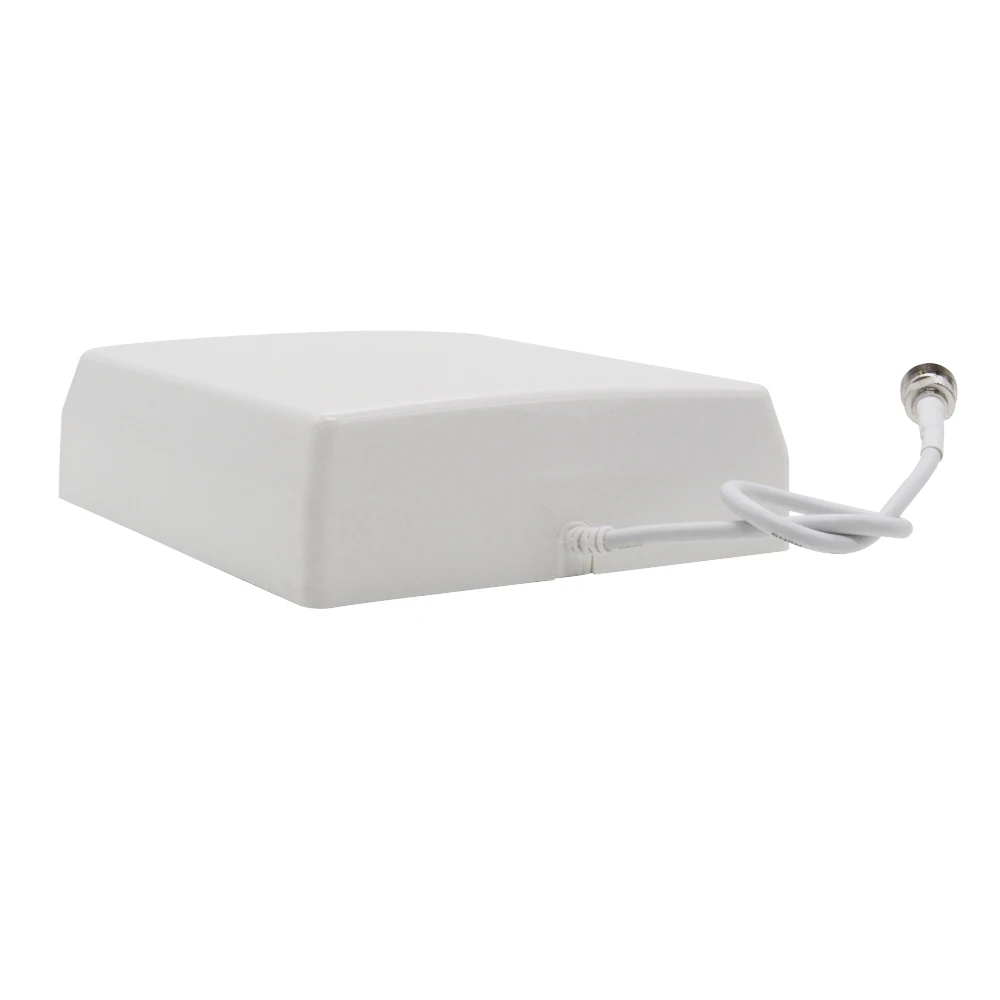

2g 3G 4G LTE 5G 600-3600Mhz Outdoor Antenna Panel Indoor Directional Antenna for GSM DCS WCDMA CDMA Mobile Signal Booster Repeater

Attention:

This is an panel antenna only. It doesn’t work alone.

You need a Signal Booster/Repeater to work with this.

Parameter

Electrical Specifications :

Frequency Range 600-3600Mhz

Gain 6.5±1dBi 8±1dBi

VSWR ≤1.5

Horizontal Beam Width 90±10°/75±15°

Vetical Beam Width 85°/60°

Front to Back Ratio 》8dB 》10dB

Polarrization Vertical

Intermodulation IM3 ≤-107@2X(33dBM

Input Maximum CW Power 50W

Impedance 50Ω

Mechanical Specifications:

Input Connector N-Female

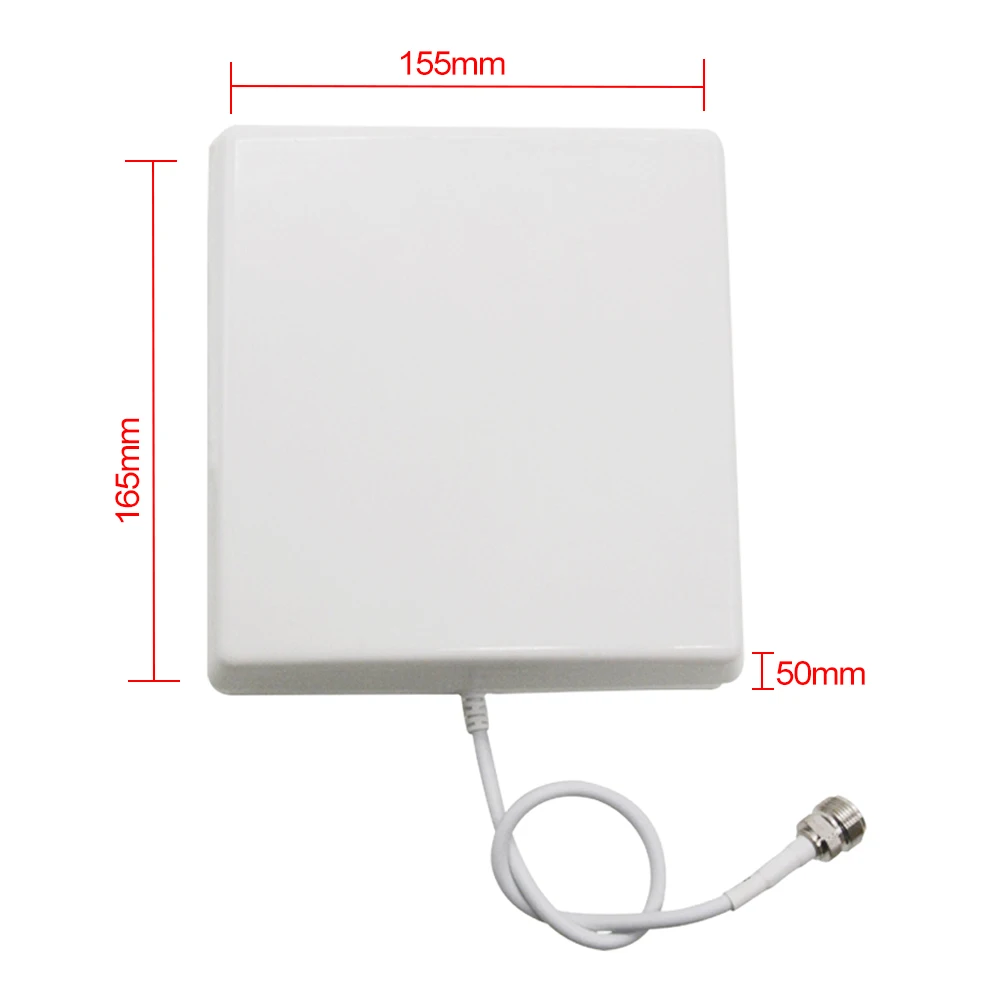

Dimensions of antenna 165X155X50mm

Application scenarios Indoor/Outdoor

Weight of antenna 0.3Kg

Gross weight 300Kg

Temperature range -30℃~+45℃

Radonme material ABS

Installation Steps:

1.Fix up outdoor antenna reception on housetop or the high place and point to signal tower .

2.Connect outdoor antenna to repeater machine ”BTS” port via cable.

3.Connect indoor antenna to repeater ”MOBILE ” port .

4.Plug AC power cord into power source and finished.

5.TIP: An outdoor antenna should be “isolated” from the internal antenna, that is, there must be constructive obstacles (walls, partitions, etc.) between the antennas.
