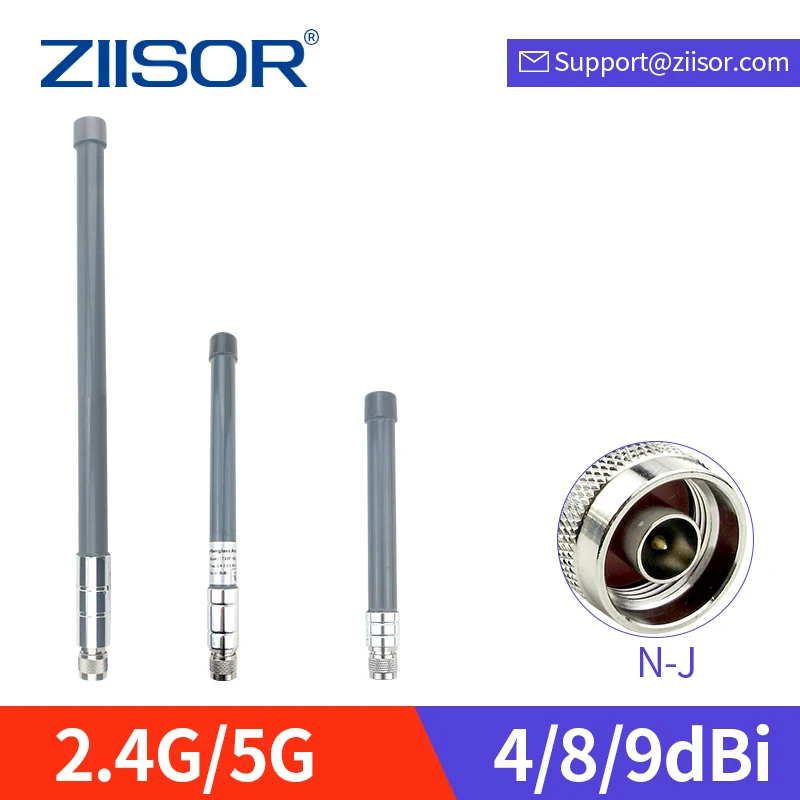

2.4GHz Router Antenna Wifi Extender 5.8GHz Dual Band Antenna N Male Omni Antena for Modem Repeater Monitor Aerial TXWF-BLG-26 – 509

TXWF-BLG-18

MECHANICAL SPECIFICATIONS

ELECTRICAL SPECIFICATIONS

Material

Fiberglass

Frequency

2.4/5.8GHz

Material of Radiator

PCB

Antenna Gain

4dBi

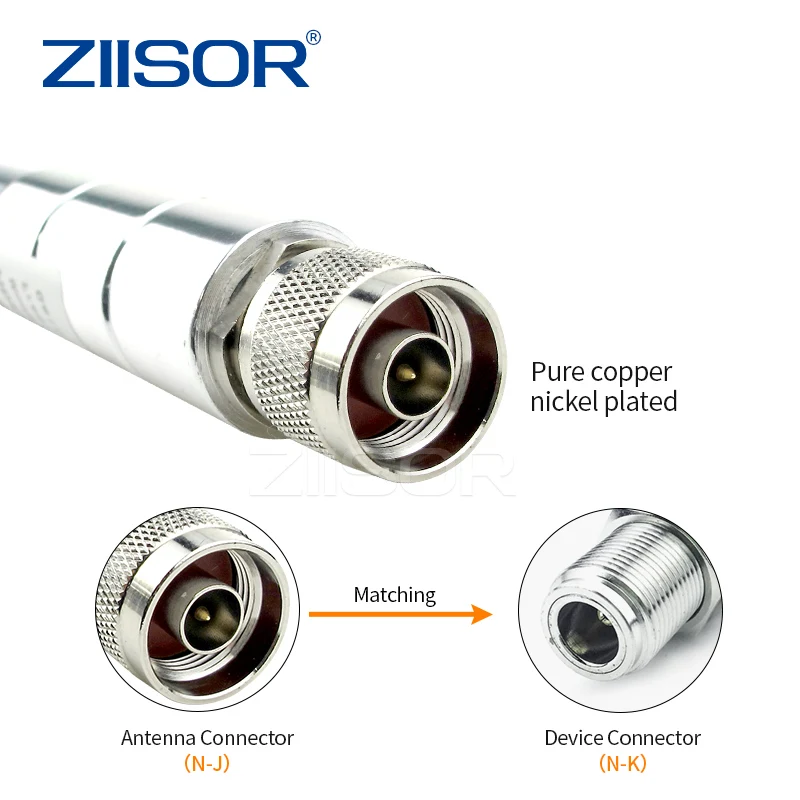

Connector Type

N-Male

Radiation type

Omnidirectional

Antenna Colour

Gray

Polarization

Linear

Overall Length

18mm

Horizontal Beamwidth

360Deg

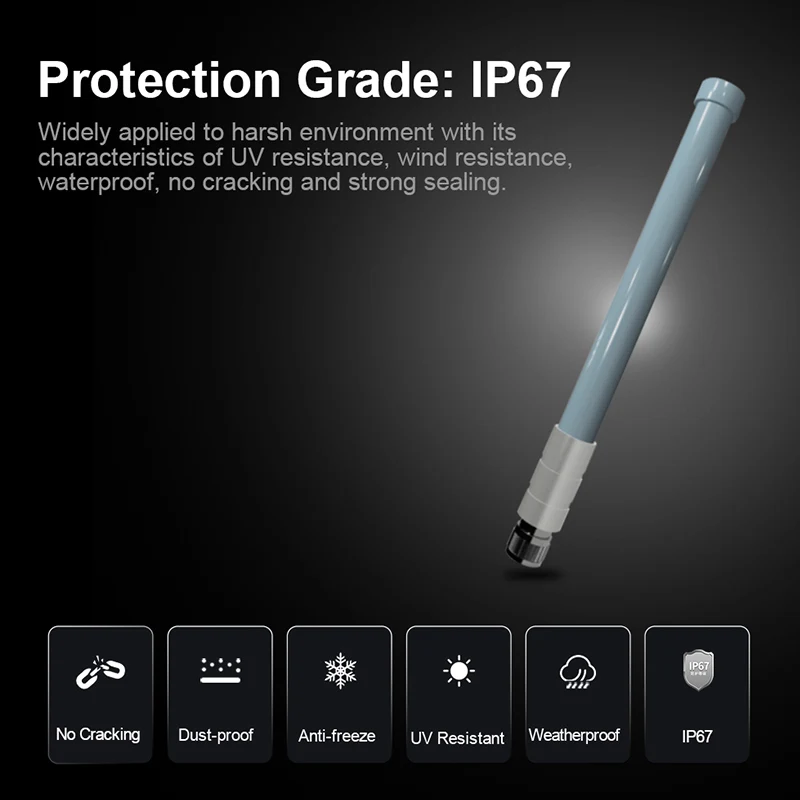

IP Rating

IP 67

Vertical Beamwidth

110Deg±3 Deg

Wind Resistance

60m/s

Nominal Impedance

50Ω

N.W

80g

Max Input Power

50W

G.W

125g

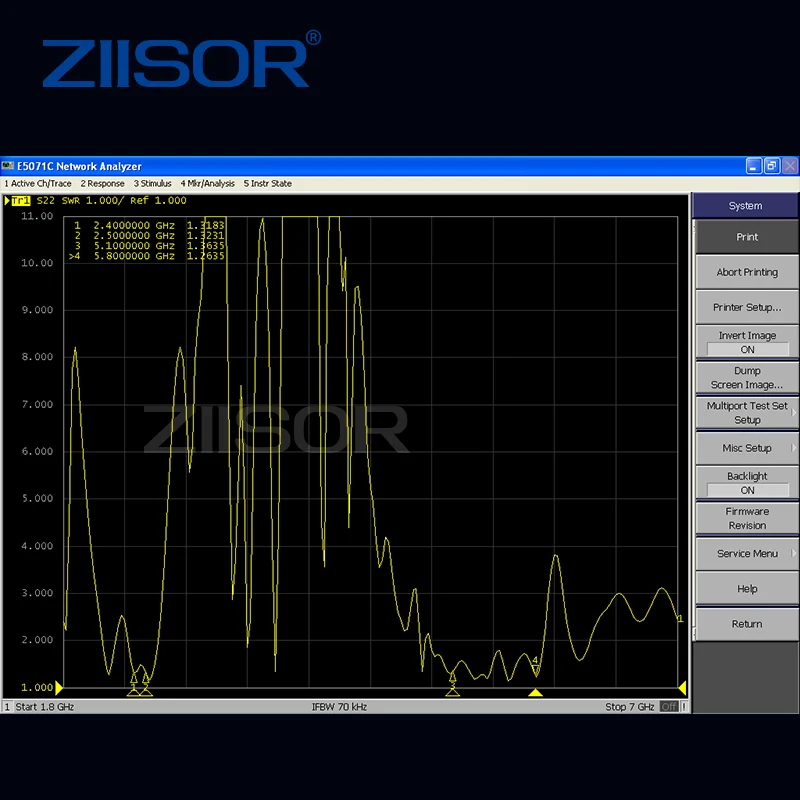

S.W.R.

≤2.0

TXWF-BLG-26

MECHANICAL SPECIFICATIONS

ELECTRICAL SPECIFICATIONS

Material

Fiberglass

Frequency

2.4/5.8GHz

Material of Radiator

PCB

Antenna Gain

8dBi

Connector Type

N-Male

Radiation type

Omnidirectional

Antenna Colour

Gray

Polarization

Linear

Overall Length

260mm

Horizontal Beamwidth

360Deg

IP Rating

IP 67

Vertical Beamwidth

80 Deg±3 Deg

Wind Resistance

60m/s

Nominal Impedance

50Ω

N.W

105g

Max Input Power

50W

G.W

155g

S.W.R.

≤2.0

TXWF-BLG-40

MECHANICAL SPECIFICATIONS

ELECTRICAL SPECIFICATIONS

Material

Fiberglass

Frequency

2.4/5.8GHz

Material of Radiator

PCB

Antenna Gain

9dBi

Connector Type

N-Male

Radiation type

Omnidirectional

Antenna Colour

Gray

Polarization

Linear

Overall Length

400mm

Horizontal Beamwidth

360Deg

IP Rating

IP 67

Vertical Beamwidth

100/75Deg±3 Deg

Wind Resistance

60m/s

Nominal Impedance

50Ω

N.W

140g

Max Input Power

50W

G.W

230g

S.W.R.

≤2.0
