2/3/4G Outdoor Directional N-Female 10/11dBi Outside LPDA Antenna Omni External Antenna for Mobile Phone Signal Booster Repeater

Packing include:

1 x outdoor antenna

Choose the one you want and place an order, we will ship what you choose.

1.The Outdoor Omni Antenna:

Model: CAOO0727-05360

Compatible with 4G mobile broadband Modems router, simple installation, no software required.

Fits 4G modems with SMA male/TS9/CRC9 por

Compatible list :3G 4G Router modem

Usable indoor or outdoors Enhance and maintain excellent signal quality.

Frequency range : 698-960/1710-2700MHZ

VSWR: <2.5

Gain: 10dBi

Polarization Type: Vertical

Radiation : Omni

Max Power imput: 10W

Input Impedance: 50 Ohms

Connector Type : N-female

Material: Metal+Plastic

Color: White

Installation Tips:

Antenna should be mounted vertically to maximize performance

Antenna should not be mounted against meta

2.The Outdoor Log Periodic Dipole Antenna:

Model: CAOY0727-0970

Frequency: 806-960/1710-2500MHz

Gain: 8.2dBi@806-960, 9.5dbi@1710-2500

VSWR: <=1.4

Max power: 100W

Impedance: 50Ω

Polarization: Vertucal

Horizontal Beamwidth: 65°

Vertical Beamwidth: 55°

Front to Back Radio: >=18dB

Lightning Protection: DC Ground

Weight: 0.87kg

Color: White

Dimension: 293x210x65mm

Connector Type: N-Female customized

Terminal line white 5D-FB, L=350m

Radiating Element Material: Copper

Radiating Material: UV-Resistance ABS

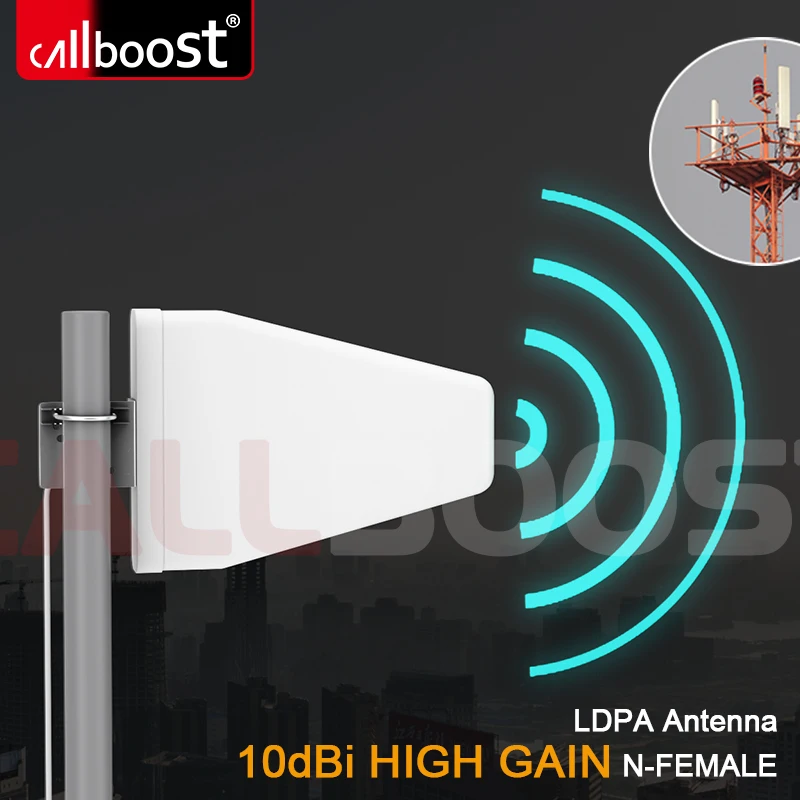

3.The Outdoor Log Periodic Dipole Antenna:

Model: CAOY0727-1170

Frequency: 698~960/1710~2700MHz

Gain: 10/11 dBi

VSWR: <=2.0

Max power: 100W

Impedance: 50Ω

Polarization: Vertucal

Horizontal Beamwidth: 70°

Vertical Beamwidth: 50°

Lightning Protection: DC Ground

Weight: 1.1kg

Color: White

Dimension: 293x210x65mm

Connector Type: N-Female customized

Reflector Material: Aluminum

Radome Material: ABS

Rated Wind Velocity: 210 km/h

Operating Temperature: -40°C to +65 °C

Mounting Pole: Ø38-Ø52 mm

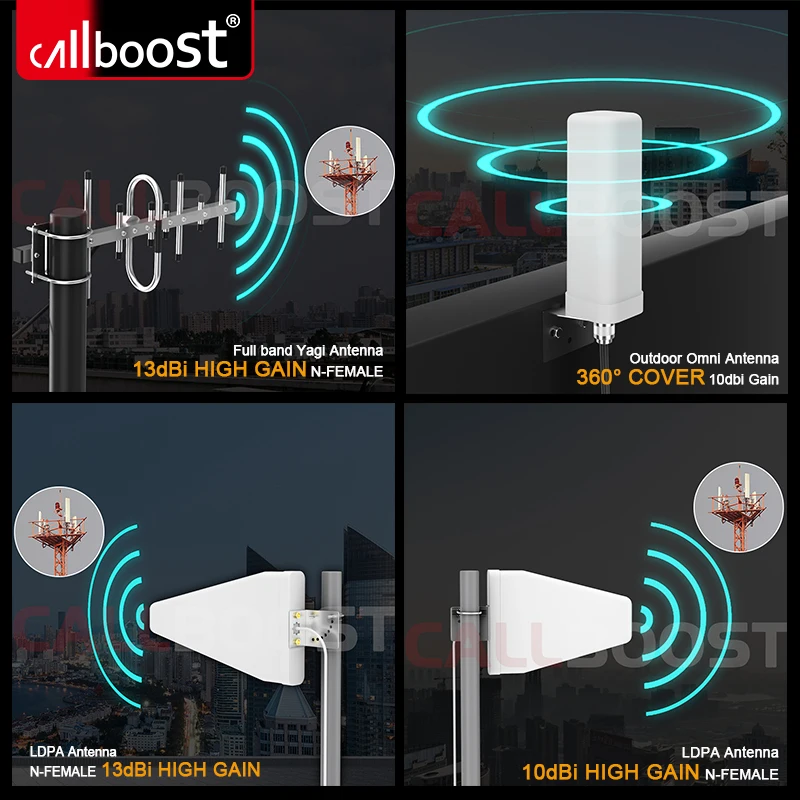

COMPARE WITH TWO LDPA ANTENNA
