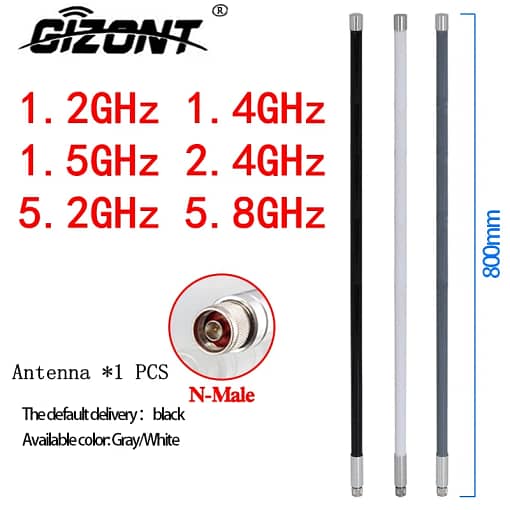

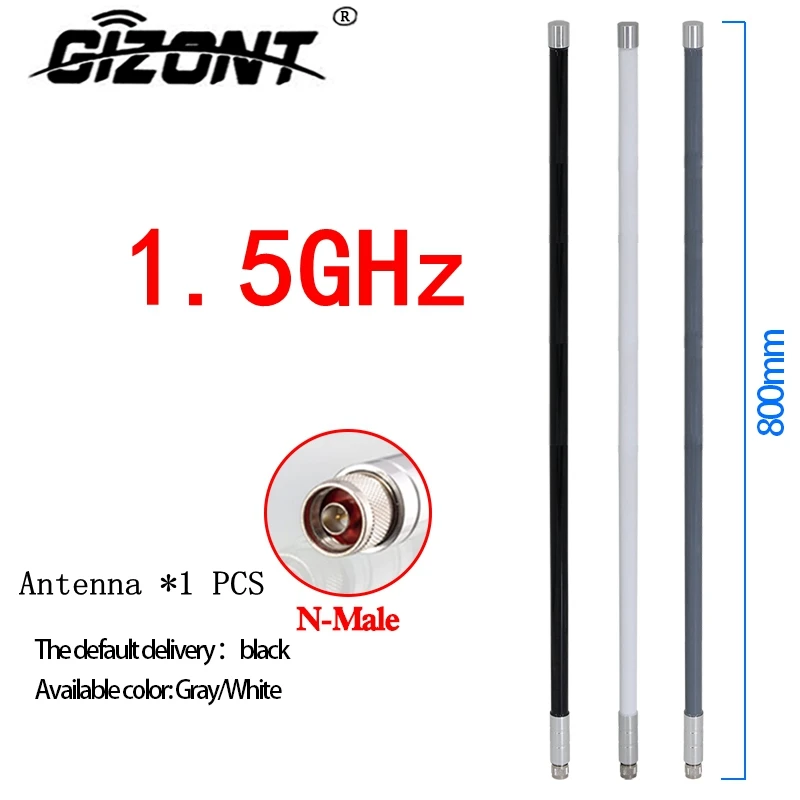

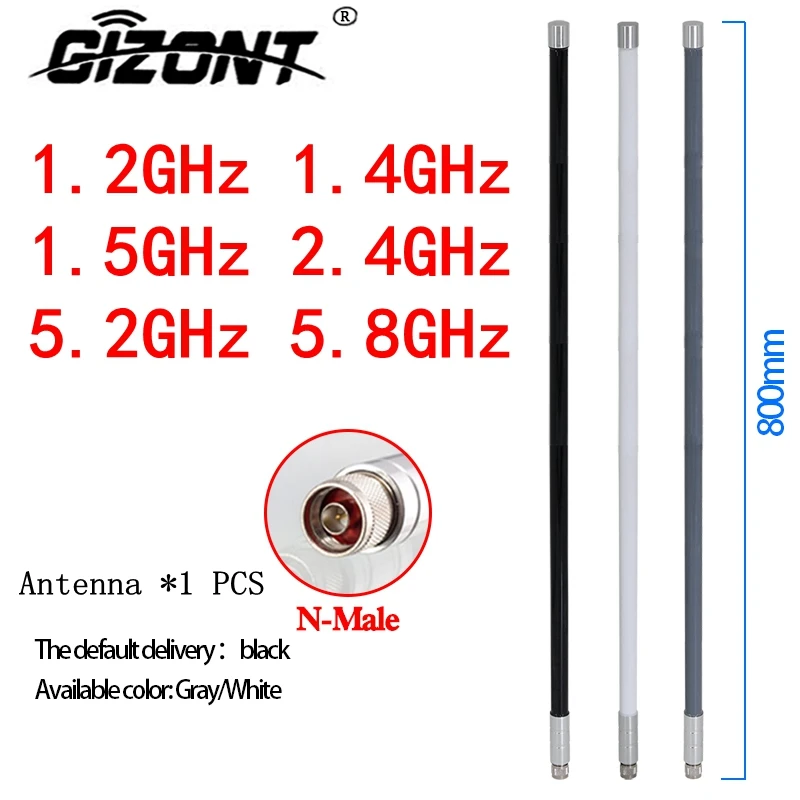

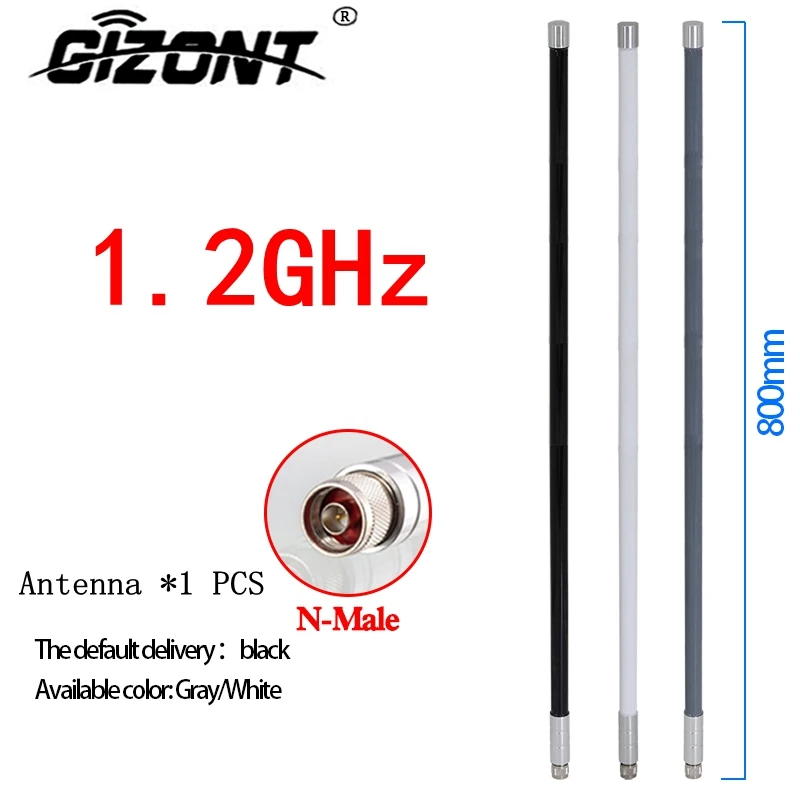

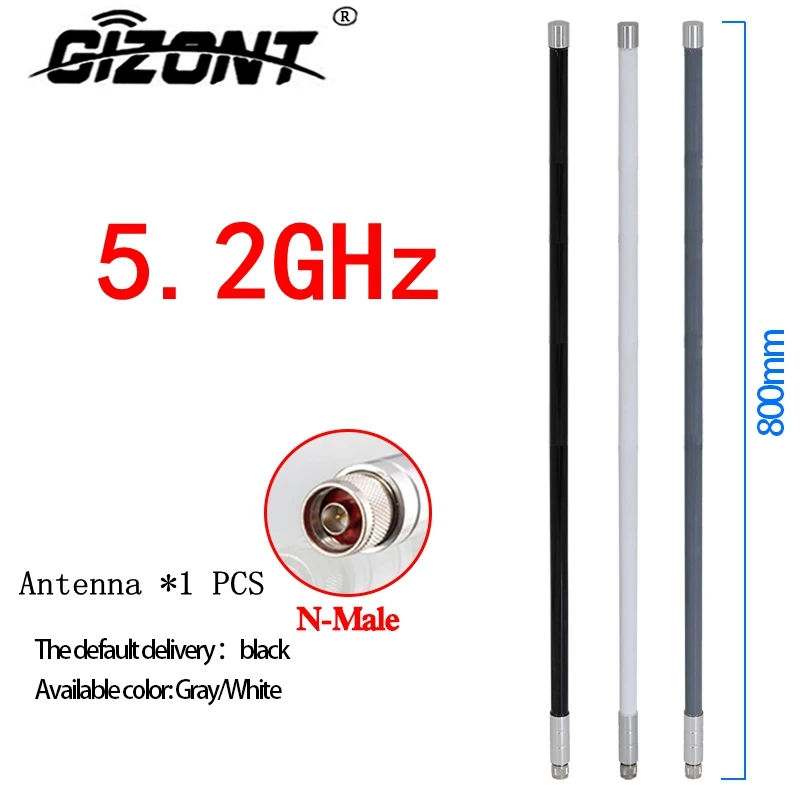

1.2GHz 1.4GHz 1.5GHz 2.4GHz 5.2GHz 5.8GHz antenna high-gain FRP shielded antenna N-head UAV jammer module antenna High power – 509

The link price is 1PCS hree colors can be selected, the default delivery is black, if you need other colors, please contact customer service or order remarks.

Material: Fiberglass

Material of Radiator: Copper

Connector Type: N-male

Colour：Black/Gray/White

Antenna Height: 80CM

Antenna Diameter:2cm

Frequency and Gain: 1.2GHz（10DBI）/1.4GHz（10DBI）/1.5GHz（10DBI）/2.4GHz（12DBI）/5.2GHz（14DBI）/5.8GHz（14DBI）

Radiation type: Omnidirectional

Polarization: Vertical

Nominal Impedance: 50 Ohm

Max Input Power: 50W

S.W.R.: ≤2

Fixing method: U fixture, or magnet suction cup, need to be purchased separately, the store has a link

Fiberglass antenna adopts high temperature and high pressure film pressure technology, which determines that the fiberglass antenna index has unparalleled consistency with other antennas, which not only ensures the progress and high gain of the antenna, but also is very easy to install and debug.

FRP antenna has a variety of advantages, such as light weight, corrosion resistance, anti-aging, good plasticity and other characteristics, so it has a long service life, can meet the needs of users, reduce replacement and maintenance cos
