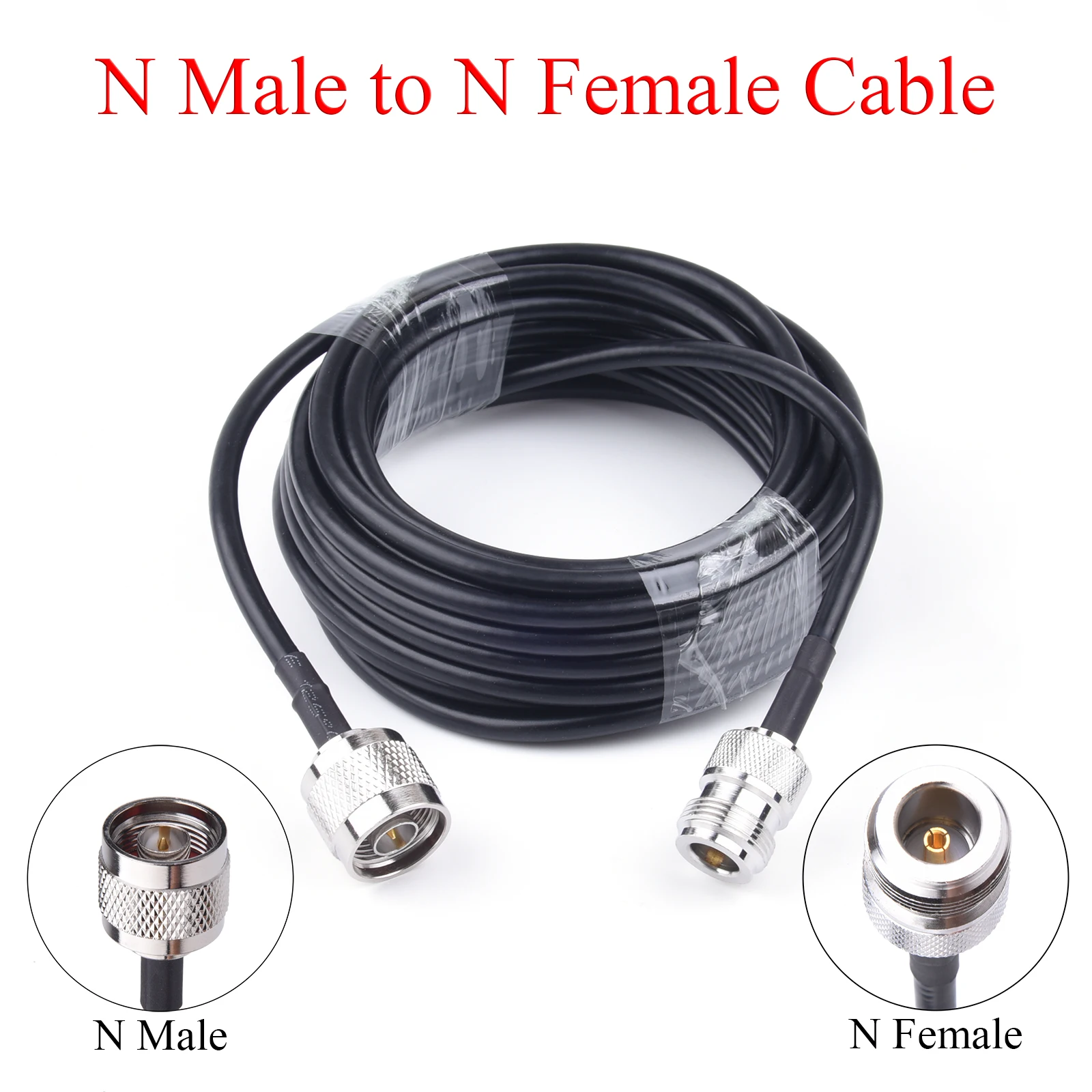

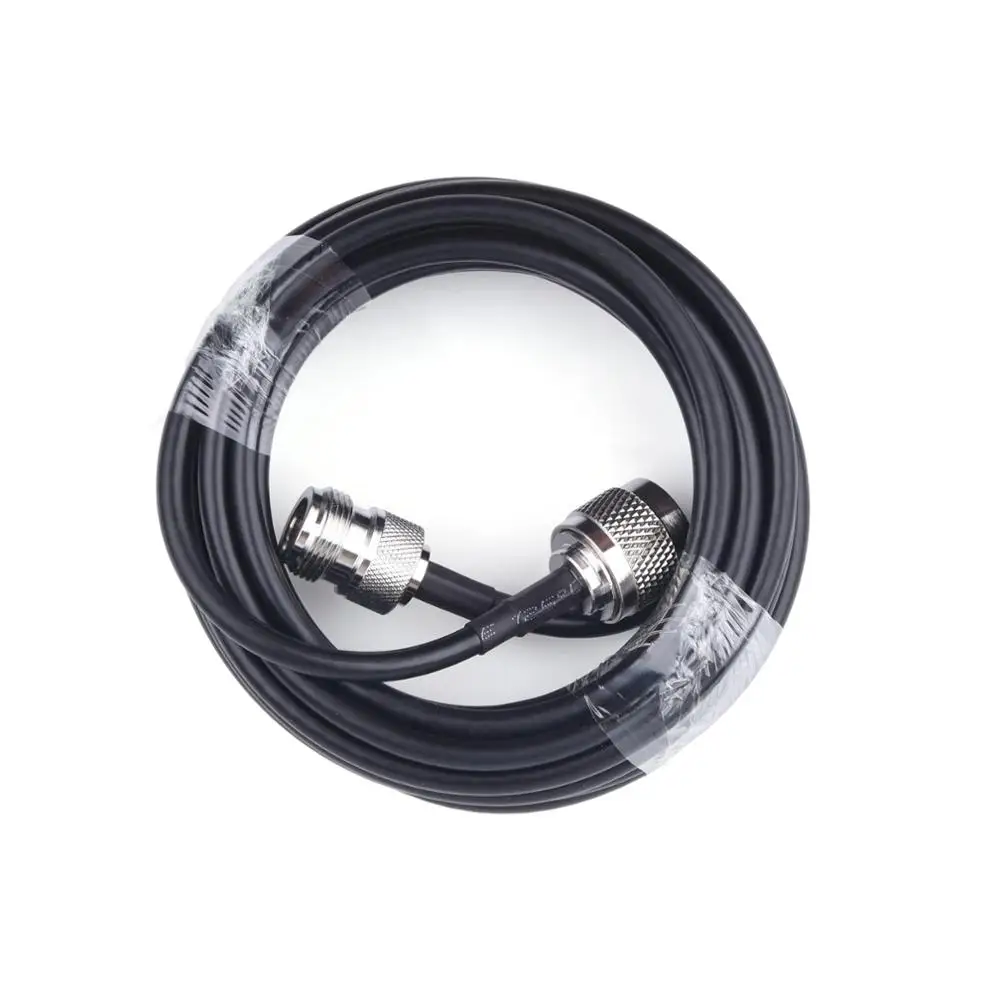

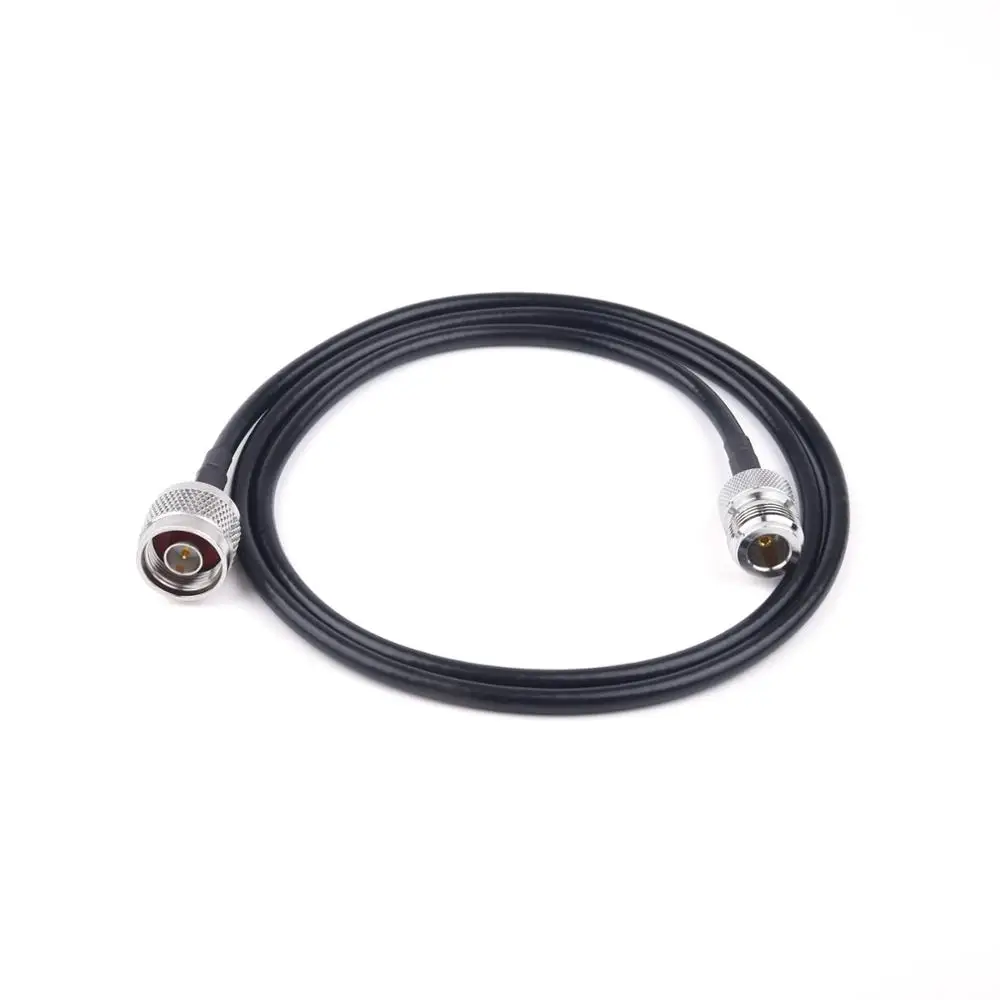

1-20M RG58/50-3 RF Coaxial Cable N Female to Male Extension Wire For Cellular Amplifier Signal Booster Antenna
Type: RF Coaxial Cable
Cable Type: RG58 / 50-3 Coaxial Cable

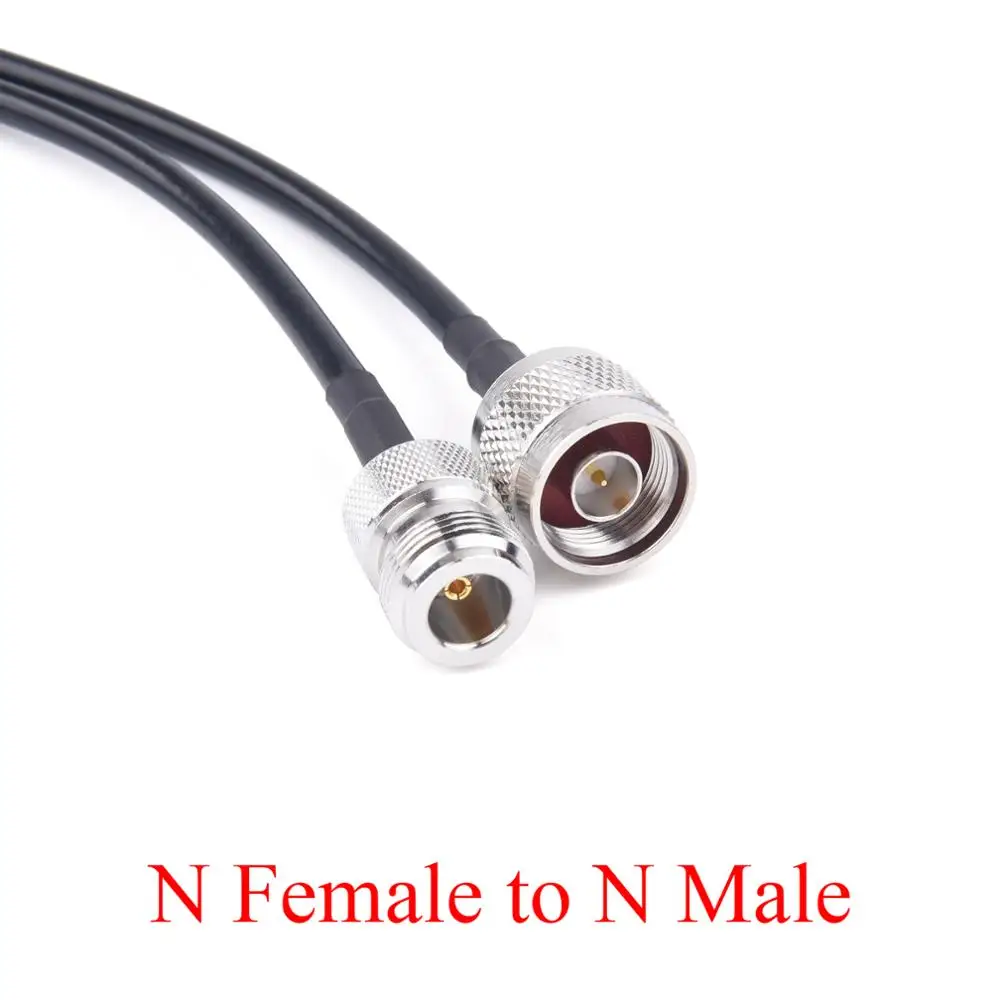

Connector A: N Male Plug
Connector B: N Female Jack
Plug Inner Diameter: Ø16.4mm(0.64in)
Plug Outer Diameter: Ø18.75mm(0.73in)
Female Jack Inner Diameter:Ø8.5mm(0.33in)
Female Jack Outer Diameter: Ø13.45mm(0.53in)
Cable Outer Diameter: Ø4.95mm(0.19in)
Wire Length: 1m(3.28ft), 3m(9.84ft), 5m(16.4ft), 10m(32.8ft), 15m(49.21ft), 20m(65.61ft)
Applications: For 4G LTE Cellular Amplifier, Signal Booster, Cell Phone Antenna, etc
Cable Description
Structure
Inner Conductor
Tinned Copper Wire
Insulator
Polyethylene (PE)
Shielding Layer
Aluminum Foil Mylar
Outer Conductor
Copper Wire Braid
Sheath
Polyvinyl Chloride (PVC)
Electrical Performance Parameters
Capacitance (pF/m)
101.05
Impedance (ohm)
50
Transmission Rate(%)
66
Maximum Working Voltage (KVrms)
1.4
Maximum Operating Frequency (MHz)
1000
Mechanical and Environmental Performance
Working Temperature Range (℃)
-40 to +80
Bending Radius (mm)
25
ROHS Environmental Protection
Meets The
Attenuation
Frequency (MHz)
Attenuation (dB/100m)
100
15.1
400
30.8
1000
50.2
100% Brand New and High Quality.
Shape & Color: Same as the picture show
The Type As Your Choice!!
The Length As Your Choice!!
The Quantity As Your Choice!!
Thanks for your visit & Happy cooperation!!
Note: The measurement data has an error of 1% to 5% due to nature and measurement tools.
