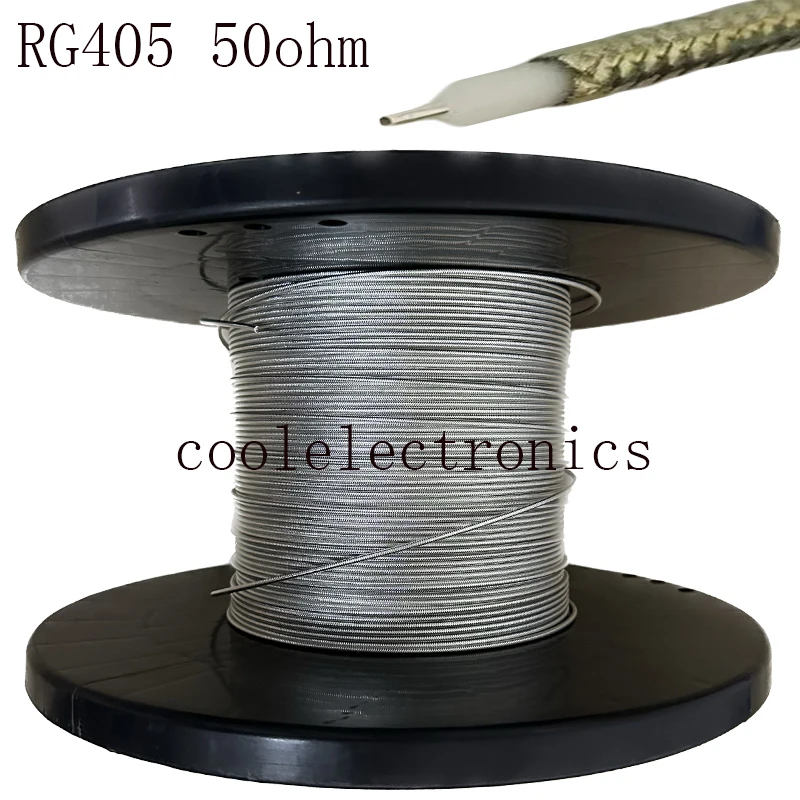

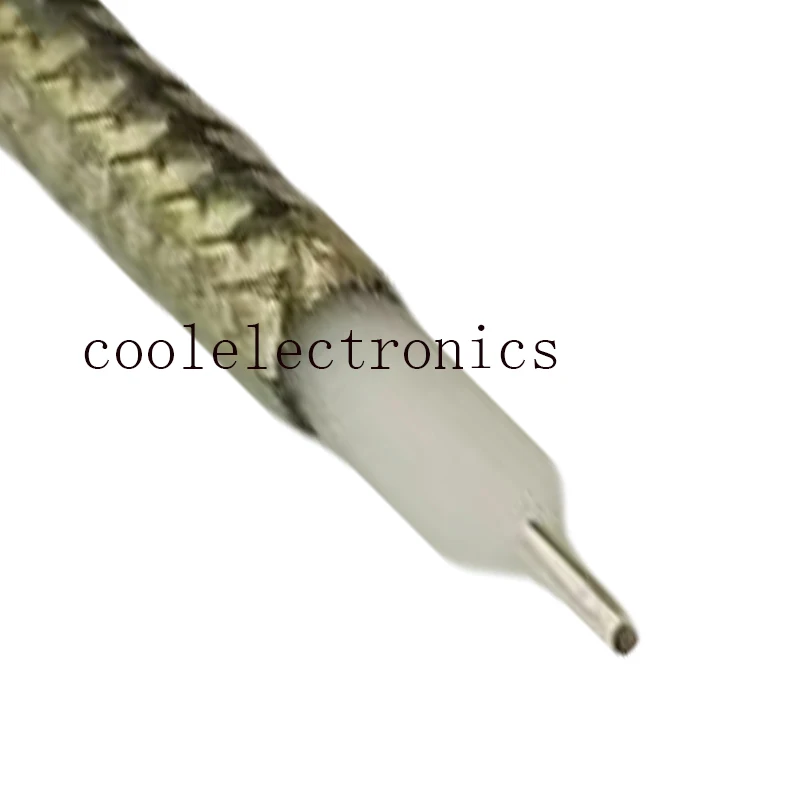

RG405 RF Coaxial cable Semi-Flexible Wires Antenna RG405 0.086 ” Cable 50ohm

Feature:

cable type:RG405

length:choose

Material

Diameter(mm)

1.Inner conductor

Silver Plated copper

0.51

2.Insulation

PTFE

1.68

3.Outer conductor

Copper Tube

2.20

ELECTRICAL PROPERTIES

Nom. Capacitance Conductor to Shield(pF/m)

95.1

Nom. Characteristic Impedance(ohm)

50

Corona Extinction Voltage(VRMS@60Hz)

1.5

Voltage Withstanding (VRMS@60Hz)

5.0

Min. Bend Radius(Install)(mm)

7.63

Outer Conductor Integrity Temp.)

175

Operating Temp. )

-55~+125

Moding Frequency(GHz)

61

Nom. Attenuation

Frequency(MHz)

Nom. Attenuation(dB/m)

500

0.45

1000

0.64

3000

1.26

5000

1.51
