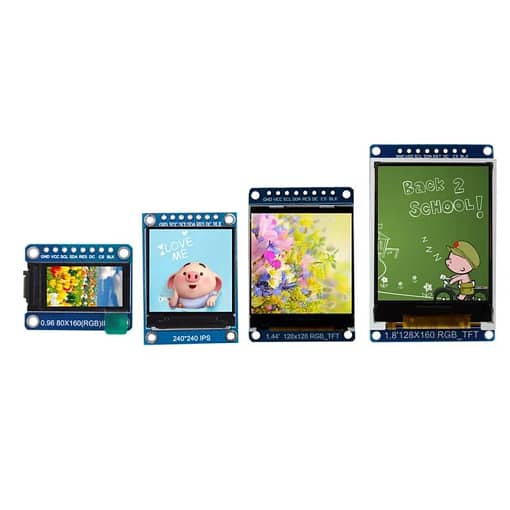

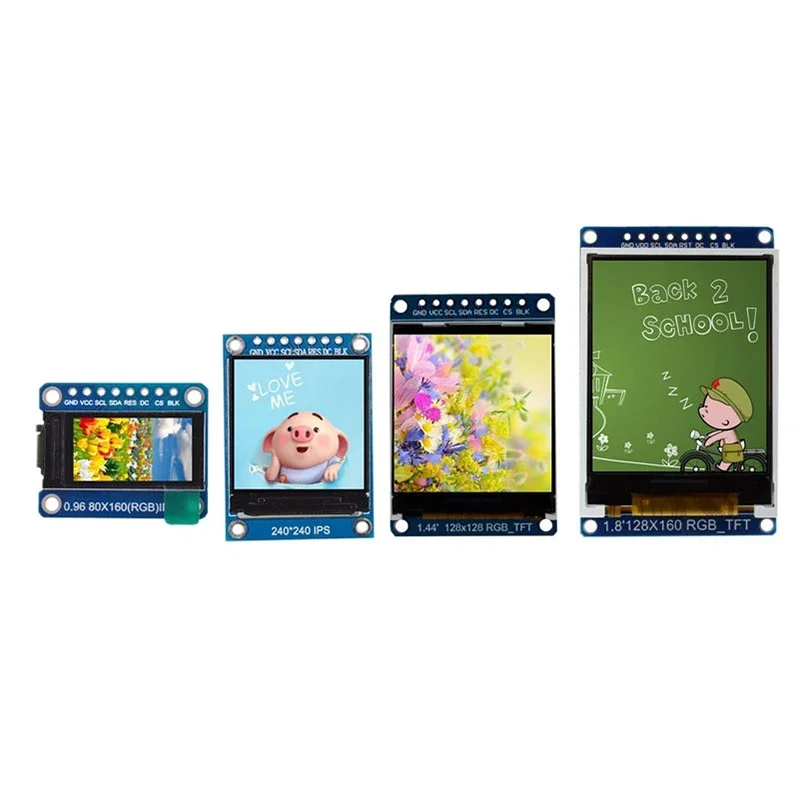

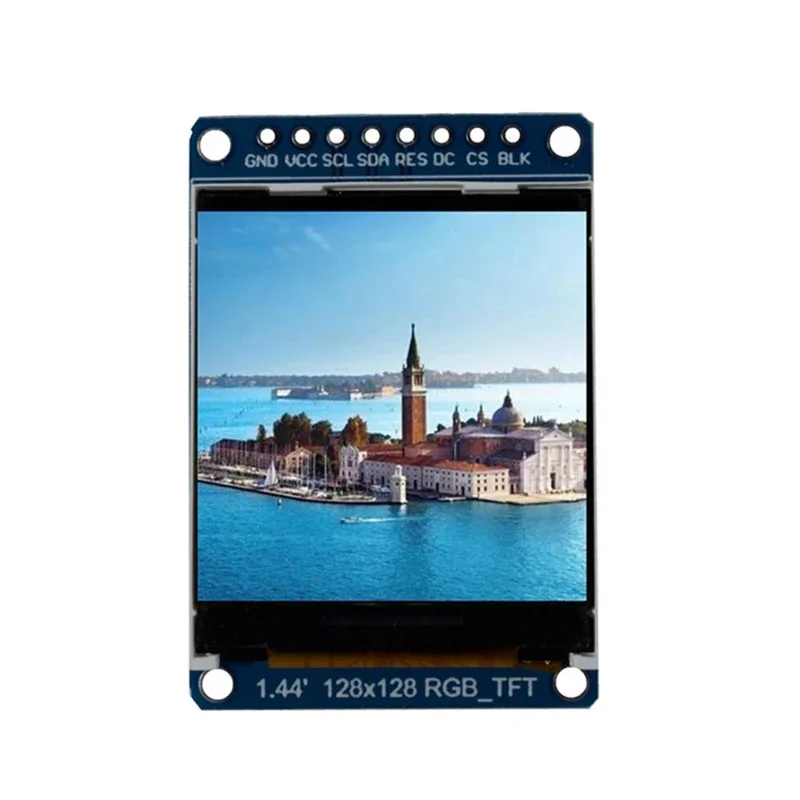

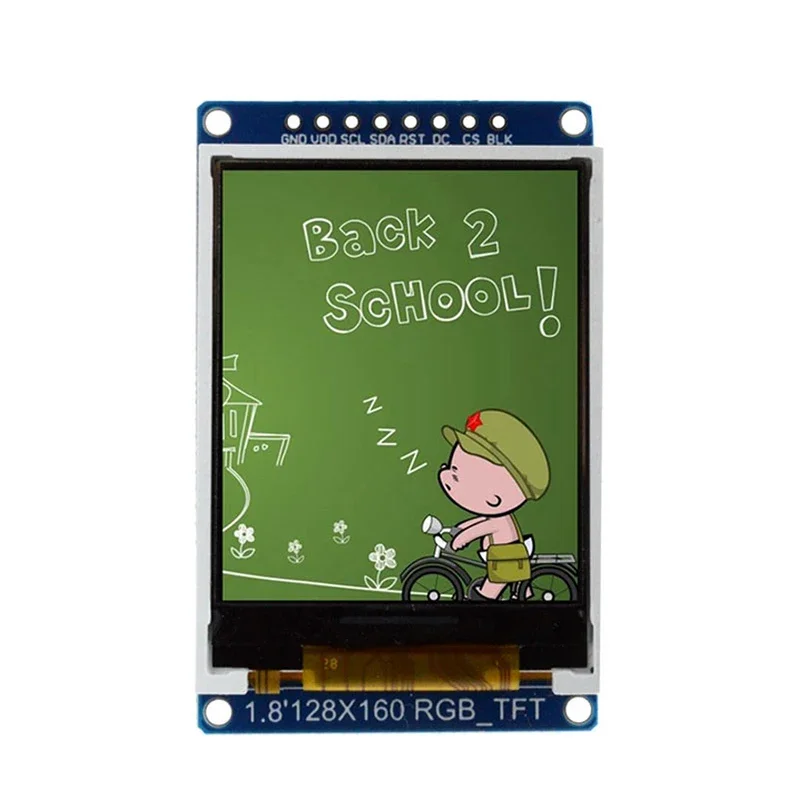

0.96 1.3 1.44 1.8 inch IPS 7p SPI HD 65K full color LCD module st7735/st7789 drive IC 80*160 240*240 (not OLED) – 502

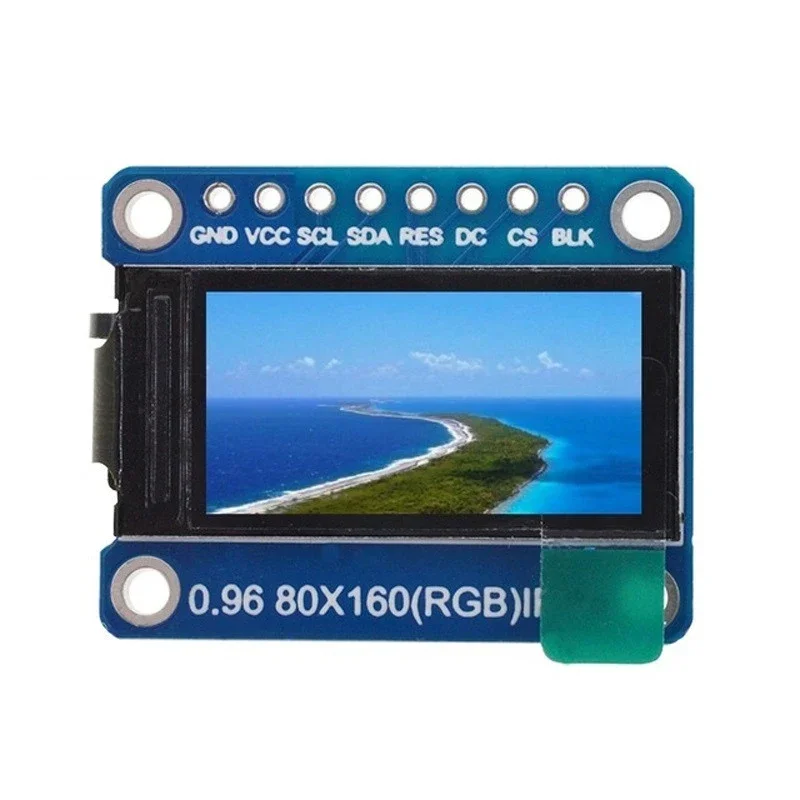

1.Features

SIZE 0.96inch

Display Fashion Normally black IPS

Display Format Graphic 80RGB*160 Dot-matrix

Input Data SPI interface

Drive IC ST7735S

Dimensional outline 24(W)* 30 (H)* 2.8 /-0.1(T)mm

Resolution 80RGB*160 Dots

LCD Active area 10.8 (W)*21.7 (H)

Dot pitch 0.135(H) x 0.1356 (v) mm

Viewing Direction All View

Operating Temperature -20～70°C

2.Pin Descriptions:

PIN No Symbol Description

1 GND Ground

2 VCC Power 3.3V

3 SCL Serial clock pin.

4 SDA Serial data input

5 RES LCM reset pin

This pin is reset signal input. When the pin is low, initialization of the chip is

executed. Keep this pin pull high during normal operation.

6 DC Data/Command Control

7 CS Chip Select

8 BLK Backlight control pin

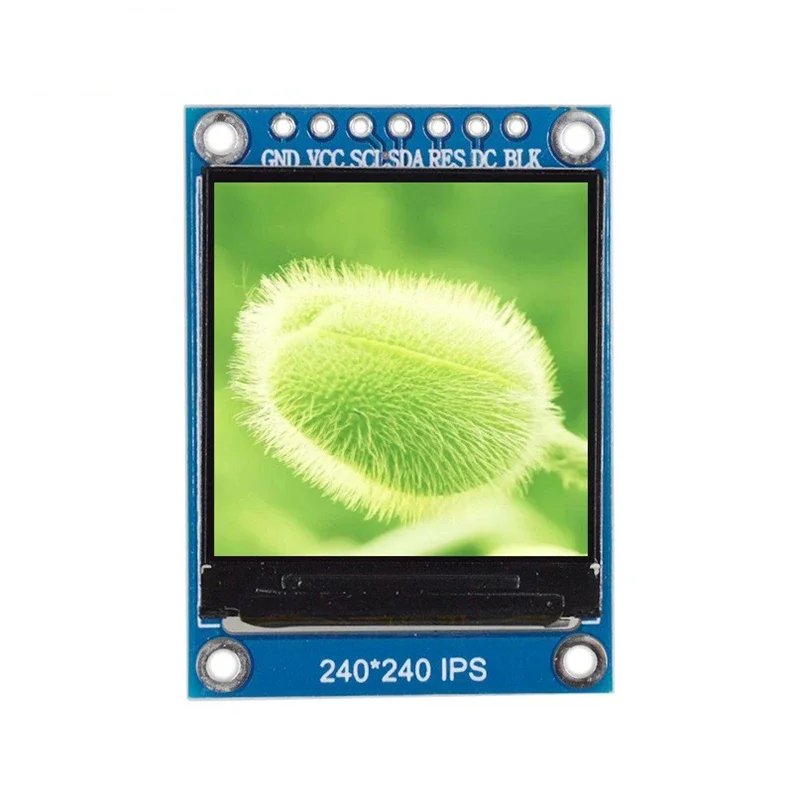

1.Features

SIZE 1.3inch

Display Fashion Normally black IPS

Display Format Graphic 240RGB*240 Dot-matrix

Input Data SPI interface

Drive IC ST7789VW

Dimensional outline 27.78(W)* 39.22 (H)* 3.0 /-0.1(T)mm

Resolution 240RGB*240 Dots

LCD Active area 23.4 (W)*23.4 (H)

Dot pitch 0.0975(H) x 0.0975 (v) mm

Viewing Direction All View

Operating Temperature -20～70°C

2.Pin Descriptions:

PIN No Symbol Description

1 GND Ground

2 VCC Power 3.3V

3 SCL Serial clock pin.

4 SDA Serial data input

5 RES LCM reset pin

This pin is reset signal input. When the pin is low, initialization of the chip is

executed. Keep this pin pull high during normal operation.

6 DC Data/Command Control

7 BLK Backlight control pin
